Diameter 16mm precision ball screw for linear actuator
- Category: >>>
- Supplier: Screw Technology Co. Ltd.
Share on (60373245072):
Product Overview
Description
16mm precision ball screw for linear actuator
Our advantage
◊High quality: We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years rich technical and manufacture experience!
◊Competitive price: We are factory supply that can export directly to customer. so there is no intermediary cost involved
◊Fast response:Your request will get response within 12 hours in any case.
Detailed images

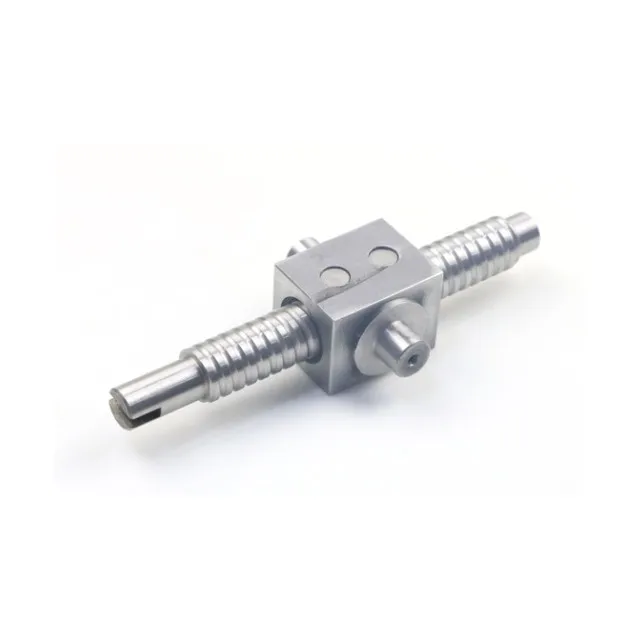

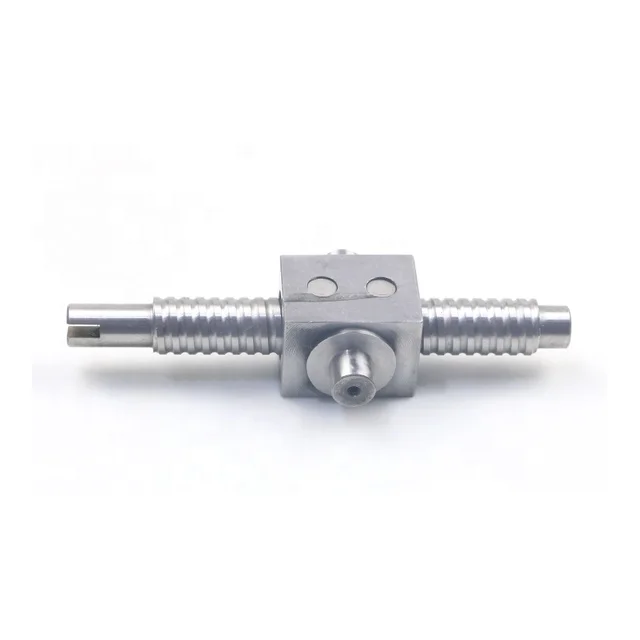

Precision ball screw 1604 for non black oxide

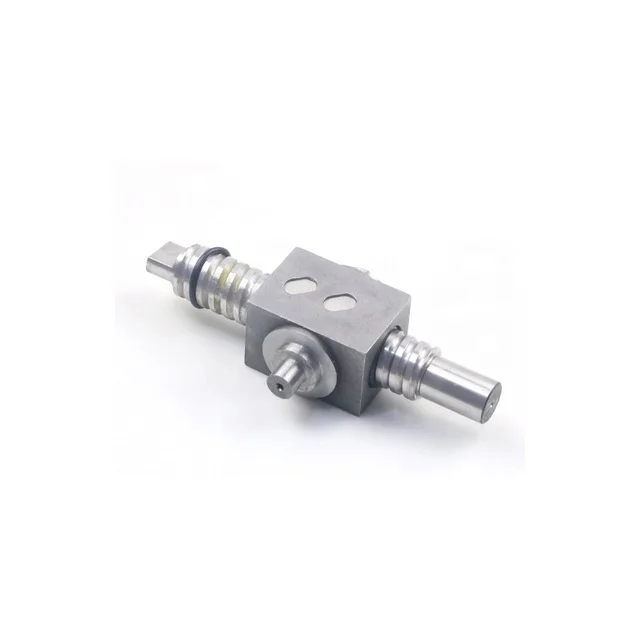

Customized Precision ball screw 1604

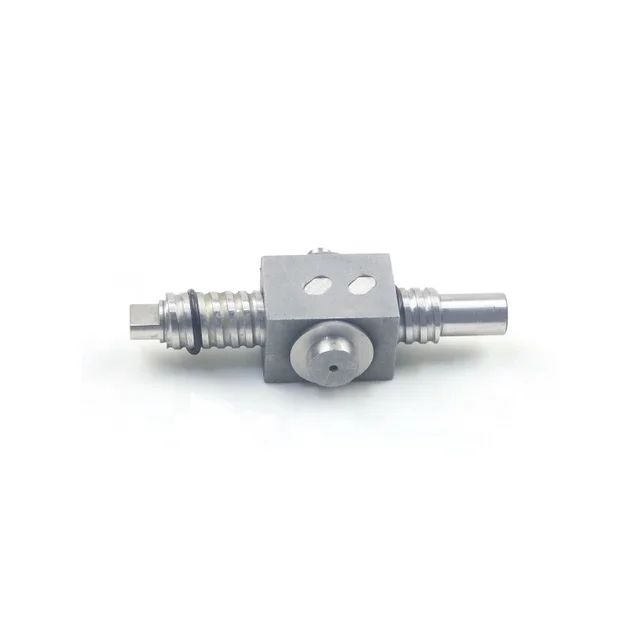

10mm ball screw for M-ISNF1004 with black oxide
1. Specification for M-ISNF series (click to view more)
Model | d | P | Dw | n | Ca | Coa | K | Size of nut | |||||||||
D | A | B | L | PCD | H | X | Y | Z | Q | ||||||||
M-ISNF0401 | 4 | 1 | 0.8 | 2 | 40 | 51 | 2.8 | 10 | 20 | 3 | 12 | 15 | 14 | 2.9 | / | / | / |
M-ISNF0601 | 6 | 1 | 0.8 | 3 | 73 | 121 | 6.8 | 12 | 24 | 3.5 | 15 | 18 | 16 | 3.4 | / | / | / |
M-ISNF0602 | 6 | 2 | 0.8 | 2 | 73 | 121 | 6.8 | 12 | 24 | 4 | 18 | 18 | 16 | 3.4 | / | / | / |
M-ISNF0801 | 8 | 1 | 0.8 | 4 | 161 | 403 | 14 | 14 | 27 | 4 | 16 | 21 | 18 | 3.4 | / | / | / |
M-ISNF0802 | 8 | 2 | 1.2 | 3 | 222 | 458 | 13 | 14 | 27 | 4 | 16 | 21 | 18 | 3.4 | / | / | / |
M-ISNF0802.5 | 8 | 2.5 | 1.2 | 3 | 221 | 457 | 13 | 16 | 29 | 4 | 26 | 23 | 20 | 3.4 | / | / | / |
M-ISNF1002 | 10 | 2 | 1.588 | 3 | 243 | 569 | 15 | 18 | 35 | 5 | 28 | 27 | 22 | 4.5 | / | / | / |
M-ISNF1003 | 10 | 3 | 2.0 | 3 | 245 | 570 | 15 | 20 | 35 | 5 | 30 | 27 | 22 | 4.5 | / | / | / |
M-ISNF1004 | 10 | 4 | 2.381 | 3 | 468 | 905 | 17 | 22 | 46 | 10 | 38 | 36 | 28 | 4.5 | / | / | / |
M-ISNF1201 | 12 | 1 | 0.8 | 3 | 173 | 317 | 15 | 20 | 37 | 5 | 28 | 29 | 24 | 4.5 | / | / | / |
M-ISNF1202 | 12 | 2 | 1.588 | 3 | 334 | 902 | 22 | 20 | 37 | 5 | 28 | 29 | 24 | 4.5 | / | / | / |
M-ISNF1202.5 | 12 | 2.5 | 1.2 | 3 | 355 | 981 | 22 | 20 | 37 | 5 | 28 | 29 | 24 | 4.5 | / | / | / |
M-ISNF1203 | 12 | 3 | 3 | 3 | 365 | 990 | 22 | 20 | 37 | 5 | 28 | 29 | 24 | 4.5 | / | / | / |
M-ISNF1204 | 12 | 4 | 2.381 | 3 | 454 | 998 | 22 | 24 | 40 | 6 | 28 | 29 | 29 | 3.5 | 6 | 3.5 | / |
M-ISNF1205 | 12 | 5 | 2.5 | 3 | 619 | 883 | 22 | 22 | 40 | 8 | 38 | 32 | 24 | 4.5 | / | / | / |
M-ISNF1402 | 14 | 2 | 1.2 | 3 | 354 | 1053 | 24 | 21 | 40 | 6 | 23 | 31 | 26 | 5.5 | / | / | / |
M-ISNF1602 | 16 | 2 | 1.588 | 3 | 373 | 1200 | 26 | 25 | 43 | 10 | 40 | 35 | 29 | 5.5 | / | / | / |
M-ISNF1602.5 | 16 | 2.5 | 1.2 | 3 | 400 | 1210 | 26 | 25 | 43 | 10 | 40 | 35 | 29 | 5.5 | / | / | / |
M-ISNF1603 | 16 | 3 | 2.0 | 3 | 530 | 13800 | 26 | 25 | 43 | 10 | 40 | 35 | 29 | 5.5 | / | / | / |
M-ISNF1604 | 16 | 4 | 2.381 | 3 | 640 | 13400 | 26 | 28 | 48 | 10 | 42 | 39 | 34 | 4.5 | 8 | 4.5 | M6 |
Not: the size and shape of the nut can be made as per customers’ requirement. | |||||||||||||||||
P: lead . Dw: ball diameter n: number of ball recirculation. K: stiffness (Kgf/μm). Ca: basic dynamic rating load (Kgf). Coa: basic static rating load (Kgf) | |||||||||||||||||
Note: Other sizes,and nut shapes are available upon request!
2. Specification for M-ISNA series
3. Specification for M-ISNC Series
3. Specification for SFU Series
I:lead Da:Ball Dia n:Number of Circuits K: Stiffness(Kgf/um) Ca:Basic Dynamic Rating Load(Kgf) Coa: Basic Static Rating Load(kgf)
Our ball screw features
1. High mechanical efficiency 2. Steady motion
3. Accuracy grade of C3, C5 4. Long service life
5. Good synchronism 6.Own factory supply
7. Manufacture by grinding
Application fields
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine ect..
Our product series
1.BALL SCREW(Material for GCR15 or stainless steel)
2. LEAD SCREW
3. AKD SUPPORT UNIT
4. LINEAR GUIDEWAY
5.COUPLING
