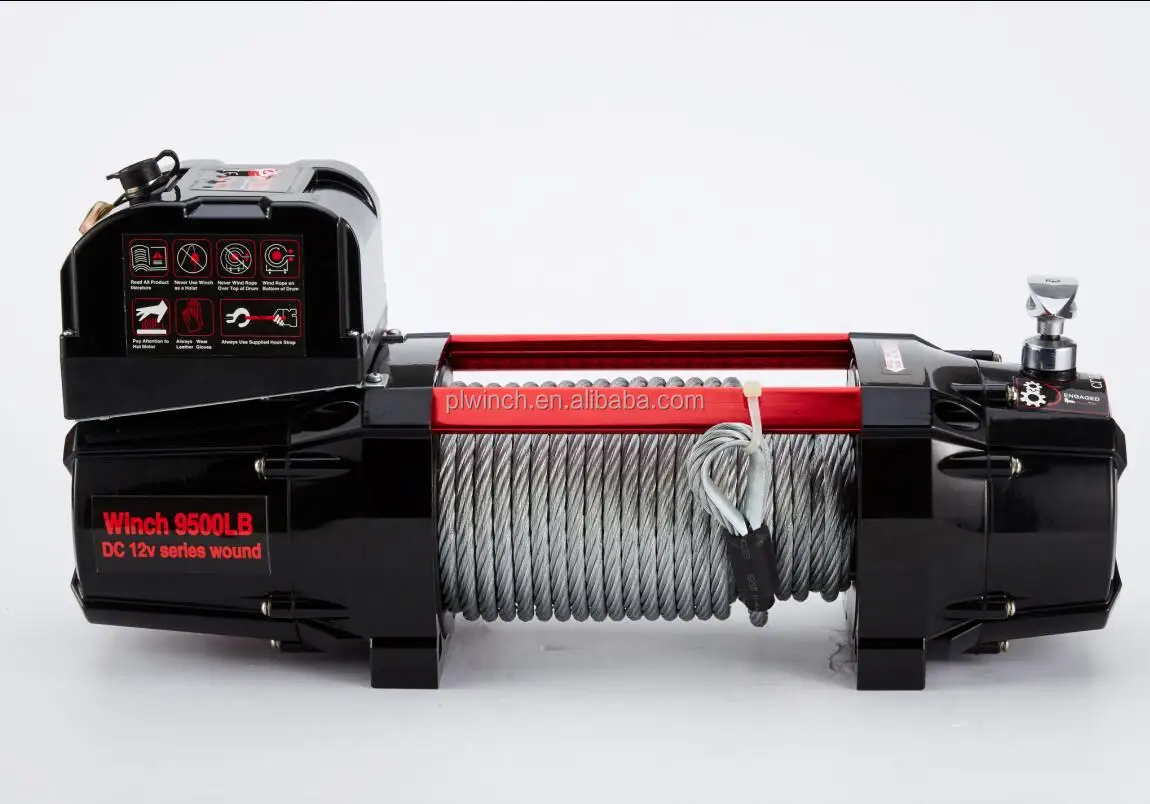

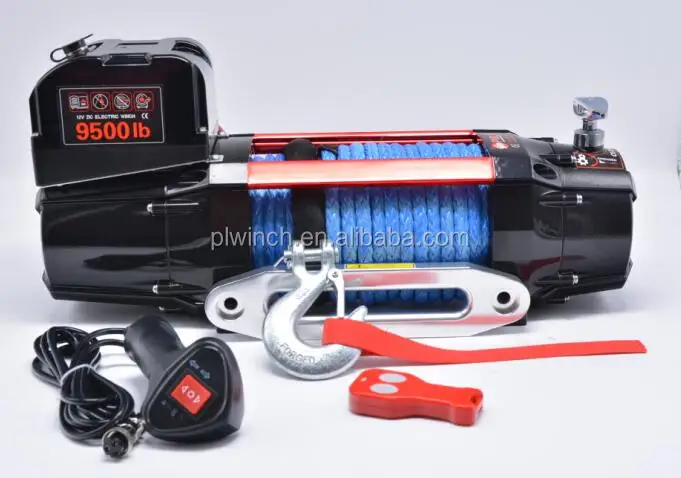

9500lb electric winch off road winch for car jeep recovery with remote control

Product Overview

Description

 9500lb electric winch off road winch for car jeep recovery with remote control



Features:

1.High performance 9500lb self-recovery winch

2.Heavy duty series wound motor gives high torque and fast line speed .

3.Three-stage planetary gear train for smooth, efficient operation.



4.Sealed transmission system with extreme-duty water resistance.

5.Rugged and quiet planetary gears for maximum mechanical efficiency

6.High quality brake system automatically endures full load without slipping

7.Mechanical brake for reliable operator control while winching,brake style for your option.

8.Free spooling cluth with rotating ring gear,very easy to operate.

9.Aluminum die-cast housing with steel drum construction,protect gear assembly from abrasion and wear.

10.Wireless remote control allows you to electrically control  winch spool in /out or stopping from far distance.

11.100% testing before shipping.





Specification:



Rated Line Pull:	9500LB(4310kg) single-line
Motor:	4.6hp/3.4kw 12V, series Motor
Gear Train:	3-stage planetary
Gear Reduction Ratio:	216:1,  Usd5 more for ratio150:1
Clutch:	rotating ring gear
Cable	φ9.5mm×26m  wire rope
Drum Size:	φ64mm×224mm
Overall Dimensions:	(L×W×H) 557x165x260mm,  alu. Die cast housings, ABS box
Gross Weight:	43.5kg  (winch and rope weight 35.5kg)
Duty Cycle:	Intermittently
Fairlead:	4-way roller fairlead
Package:	1pc/box,(590×205×350mm)
Mounting Bolt Pattern:	254 x 114mm
Remote Control:	Included







Our service:

1.We provide different styles of winches,high performance ratio,competitive price.

2.We provide 1 year winch warranty,free spare parts are provided.

3.Winches styles and logo can be design as customer require.

4. 100% testing of  winch pulling capacity and function.before shipping.

5.We are happy to serve for you at any time,don’t hesitate to contact us





Our company:

Ningbo Puli Electric Machinery Co., Ltd., founded in 2010, with 30,000 square meters of production and storage space, is specialized in developing and producing electric winches. After years of efforts, we have three series of more than 600 types of automotive winches covering from ATV/UTV, Off-Road to Heavy duty winch. Puli winches are widely known with its great quality to cost ratio by customers. High performance, high stability of the Puli winches can help you to cross obstacle, keep out of the troubles and make you safe when operating. All our winches have passed extreme test and sell to all over the world, we believe Puli winches can meet or exceed your expectations
