Product Overview

Description

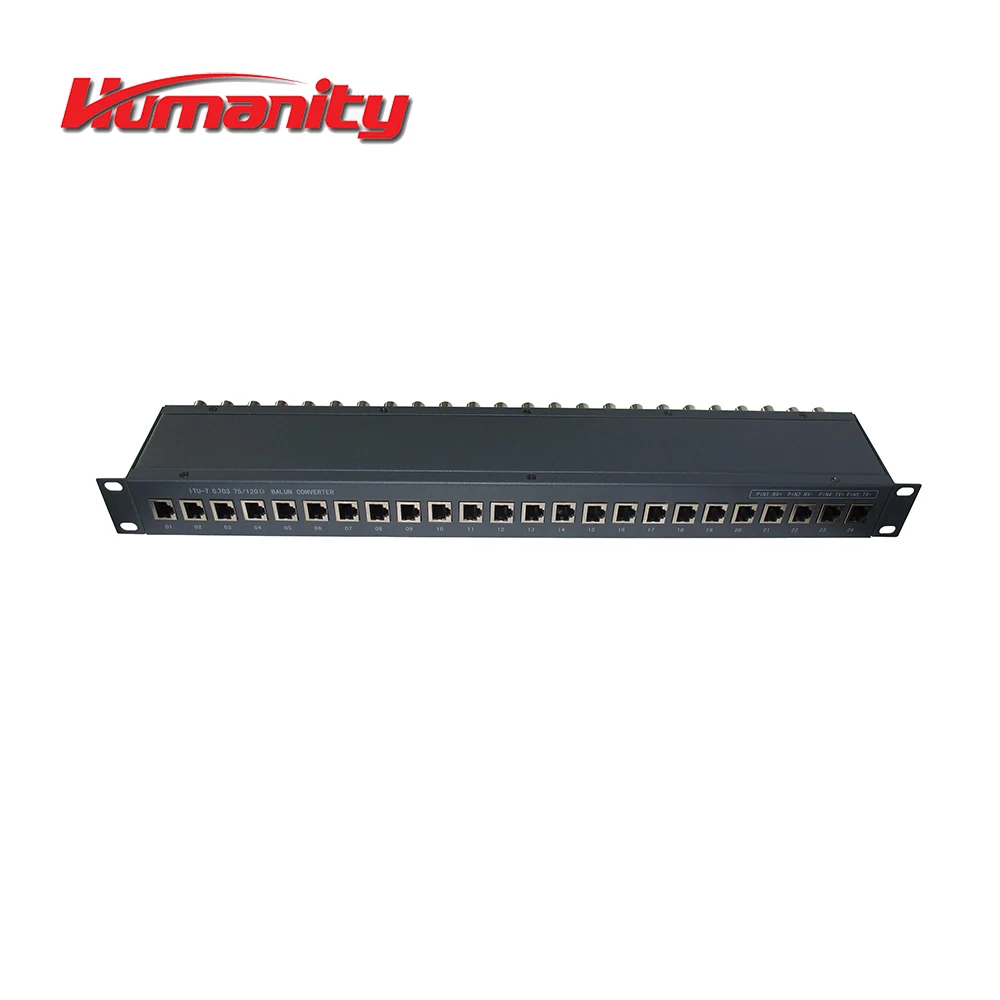

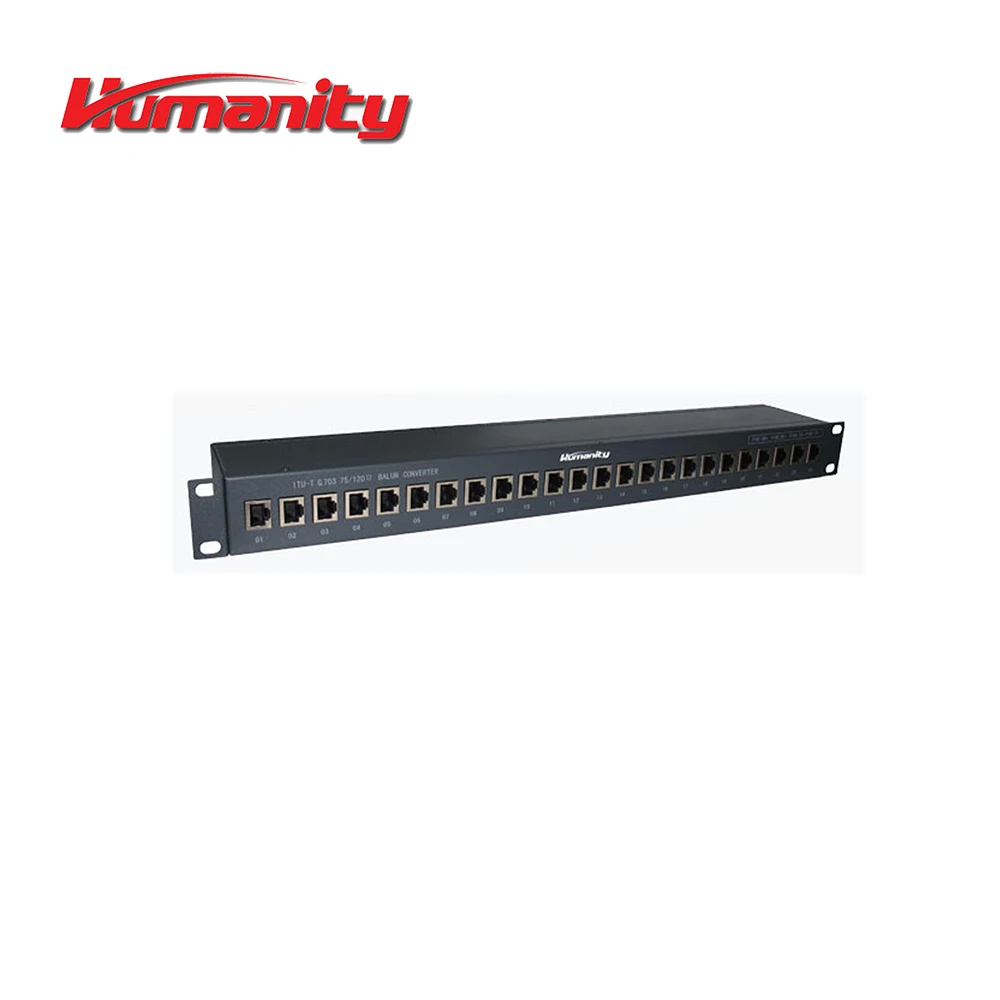

24 ports RJ45 to BNC Balun Panel



HM-C724X 24ports RJ45 to BNC balun panel solves the unmatchable problem between 75ohm and 120ohm. 48xBNC available for 75ohm and 24XRJ45/RJ48 available

 for 120ohm.





Main Features

  • 1U 19inches
  • According to ITU-T G.703
  • Data rates up to 2.048Mbps

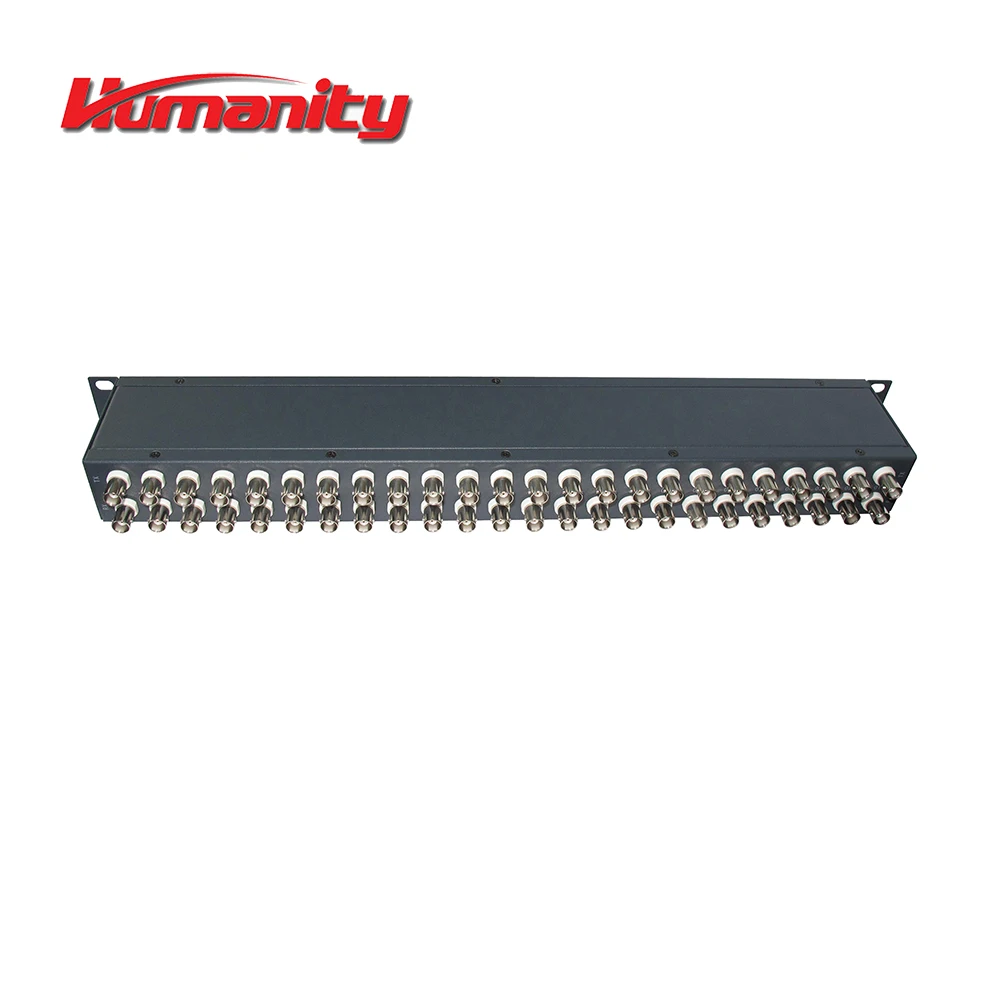

  • 48xBNC for 75Ω and 24xRJ45/RJ48 for 120Ω
  • Bracket at BNC or RJ45 side option
  • Default with female BNC
  • No AC power or battery required
  • Temperature: 0 to 50°C



Interface Features

A. The default of RJ48/RJ45 and BNC is female. Twist pair and coaxial cable as figure below.



 RJ45 BNC.jpg



B. The destination of twist pair as below:



BNC

RJ48RJ45 description

DTE RJ48/RJ45

RX+

Data receiving  +

1

RX-

Data receiving  -

2

TX+

Data sending   +

4

TX-

Data sending   -

5

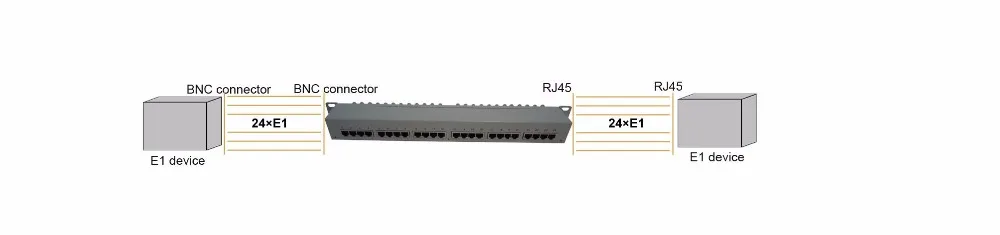

Typical Application








Order Information
ModelDescription
HM-C702Single balun
HM-C71616ports balun panel
HM-C72424ports balun panel, 120ohm with RJ21X, 75ohm with BNC
HM-C724X24ports balun panel, 120ohm with RJ45/RJ48, 75ohm with BN
