Switchable Glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. The PDLC film is what allows you to change the visual appearance of the glass from opaque to clear on command (or dim anywhere in between).
Advantage of switchable glass
1.Controls lighting and energy usage 2.Unprecedented comfort and control 3.Hypoallergenic, unlike dusty traditional window treaments 4.No mechanical parts to fail 5.Reduces ongoing maintenance costs vs. motorized blinds 6.Protects by blocking 99% of UV rays 7.Compatible with existing window treatments 8.Enhances safety by preventing breakage
Secification of switchable glass
Test parameter
Situation
Result
Effect
Optical Test
Parallel
ON
>80%
High Trabsparency
OFF
<4%
Excellent protect privacy
Haze
ON
<6%
High transparency
OFF
>90%
Excellent protect privacy
Visual Angle
ON
145 Degree
Wide angle
UV Blocking
ON
>83%
Environment protect material
OFF
>99%
Infrared Blocking
ON
>20%
Environment protect material
OFF
>90%
Solar Gain Coefficient
ON
0.79
Environment protect material
OFF
0.6
Electrical Test
Power Supply
ON
48±5V
Response time
ON-OFF
60ms
OFF-ON
20ms
Energy Consumption
ON
<3.7w/m2
Saving energy
Size
Thickness
MM
4+4,5+5,6+6
Datas
Working temperature
ON-OFF
-30℃-60℃
Storage temperature
ON-OFF
-30℃-70℃
Life time-indoor
ON-OFF
>100000huors
Switch time
ON-OFF
>20000000
Long service life
Description of PDLC
PDLC (Polymer Dispersed Liguid Crystal) is a light modulating material comprised of droplets of liquid crystal uniformly dispersed in a transparency or translucency, flexible plastic film. When power off, coming visible light scatters through the PDLC, and the film turns translucent; When power on, coming visible light transmits thePDLC and the Film turns clear.
1.When Smart Film is switched on, the electric field effects the high polymer liquid crystals to arrange in order, letting visible lights to go through the film, and hence the film will appear to be clear.
2.While Smart Film is under the off mode, the liquid crystal elements are disorganized and cannot allow any visible light to go through the film, and thus it will appear to be opaque white or black.

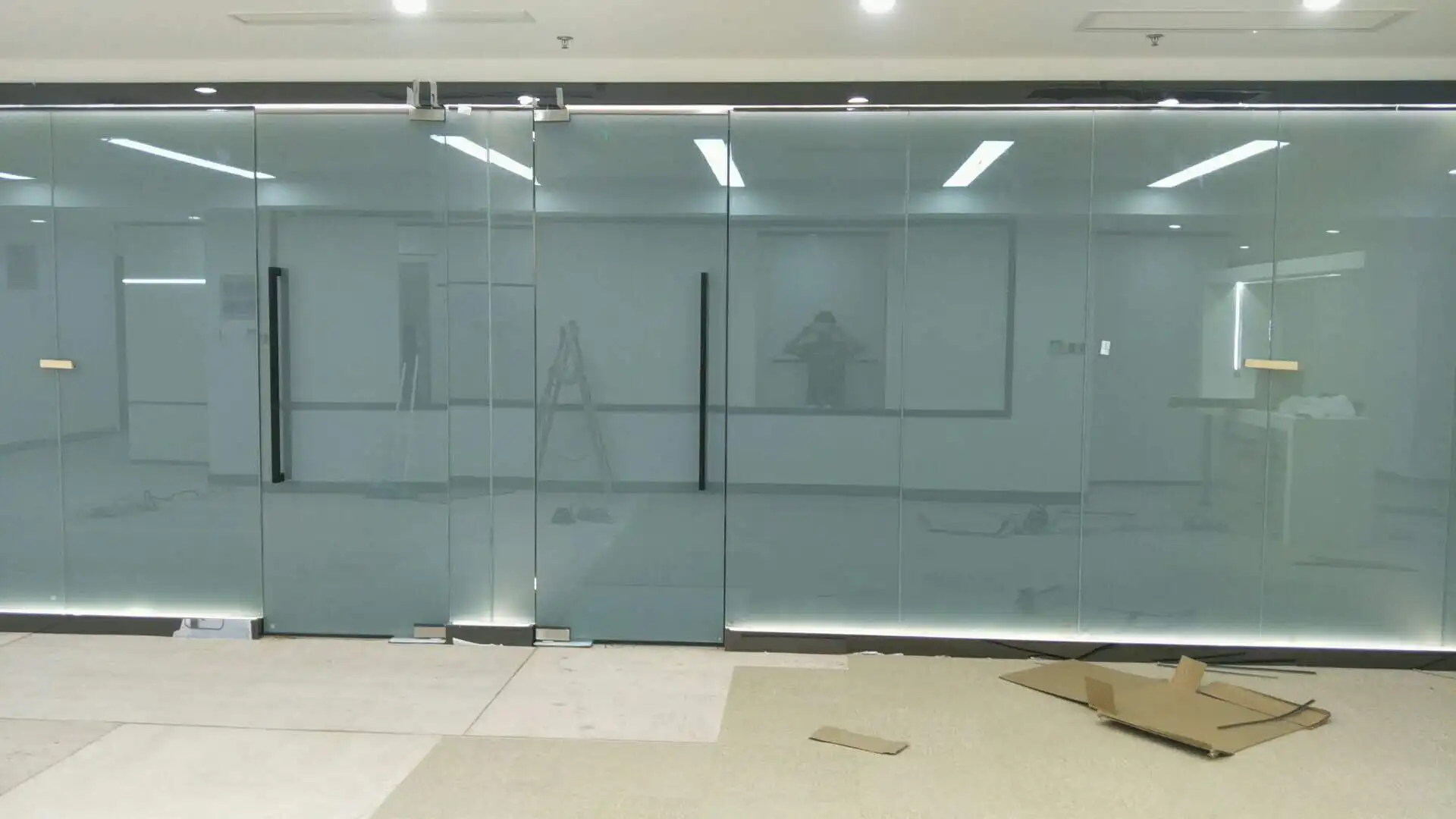

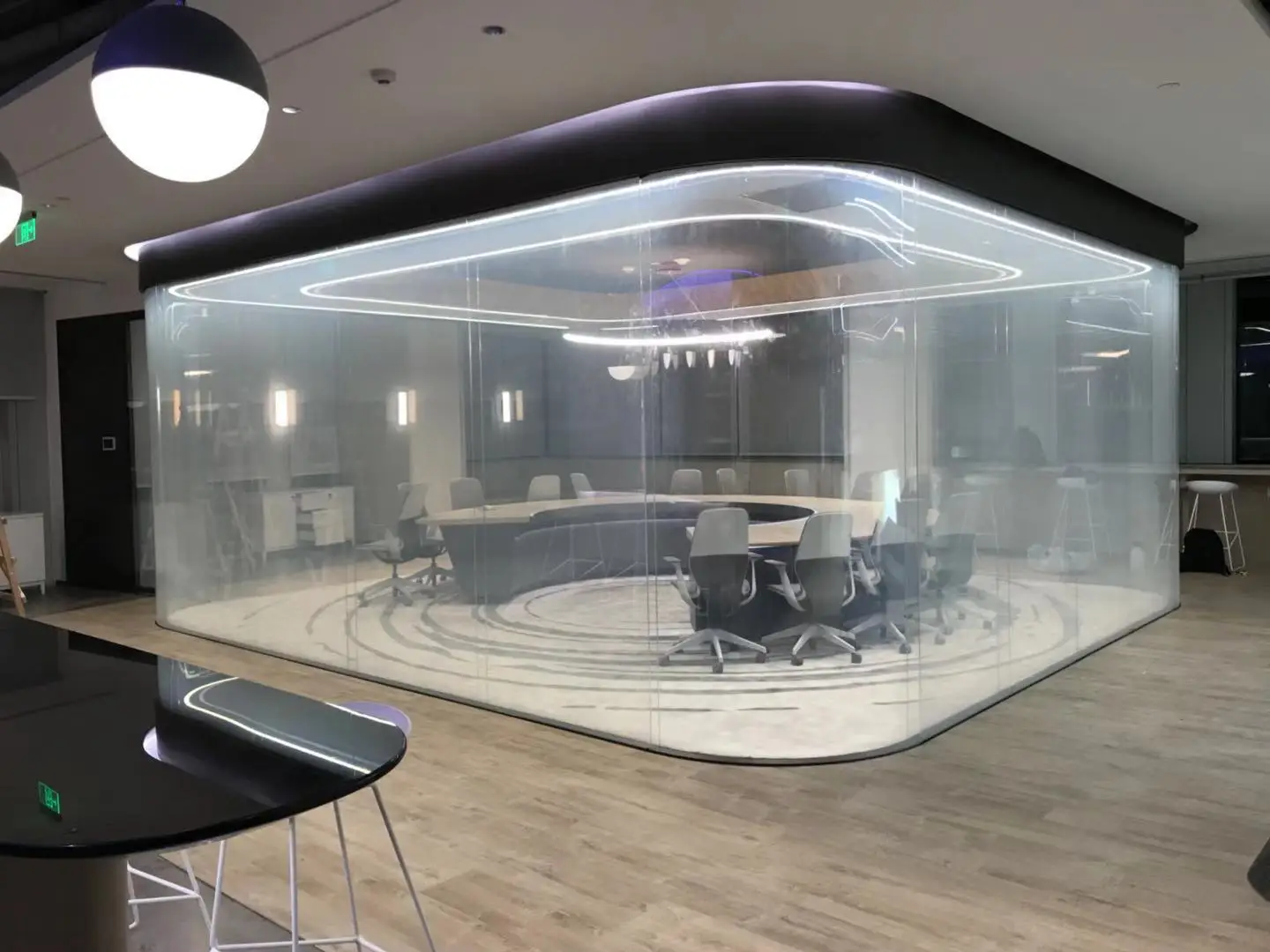

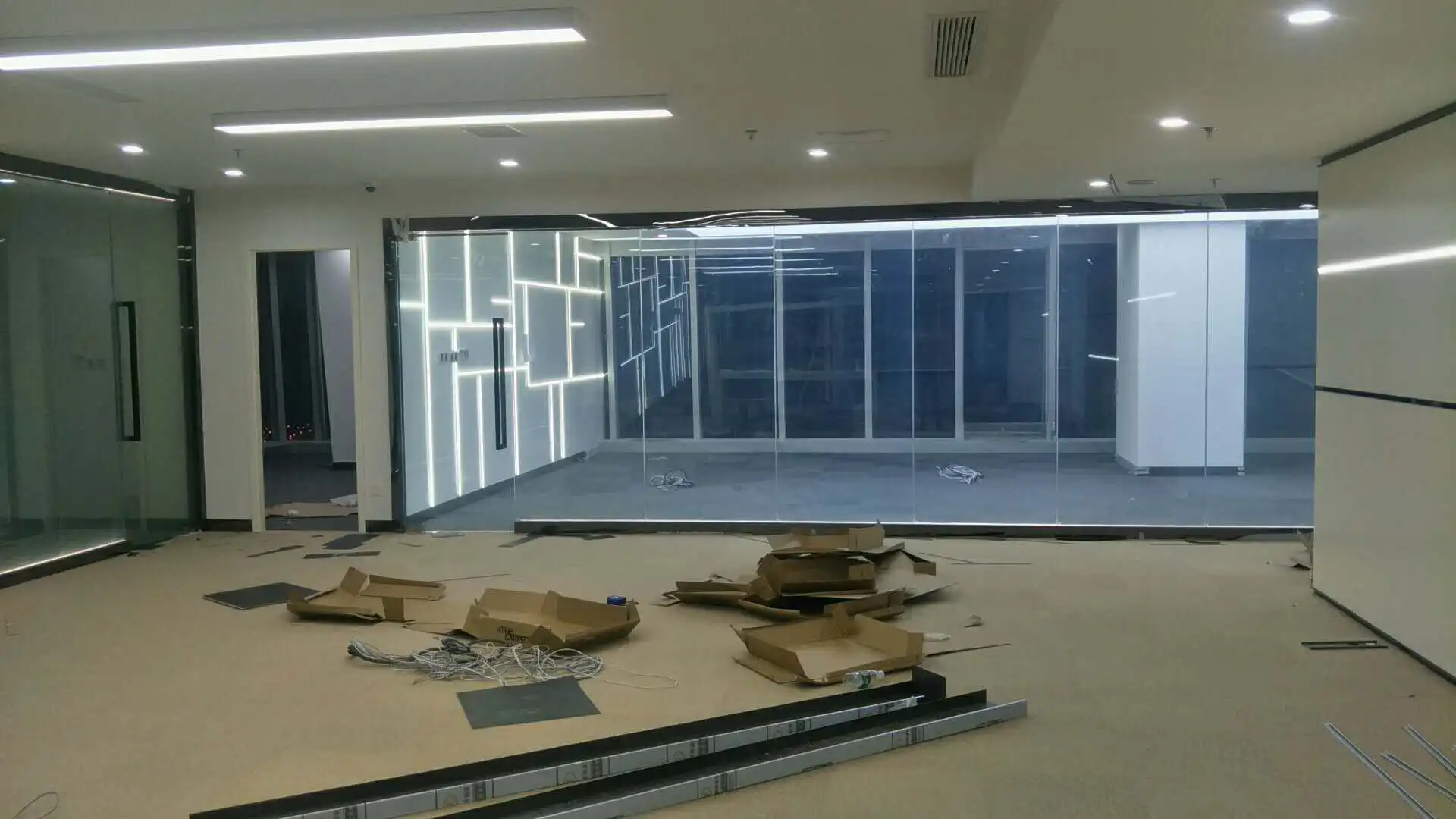

Product Application

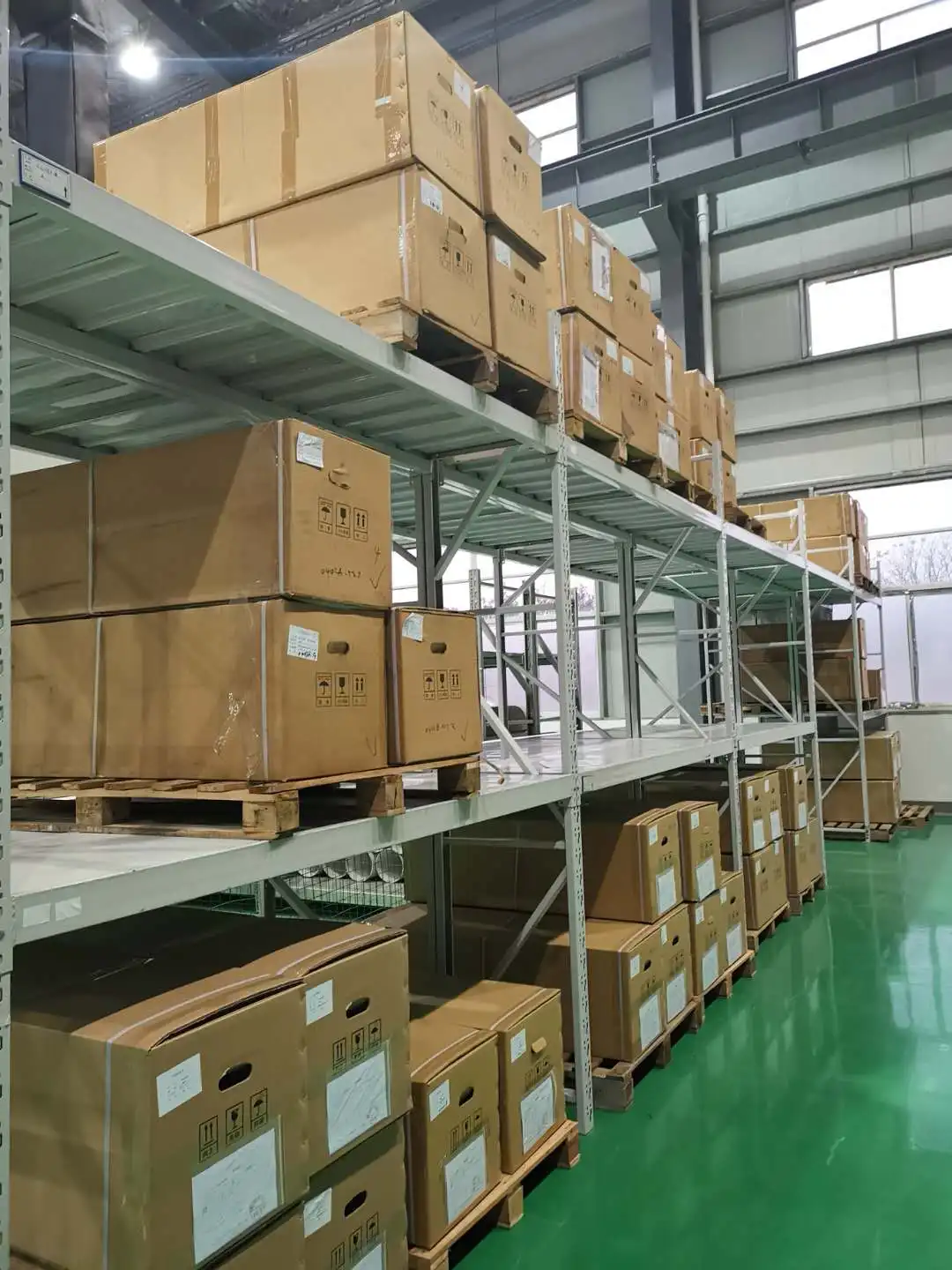

Packaging & Shipping
1)Packing of Switchable Privacy Glass Smart Glass Magic Glass

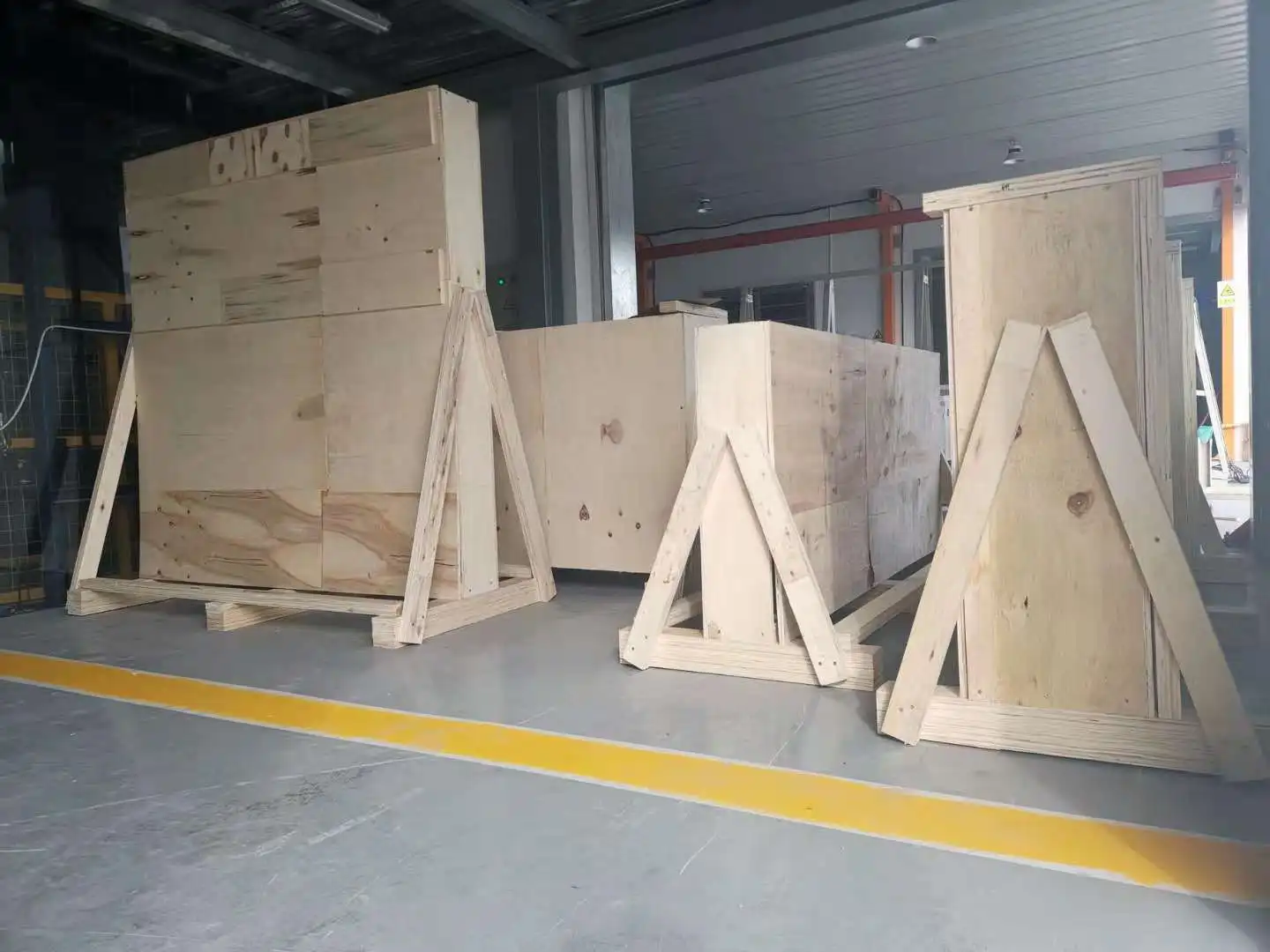

1. Interlay paper between two sheets. 2. Seaworthy wooden crates.
3. Iron/Plastic belt for consolidation
2)Delivery time of Switchable Privacy Glass Smart Glass Magic Glass
5 days after receiving the deposit .
Company Information
Our company is specialized in glass deep processing and export, which is specializing in Building Glass for many years,such as tempered glass, insulated glass, curved & bent glass, laminated glass,frosted glass, bullet proof glass, low e-tempered glass,mirror glass,glass blokc, reflective glass,and louver glass. Our factory is located in Linqu city, Shandong province, China, just 200km from Qingdao port. Our factory was built up in 2004. After 10 years' development, we have become one of the best deep processing glass factories in China with perfect equipment, and a complete product range.Our products are sold in the United States, Italy,India ,Kuwait and other countries and well appreciated by their purchasers and win a high admiration and is widely trusted at home and abroad.
