Vacuum argon atmosphere furnace/nitrogen atmosphere furnace heating with graphite
- Category: Laboratory Heating Equipments >>>
- Supplier: Luoyang Luwei Furnace Co. Ltd.
Share on (60373834691):
Product Overview
Description
Product Description

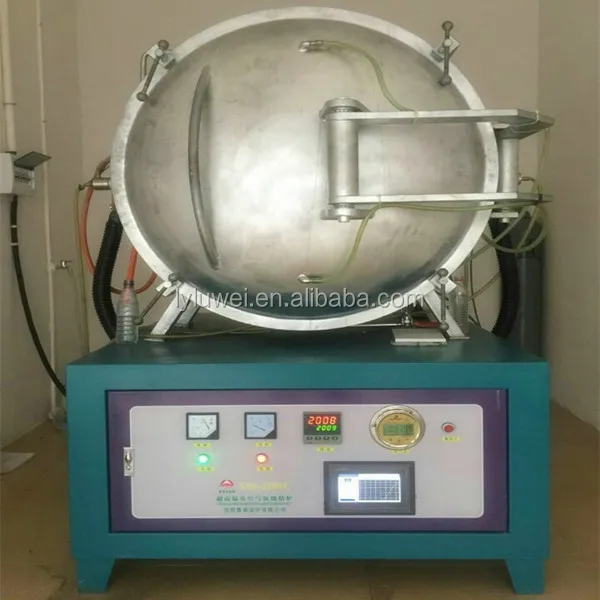

Vacuum argon atmosphere furnace/nitrogen atmosphere furnace
heating with graphite
Brief introduction: Widely used in the heat treatment of metal materials in low vacuum, reduction, protective atmosphere, and can also be used for the heat treatment of special materials and sintering,like Sapphire.Max temperature up to 2200.C,heating with graphite, furnace inner chamber can add kinds of inert gases,like argon and nitrogen. And max vacuum with low rough vacuum -0.01 to -0.1 Mpa.Furnace outside shell materials use high qulity stainless steel.Temperature power control with 30 segments programmable/touch screen.
Vacuum atmosphere furnace features:
- Furnace max temperature with 2200.C
- Furnace can add gas and vacuum,like argon and nitrogen gases.
- Furnace chamber materials and heating with graphite.
- Vacuum value -0.01 to -0.1Mpa low rough vacuum.
- Furnace chamber size we can customize as customer requirements.
- Vacuum atmosphere furnace outside shell mateirals with stainless steel.
Vaccuum atmosphere furnace technical parameter:
Product name | KSS-2200 High Temperature Compact Vacuum Atmosphere Furnace for Laboratory |
Chamber dimension | 200(L)*150(W)*150(H) mm |
Max. temperature | 2200℃ |
Working temp. | 2100℃ |
Can Connect Atmosphere | Nitrogen, Argon and other inert gases |
Vacuum value | rough vacuum with -0.01 - -0.1Mpa,also can add vacuum pump with high vacuum value. |
Heating rate | 10~20.C/ min (suggestion:<10.C) |
Temp. control | SCR control, PID parameter self-setting function, 30 programmable periods |
Power | 18KW |
Temperature uniformity | ± 1℃ |
Working Voltage AC | 220V/380V,50Hz/60Hz |
Heating element | Graphite |
Furnace materials | Internal-.Graphite materials External-High quality stainless steel shell with high temp. finish |
Furnace structure | Double shell stainless steel case with air cooling. |
Control system | PID microcomputer control, automatic constant temperature, rapid temperature compensation.30 programmable segments for precise control.Built in protection for over heated and broken thermal couple.Large digital control panel for easy operation. |
Furnace chamber standard size usually we customize as customers detail requirements.
Packaging & Shipping
Our Services
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Professional factory : We are manufacturer, specializing in high temperature laboratory heating equipment electric furnace and large lifting furnace in industry.
Company Information
FAQ
1). Are you a manufacturer or trade company ?
Yes, we are 100% manufacturer with more than 10 years experiences in production about all kinds of furnaces. All the proc edures will be finished by us, that is good to control the quality and production process.
2). How to get exact price from you ?
Our price is based on furnace working or max temperature and furnace working zone(chamber) sizes(inner Length*Width*Height), structure, chamber material, quantity you need. Each request above is necessary.
3). Do you have stock products to sell ?
Yes, we have furnace in stock like our standard chamber size list above for your reference.If you also have your detail requirements, we also work on OEM order. Each product we do is according to customers. You can have your own design about the furnace chamber size.
4). How to ship the goods ?
A: If you have own forwarder in China, we can just provide you EXW price.
B:If you need us to make shipment for you, we can provide you FOB, CFR, CIF etc.
C: In a word, by sea, by air or by express is up to you. More options, you can suggest.
5). Why are you choose us ?
We have a professional R&D team, and rich production experience of 10 years point service,customer brand, multiple selections, and customers all over the muddle East, Europe and America, Southeast Asia and other regions.
