Colorchanging Smd 5050 RGBW LED panel light 60x60 for lighting with dimmable , LED Panel light 600*600
- Category: >>>
- Supplier: Shenzhen Yuliang Optoelectronic Technology Co. Ltd.
Share on (60374077326):
Product Overview
Description

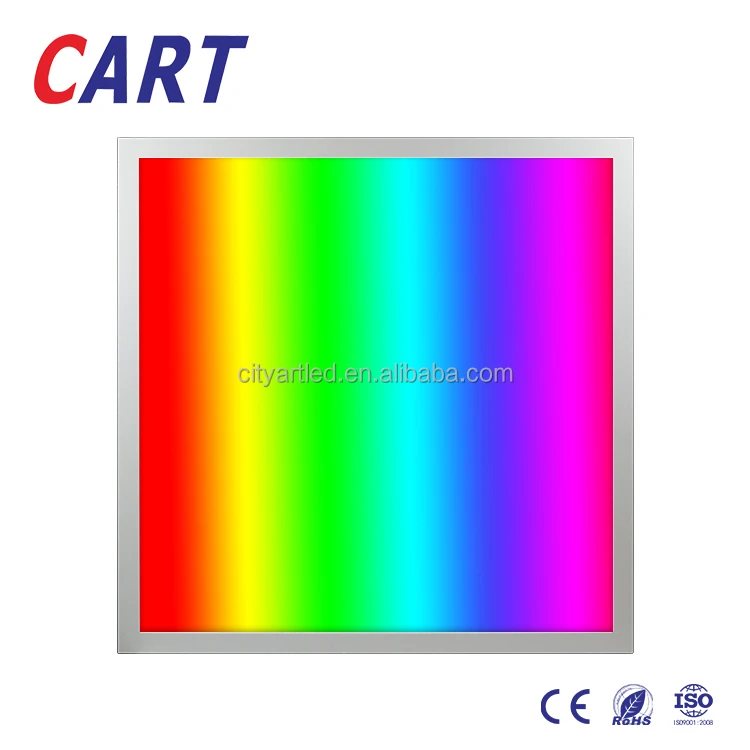

Colorchanging Smd 5050 RGBW LED panel light 60x60 for lighting with dimmable , LED Panel light 600*600
Product features
Features of rgbw led panel light
- 4 kinds of color available for one LED
- 20 colors is optional,one more separate white color which perfect for indoor lighting

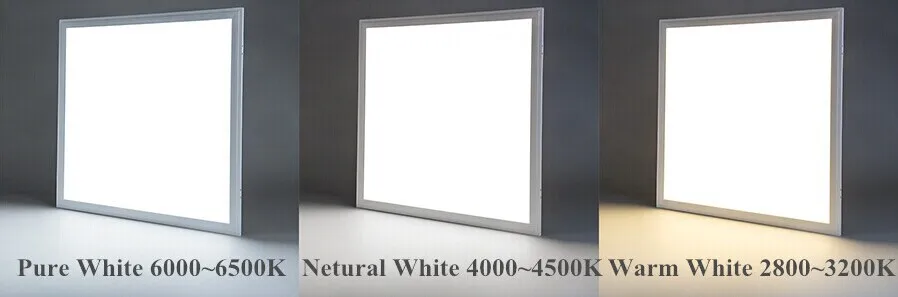

- CCT:2800-3200K,4000-4500K,6000-6500K are available
- Support dimmable function-dimming range:25%-100%
What is the differenc between RGB led panel light and RGBW led panel light?

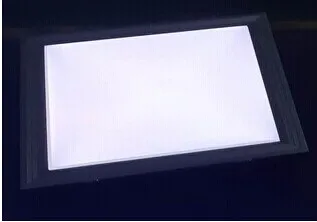

You will find out the color of white light looks reddish in the picture 1,the reason is the white light is made by mixing red,green,blue light,this is the performance of white light,which RGB led panel light give to us.
Picture 1

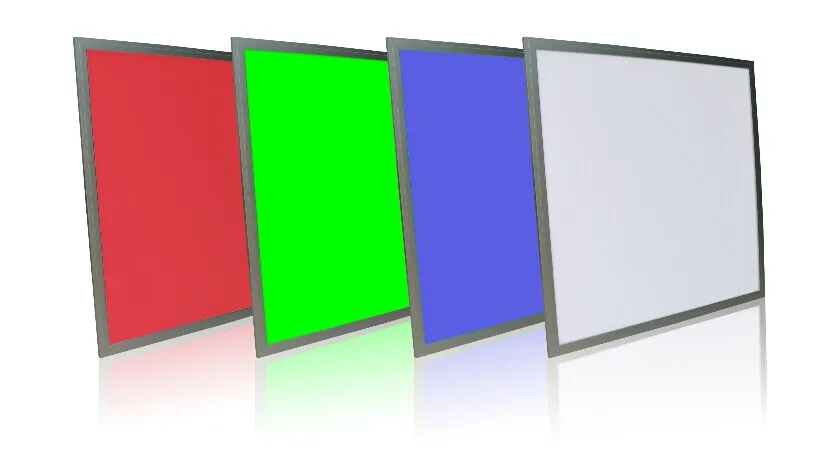

For RGBW led panel light,we add one more single chip in the led,which give us separate white(pure white,netural white and warm white is optional),it can be used for lighting directly,RGB function can be used when playing gams.
Picture 2
Product Description
Material description of smd5050 rgbw led panel light
With Top grade Chime PMMA Guide Board, Thickness 3T(3MM). Light transmission >93%
With Top grade PC Diffuser Plate,Light transmission >87%.
Back-frame is aluminium 6063, perfect heat dissipation.
The frame can be painted different color Silver/White/Black
Technical data of smd5050 rgbw led panel light
Model | Working Voltage | Input voltage | Wattage per LED |
YLL-PF0 Series | DC 12V | AC 100-240V | 0.2 W |
Light technical data of smd5050 rgbw led panel light
Model | Wave length | CRA | Light color (LED) | Luminous (LED) | Beam angle |
YLL-PF0 Series | R:620-630nm G:515-525nm B:465-470nm | >80 | RGB+White | 11-14lm | 170° |
Light technical data of smd5050 rgbw led panel light
Model | Dimension | LED Qty per Panel | Wattage per Panel |
YLL-PF02XX | 295*295*10mm | 56LEDs | 15W(±5%) |
YLL-PF03XX | 295*595*10mm | 98LEDs | 25W(±5%) |
YLL-PF05XX | 595*595*10mm | 196LEDs | 48W(±5%) |
YLL-PF04XX | 295*1195*10mm | 196LEDs | 48W(±5%) |
YLL-PF06XX | 595*1195*10mm | 216LEDs | 65W(±5%) |

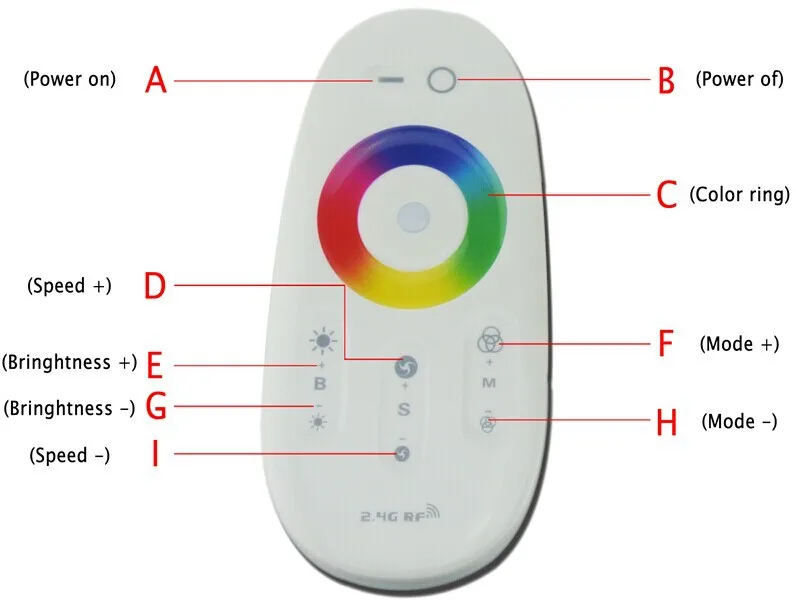

User-friendly control system
-Use 2.4GHz RGB control system, anti interference ability
- without mutual interference between controllers
- can adjust the brightness and colors in the same time
-20 Types of multiple flashing modes available
-Wireless remote control distance can reach 25-30 meter
- DC12V full color rgb led panel light dmx system is option
Area application of smd5050 rgbw led panel light
-Dancing pubs, window gallery lighting,Hotels,Furniture lighting

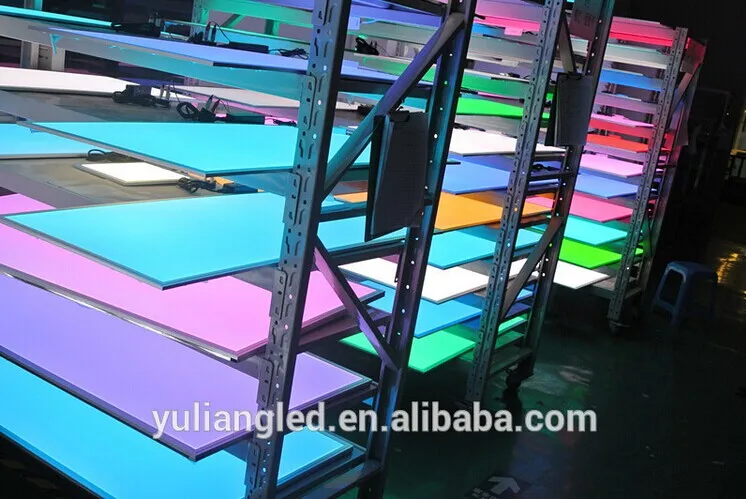

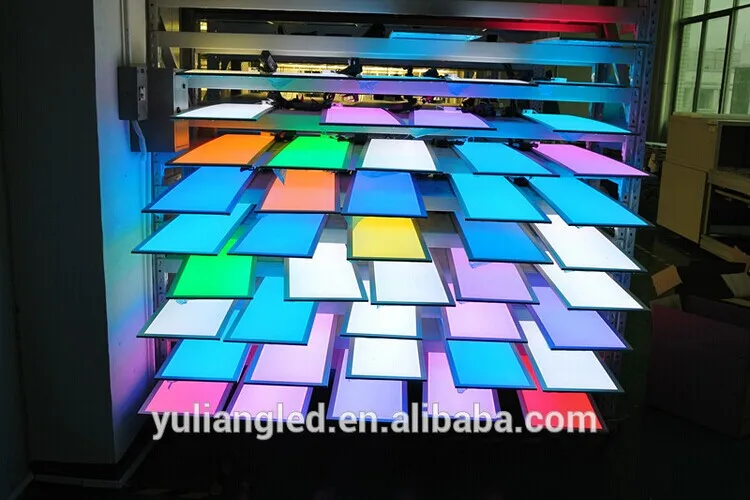

YLL rgbw led panel light are doing aging test in aging test room:48hours aging test beforeshipment
Packaging & Shipping
Packing information o rgbw led light panel
Model | Dimension | Qty/Carton | N.W/Carton | G.W/Carton | Carton size |
YLL-PF02XX | 295*295*10mm | 12PCS | 21.5KG | 24.5KG | L420*W405*H365MM |
YLL-PF03XX | 295*595*10mm | 8PCS | 18.5KG | 22KG | L655*W265*H410MM |
YLL-PF05XX | 595*595*10mm | 6PCS | 24.5KG | 28.5KG | L720*W200*H670MM |
YLL-PF04XX | 295*1195*10mm | 6PCS | 26KG | 29.5KG | L1340*W240*H350mm |
YLL-PF06XX | 595*1195*10mm | 3PCS | 23.1KG | 29KG | L1340*W190*H675mm |
Company Information
Company Information
YLL Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting that make it easy for customers to sell, electricians to install and end-users to save energy,
YLL also provides lighting design services to anyone who needs assistance.
YLL established in 2001,we located in Silicon Valley Power Industrial Park Guanlan Town,Shenzhen,China,YLLhas a building which Covering an area of 6000 sq.m,
YLL certified by TUV according to ISO9001,and also Yuliang led panel&led tube certified by CE,RoHS tested by TUV company in German!
YLL have its own packaging production line,more than 30 automatic production lines for LED well-designed, professional grade lighting,our light source listed by energy star lm-80 certificate,as a result of our high quality products and outstanding customer service,we have gained a global sales network reaching German,Belgium,Canada and USA!
