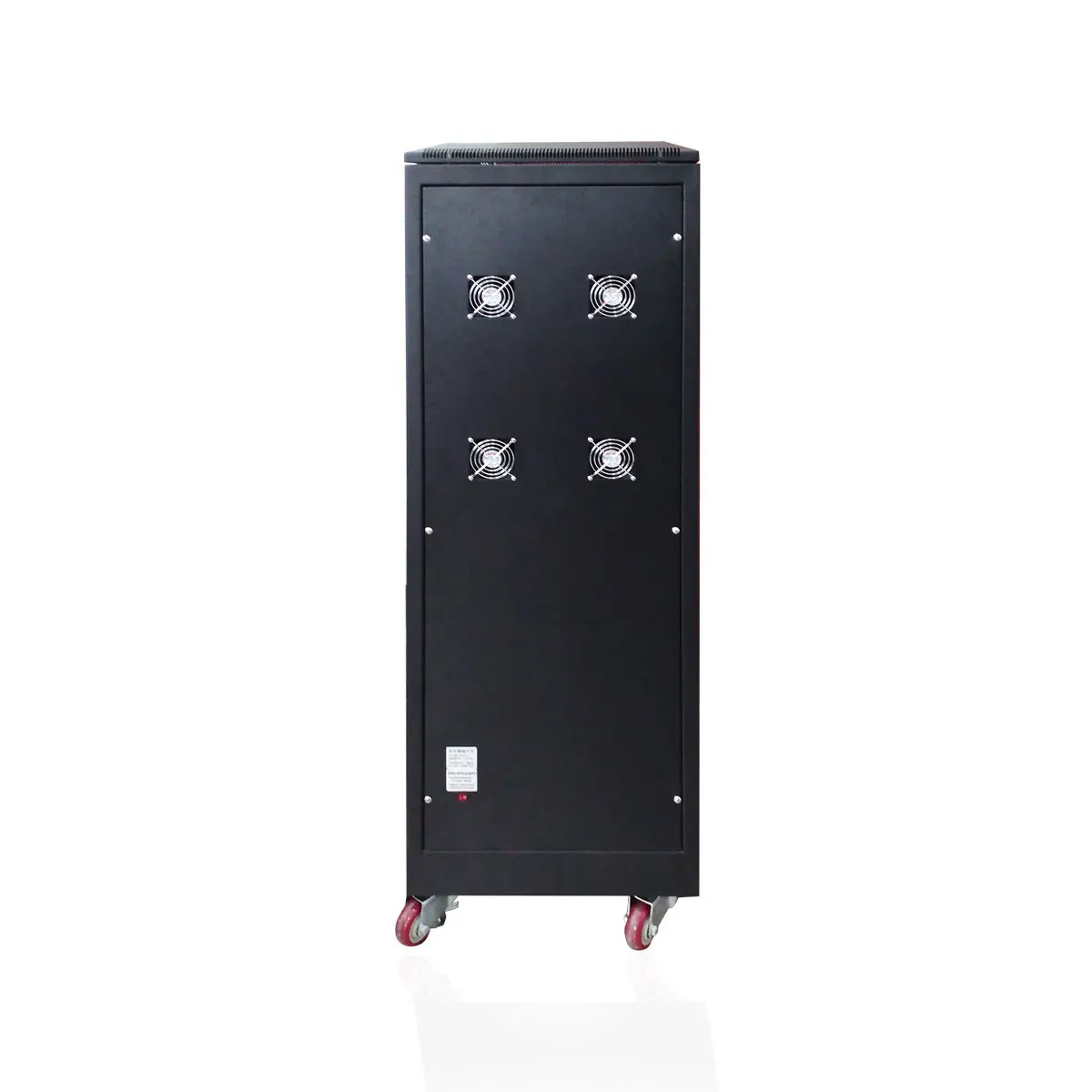

Lisun CSS6100011 voltage dips and interruptions generator

Share on (60374101258):


Price:$5,999.00

Quantity:


Product Overview

Description



Product Description


OK--8_02.jpgPlease contact us first before you place order.

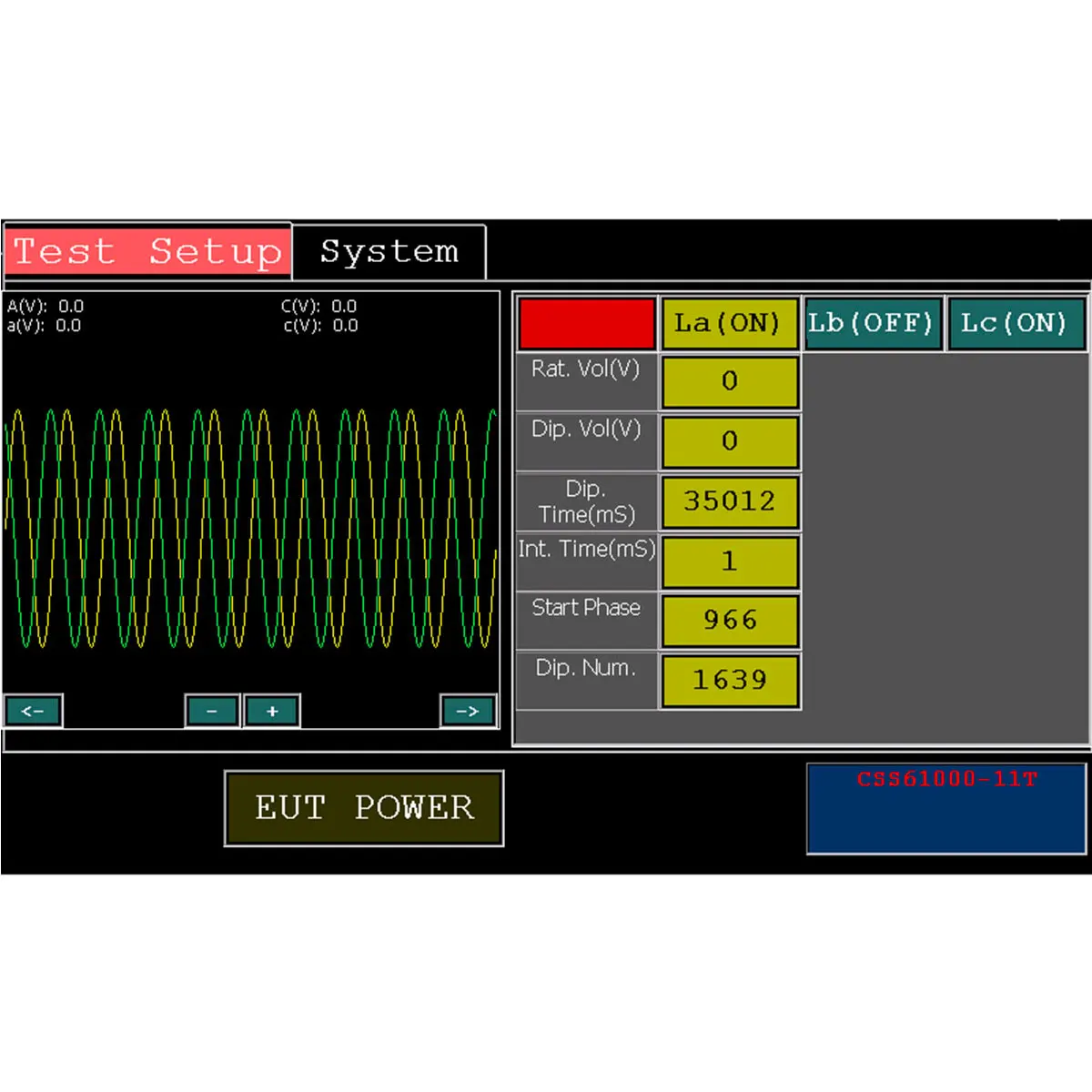

The voltage dip and interruptions generator is specially designed according to the characteristics and requirements of EMS measurement under a sudden reduction or interruption of the voltage at a point, CSS61000-11/ CSS61000-11T used a big LCD in both English and Chinese operating interface. They have more fine performance such as high reliability, convenient operation, and full meet the standard requirements of IEC 61000-4-11, EN 61000-4-11 and GB/T17626.11


Specifications:










































































Product ModelCSS61000-11CSS61000-11T
Wave GeneratorAC Sine WaveAC Sine Wave
Range of Voltage Variations0~110% of 220V0~110% of 380V
IEC Level Build-in100%, 80%, 70%, 40%, 0%100%, 80%, 70%, 40%, 0%
Dip Phase Set0°~360° (1° Step)0°~360° (1° Step)
Duration Time of Voltage Variation0.5~9999.5T0.5~9999.5T
Internal Time of Voltage Variation1s~9999s1s~9999s
Voltage Dip Count0~9999 times0~9999 times
Operating ModeAutomatic DipChoose 1 to 3 phases to automatic dip at the same time
Trigger ModeManual, Auto and 50msManual, Auto and 50ms
Power Capacity For EUTSingle Phase AC 220V±10%, 16A max3 Phase AC 380V±10%, 20A max
Working PowerAC220V (Option 110V)±10%, 50/60Hz
Dimension (DxWxH)44x45x90cm56x58x130cm
Gross WeightAbout 90kgAbout 150kg
