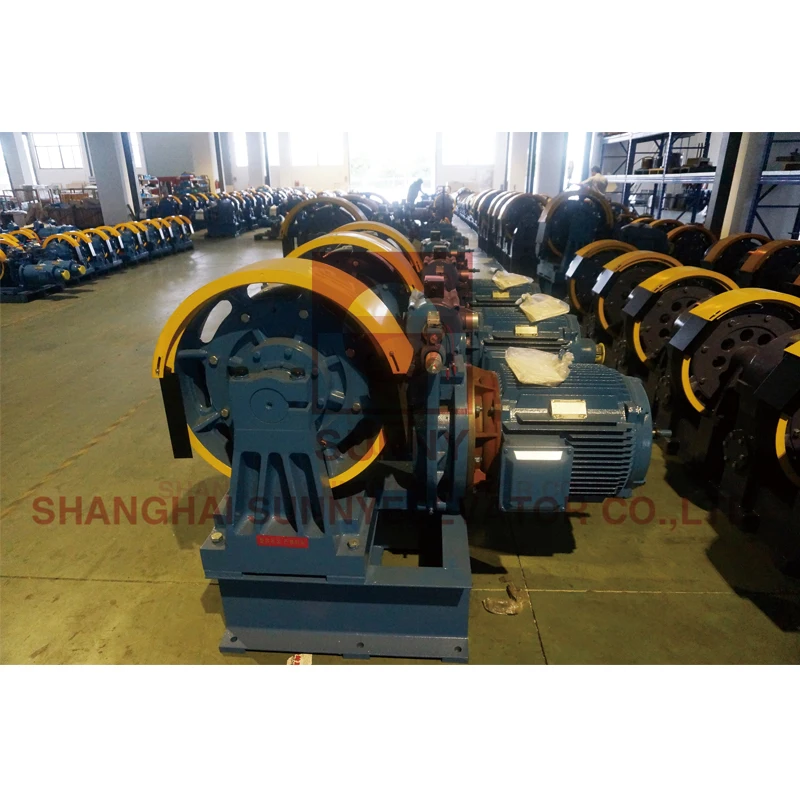

Elevator Machine , Geared Traction machine for Geared Traction Elevators with Gear Motor, Roping:1:1

Product Overview

Description

Elevator Machine , Geared Traction machine for Geared Traction Elevators with Gear Motor, Roping:1:1, Load 2000~3500 KG

• Seamless structural design with mini distortion;
• High efficient of the electromagnetic, low temperature rise;
• Low operation noise, smooth running;

Roping	Load(kg)	Speed(m/s)	Sheave Diam-Rope Diam x Groove No.-Groove Pitch (mm)	Power(Kw)	Ratio	Hz	Pole	Speed (r/min)	Current(A)
1:1	2000	1.75	Ø800-Ø16x8-25	37	61:2	43	4	1274	68
	3500	1.0		37	61:1	49	4	1456	68
	3500	1.5		55	61:2	54	6	1092	110
	3500	2.0		63	61:2	49	4	1456	113
2:1	3000	1.0	Ø800-Ø16x6-25	30	61:2	49	4	1456	60
	4000	1.0	Ø800-Ø16x8-25	37	61:2	49	4	1456	68
	5000	1.0		45	61:2	49	4	1456	81
	6000	0.5		30	61:1	49	4	1456	60
	7000	0.5		37	61:1	49	4	1456	68
	8000	0.5		45	61:1	49	4	1456	81
	10000	0.5	Ø800-Ø16x10-25	55	61:1	49	4	1456	110
4:1	14000	0.5	Ø800-Ø16x8-25	63	61:3	50	6	971	113
8:1	20000	0.25	Ø800-Ø16x10-25	55	61:3	50	6	971	110
	28000			63	61:3	50	6	971	113

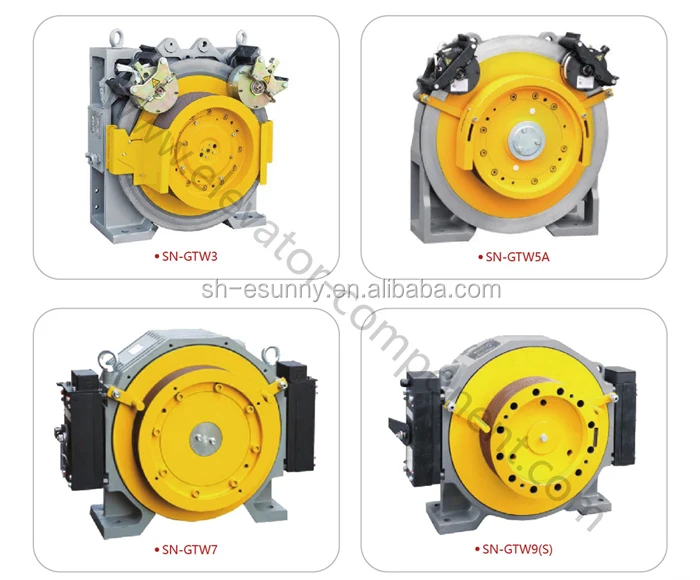

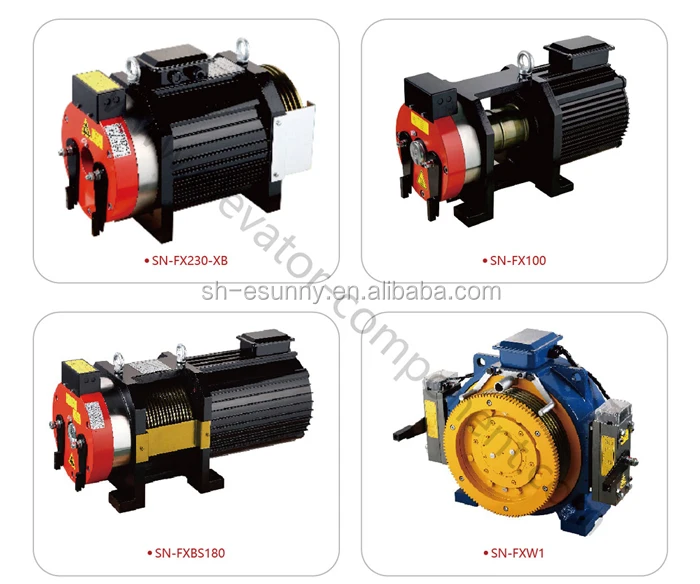

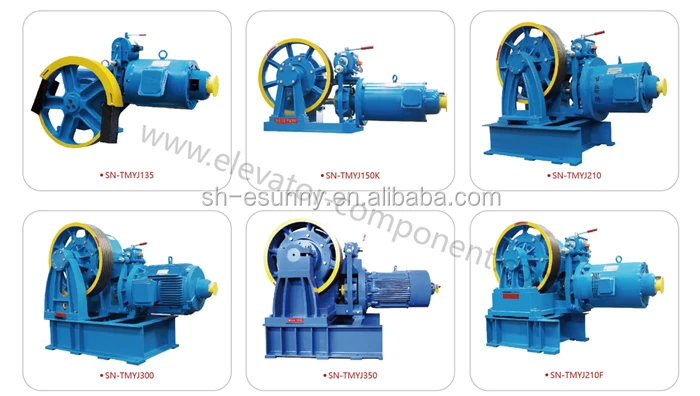

Our hot products:
