PVC Injection Molding Machine For Shoes Shoes Injection Molding Machine Moulding Shoes Injection Molding Machine Rubber
- Category: >>>
- Supplier: Dongguan Min-Hui Plastic Manchinery Co. Ltd.
Share on (60374617616):
Product Overview
Description
Product Details

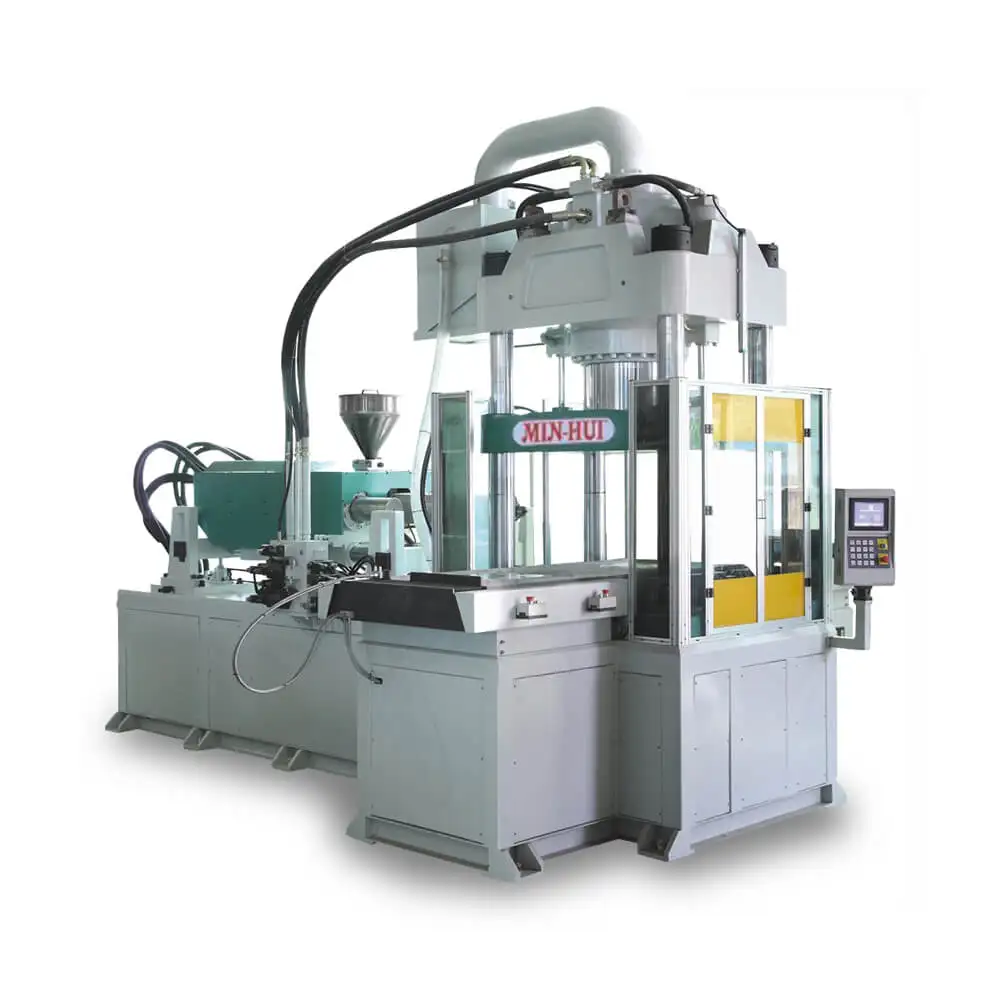

MHT Vertical Clamping Horizontal Injection Molding Machine 120T
Clamping force: 70T to 500T
Injection weight: 90g to 850g
Vertical four columns clamping, horizontal injection Suitable for big insert part injection molding process.
We can upgrade to servo motor for customer's need, the actual energy save 50%~70%.
Injection weight: 90g to 850g
Vertical four columns clamping, horizontal injection Suitable for big insert part injection molding process.
We can upgrade to servo motor for customer's need, the actual energy save 50%~70%.
Details Images
Product Paramenters
Model | UNIT | MHT-120T | ||||
INJECTION UNIT | Screw Diameter | mm | Φ40 | Φ50 | ||
Injection Pressure | Kgf/cm2 | 1312 | 839 | |||
Theoretical Injection Volume | cm3 | 200 | 314 | |||
Max.Shot Weight | g/oz | 184/6.4 | 288.8/10.1 | |||
Injection Rate | cm3 | 160 | 250 | |||
Screw Stroke | mm | 160 | ||||
Screw Rotation Speed | rpm | 0-160 | ||||
Nozzle Contact Force | Tons | 4.3 | ||||
Stages Of Temperature control | 4 | |||||
CLAMPING UNIT | Clamping Force | Tons | 120 | |||
Min Mould thickness | mm | 250 | ||||
Opening Stroke | mm | 280 | ||||
Max Mould Opening Distance | mm | 530 | ||||
Ejector Force | Tons | 4 | ||||
Ejector Stroke | mm | 100 | ||||
HYDRAULIC SYSTEM | Max.Hydaulic Pressure | Kgf/cm2 | 140 | |||
Motor Power | Kw | 15 | ||||
Barrel Heating Power | Kw | 10 | ||||
Total awattage | Kw | 25 | ||||
OTHERS | Machine Weight Net | Kg | 7200 | |||
Machine Dimension （L*W*H) | m | 4.1*1.8*3.4 | ||||
Machine Weight | Kg | 8700 | ||||
Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily

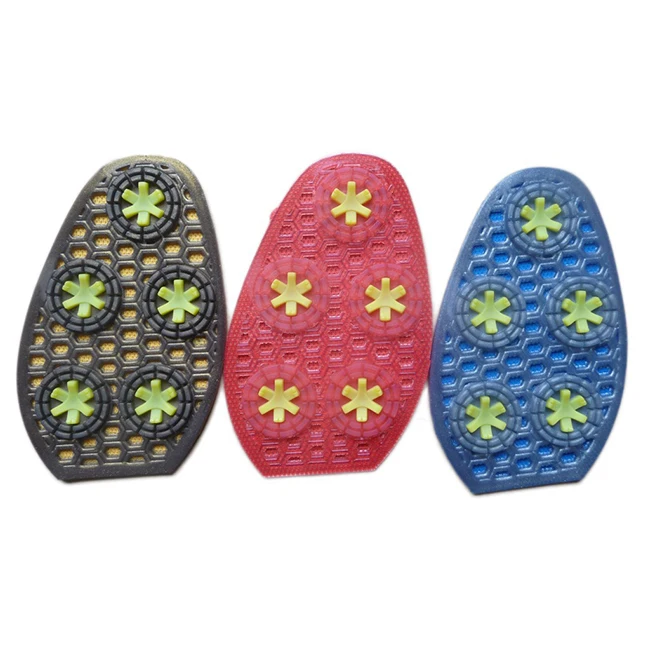

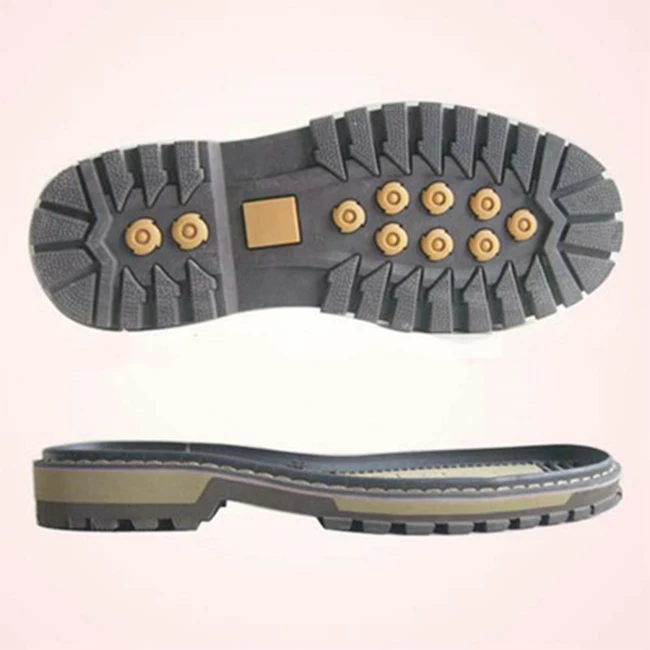

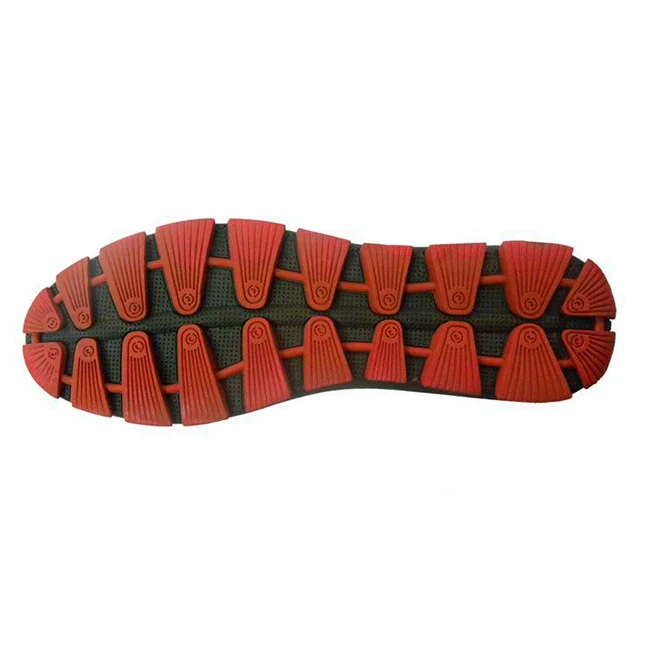

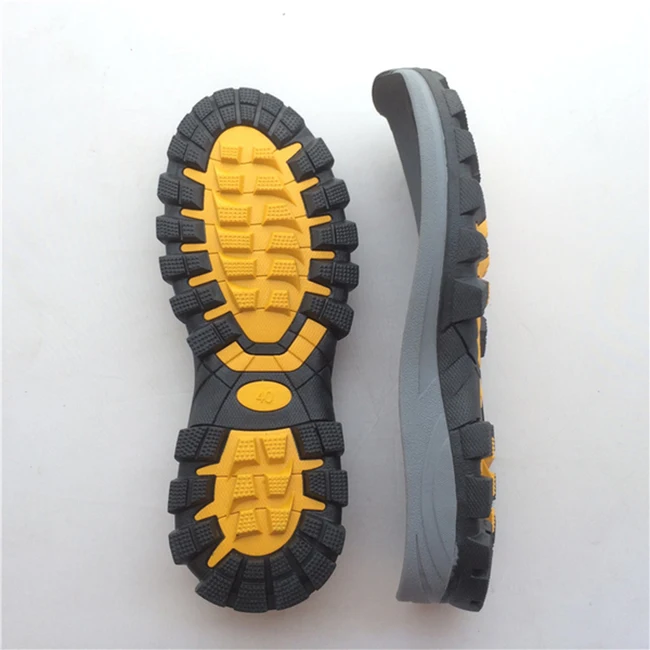

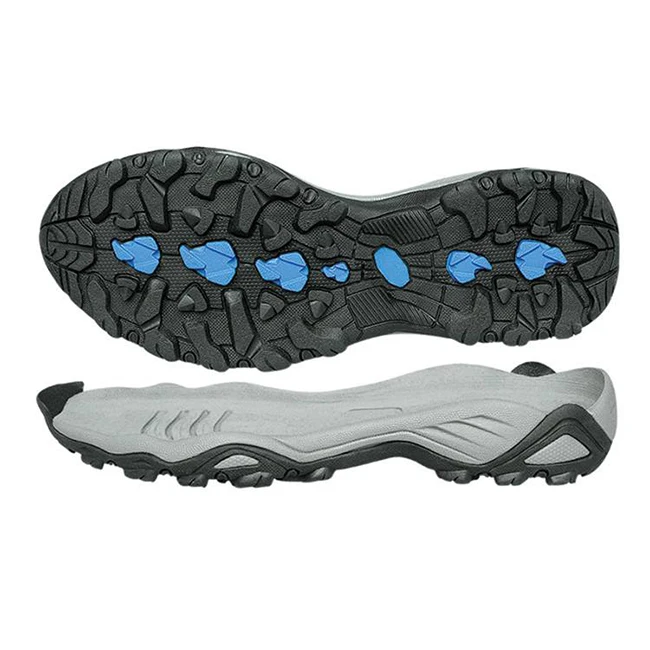

necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
