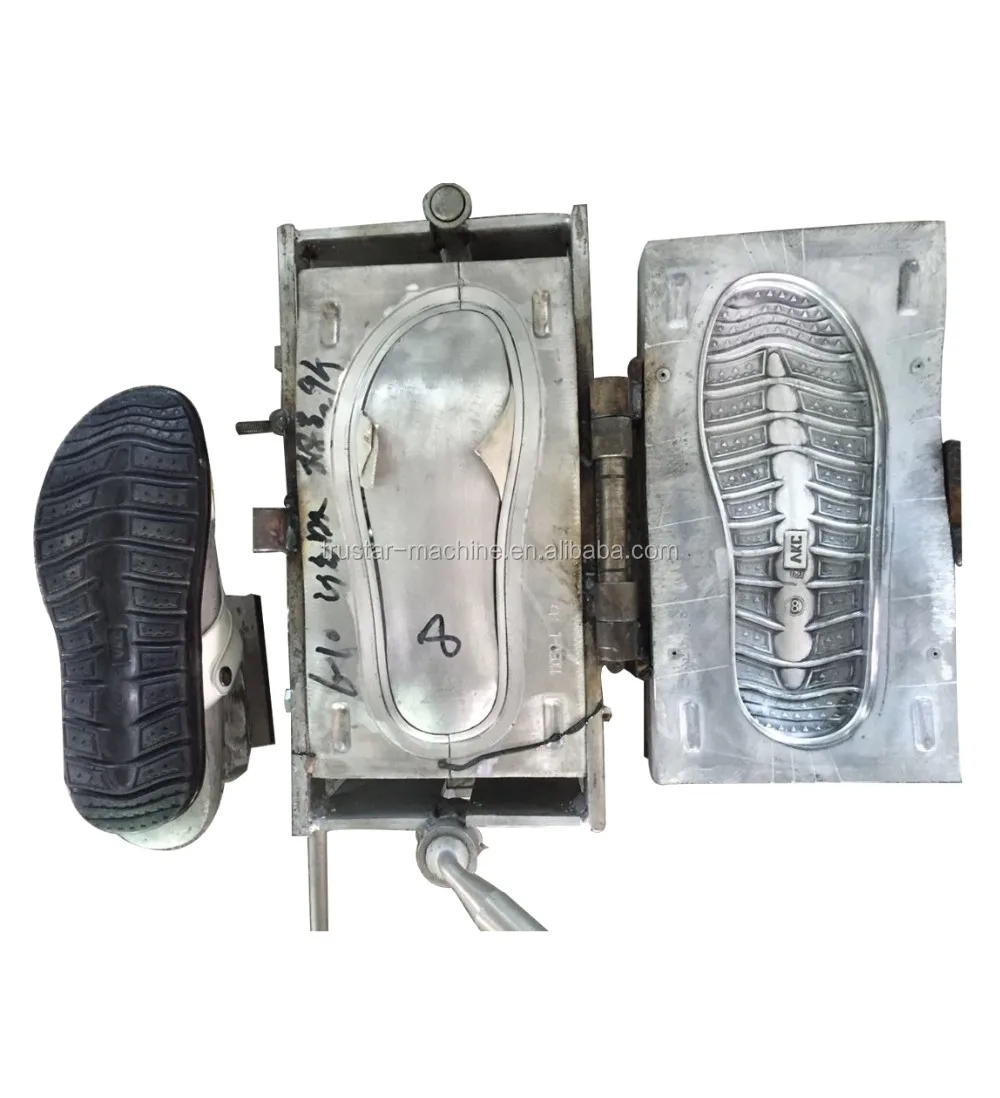

New pu slippers making machine / shoe mould
- Category: >>>
- Supplier: Ruian Credit Limited Company
Share on (60374720644):
Product Overview
Description
New pu shoe mould New pu slippers making machine / shoe mould
Product Description
Productd Overviews
Features:
1:uesd for shoes
2 Simple operation
3:bulk supply
4:factory price
5:soon delivery
6:sample available
7:customer design can be done
8.high quality and reliability
9.auto/by hand
10.convenient maintenance
Use:
1. Well configured system and ease maintenance.
2. Used for making safety shoe, leisure shoe, casual shoe, sandal, etc in double density.
3. Suitable for direct soling injection of single PU or colorful PU.
4. Each injection unit is equipped with two colors with accurate measurement of painting.
5. Automatic cleaning
6. Low noise and low energy consumption
7. Stable rotation and accurate positioning.
8 High mold clamping force
9. Independent PLC control for each station with multi-function
10 :any colors can be made.
Parts imported:
Electric control:Chnt china
Switch: France:Schnnider
Plc: Siemens
Touch screen: Siemens
Motor: Japan
Control system:
1, With the state of the art computer controlled system to gain the machinery more efficiency and reliability.
2, Self-diagnosis, alarming and monitoring functions and multi-language alternatives.
3, Preset technical parameters.
4, Reserve electrical interface for mechanical arm
5, PID closed-loop and self-regulated injection program
6, Automatic PID temperature control
7, Emergent halt protection device.
Specifications

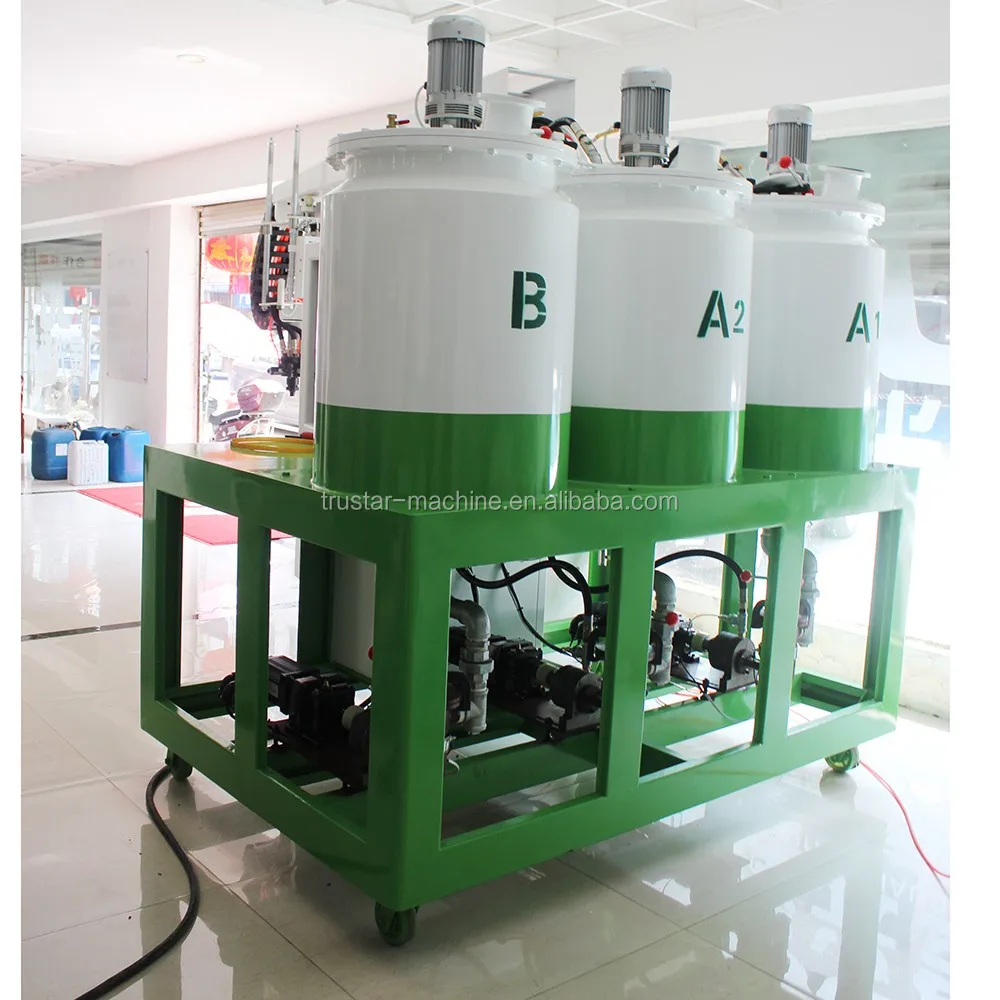

3 Tanks, capacity of each tank: 160L or 250L
Can make two colors two density PU shoe sole
Characteristics:
1. Have two A tank and one B tank, can make different color and different density foaming shoe sole by mixing with A and B raw material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with three needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Technical Parameter:
| 1 | Model | JG-801 |
| 2 | Tank quantity | 3 |
| 3 | Tank capacity | 250L |
| 4 | Pump quantity | 3 |
| 5 | Speed of pump(r/min) | 0---280 |
| 6 | Precision (%) | ±0.5 |
| 7 | Max rotating Speed of injection screw | 4500/8600-10000 (Choice by yourself) |
| 8 | Clean the head | Automatic/By hand |
| 9 | Voltage | 380V,50HZ, or 415v ,60hz |
| 10 | power | 15(kw) |
| 11 | Clean quantity | 4500(r/min)>25,9000(r/min)>160 |
| 12 | Product characteristics | Two color two density |
| 13 | Productivity(output ) | if work 8 hours can produce 3600pairs of the shoes. every four minute can produce 30prs of the shoe. |

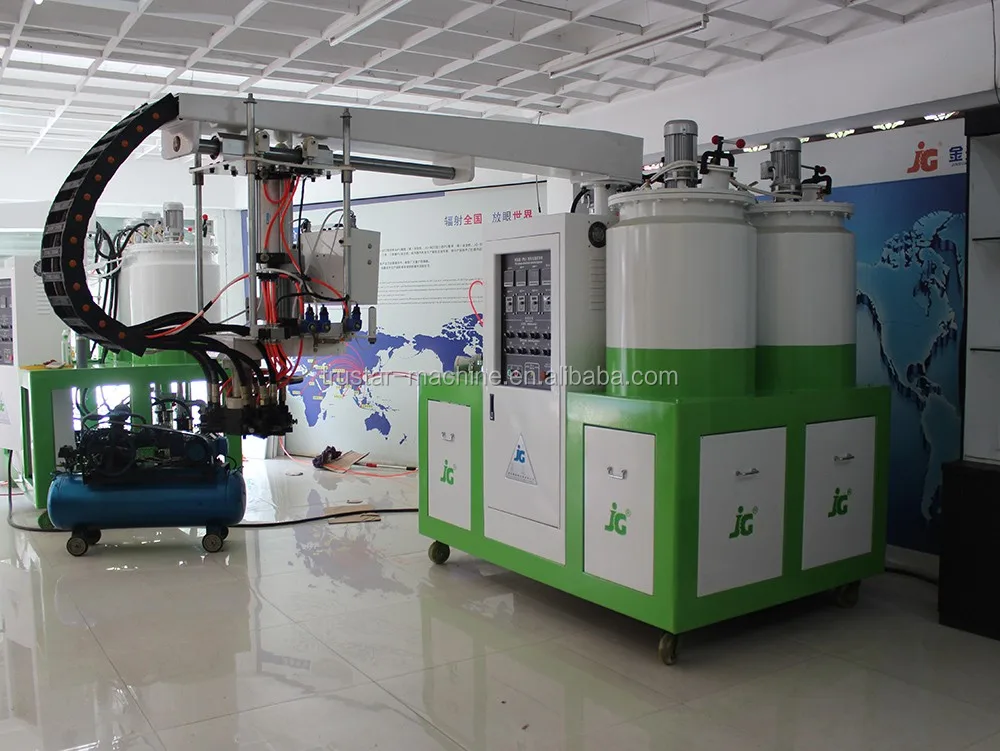

PU shoes production line

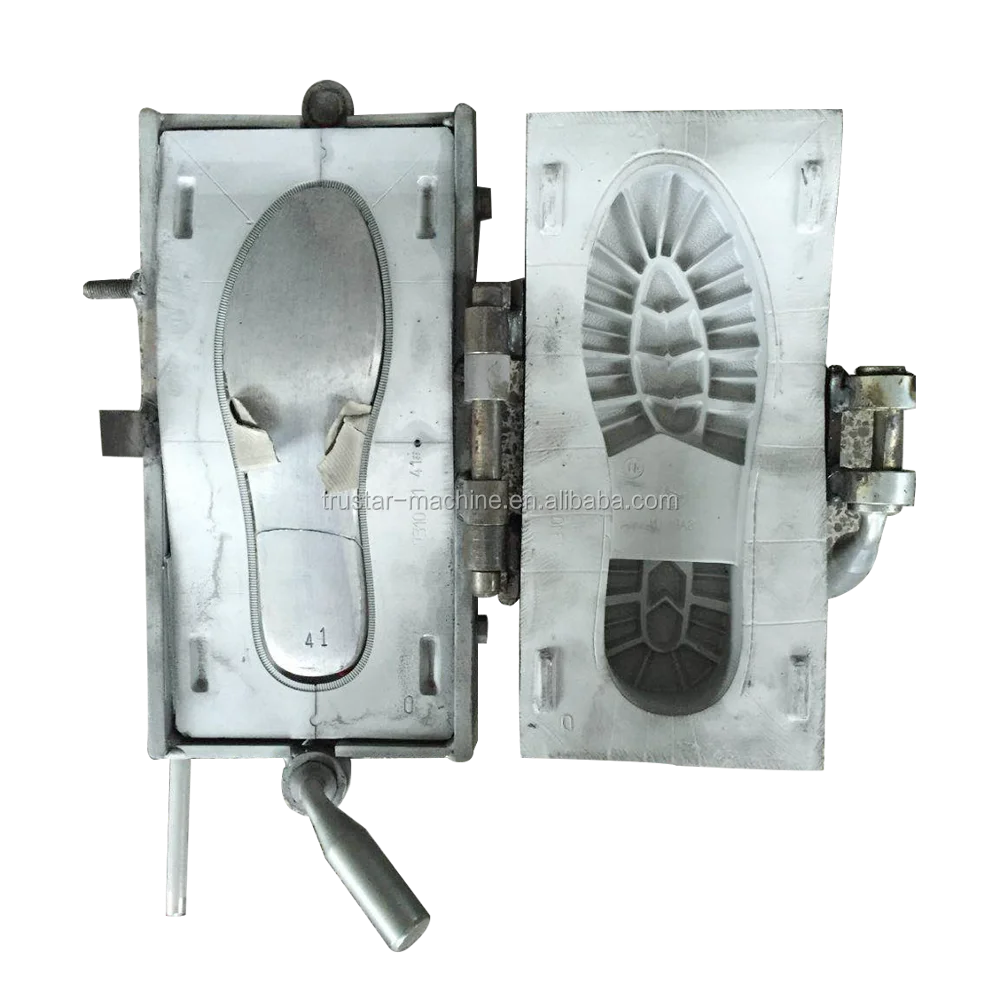

Double color PU shoe mould for safety shoes:

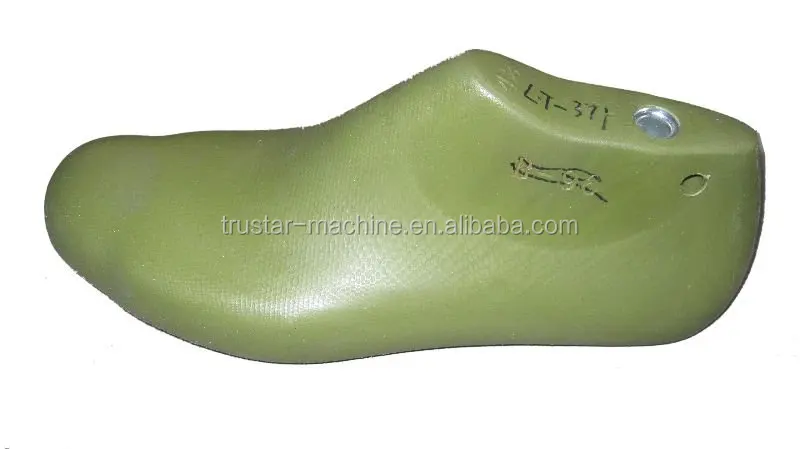

Dummy
CNC shoe mould(double color):
Shoe moulds in Guangzhou Exhibition
Package
1 YEAR WARRANTY
LIFE LONG SERVICES
100% GOOD QUALITY GUARANTEE
If you choose us, it means that you choose the quality!
Packaging
Can produce safty shoes, leathe shoes, sandal shoes etc.
The packing and shipping
The production workshop
