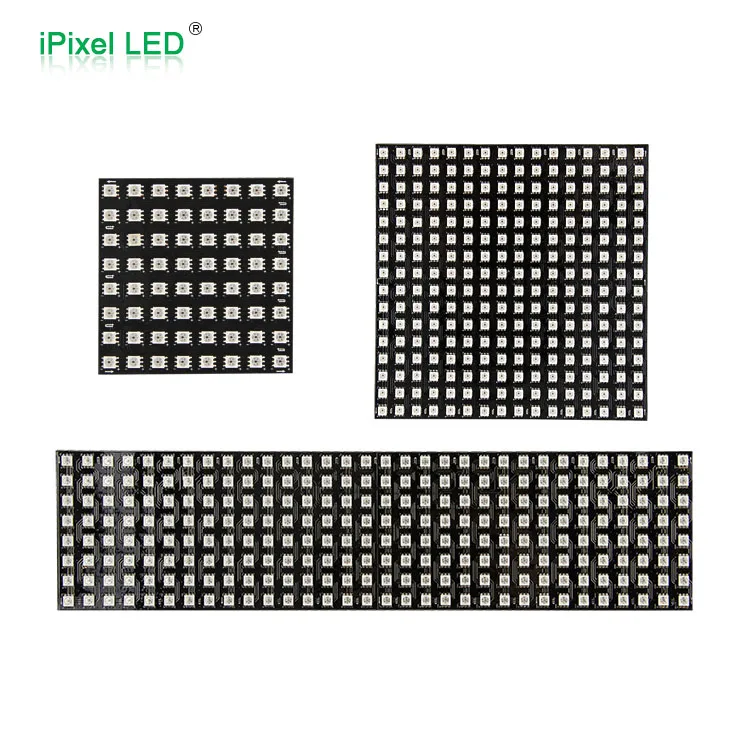

Best selling high power 16x16 rgb led dot matrix,rgb led pixel panel
Product parameter
LED Chip
SMD5050 RGB LED chip
IC Chip
APA102 IC built-in 5050 RGB LED chip
LED Quantity
256LEDs/m
Input Voltage
DC5V
Watts
75W/Max
IP Rate
IP20(non-waterproof)
PCB Color
Black PCB
View Angle
140°
Color
Addressable full color
PCB Pitch
10mm
PCB Size
160mmx160mm
Warranty
2 years
Brand
iPixel LED
Product Description

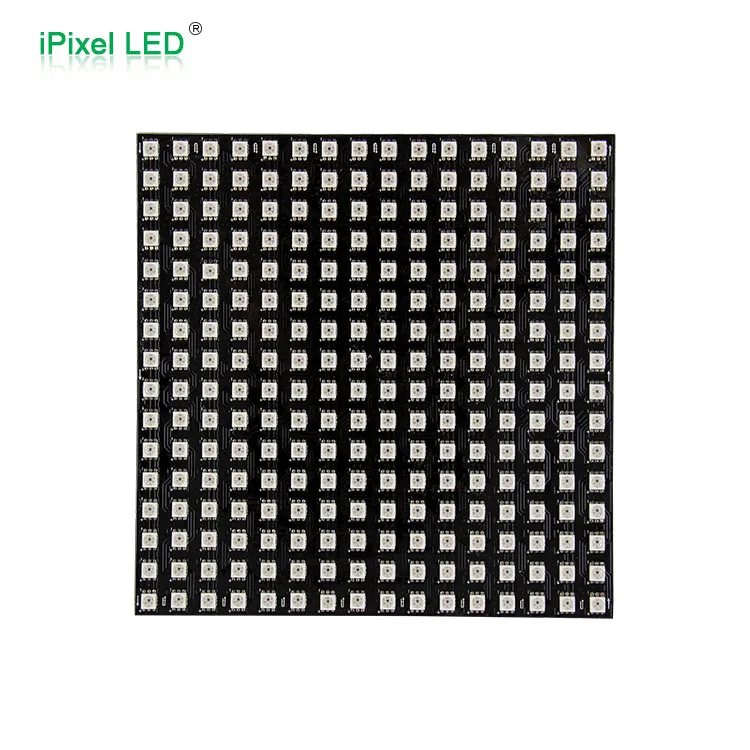

It is 16*16 pixel apa102 flexible LED matrix
1.Individually addressable RGB LEDs (16*16 LEDs) 2.24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel 3.Additional color-independent brightness control (5-bit PWM); 32 brightness steps per pixel 4.SPI control interface 5.5 V operating voltage 6.Each LED Matrix draws approximately 8A at full brightness 7.160 mm width (16 LEDs) or 160 mm width (16LEDs) Pitch : P10 8.Flexible,bendable IP20 rating 9.Black strip color 10.Power/data connectors on both strip ends for easy chaining
Product Details

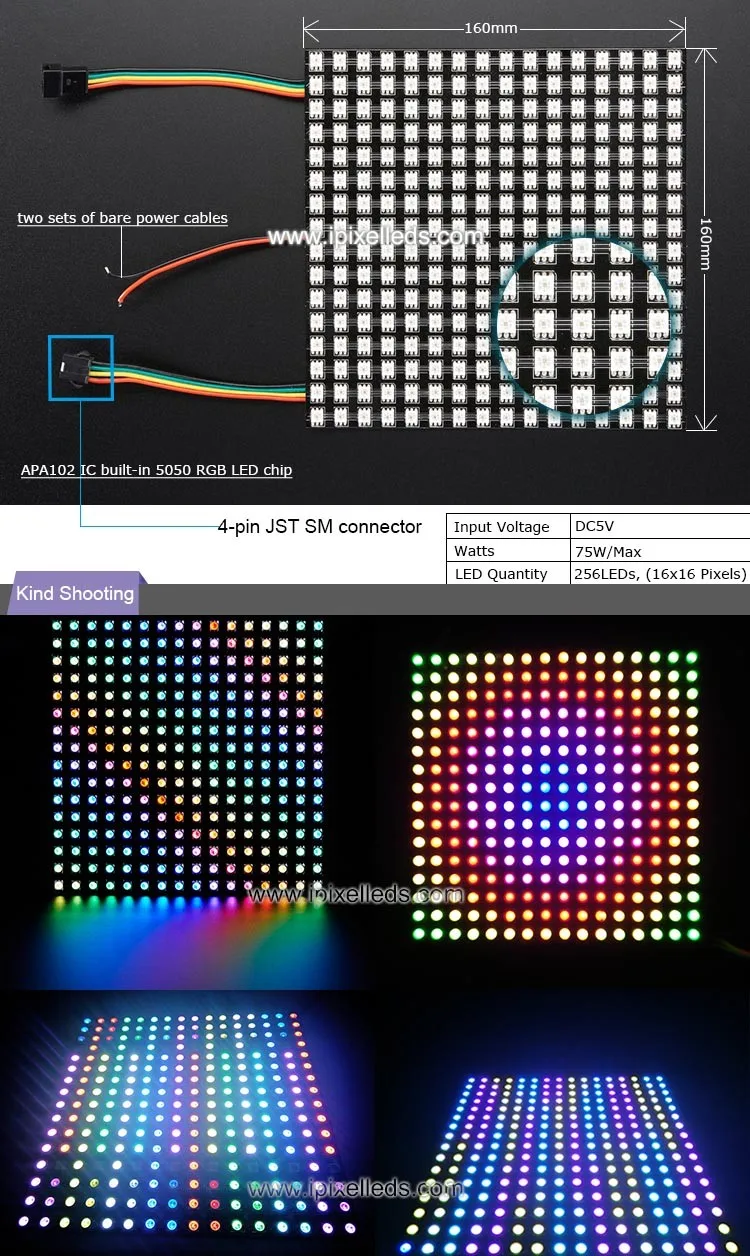

Connection Way
1.There's a new square design LED matrix in iPixel LED! 16*16 Pixel APA102C LEDs use a 2-wire SPI,it can push data much faster than with the WS2812B 800 KHz protocol and there's no specific timing required. it's also have much higher PWM refresh rates.
2.This SMD 5050 LEDs is GRB color sequence ,not RGB sequence !!! with an embedded microcontroller inside the LED. You can set the color/brightness of each LED to 24-bit color (8 bits each red green and blue). Each LED acts like a shift register, reading incoming color data on the input pins, and then shifting the previous color data out on the output pin. By sending a long string of data, you can control an unlimited LEDs
3.These LEDs have 2 wires (input and output) for clock and one data pin. Because the clock and data is seperated, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller to control it PWM rate. You only have to set the 24-bit color data for each pixel LED once, and then the LED+built-in-chip will handle the PWMing of the red, green and blue. On our WS2812B Matrix, this PWM rate happens 400 Hz, which works well but is noticably at lower brightnesses and if the strip is moving in any way. have a 20 KHz PWM rate, even if you set any color or animation, there is no pixelation

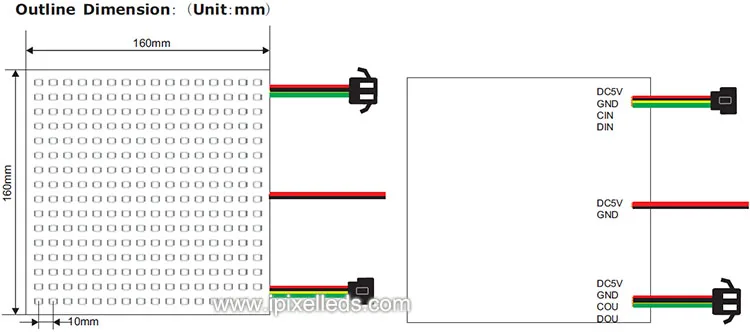

4.The Matrix is made of flexible PCB material,Non-waterproof ,for indoor use only, 2 Ounce copper PCB and black color you can also connect each matrix to together to make them as large as a P10 LED screen, make sure gave them enough Power , each matrix 256 pcs LEDs request about 8A.These matrix comes in 1pcs per bag, on the back side, soldered a pair of 4-pin JST SM connector, it's makes easy to link to next matrix
