Texture of the Heat Transfer Printing Epoxy Powder Coating paint

Composition

It is made of polyester resin, curing agent, pigment, filler and additives through melting, extruding, grinding and processing.

Main features

 mooth surface effect and elegant synthetic wood texture

 Excellent physical and mechanical performance;

Good resistance to heat and chemicals.

Application

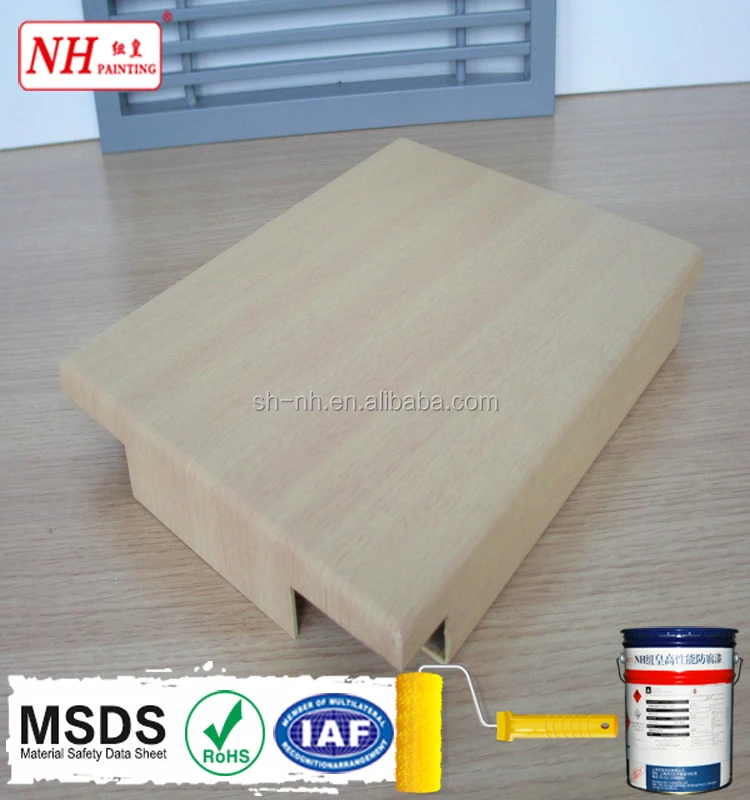

It is applicable to the coating of indoor and outdoor furniture, doors and windows, and construction aluminum profiles.

Product series

It can be made into heat transfer wood texture products and 3D wood texture type based on the requirements.

  Technical indexes

Residue on sieve %125μm

0 or based on negotiation

Color and appearance of paint film

The paint film should be smooth but slight orange peel is allowed and the color should meet the color difference specified.

Hardness

≥2 H

Bending mm

2

Gloss (60°)

High gloss ≥86, semi gloss 21-85, matt ≤20

Adhesive force (1×1 mm) Grade 6×6

0

Impact resistance kg.cm

≥40

Acid resistance (HCI 3%)240 h

The film has no change.

Alkali resistance (NaOH 5%) 168 h

Slight change is allowed but it shall be recovered within 2h

Salt spray resistance 1,000 h

≤ Grade 1

Damp-heat resistance 1,000 h

≤ Grade 1

Film thickness μm

50~60

Surface prepartion

The corresponding treatment method should be used based on the substrates, such as phosphating, chromizing, shot blasting or blast cleaning

1. The surface roughness should be 30 ~75 μm if reaching Grade Sa2.5 by shot blasting or blast cleaning.

2. Phosphating: degreasing- derusting- neutralizing- surface control- phosphating- passivating

Appearance of phosphating film: The phosphating film should be crystallized densely, continuously and evenly.

3. Chromizing: degreasing- rinsing- immersion cleaning- deoxidating- rinsing- chromizing

Method of Application

It is applicable to high voltage electrostatic spraying

Spraying voltage: 50-90 kV; air pressure for spraying: 0.1-0.2 Mpa; distance between the gun and workpiece: 200-300 mm

Curing condition: 200℃/10 minutes, 190℃/15 minutes after transfer.

Additional coating: spraying and curing should be made after polishing the omitted part with sand paper and spraying the whole surface.
