Product Overview
Description

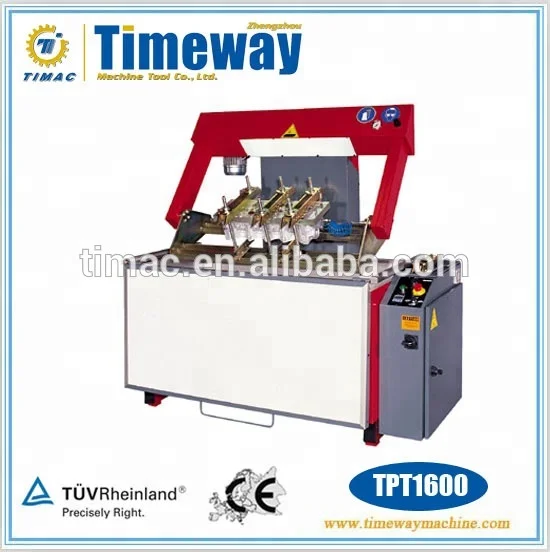

Cylinder Head and Block Pressure Tester
Product Description
Features:
Easy and efficientpressure test of cylinder head and cylinder block coolant circuits.
*Quick and easy clamping system allowing tests at a pressure of 4 to 5 bar
*360" Electric powered rollover fixture
*Hydraulic cradle lift for easy positioning of heavy cylinder head and cylinder block.
*Stainless steel tank with heat barrier.
*Heating elements: two change over 4500 watts elements.
*Water level control:Low voltage:24 V operating control
*Electronic adjustable thermostat.
*Heating programmer:daily or weekly
Parameter:
Model | Unit | TPT1600 | TPT1600L | TPT1700XL |
Max.head capacity |
|
|
|
|
Length | mm/inch | 1250/49 | 1350/53.15 | 1350/53.15 |
Width | mm/inch | 400/15.74 | 425/16.73 | 460/18.11 |
Height | mm/inch | 300/11.81 | 300/11.81 | 410/16.14 |
Height elements | kw | 2×4.5 | 2×4.5 | 2×4.5 |
Hydraulic hoist | kw | 0.75 | 0.75 | 0.75 |
Gear-motor | kw | 0.25 | 0.25 | 0.25 |
Rotationalspeed | Tr/min | 4 | 4 | 4 |
Up and down travel time | mm/inch in 10 sec | 600/23.62 | 600/23.62 | 620/24.41 |
Thermostat | ºC | 0-90 | 0-90 | 0-90 |
Power supply |
| 3×220V-AC-60Hz / | 3×220V-AC-60Hz / | 3×220V-AC-60Hz / |
Net weight | kg/1bs | 600/1324 | 600/1324 | 650/1434 |
Space requirements |
|
|
|
|
Length | mm/inch | 2000/78.75 | 2100/82.68 | 2100/82.68 |
Width | mm/inch | 1050/41.34 | 1050/41.34 | 1140/44.88 |
Height | mm/inch | 1700/66.93 | 1700/67.00 | 1775/69.83 |
