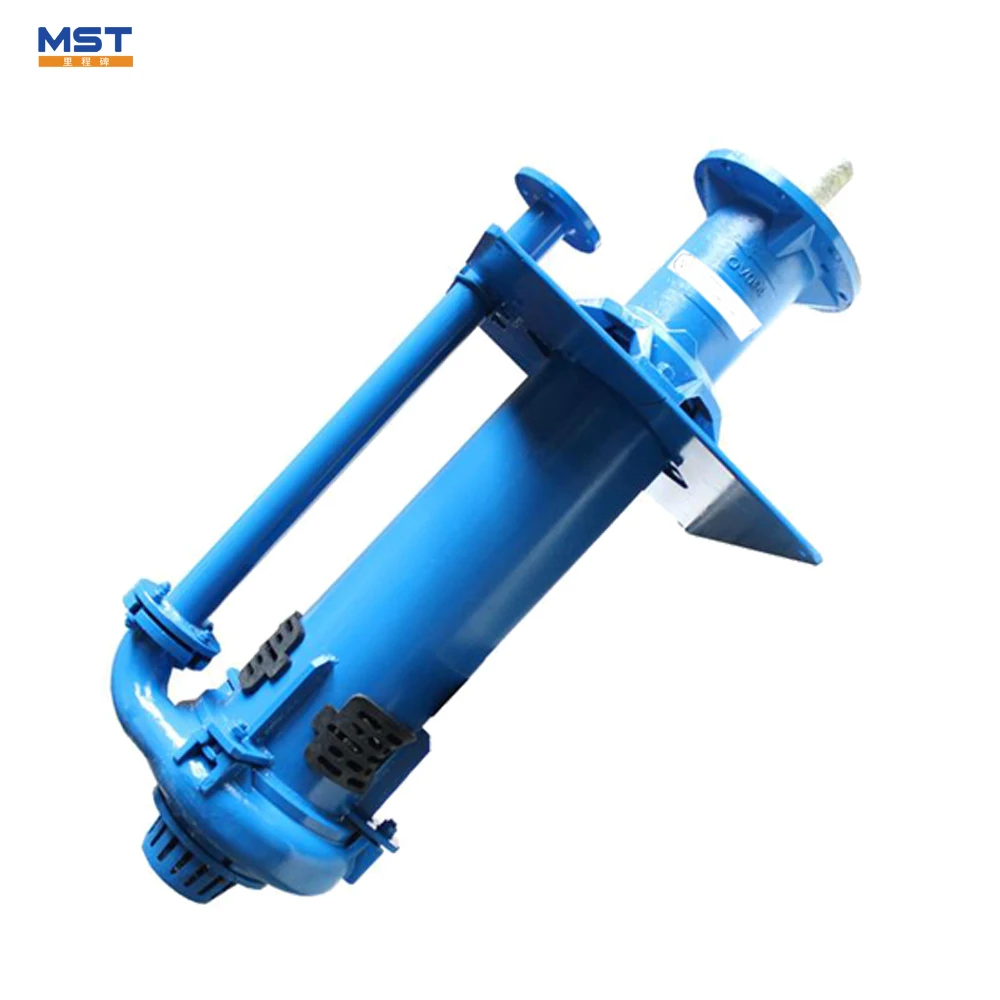

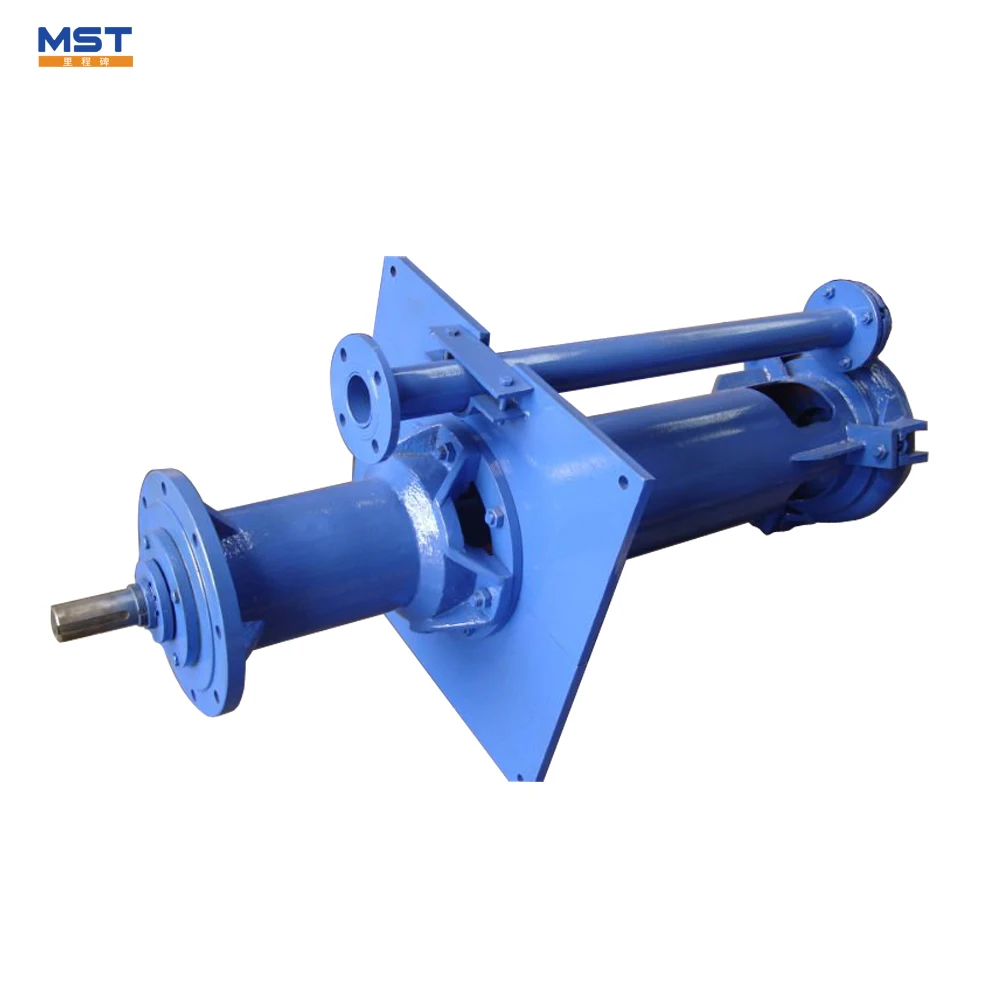

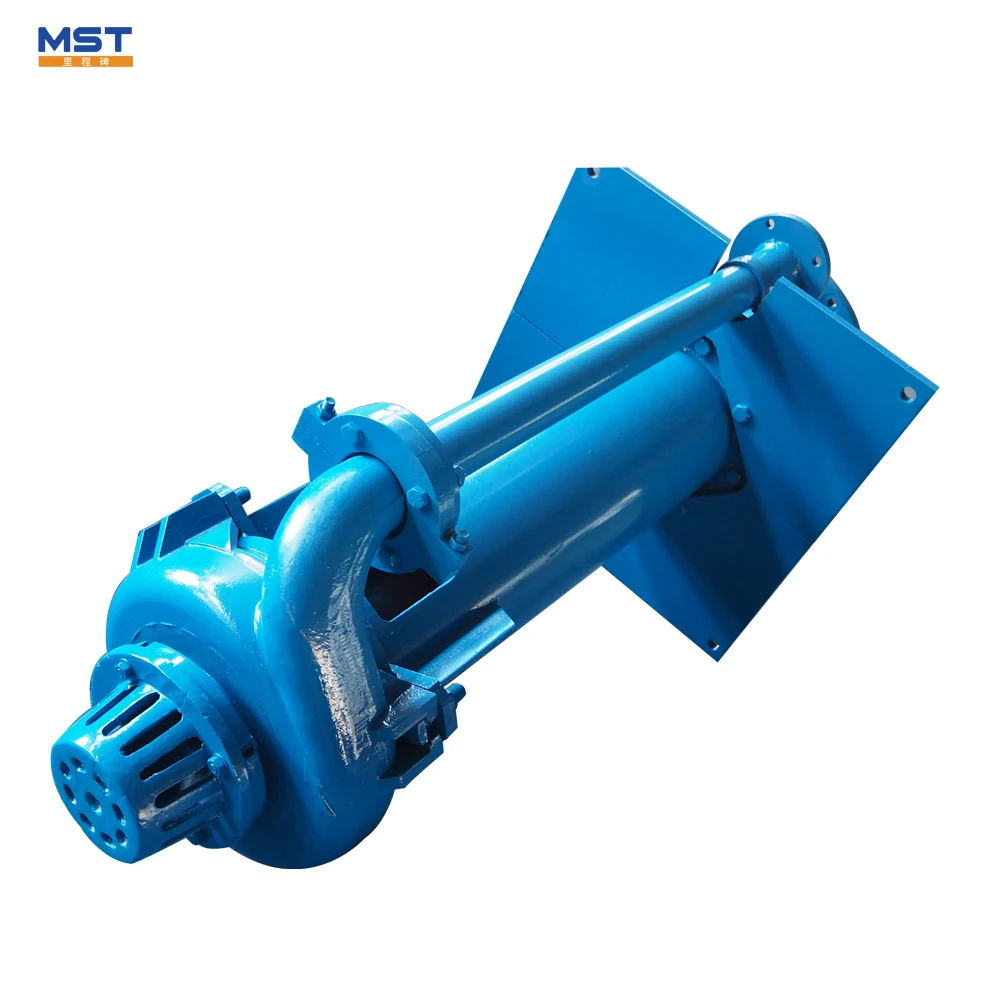

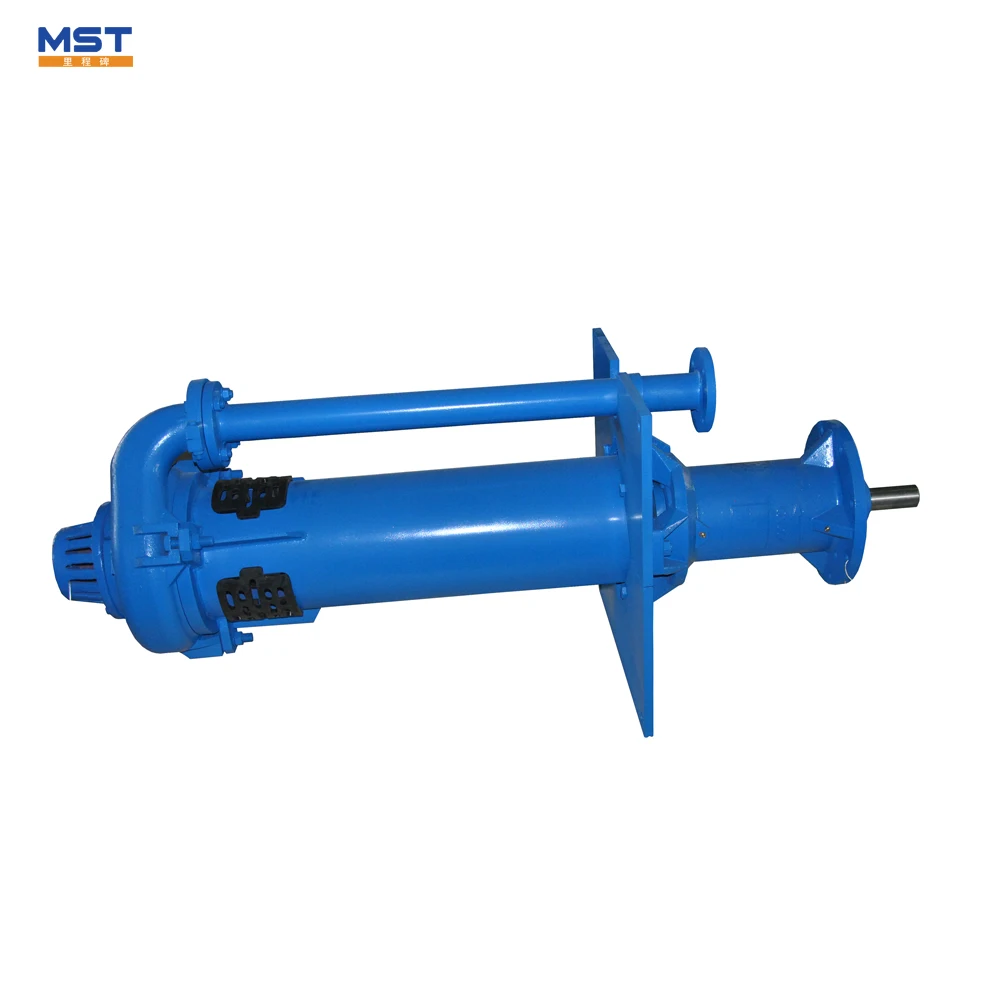

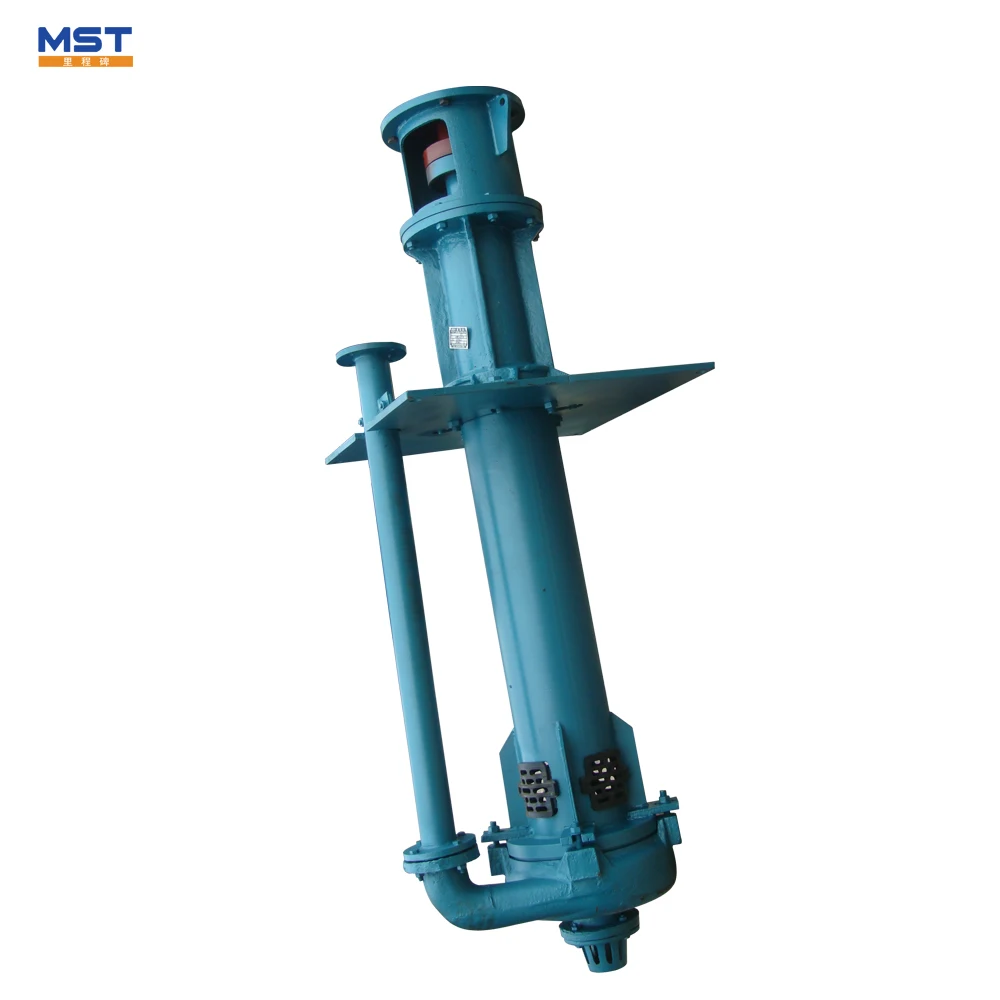

Vertical submersible manure sump pumps
Vertical submersible manure sump pumps
Vertical submersible manure sump pumps
Vertical submersible manure sump pumps
Vertical submersible manure sump pumps
Vertical submersible manure sump pumps
Vertical submersible manure sump pumps

Vertical submersible manure sump pumps

Share on (60375316065):


Price:$1,301.00

Quantity:


Product Overview

Description



video




--Products Description--




MAH slurry pumps are heavy duty horizontal slurry pumps designed to handle abrasive and high density slurries in mining and heavy industry.MAH slurry pumps are available in sizes ranging from 1 inch to 18 inch discharge and feature high efficiency performance capable of flow rates from 10.8 to 5400m3/h and heads up to 125 meters for high head models.


--Product Paramenters--


Type
Max. Power
Capacity
Head
Speed
Max.
Eff.
NPSH
Impeller
Max. Particle Size
Metal Liner and Impeller
(kw)
(m³/h)
(m)
(r/min)
(%)
(m)
Dia. (mm)
No. of Vanes
(mm)
MAH 1.5×1
15
12-28
6-65
1200-3800
40
2.5-5.5
150
5
14
MAH 2×1.5
15
21-72
6-55
1200-3200
45
3-8
184
5
19
MAH 3×2
30
21-108
10-70
1300-2700
58
3-12
214
5
25
MAH 4×3
60
72-180
10-50
1000-2200
71
2-6
245
5
28
MAH 6×4
120
72-360
12-63
800-1600
68
3-8
365
5
44
MAH 8×6
300
144-720
5-60
500-1140
72
2-10
510
5
63
MAH 10×8
560
360-1440
10-63
400-850
71
2-10
686
5
76
MAH 12×10
560
360-1800
7-68
300-800
80
2-8
762
5
86
MAH 14×12
560
1080-2880
13-63
300-600
77
4-12
965
5
90
MAH 16×14
600
1800-3600
10-60
250-450
82
3-8
1067
5
120
MAH 20×18
600
2520-5400
15-45
200-350
82
2-8
1372
5
130

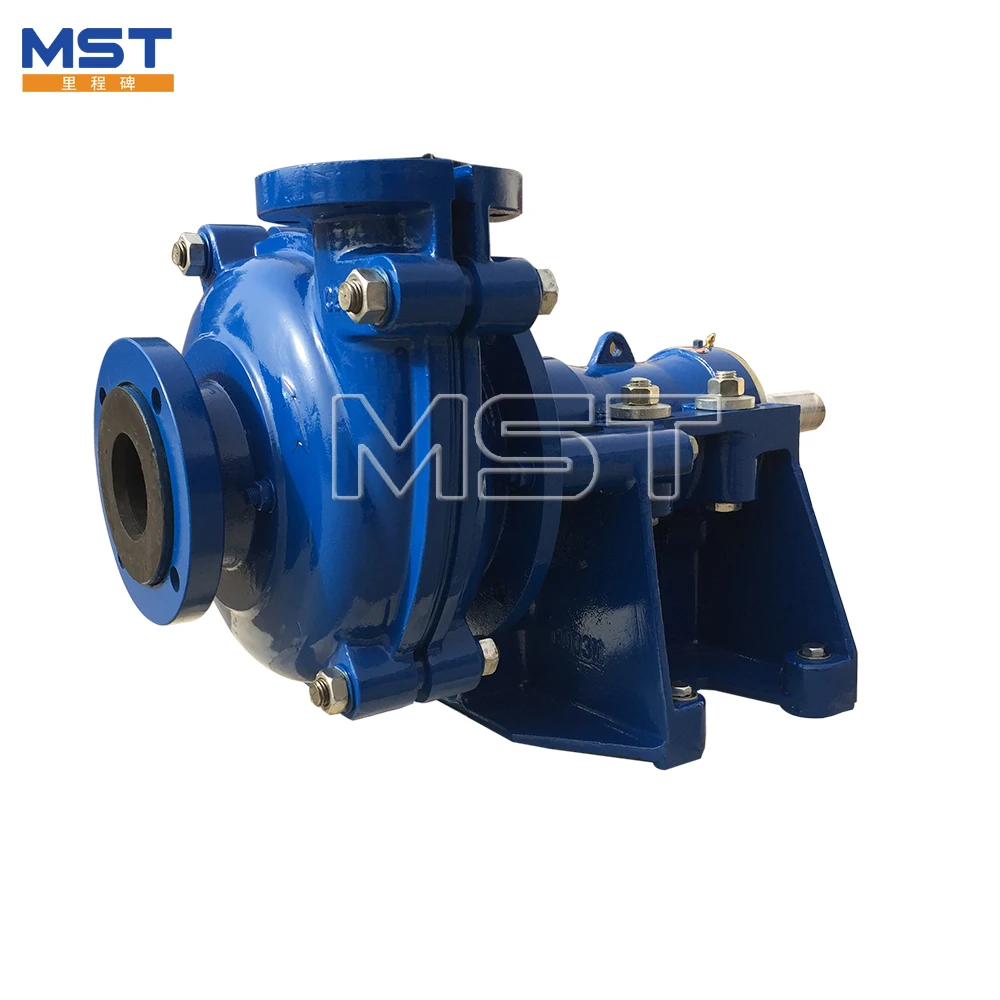

Milestone MAH/MAHR slurry pump feature
1. 27% chrome white iron, rubber or urethane replaceable wear liner.
2. 27% chrome white iron, rubber or urethane impeller.
3.Sturdy cast iron, single piece bearing frame with only four through bolts for easy maintenance and adjustment.
4. Easy access maintenance by simply removing front pump casing.
5. Regreasable or oil lubricated bearings.
6. With Large diametershaft with minimal overhang for reduced shaft deflection.
7. Ceramic, 316 stainless steel, hardened steel shaft sleeves available on request.
8. Expeller drive seal fitted as standard.
9.Packed gland with product lubrication available. Optional external clean water flushing available.

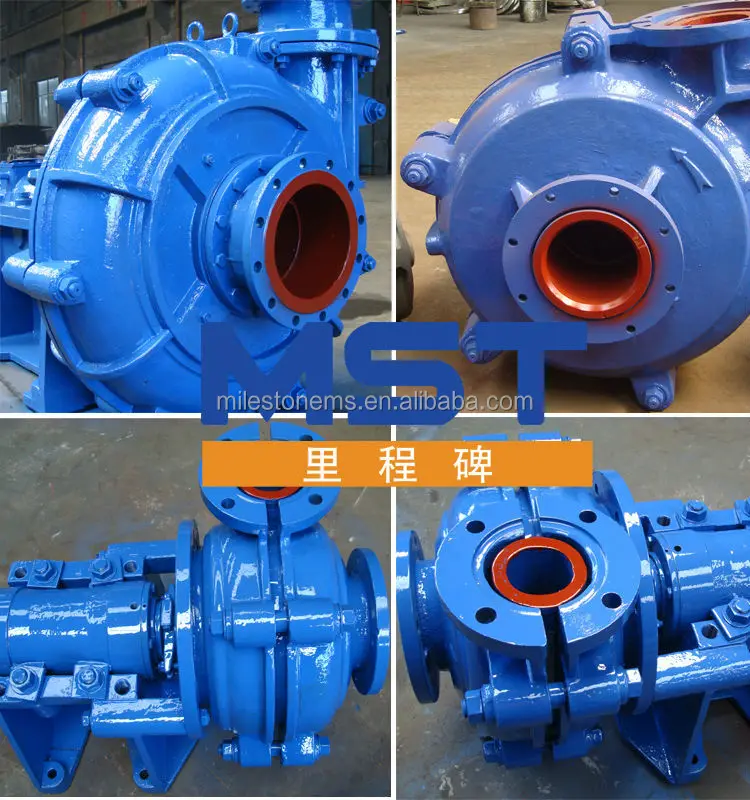

--Details Images--




--Related Products--

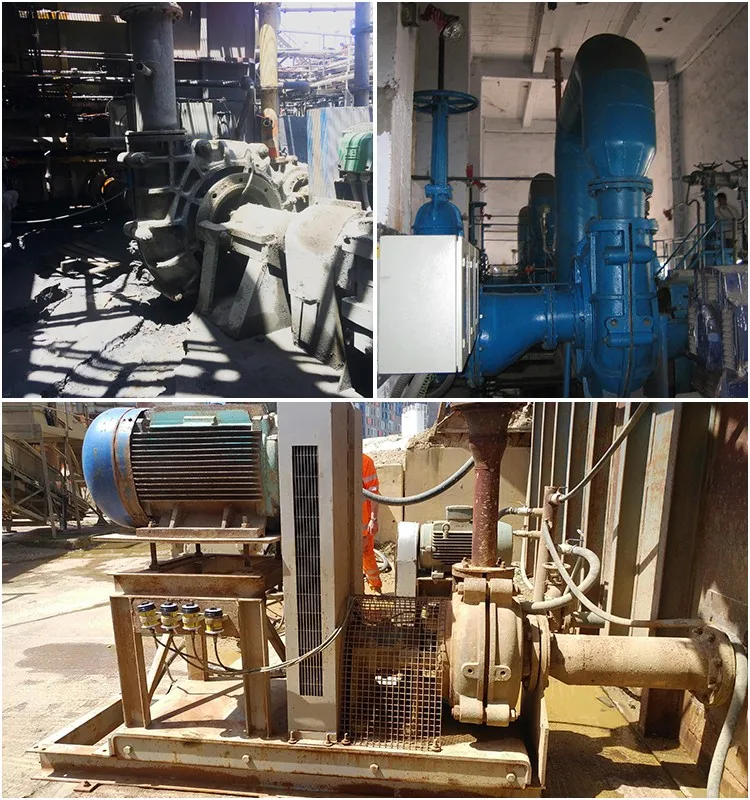

--Application--




It is an energy saving and special structure type equipment, mainly used for filtering and screening of various slurry and
concentrated slurry, also widely used in food, pharmaceutical, chemical, paper, environmental protection, ceramics,electric porcelain and other industries.

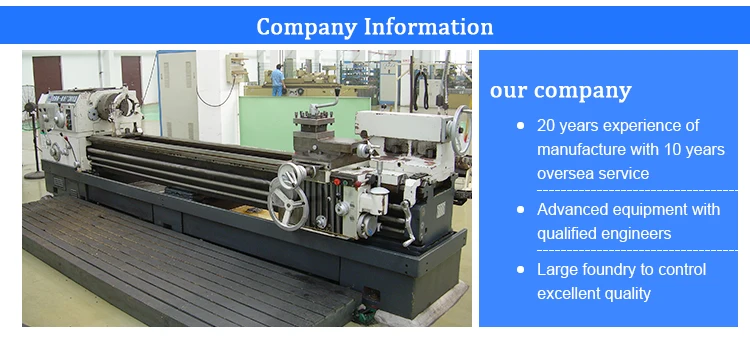

--Our Company--




SHIJIAZHUANG MILESTONE ENGINEERING & MANUAFCTURING CO.,LTD.


Milestone Engineering & Manufacturing is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of slurry pump and water pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.




--Packing & Delivery--






Our service - professional attentive..
* Perfect Quality Control-- We own professional quality management and process inspection team
* Fast High Quality Service--In the process of service,the demands of all customers can be solved quickly and effectively.
* Supply Support Capacity--We ensures the products with good quality,suffcient quantity and diversification.
* Excellent Cost Performance--Provide the most excellent products,the most favorable price and the most perfect service to all customers.


--FAQ--


Q1: What is your product range?
A:Centrifugal pump includes slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, self-priming pump and diesel engine pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, L/C, Western Union, Paypal and Trade assurance.
Q4: How long is the lead time?
A:In general 7 working days for slurry pump, 15 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing. Different materials is available.
