Factory TCJ JP shrink sleeve PET PVC label rewinder&inspection machine

Product Overview

Description

Shrink sleeve PET PVC label rewinder&inspection machine

SHRINK SLEEVE PET PVC LABEL REWINDING& INSPECTION MACHINE



APPLICATION	TCJ-JP300C Shrink sleeve PET PVC label rewinding&inspection machine is specialized in inspecting the shrink sleeves inspection machinery whiched was sealed by the sleeve label sealing machine.Through the inspection & rewinding,we can check the sealing quality ,printing quality etc.
PARAMETER	Raw material	PVC,PET,PET-G SHRINKABLE TUBE FILM
	Max.unwinding width	300mm
	Max. unwinding diameter	Φ750mm
	Max.inspection speed	320m/min
	Max.rewinding diameter	Φ750mm
	Max.rewinding width	300mm
	Rewinding tension range	5-50N
	Tension precision	3N
	Total machine power	3.3kw
	Voltage	3phase 380V 50hz China.(Depend on customer)
	Measurement	2800mm*1150mm*1700mm(L*W*H)
FEATURE	Unwinding system	1. 3inch airshaft
		2.Edge Position Controlling System
		3.Automatic Unwinding tension controlling system
	Inspecting system	1.Inspecting by air.
		2.Flash light for inspection keeping the same speed with machine
		3.Air out ,machine stop automaticly.
		4.Working table is optional.
	Rewinding system	1.3inch airshaft 2. Automatic Rnwinding tension controlling system
	Meter-counter and corona treatment equipment is included.

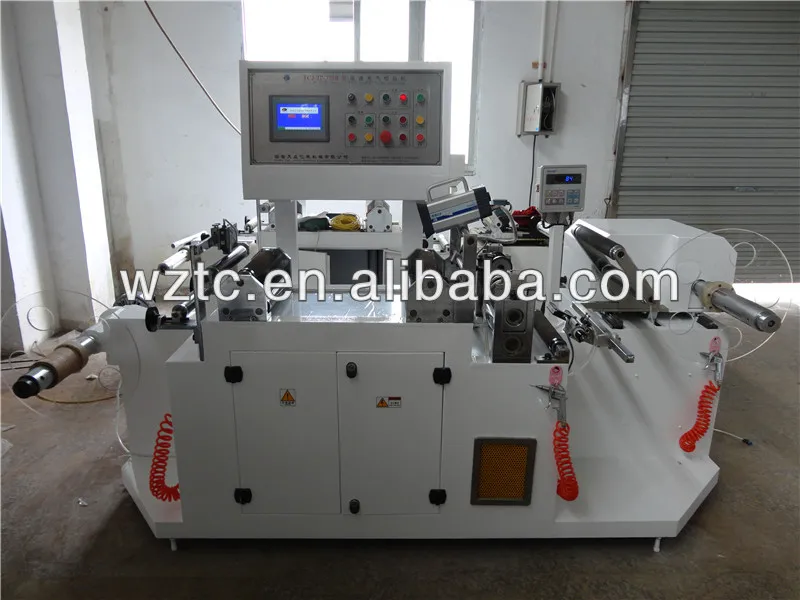

TCJ-JP300C Most popular  shrink sleeve PET PVC label rewinder&inspection machine :

















OUR SERVICE:







1.Installation Services







Installation Services are available with all our new machines. We can send our technician to your factory to help you install your purchased machines from our factory.Of course,your factory need to suplly the round trip tickets food ,hotel and salary to our technician.







2.Clients Traning Services







We advise each customer can send your own technican come to our factory to learn how to operate our machines.We will let our technician teach and train your technician hand by hand till he can operate our machine by himself.









3.After Sales Service







Our machine guarantee time is one year.







We will send many easy broken spare parts in the tool box together with machines.







If any parts broken ,please take a pictures or a videos to us.







We will help you to change it.















SHOULD ANY FURTHER INFORMATION BE REQUIRED ,PLEASE FEEL FREE TO CONTACT WITH US







Mob:+86-13967751871
Web:www.tcpackager.com

ADD: NO.1 JINGER ROAD ,FEIYUN NEW AREA, FEIYUN STREET ,RUIAN CITY, WENZHOU,ZHEJIANG ,CHINA
