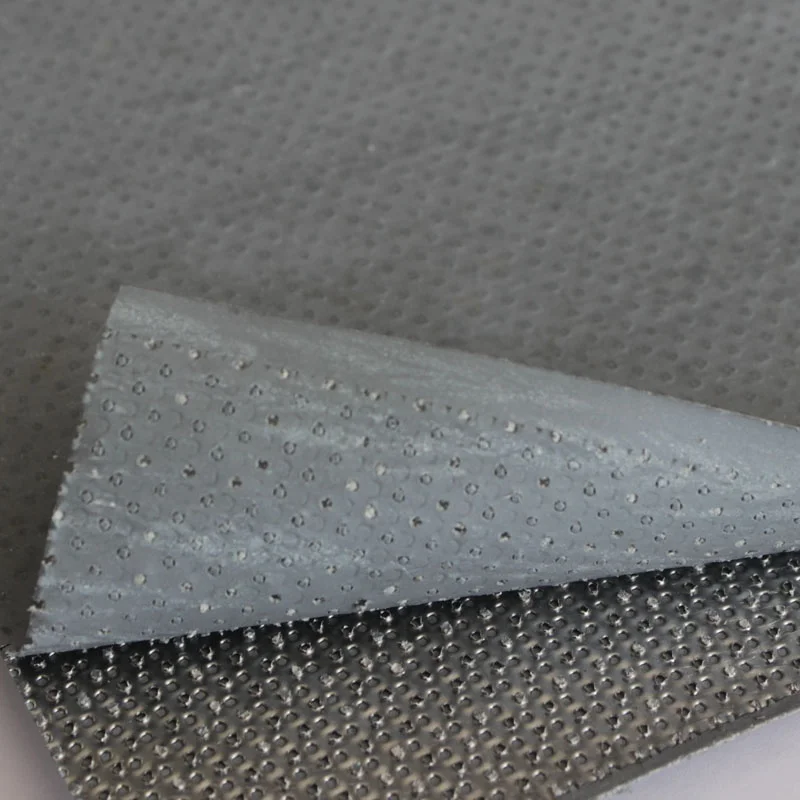

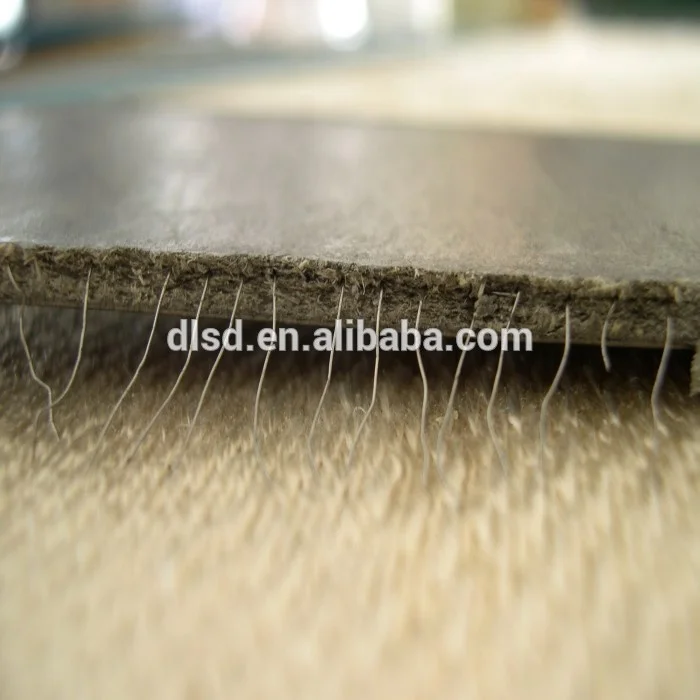

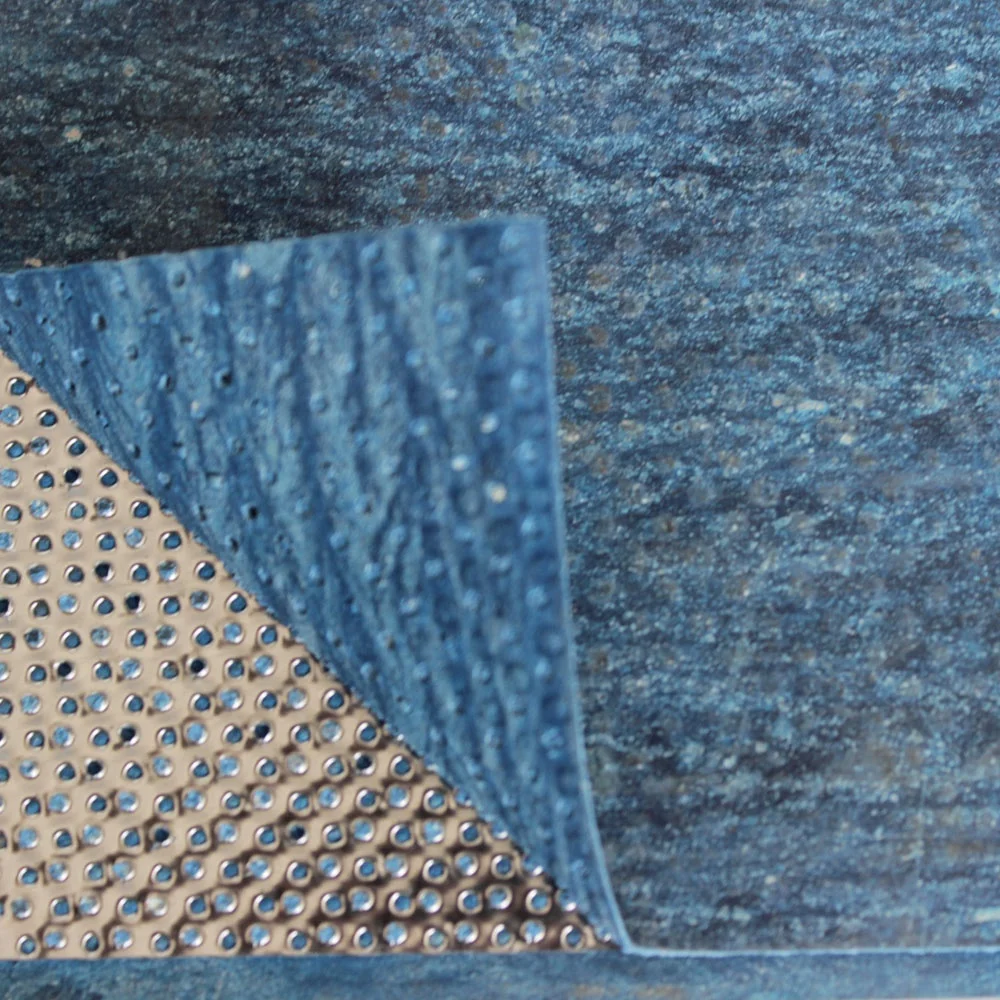

Oil Resistant Non Asbestos Rubber Sheet with Wire Mesh Gasket Sheet
- Category: >>>
- Supplier: Dalian Shangdu WJH Co. Ltd.
Share on (60375428108):
Product Overview
Description
Oil Resistant Jointing Sheet Gasket Sheet with Wire Mesh
Product Description
| Oil-resisting Non Asbestos Rubber Sheets with Wire Inserted Physical Property | ||||||||||
| GB/T 539 - 2008 | ||||||||||
| Item | NY150 | NY200 | NY250 | NY300 | NY400 | NY510 | NY600 | |||
| Reference | Density | 2.0 g/cm3 | ||||||||
| Thickness | 0.4 mm - 6.0 mm | |||||||||
| Compressibility | 7-17 | |||||||||
| Transverse Tensile Strength ≥ | 9MPa | 10MPa | 11MPa | 12.7MPa | 15MPa | 18MPa | 20MPa | |||
| Stress-relaxation ≤ | 45 | 40 | ||||||||
| Recovery ≥ | 35 | 40 | 45 | 50 | 50 | 50 | 60 | |||
| Max. pressure | 1.5MPa | 2.0MPa | 2.5MPa | 3.0MPa | 4.0MPa | 5.8MPa | 6.0MPa | |||
| Max. temperature ℃ | 150 | 200 | 250 | 300 | 400 | 510 | 580 | |||
| Flexibility | No crack | |||||||||
| Oil resisting performance | IRM #903 Normal Oil 150℃ x 5h | Tensile Strength (MPa) ≥ | 8 | 8.5 | 9 | 10.8 | 12 | 15 | 16 | |
| Change in Thickness (%) ≤ | ----- | 20 | 20 | 15 | 15 | 10 | 10 | |||
| Change in Weight (%) ≤ | 23 | 23 | 23 | 23 | 9 | 15 | 15 | |||
ASTM Fuel 8RT x 5 h
| Tensile Strength (MPa) ≥ | 6 | 6.5 | 7 | 7.9 | 10 | 12 | 14 | ||
| Change in Thickness (%) ≤ | ----- | 25 | 25 | 25 | 20 | 15 | 15 | |||
| Change in Weight (%) ≤ | 22 | 22 | 22 | 22 | 15 | 18 | 18 | |||
| Nitrogen gas sealability ml/Min ≤ (Q/YSM BJS001-2007) | 2.5 | 2 | 1.5 | 1.5 | 1 | 0.8 | 0.5 | |||
| Oil sealability | No Leakage | |||||||||
| Color | Black, Green, Red, Yellow, Blue, Grey or as request | |||||||||
| Size | 4120mm x 1520mm, 2060mm x 1520mm, 1520mm x 1360mm, 3810mm x 1270mm, 1270mm x 1270mm, 1520mm x 1520mm, 1520mm x 1020mm or as request | |||||||||
Packaging & Shipping
In rolls with plastic bags inside and weave bags outside or with wooden pallets
Our Services
Our promise:
1. We can give you the fast reply for your questions and ideas.
2. We can give you the best price for the same quality which other supplier produce for you.
3. We have strict quality testing, the unqualified products are forbidden to leave the factory.
Company Information
Dalian Shangdu WJH Co., Ltd is a professional manufacture of non-asbestos rubber sheet,industrial rubber sheet, sealed gasket materials and heat preservation materials.
FAQ
1.Q: Are your Manufacturer or Trading Company?
A: We are a professional adhesive products manufacturer,and our plant locates in Cangzhou of Hebei Province,only 3 hours away from tianjin port.
2.Q:Can we get some Samples?
A:Samples are free.You just need to pay the international express freight.
3.Q: Can you OEM?
A: Yes,we can
4:Q:What's the Payment terms?
A:Our normal practice:30% deposit of total amount before production,and 70% balance payment before shippment. However this is open for discussion.
Thanks for your time!
Welcome to your inquiry!^_^
If any questions,please feel free to contact us.
Tel/What's app/Wechat: +86-13941126056
Skype: lindy@dlshangdu.cn
Non Asbestos jointing sheet:valve cover gasket:Non Asbestos jointing gasket:sealing gasket sheet:Non asbestos rubber sheet:non asbestos caf gasket: engine head gasket:klinger gasket:internal combustion engine gasket:water and oil resistant gasket:Non asbestos rubber gaskets good resistant for water and oil
