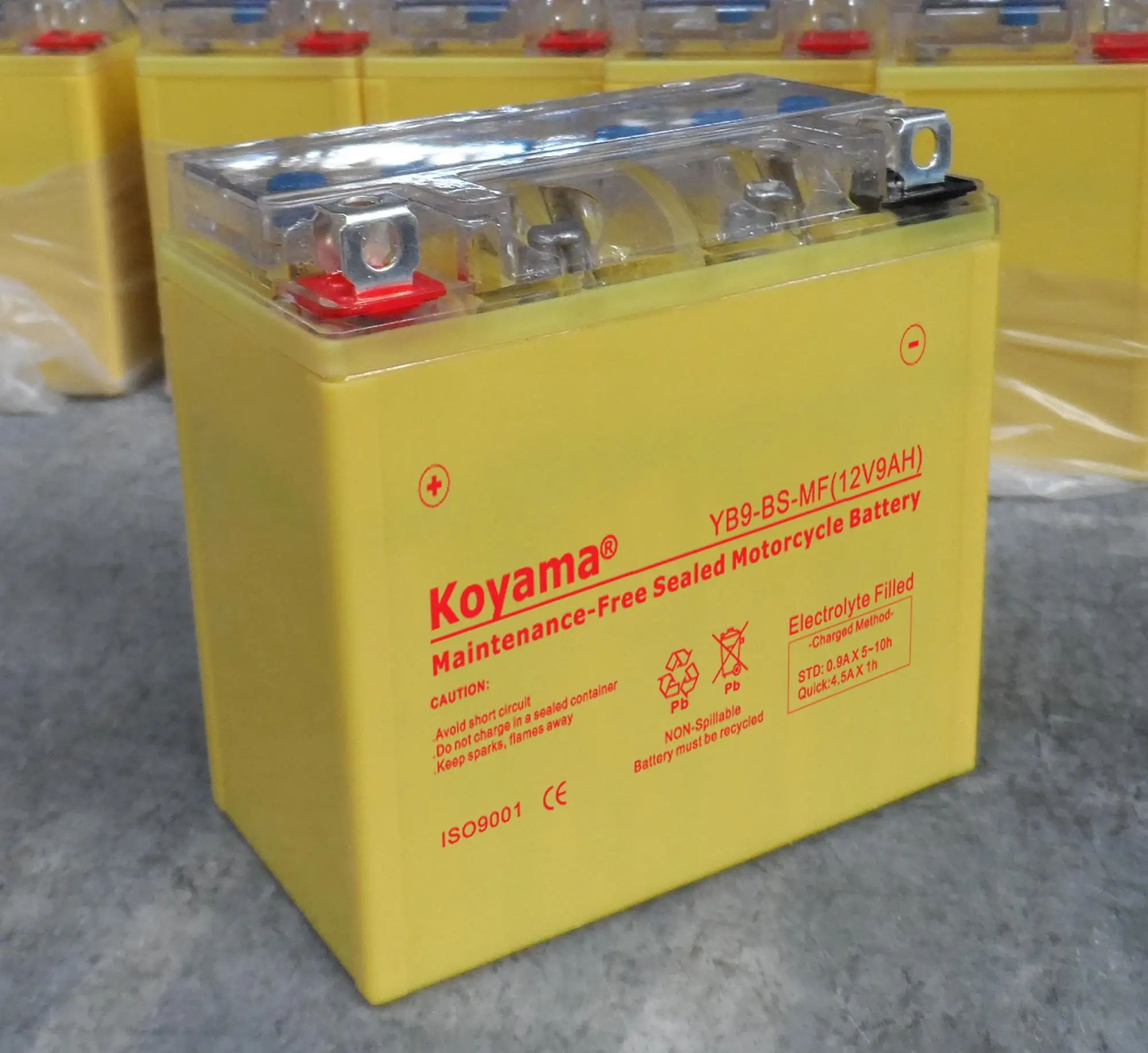

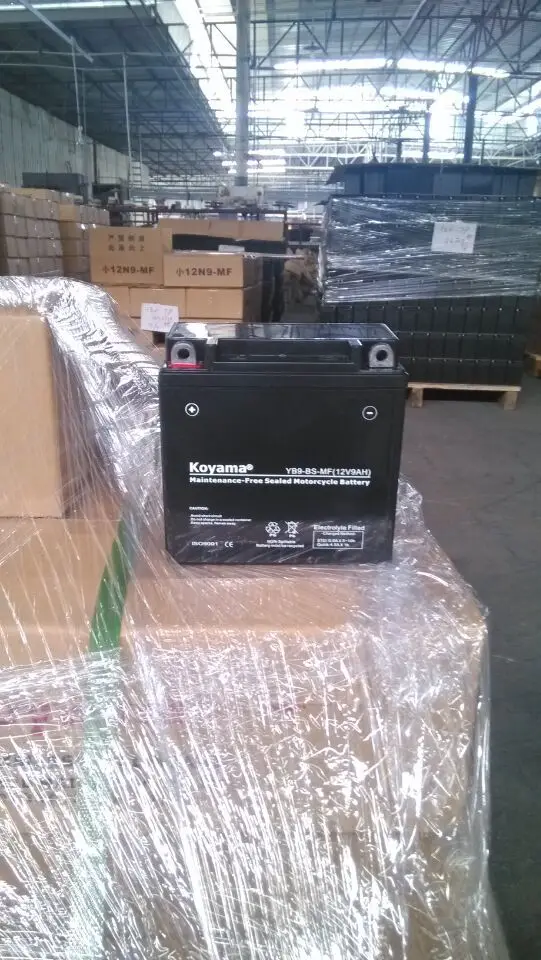

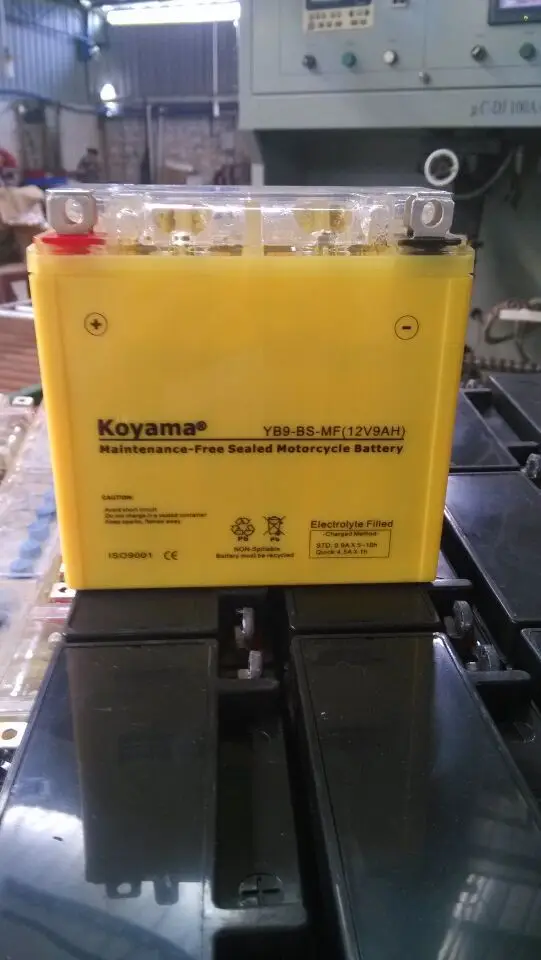

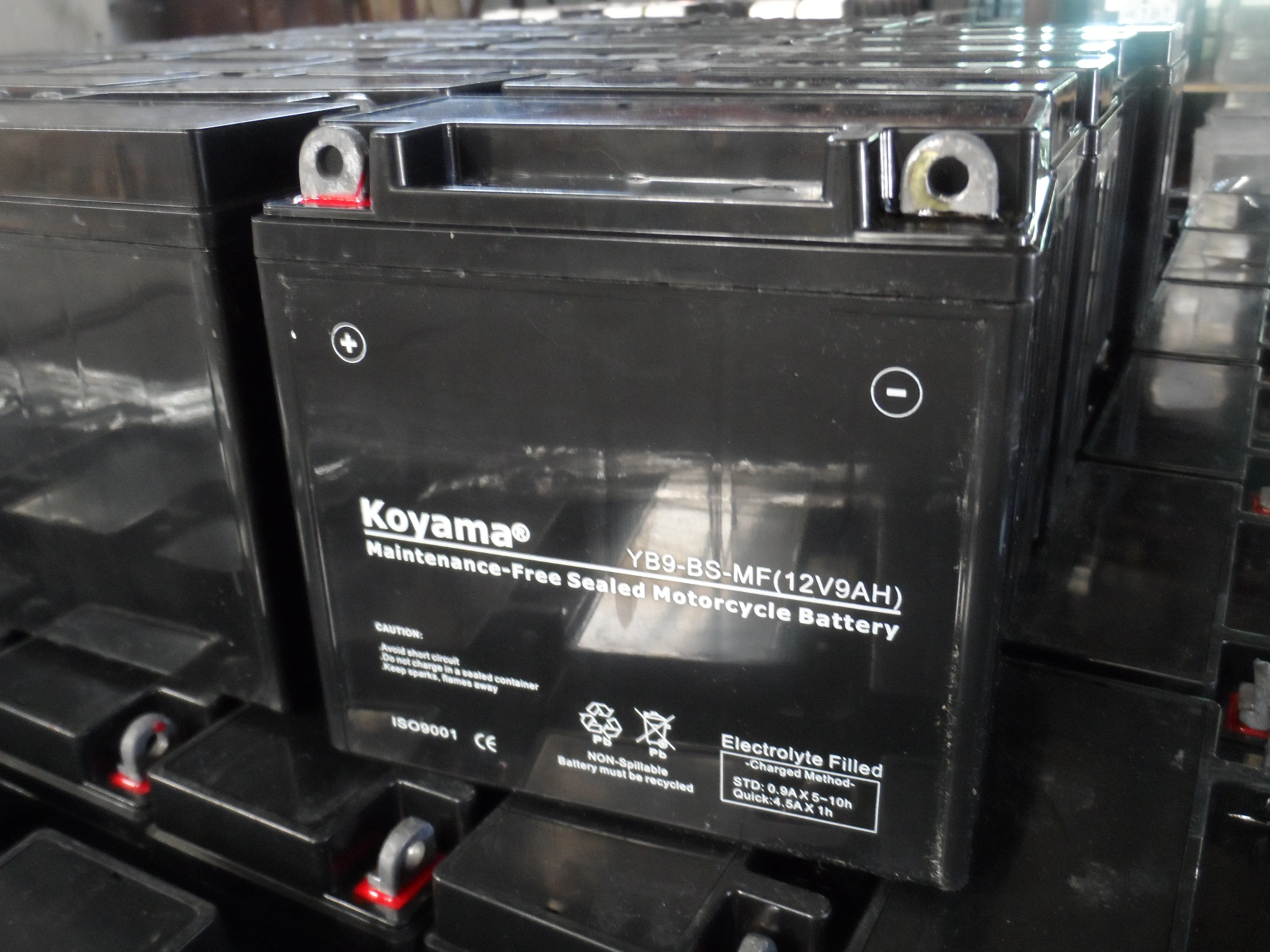

9Ah 12V Motorcycle Parts Battery motor Battery YB9 BS/12N9 4B 1
- Category: Motorcycle Batteries >>>
- Supplier: Guangzhou CBB Battery Technology Co. Ltd.
Share on (60375499499):
Product Overview
Description
Product Description:
|
Model |
YB9-BS-MF |
|
Dimension |
137*76*134 |
|
Capacity(10hr) |
9Ah |
|
Weight |
2.88-3.05kgs |
|
Terminal Layout |
+/- |
|
Volts (V) |
12V |
|
OEM acceptable |
1000PCS |
| Battery Size | Voltage (V) |
Capactiy 10HR(Ah) |
Dimensions(±1mm) | Weight (Kg) | Charge Current (A) |
|||
| L | W | H | HL | |||||
| 6N4-2A | 6 | 4 | 71 | 71 | 94 | 94 | 0.82 | 0.40 |
| 6N6-3B | 6 | 6 | 98 | 56 | 111 | 111 | 1.18 | 0.60 |
| 6N11A-3A | 6 | 11 | 119 | 59 | 128 | 128 | 1.90 | 1.10 |
| 3-MA-12 | 6 | 14 | 105 | 77 | 140 | 140 | 2.31 | 1.40 |
| YT4B-BS/YT4B-5 | 12 | 2.3 | 113 | 39 | 86 | 86 | 0.95 | 0.23 |
| YB2.5L-BS | 12 | 2.5 | 81 | 71 | 105 | 105 | 1.11 | 0.25 |
| BS1225 | 12 | 2.5 | 112 | 88 | 69 | 69 | 1.18 | 0.25 |
| YTR4A-BS | 12 | 2.5 | 113 | 48 | 85 | 85 | 1.08 | 0.25 |
| YB3L-A | 12 | 3 | 98 | 56 | 109 | 109 | 1.28 | 0.30 |
| FBT19 | 12 | 3 | 112 | 57 | 81 | 81 | 1.30 | 0.30 |
| HD1230 | 12 | 3 | 112 | 57 | 81 | 81 | 1.30 | 0.30 |
| YTX4L-BS | 12 | 3 | 114 | 69 | 86 | 86 | 1.41 | 0.30 |
| BS1225L | 12 | 3 | 223 | 44 | 69 | 69 | 1.19 | 0.30 |
| YTX5L-BS | 12 | 4 | 114 | 69 | 109 | 109 | 1.84 | 0.40 |
| YB4L-B | 12 | 4 | 120 | 71 | 91 | 91 | 1.64 | 0.40 |
| YB5L-B | 12 | 5 | 120 | 61 | 132 | 132 | 2.01 | 0.50 |
| YT6B-3/YTZ7S | 12 | 5 | 113 | 70 | 105 | 2.36 | 0.50 | |
| YTX7L-BS | 12 | 6 | 114 | 69 | 134 | 134 | 2.58 | 0.60 |
| YTX7A-BS | 12 | 6 | 151 | 87 | 95 | 95 | 2.55 | 0.60 |
| YTX6.5L-BS | 12 | 6.5 | 139 | 66 | 101 | 101 | 2.29 | 0.65 |
| YB7B-B | 12 | 7 | 149 | 60 | 130 | 130 | 2.56 | 0.70 |
| YTX9-BS | 12 | 8 | 151 | 87 | 107 | 107 | 3.14 | 0.80 |
| YTX9-BS | 12 | 8 | 151 | 87 | 107 | 107 | 3.14 | 0.80 |
| YB7-A | 12 | 9 | 135 | 75 | 135 | 135 | 3.65 | 0.90 |
| YB9L-B | 12 | 9 | 136 | 76 | 139 | 139 | 3.33 | 0.90 |
| YB9-B | 12 | 9 | 136 | 76 | 139 | 139 | 3.33 | 0.90 |
| YB10L-A2/YB10L-B2 | 12 | 10 | 135 | 90 | 146 | 146 | 4.01 | 1.00 |
| YT12A-BS | 12 | 10 | 150 | 87 | 106 | 106 | 3.36 | 1.00 |
Payment:
1.Pay through T/T or L/C
2.Price term: FOB Guangzhou (Nansha port), CNF, CIF
3.The customer is responsible for any tax or bank charges by their countries.
Packaging:
