Algae Tubular Separator Centrifuge
US $6800
Modular type vertical structure 3 phase centrifugal HFO separator
- Category: Separation Equipment >>>
- Supplier: Nanjing,Kingreat,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

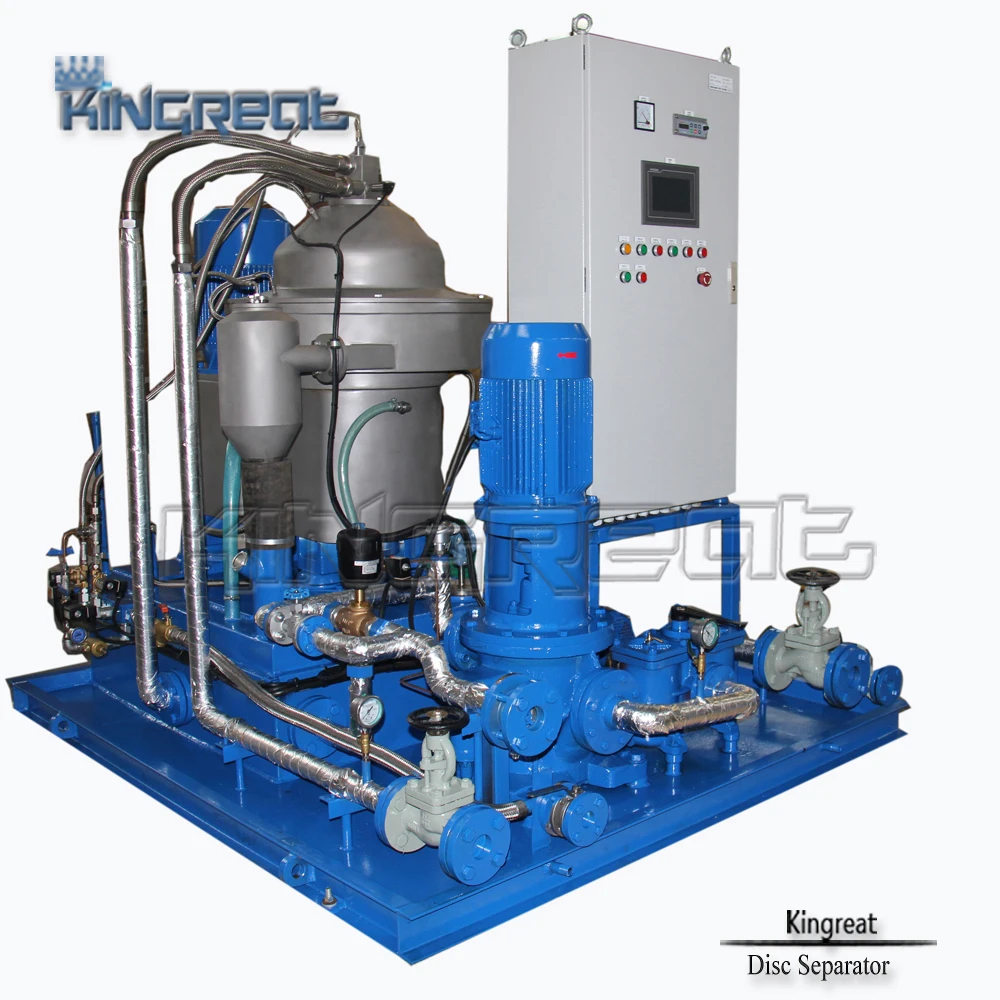

Modular type vertical structure 3-phase centrifugal HFO separator
Product Overviews
Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.
ADVANTAGES:
1. Moisture sensor (No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2. Bowl with full hydraulic structure brings more thorough slag discharge, more stable and reliable performance.
3. The new type seamless belt drive (No second tensioning required) brings more reliable structure and more simplified mechanical structure.
4. High rotating speed ensure the best separation effect.
5. Our separator is with low power consumption and light weight, which is in accordance with the requirements of the national industry.
Nanjing Kingreat Machinery Co., Ltd , covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
Technical parameters
Discharging type | Variable discharging | |
| Rated capacity (L/h) | 0# diesel oil | 14000 |
| Bowl rotating speed | rpm | 7800 |
| Output pressure of clear oil | Mpa | ≤ 0.2 |
| Output pressure of sewage | Mpa | ≤ 0.3 |
| Motor power | kw | 11-15 |
| Weight for single machine | kg | 730 |
| Weight for the module | kg | 1500 |
| Installation dimension | L × W × H (mm) | 1800 × 1500 × 1800 |
Other oil capacity reference chart
Oil types | Fuel oil | Lubrication oil | ||||||||
Fuel oil | Heavy fuel oil | SAE30, 40 | Detergence oil | Steam turbine oil | ||||||
Kinematical viscosity (mm²/s) | 1.9-5.5 | 5.5-24 | 120 | 180 | 380 | 100-120 | 61.2-74.8 | |||
40℃ | 50℃ | 40℃ | 40℃ | |||||||
Density (kg/m³)(20℃) | < 900 | 900-991 | 880-900 | < 900 | ||||||
Separating temperature (℃) | Normal temperature, 40-60 best | 90-98 | 80-95 | |||||||
Recommended capacity (L/h) | 17500 | 14000 | 7700-8400 | 6300-7000 | 4900-5600 | 7000-8400 | 3500-4200 | 11200-11900 | ||
If you have special requirement, please connect with us. | ||||||||||
Reserve the right to change specifications without prior notification.
Packaging
Our partner
Our Services
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
FAQ
1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous brand.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.
10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
11. What payment mode you accept?
TT and LC at sight.
For further details, please feel free to contact me.
Lucia
