RF Microwave Signal Generator

Product Overview

Description

 Product Overview

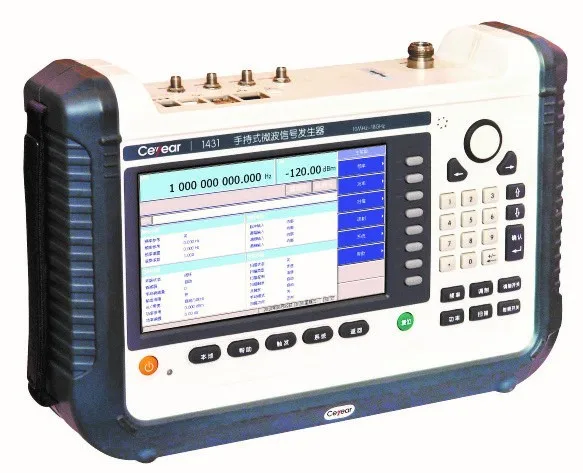

 AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator are provided with a unified portable case, featured by high integrity, small size and little weight, and can be carried with ease, offering bilingual Chinese - English menu, friendly interface and operation easy to learn. Their output signals cover the frequency ranges of radio frequency and microwave respectively, in a high frequency resolution, wide dynamic range and multiple modulation functions. They are possible to work at two modes of power supply, delivering a superior property of energy saving, and incorporating rechargeable battery with large capacity that could support the unit to operate for a long time by one charging. They can also meet the requirements of testing during the installation, adjustment and field maintenance of most communication and radar countermeasure equipment. High cost performance further makes them ideal for testing in the fields such as colleges and universities, civil communications, etc.



 Main Features
     Small size, little weight, built-in battery, and completing field operation with ease
     Friendly human-machine interface, bilingual Chinese-English menu, simple operation, easy to learn               and use
  Built-in modulation signal generator
  Available in amplitude modulation, frequency modulation and pulse modulation functions
  Available in two sweep types, List and Step
  Perfect self-diagnosis function and self-testing of state
  With LAN and USB interfaces through which standard program control command may be received to              enable operation     under program control
  Available in intelligent power management function and energy saving working mode, dump energy               indication and low battery warning





Small size, little weight, built-in battery,and completing field operation with ease

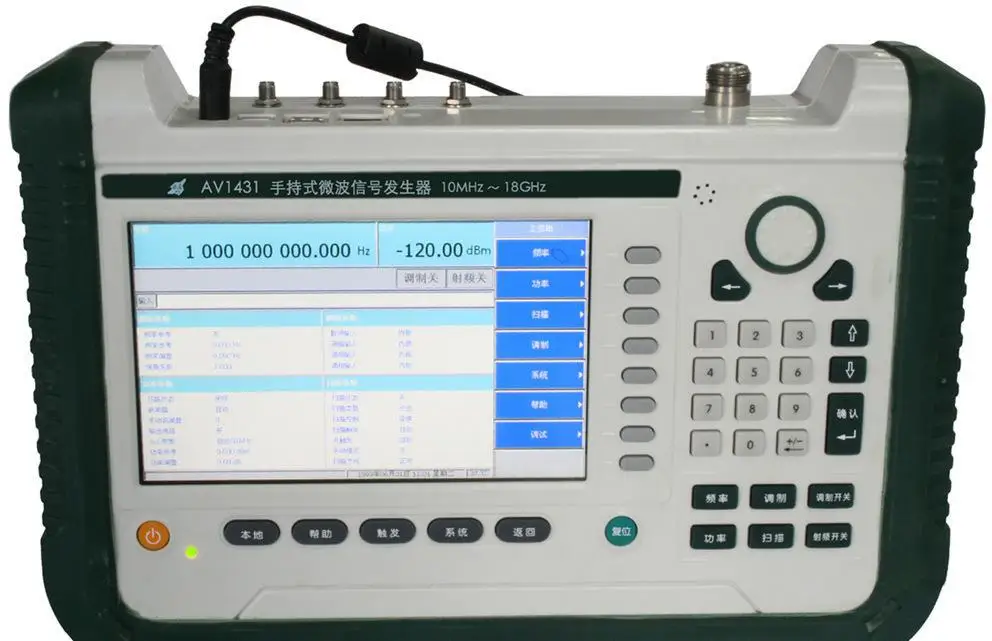

 AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator have the same physical dimension, featured by small size and little weight. The built-in rechargeable battery with a large capacity could be easily replaced. The configuration with a large-capacity battery and a multipurpose bag could bring you the capability of a desktop unit and the convenience of a portable device, quite suitable for field service.

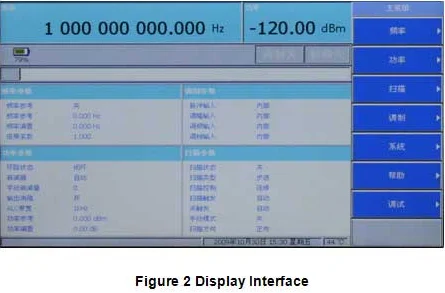

Chinese/English Operation Interface, Large TFT LC

 Both AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator use large TFT LCD and Chinese and English operation interfaces by default and offer a panoramic view of the current state. The operation interface can be set in English according to different purposes and occasions for your convenience. The operation is simple and easy to learn, so you can easily master the operation skills without any special training.

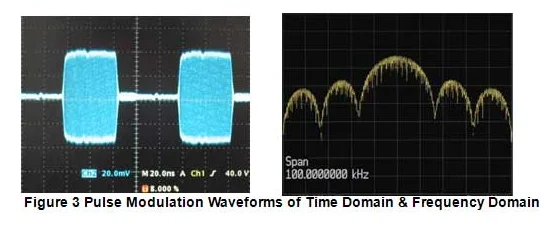

High-performance Pulse Modulation
 Both AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator come standard with high-performance pulse modulation function with modulation depth of over 60dB and minimum pulse width of 100ns. They support gated, external, etc. many trigger modes and provide flexible and convenient solutions for radar pulse signal imitation.

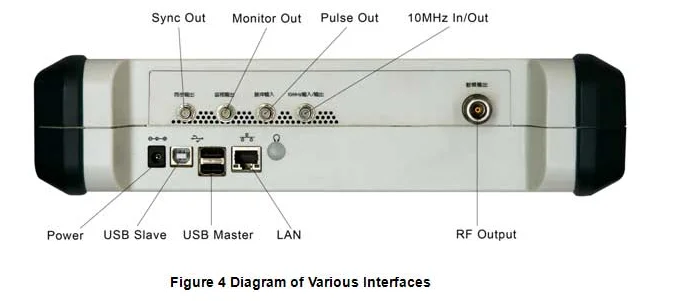

Abundant Interfaces
 AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator provide USB interface and LAN etc. additional expansion interfaces through which standard program control command may be provided so as to help you realize the functions of remote control; meanwhile, they also provide reference input/output interfaces, pulse input, monitor output and sync output etc. interfaces for the user’s convenience.

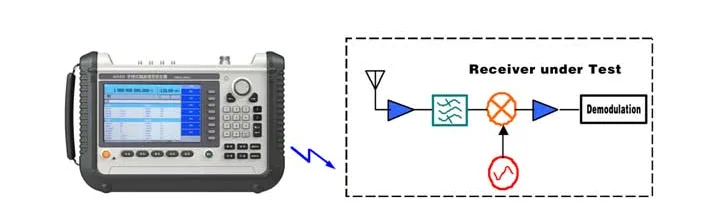

Typical Applications
 Available in wide dynamic range of output and high frequency resolution, AV1431 Portable Microwave Signal Generator and AV1431A Portable RF Signal Generator have a built-in modulation signal generator that can perform in many modulation modes, such as amplitude modulation, frequency modulation and pulse modulation etc. and are used in the performance testing on the receivers of radar and communication, etc. equipment to position the fault point for easy test.









 Technical Specifications



Model	AV1431		AV1431A
Frequency Range	10MHz~18GHz		250kHz~4GHz
Frequency Resolution	10Hz		1Hz
Reference Frequency	Nominal frequency: 10MHz; aging rate: ±1*10-6/year, ±1*10-8/day
Sweep Mode	Step Sweep, List Sweep
Harmonic	≤ -30dBc
SSB Phase Noise  (dBc/Hz)	≤-76dBc/Hz       5GHz@20kHz ≤-70dBc/Hz       10GHz@20kHz ≤-64dBc/Hz       18GHz@20kHz			≤-96dBc/Hz       500MHz@20kHz ≤-90dBc/Hz       1GHz@20kHz ≤-84dBc/Hz       2GHz@20kHz ≤-78dBc/Hz       4GHz@20kHz
Output Power Range  (25±10℃)	Without attenuator option: -15dBm~+7dBm With attenuator option: -110dBm~+5dBm			Without attenuator option: -20dBm~+7dBm With attenuator option: -120dBm~+5dBm
Power Accuracy  (25±10℃)	Without attenuator option: ≤±1.5dB With attenuator option: -5dBm<P≤+5dBm:  ≤±1.5dB -60dBm<P≤-5dBm         ≤±3.0dB -90dBm<P≤-60dBm        ≤±4.0dB			Without attenuator option: ≤±1.5dB With attenuator option: -5dBm<P≤+5dBm   ≤±1.5dB -60dBm<P≤-5dBm ≤±2.5dB -90dBm<P≤-60dBm        ≤±3.5dB
Modulation Performance
Pulse Modulation		Pulse modulation on/off ratio: ≥60dB Pulse modulation rise/fall time: ≤40ns
Amplitude Modulation		Modulation mode: linear mode, exponential mode  Modulation rate (3 dB bandwidth): DC~10kHz Modulation error: ≤±6% (1kHz modulation rate, modulation depth  30%, output power 0dBm, linear mode)
Frequency Modulation		Modulation rate: 20Hz-10kHz; Max. frequency offset: 100kHz Accuracy (1kHz rate, FM deviation 100kHz): ≤±6%
Other Properties
RF Output Port		Type N (female)
Display		TFT-LCD
Operation Interface		Chinese/English
Dimension		313mm*211mm*78mm
Weight		5kg
Power Consumption		30W	20W
Power Supply Mode		DC, rechargeable battery
Battery Service Life		2 hours	4 hours
Operating Temp.		0℃~+50℃



Order Information

Base unit:         AV1431    Portable Microwave Signal Generator    10MHz~18GHz

       AV1431A   Portable RF Signal Generator     250kHz~4GHz

Standard configuration:


  Standard three-phase power cord  1
  Power adapter           1
  User's Guide             1

Options


   1. 110dB programmable step attenuator
  2. Rechargeable battery
  3. Multipurpose bag
