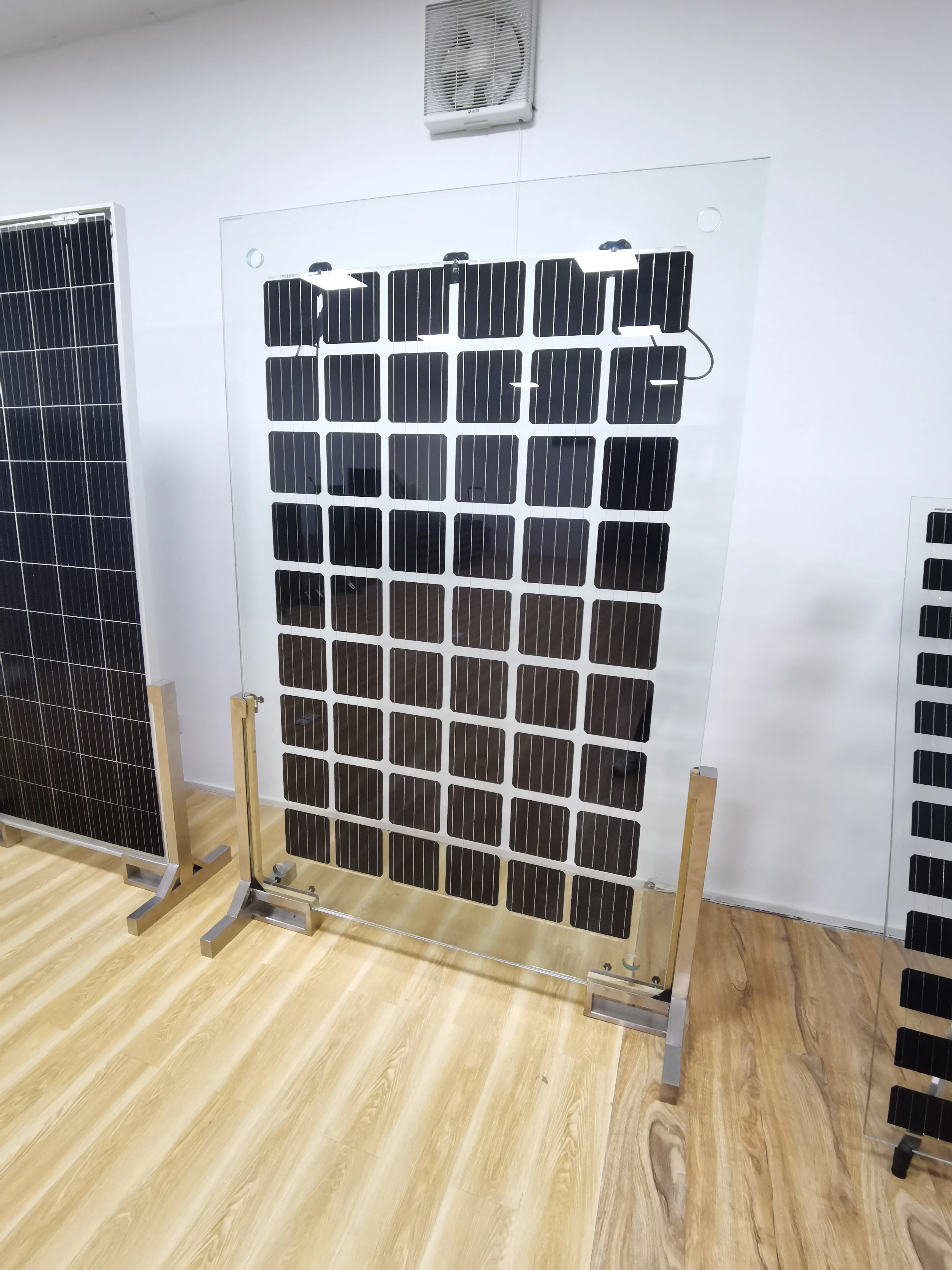

Innovative facade design and engineering BIPV Facade
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.
Share on (60375663221):
Product Overview
Description
Product description
Product module type

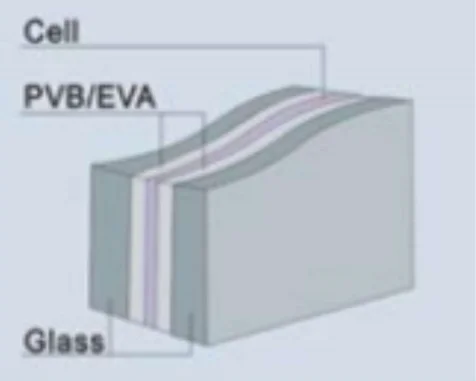

Conventional mezzanine module

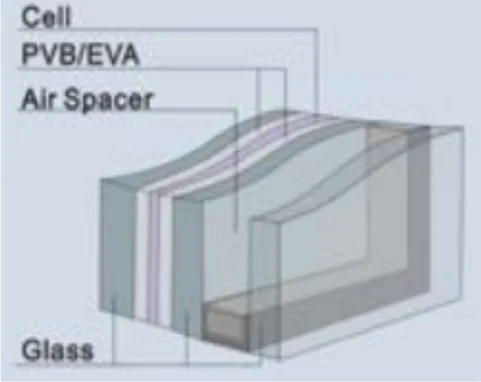

Hollow mezzanine module
Glass processing thickness：min:3.2mm max:12mm
Glass processing size：min:300mmx300mm
max:2500mmx2000mm
Structure and composition
glass
Front glass: ultra-white float tempered glass
Back glass: plain tempered glass
Cell
Cell type: mono/poly
Cell size: 125mm*125mm (mono)
156mm*156mm (polycrystalline/mono)
And customizable cutting processing specifications
Laminated film
Laminated intermediate film: PVB film for photovoltaic
Features: Excellent structural safety performance indicators, high quality and low cost;
High safety fire rating and good durability/weather resistance.
Laminated intermediate film: PVB film for photovoltaic
Features: Excellent structural safety performance indicators, high quality and low cost;
High safety fire rating and good durability/weather resistance.
Shopping guide flowchart for the BIPV

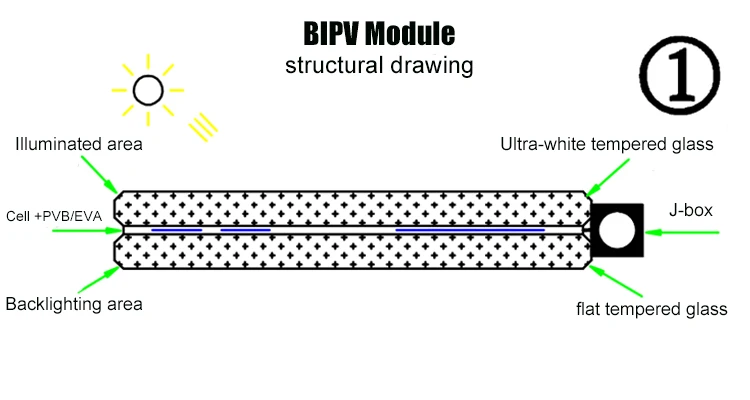

---If you not sure the bipv module component struture,please refer to the picture 1.please make sure the thickness of glass(illuminated area and backlighting area),the type of the cell,the max output,working voltage,and the trasparency

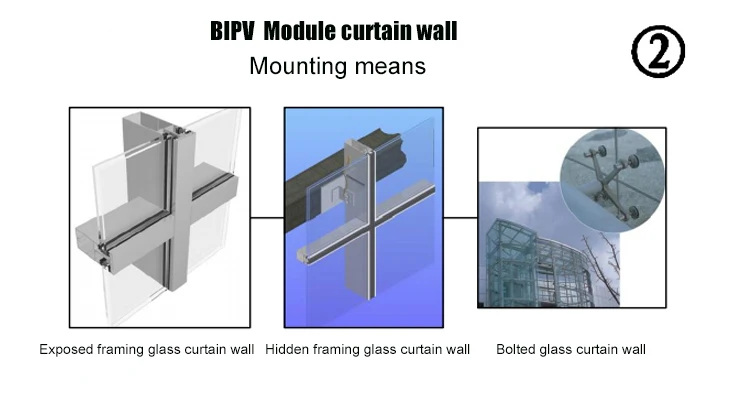

---Determines the mounting means,please refer to the picture 2

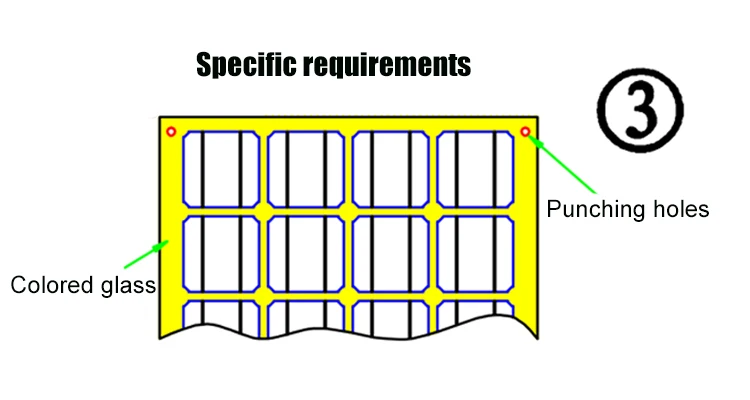

---If you have other requirement for glass(punching holes in the glass or glass coating)please refer to the picture 3

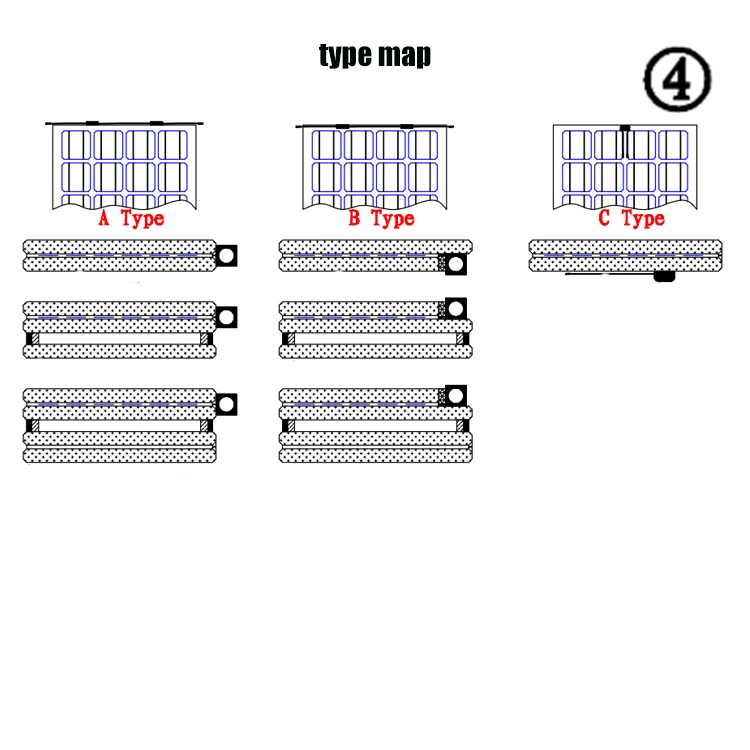

---If you not sure the j-box on the bipv module,please refer to the picture 4
Due to BIPV solar module is a customized product. So, before quotation, please confirm your requests as follow: 1.What thickness of glass do you need? available, 4mm, 5mm, 6mm, 8mm? 2.What size do you need? Max size is 1.5X2.5m? 3.What transparency do you need? generally, 30%-60%? 4.What's your quantity for each type of BIPV module requested? | ||||||||
