Hexagonal Bead Wire Grommet Machine
- Category: Rubber Product Making Machinery >>>
- Supplier: Qingdao Plastsea International Trade Co. Ltd.
Share on (60375757271):
Product Overview
Description
Hexagonal Bead Wire Grommet Machine
six beads for Radial (PCR/LTR) tire
It is suitable for extruding, insulating, multi-coil pay-on and winding for radial tire hexagonal bead.
Construction Features
For bead size of 12’’-28’’. It is an automatic winding line for six bead at one cycle , with characteristic of high automatization and high efficiency.
Main parameters | |
Bead diameter | 12’’~28” |
wire diameter | Max φ1.42mm |
Max. rubberized wire diameter | Max φ1.72mm |
Max. arrangement width /height | 30mm/14mm |
Max. linear speed of winding | 300(for 20’’)m/min |
Storage of wires | ≤20m |
Screw diameter | Φ65mm(cold feed) |
L/D ratio | 12:1 |
Power | 84kw |

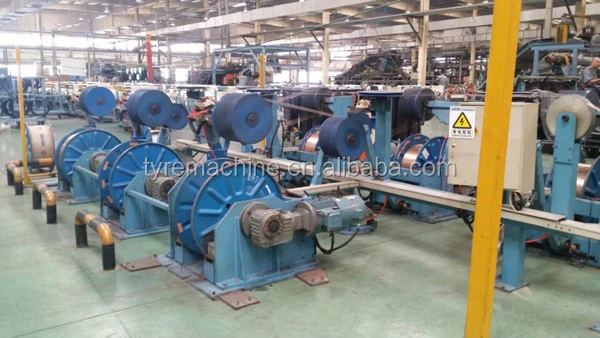

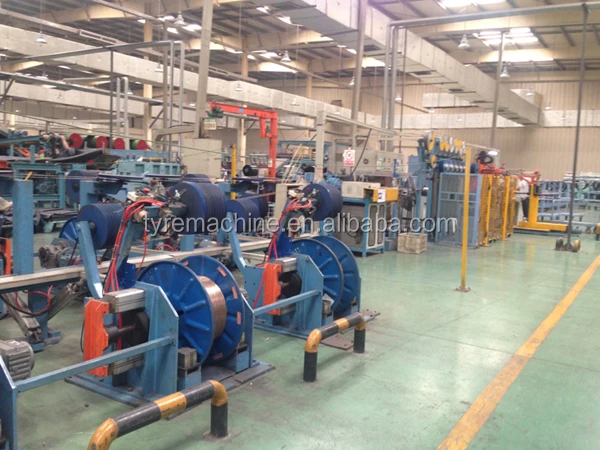

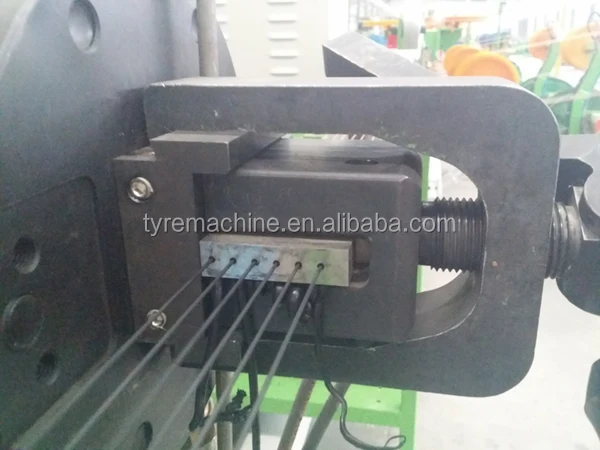

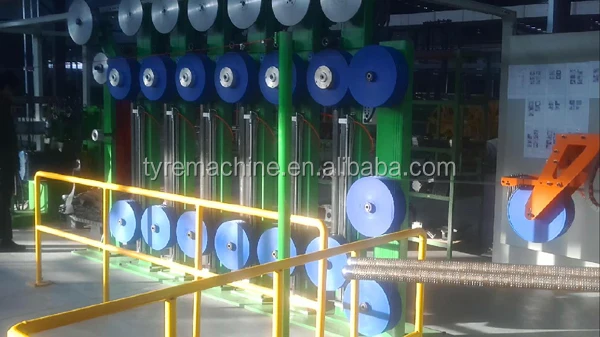

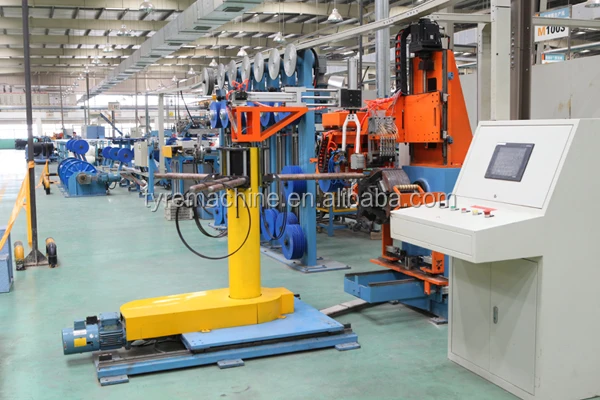

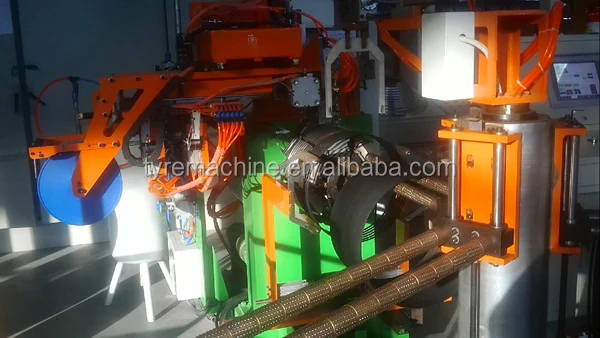

Product Overviews
