New design 1kw 50kw Permanent Magnet Wind Turbine Generator
- Category: >>>
- Supplier: Foshan Tanfon Energy Technology Co. Ltd.
Share on (60375853347):
Product Overview
Description

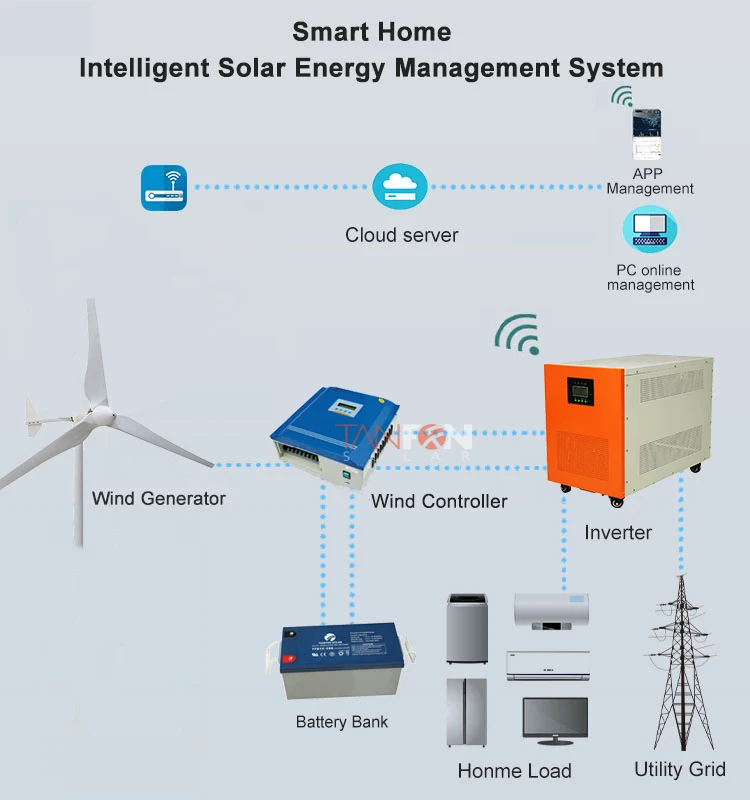

Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the controller, the
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.

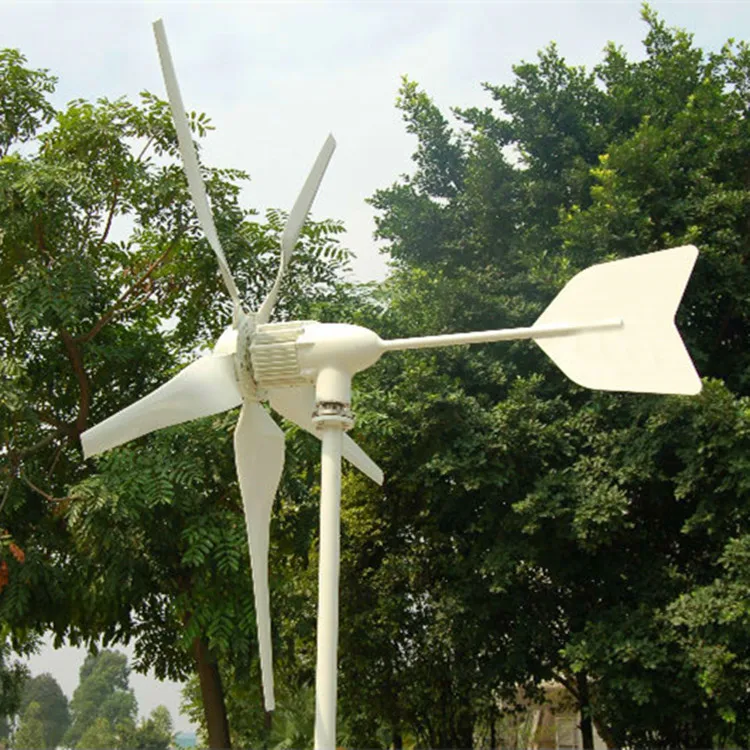

Wind Generator Features:
1. Small vibration and tiny friction, stable rotation in higher speed2. Streamlined wind turbine body and blade outline design
3. Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
4. Noise level below 55dB around the wind turbine tower
5. State of the art, workmanship and beautiful appearance
6. Use magnetic saturation technology, with 20years designed life;
7. Select high quality bearing, free to maintenance;
8. Anti-twist device, generator can whirl in each direction
9. Anti strong wind, the blade protect itself automatically,
10. Applications for Household, Farm, Marine, Boat,Street Lights, Home, Opening Plaza lighting etc.
11. Supply matched controller/inverter(optional), make solar and wind energy system more stable.
12. At night or on rainy day, wind turbine generate wind power. On sunny day, solar panel generate solar power. On windy and sunny days, both solar and wind generate power.
3000W wind turbine system | ||||||
Wind turbine | Model | Quantity | Description | |||
Wind turbine | 3000W | 1pc | working wind speed 3.0-20m/s | |||
Hybrid Inverter | 3KW/96V pure sine wave wind inverter | 1pc | 110/120/220/230V output | |||
Gel Battery | 12V/200AH | 8pc | Size: 522*240*219mm | |||
Hybrid Controller | 3kw/96v wind charger controller | 1pc | MPPT intelligent control | |||
Guy Cable Pole | 6m Guy Cable Pole | 1set | 6m | |||
wind turbine
>3years warranty,20year use life> Advantage: light weight, small volume
> Starting wind speed:3m/s
> Rated wind speed:10m/s
> Security wind speed:40m/s>Rated speed:310 r/m
hybrid Inverter
> 4 years warranty(solar with IOT)> With built-in charge controller
> Pure sine wave inverter
> Use copper transformer;
> Bypass function with AC charger;
> Output: 220V 380V 415V 50/60HZ
Battery
1.Free maintenance, service life 6-8 years2.DOD 70% cycles 1500 times
3.The latest through-wall welding technology,more suitable for motor loads.
hybrid Controller
>DC 48V input ;MPPT intelligent control>Protection Function: Solar reverse charge
>protection , Solar reverse connection protection,
>Battery-over-charge-protection
>Battery-reverse connection protection
Mounting structure
> Slope Roof or Flat roof or Ground (option)> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement
)
