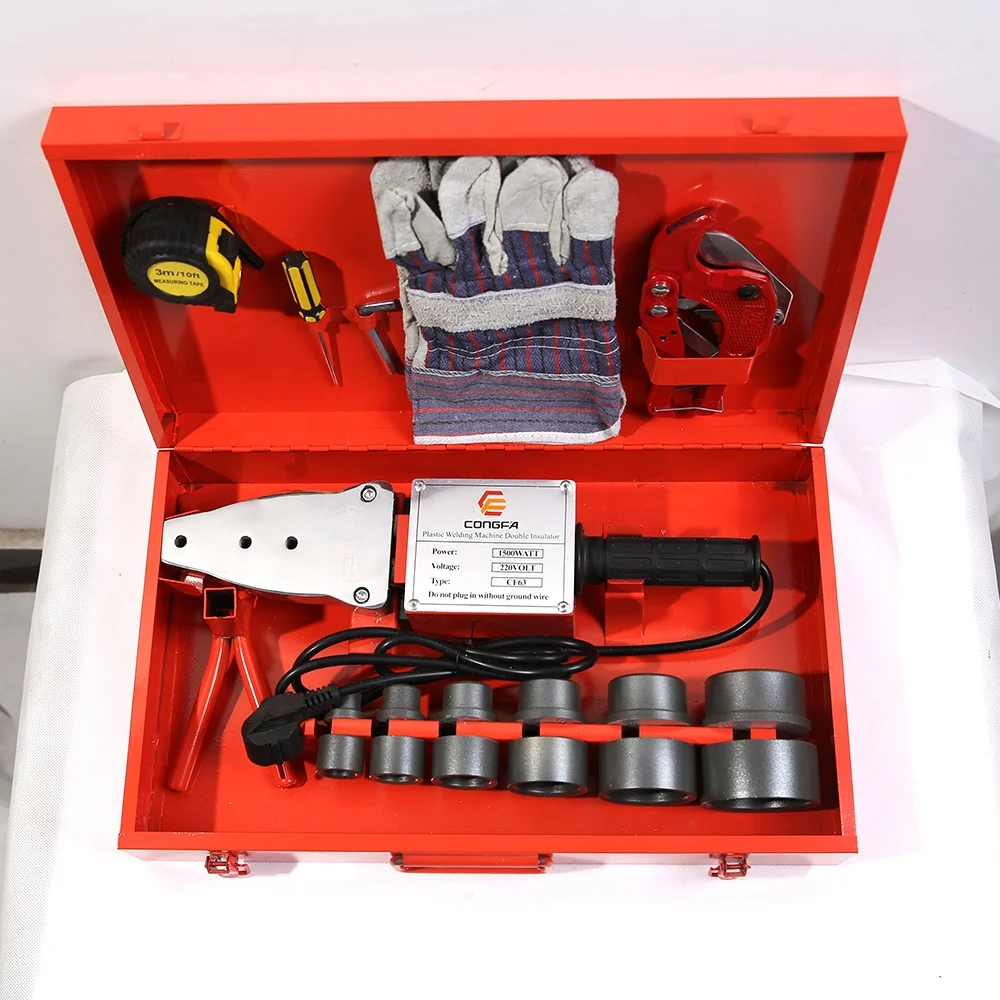

1500w portable factory wholesaler ppr water pipe fitting welder equipment

Product Overview

Description

Packaging Details:  generally,carton and iron box , 3/5/10 boxes packed in a big carton . But also it can be customize

Delivery Detail: 7-30days according to the order quantities





Top product  Recommend









Plastic pipe welding machine Instruction for use

1. Apply die head



Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.



2. Power on



Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.



Note: during the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.



3. Fusion pipes



Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation. Take them off immediately when heating time reached (see the table below) and insert



External diameter	Heating depth	Heat time	Process time	Cool time
20	14	5	4	3
25	16	7	4	3
32	20	8	4	4
40	21	12	6	4
50	22.5	18	6	5
63	24	24	6	6
