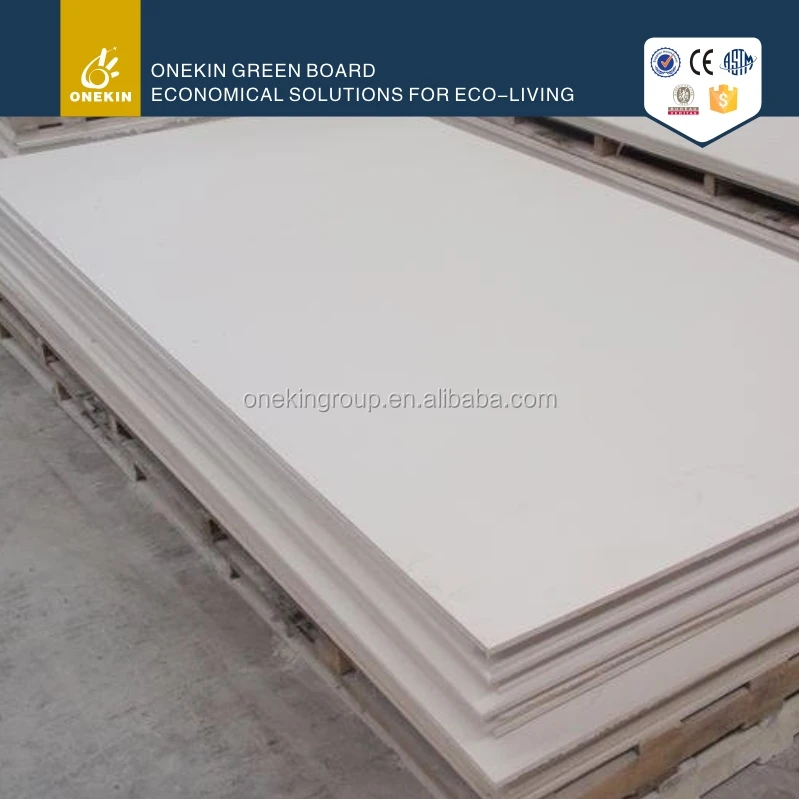

Onekin green board is a kind of environmental-friendly board which is widely used in construction and decoration.
It is a new type non-flammable material made of lightweight materials. It's made from magnesium oxide, magnesium
chloride, fly ash , plant fiber etc. the highly purified MgO is used as the main fireproof material, fly ash and
plant fiber as filling materials, the high quality MgC12 as the main cementing material to solidify other
materials.
1,Superior Fireproof Performance Non-combustible panel, not combusted at 800℃ and no flames at 1200℃
2,Waterproof Stable physical performances will not be effected even in cold-dry or humid weather conditions.
3,Environmental Asbestos free, No radioactive elements like formaldehyde, benzene etc and no irritating harmful odor
4,Lightweight and anti-seismic Lightweight characteristic lowers the interior wall weight up to 60% of the building, increasing the usable
areas
5,Sound and heat insulation Outstanding sound-insulating and heat-insulating (energy-saving) performances provide a cozy living atmosphere.
Packaging & Shipping
Onekin green board Details size:
Raw Mterials

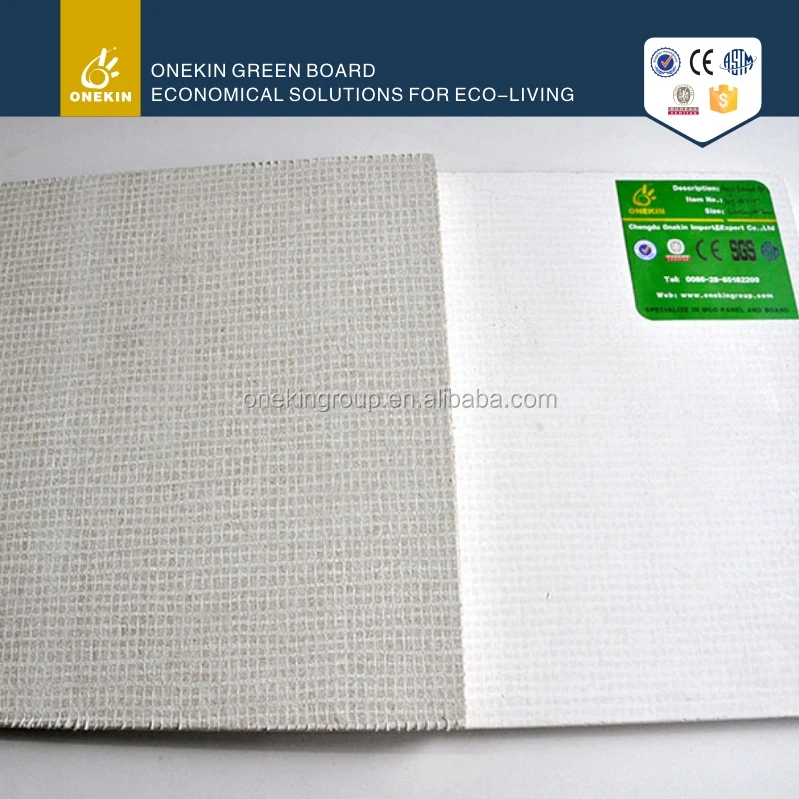

MgO, MgCl2, fiberglass mesh, non-woven cloth
Standard Size(mm)
Density(t/m³)
Weight(kgs)
Loading pieces(20GP)
2440×1220×3
1.0-1.2
11
1360pcs
2440×1220×4
1.0-1.2
13
1240pcs
2440×1220×5
1.0-1.2
15
1008pcs
2440×1220×6
1.0-1.2
18
850pcs
2440×1220×8
1.0-1.2
24
640pcs
2440×1220×9
1.0-1.2
26
572pcs
2440×1220×10
1.0-1.2
28
512pcs
2440×1220×12
1.0-1.2
34
420pcs
Onekin green board application:

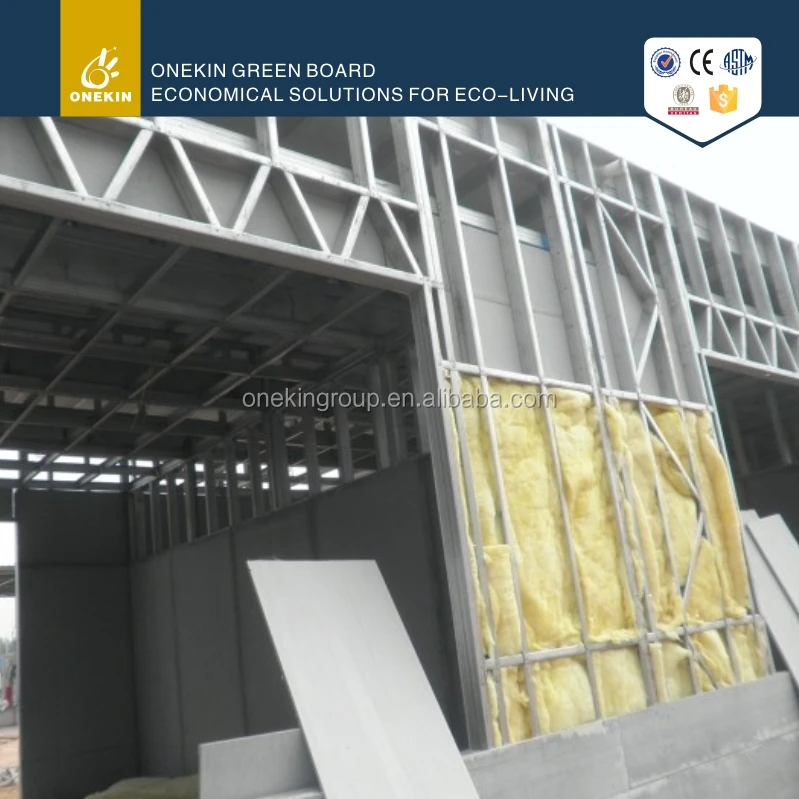

Onekin green board is widely used primarily as wallboard alternative to conventional gypsum-based drywall.
it can be scored and snapped, sawed, drilled, and fastened to steel frame.
It’s widely used for all residential, commercial, industrial and institutional construction, such as wall and ceiling linings, exterior cladding, soffits, tile backing and flooring underlay
interior Applications:Exterior Applications:
1) Wall board 1) Sheathing
2) Backer board 2) Soffit- Ventilated and Non Ventilated
3) Underlayment 3) Siding
4) Fireproof board 4) Trim materials
5) Ceiling board
Onekin green board international test data sheet
ASTM test report(9mm)
Product
Standard
Item
Result
Onekin green board
ASTM C 1185-12
Flexural strength
Longitudinal :10.7Mpa
Horizontal :13.2Mpa
ASTM D 2394-11
Compression indentation
Mean max. deformation at 4.45 Kn:0.55mm
Mean residual deformation: 0.34mm
ASTM D 1037-12
Nail head pull strength
1284N
ASTM C 1396-13
Humidity deflection
0.07mm
National test report (10mm)
Standard No.: JC688-2006
Item No.
Standard
Test result
Bending Strength
≥10mpa
18.8Mpa
Impacting Strength
≥2.0kJ/m2
8.3 kJ/m2
Nailing strength
≥20 N/ m2
86N/ m2
Water Permeability
No obvious moisture or water on the back side
Percentage of dry shrinkage
≤0.3%
Percentage of water swelling
≤0.6%
Content of Chloride ion
≤10%
5.9%
Dehalogenation Resistance
Temperature 32degrees, relative humidity 96%, testing 72 hours, no water and no moisture created
Qualified
Our Services
Onekin green board installation process
Onekin Quality Control System

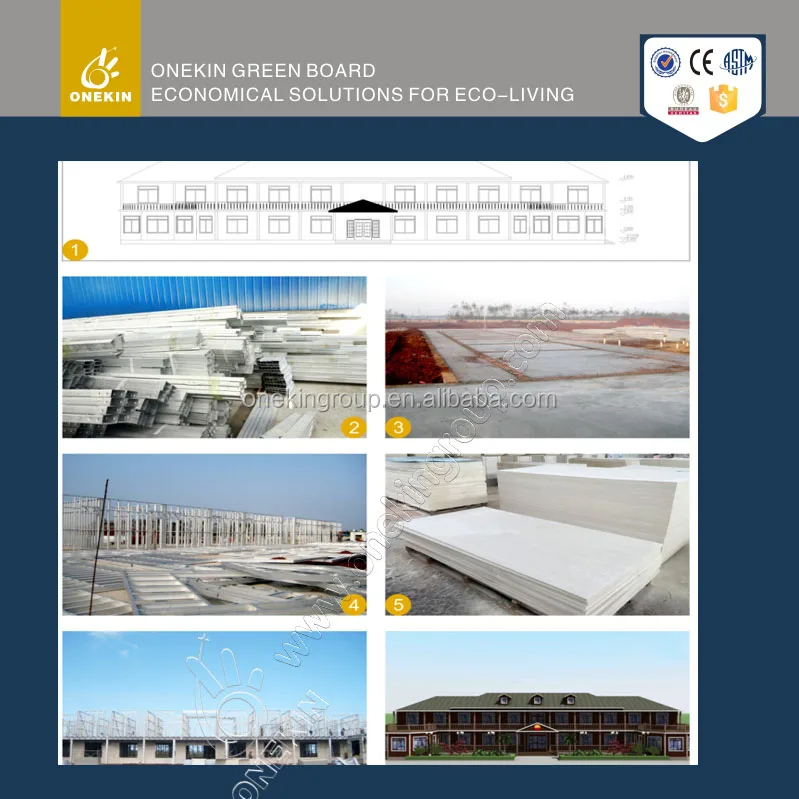

Onekin green board project reference:
