Technical Data
| Dimension (mm) | 61H*49W*70D |

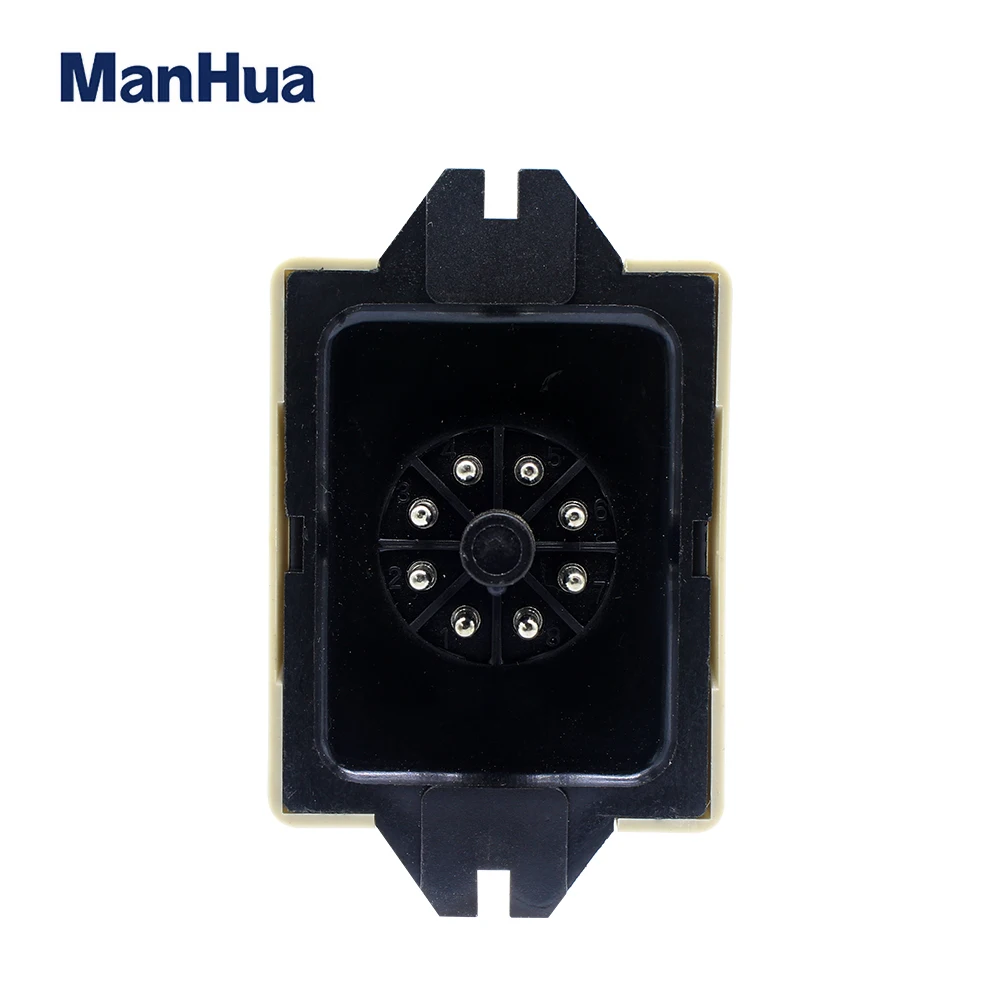

| Socket | PS-08 PF-083A(E) |
| Rated voltage | AC 110V, 220V, 240 50/60Hz |
| Indicator operating | Two LED's use for two status |
| Operate voltage | 85~110% of rated voltage |
| Second voltage | 8VAC (except high sensing 24VAC) |
| Operate resistance | 4K Ωmin.(GENERAL |
| Release resistance | 15K Ωmin.(GENERAL) |
| Response time | Operate: 80msec max, Release: 160 msec max |
| Contact rating | 5A, 250VAC(RESISTIVE LOAD) |
| Length of cable | 1Km max.(GENERAL) |
| Mechanical Life | 5 x 1000000 times min |
| Electrical Life | 100000 times min |
| Insulation resistance | 100MΩ (DC 500V)min |
| Dielectric strength | 1500VAC, 50/60Hz, for 1 minute |
| Power consumption | 3.2VA |
| Ambient temperature | -10°C~+55°C |
| Ambient humidity | 45~85%RH |
| Sensing mode | General |

If you are interested in our products , please feel free to contact with us ,we will try our best to meet your demand.

1. IEC standard products
2. Friendly MOQ
3. Promptly Reply
4.On-time Delivery.
5.International mind sales services.
Q1-Could I know which advantages do you have please?
1) 15 export experience in the overseas market.
2) Our products mainly export to the EU and USA markets.
3) We do the quality products according to the IEC standards.
4) We have the technical service and support for the right project.
Q2-What about the lead time please?
1) The standard order is 3 weeks.
2) The sample order could be within one week for the standard product.
Q3-Could I know the payment method please?
1) Standard order could pay by T/T,L/C, Alibaba Trade Assurance.
2) Small order could support the Paypal, Western Union, Money Gram and Alibaba Trade Assurance(credit card acceptable).
Q4-Any suggestion for the delivery way please?
1) Express delivery, door to door service.
2) By air freight, to the airport of destination country.
In some case, DDU and DDP could be done.
3) By sea, FCL , LCL...
4) In the USA, some products could be sent from Chicago to the customer
Q5-Any support or service for after sales please?
1) Standard quality guarantee is 18 months.
2) 24 hours online service for the emergency issue.
3) We have storage center in Chicago USA and agent in Frankfurt Germany help us to solve the non-expected issue and support us for the further mutual co-operation.
