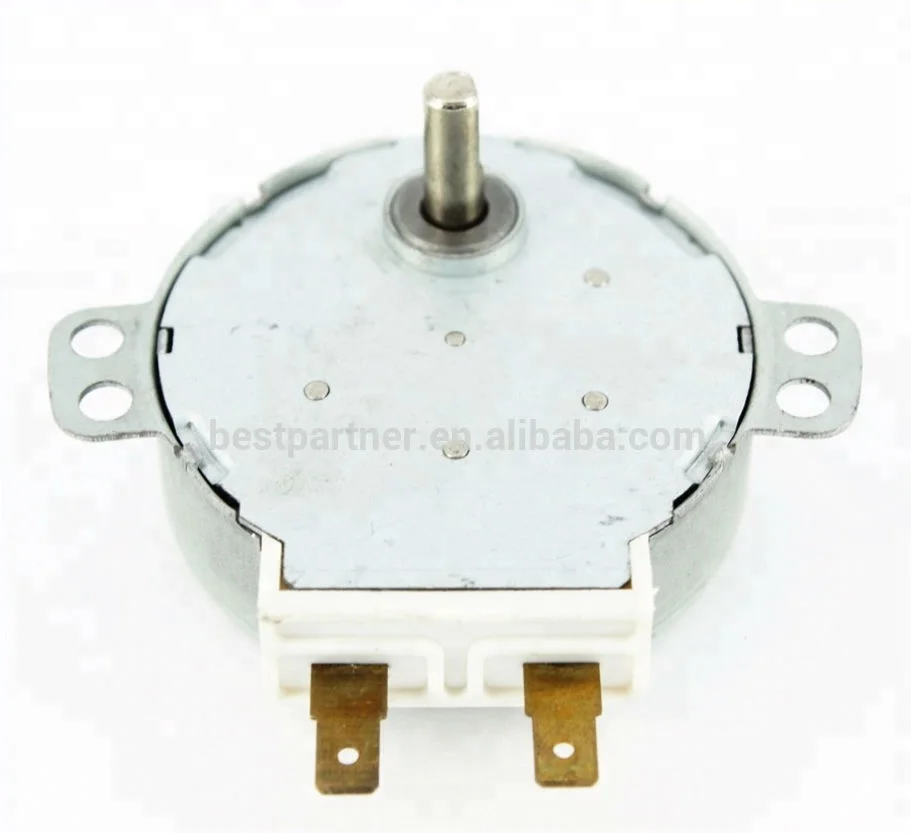

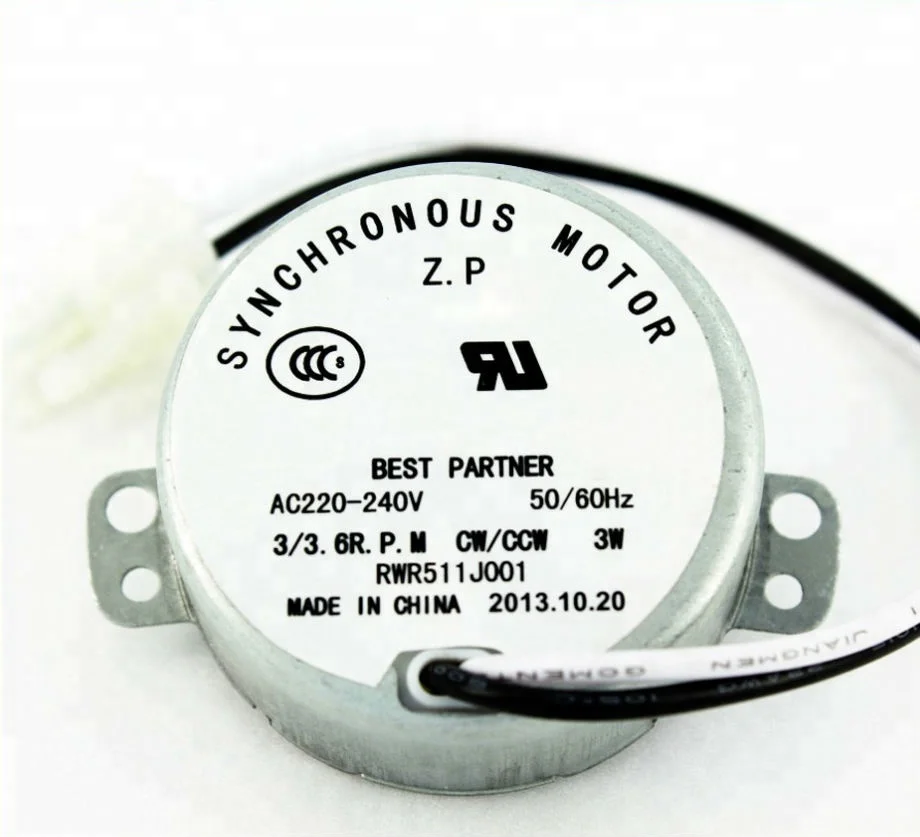

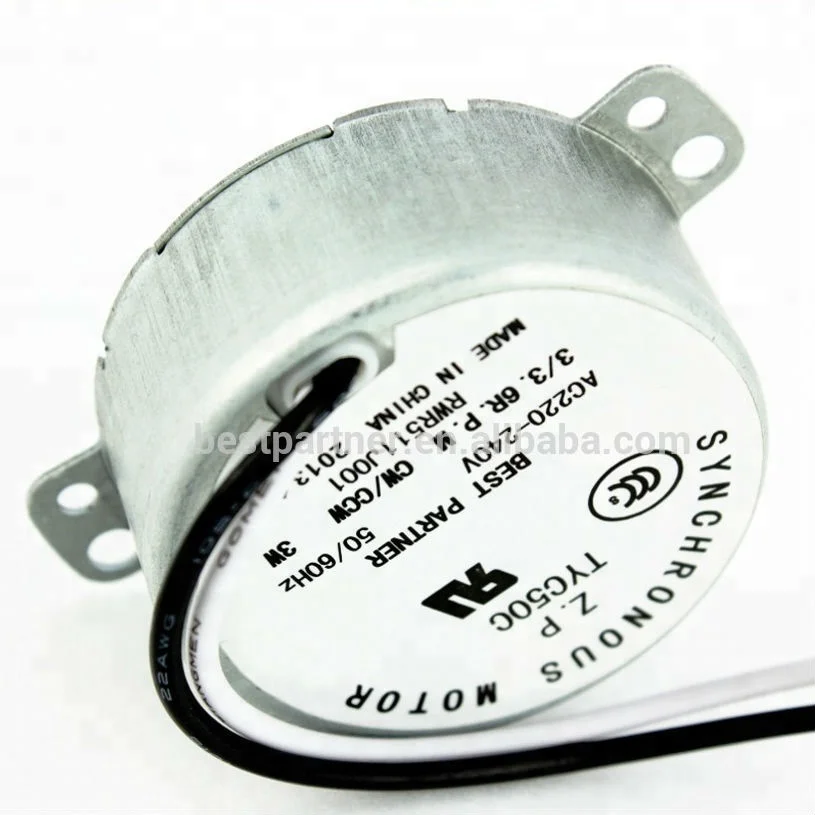

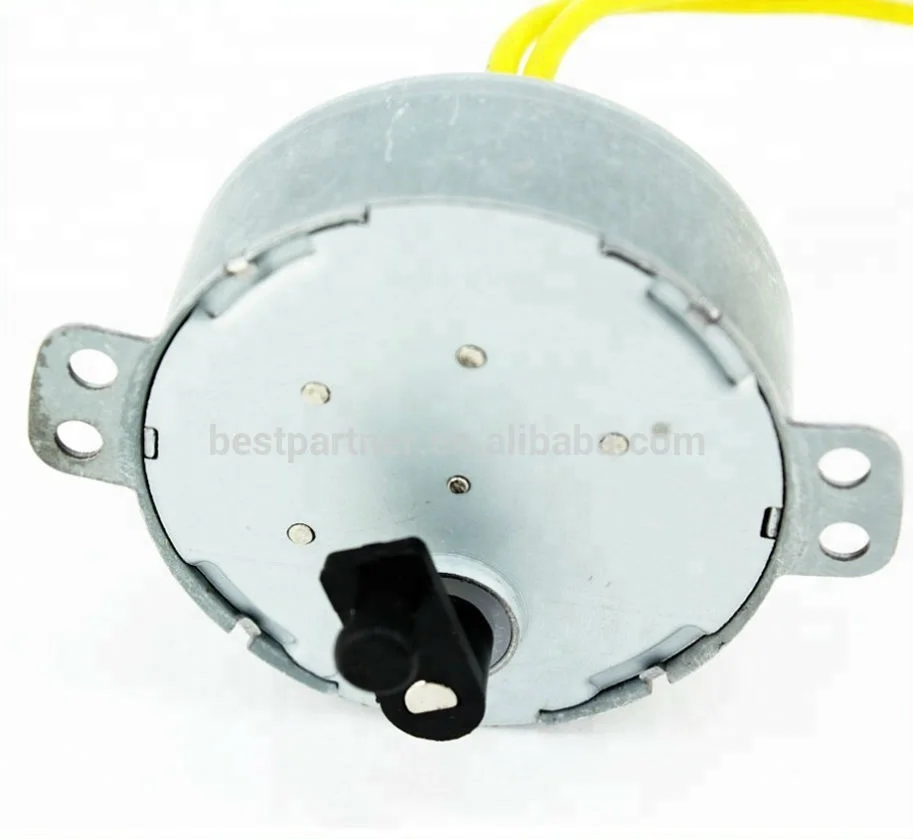

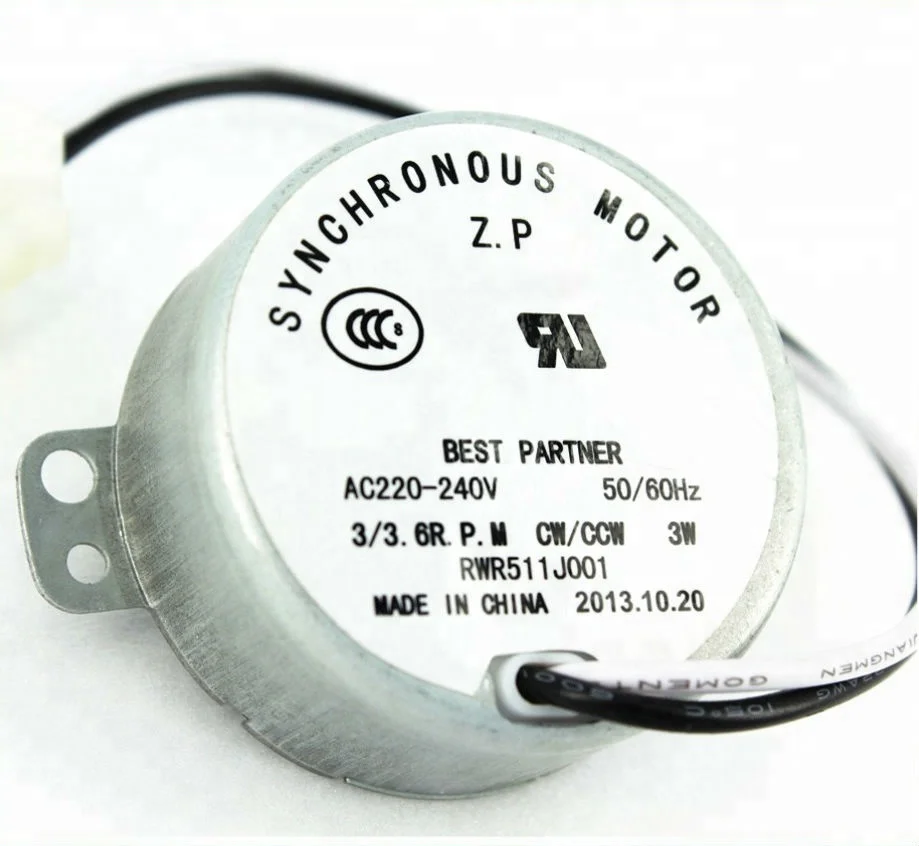

CE Approval 220V 240V 4W Synchronous Motor for Air conditioner Parts 49TYJ Synchronous Motor
- Category: >>>
- Supplier: BESTECH APPLIANCE IND. COMPANY
Share on (60376081789):
Product Overview
Description
4W Synchronous Motor for Air conditioner Parts 49TYJ Synchronous Motor
Synchronous Motor |
Product Description
Product Description |
DC Synchronous Motor
1)Stable speed
2)Long Lifespan
3)High torque
4)Low noise
DC Gear Synchronous Motor |
DC power synchronous motor with the same outline of the common AC synchronous motor .Its structure and size..are easy to install,can
Low votage : DC(6~36VDC)
Low speed : (1~15rpm)
High torque: (5~15kg)
Small size, easy installation , reliability
Longer lifespan than the DC brush motor
Lower price than the brushless
1. Typical Applications : |
1) Home appliance:Electric fan,air conditioner turning leave,Microwave turing plate,Quartz heater,Dishwasher,Can opener,Knife sharpener,washing machine,citrus press,juicer,etc.
2) Electric indoor and outdoor decorations:Rotating electric table,Stage curtain,recorder turing light,decoration lamp,Optical fiber turing lamp,Christmas tree,Rotating electric Advertisements and shelves,etc.
3) Electric machinery:Vending machine,automatic electric instruments And meters,Rotating TV antenna,etc.
4) Scientiific and teching devices:Rotating electric models,Electric curtains,etc.
5) Medical equipments:Stirrer,pump,etc.
6) Industrial area:Electric transit instrument,etc.
2. Feature : |
1) Stable speed
2) Long Lifespan
3) High torque
4) High efficiency
5) Low noise
6) Low vibration
7) Rotation direction can be random,directional (CW or CCW) or reversible(controlled by wire connecting method)
8) Lead out by wire or terminal are both available
3. Electrical Specification : |
1) Rated Voltage: DC 3V,6V,9V,12V,16V,18V,24V
3) Rated Power Consumption:3.5 ± 0.5 Watts
4) Current Consumption:30 ± 5 mA
5) Withstand Voltage:1500 VAC / 1Min
6) Insulation Resistance:Over 100 MΩ at 500 VDC
7) Insulation Class E
4. Mechanical Specification : |
1) Direction of Rotation:Single CW,Single CCW,and Free Direction
2) Output Speed:0.1 ~ 60 rpm
3) Working Torque: 1.5kg-cm ~ 20 kg-cm
5. General Specification : |
1) Operating Temp.Range: -10~+60°C
2) Temperature Rise Range: 60K MAX
3) Expectant Lifespan:Approx.10,000 hours under normal load torque and normal operation
4) Net Weight:150 grams
5) Lead Wire:As UL standard,specific length or connector is available
6) Operating Noise:Approx.40 db Max.form 30 cm distance
7) Outline Size:Diametr:φ49.0 mm,Height:18.5mm,21mm, 24 mm
8) Package:120pcs/Carton,380 x 280 x 320 mm,15kgs
Specification
SPECIFICATION |
Item | Specifications | Unit | |||||||||||
Voltage | 12 | 24 | 100 | 110 | 120 | 220 | 240 | VAC | |||||
Power Frequency | 50/60 | HZ | |||||||||||
Rotation | CW, CCW, CW/CCW | ||||||||||||
Speed | 2.5/3 | 3.3/4 | 4.2/5 | 5/6 | 8.3/10 | 10/12 | 15/18 | 20/24 | 30/36 | R.P.M | |||
Stall Torque | 9 | 8 | 7 | 6 | 4 | 3 | 2 | 1.5 | 1 | kgf-cm | |||
Frictional Torque | 7~10 | kgf-cm | |||||||||||
Number of Poles | 8 | Pole | |||||||||||
Input Power | 3.8 / 4.0 | W | |||||||||||
Insulation Strength | AC 1500V-1min Cut-Off Current :10mA | ||||||||||||
Insulation Class | E | Class | |||||||||||
Product Overviews
Production Review |
Quality Inspection
Quality Inspection |
Shipment
Shipping information |
1.For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. 2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
