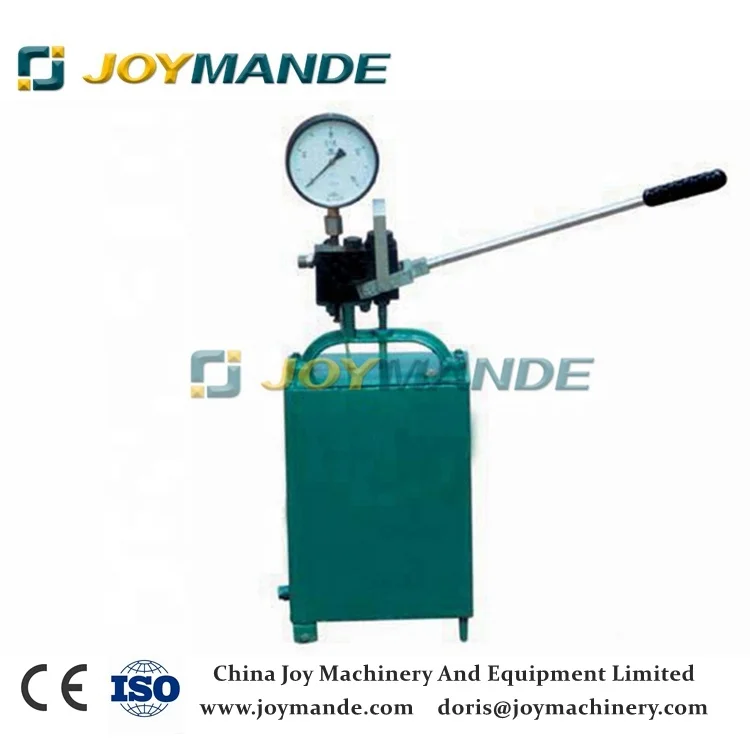

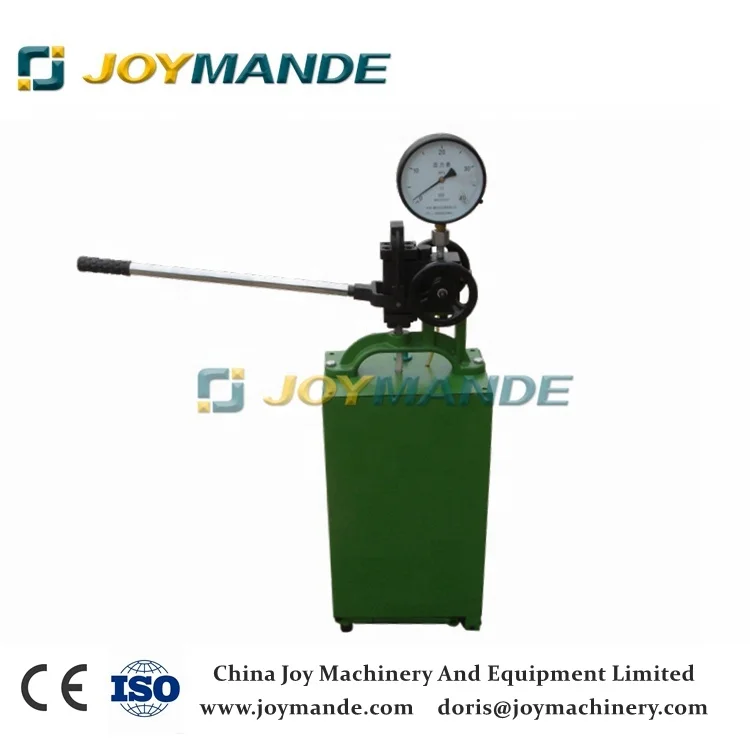

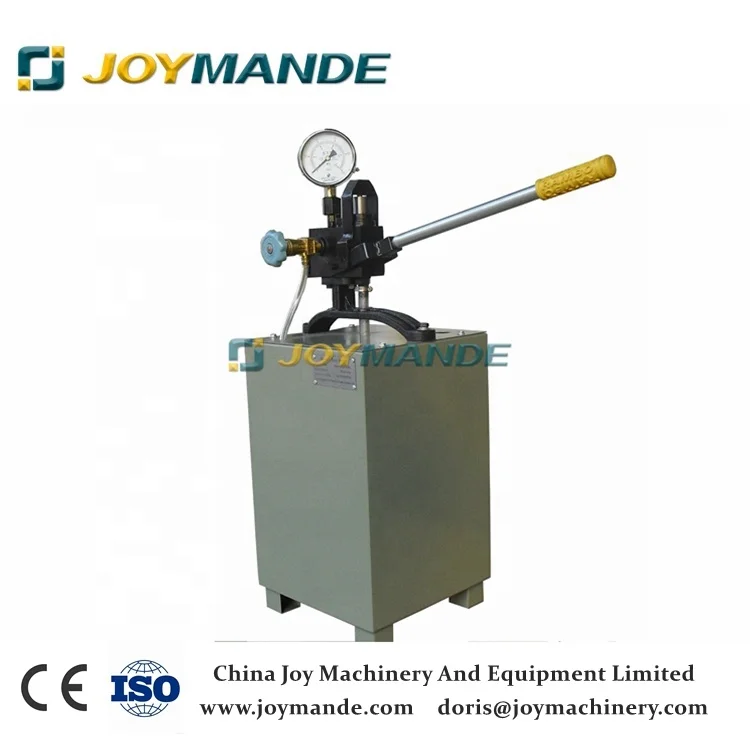

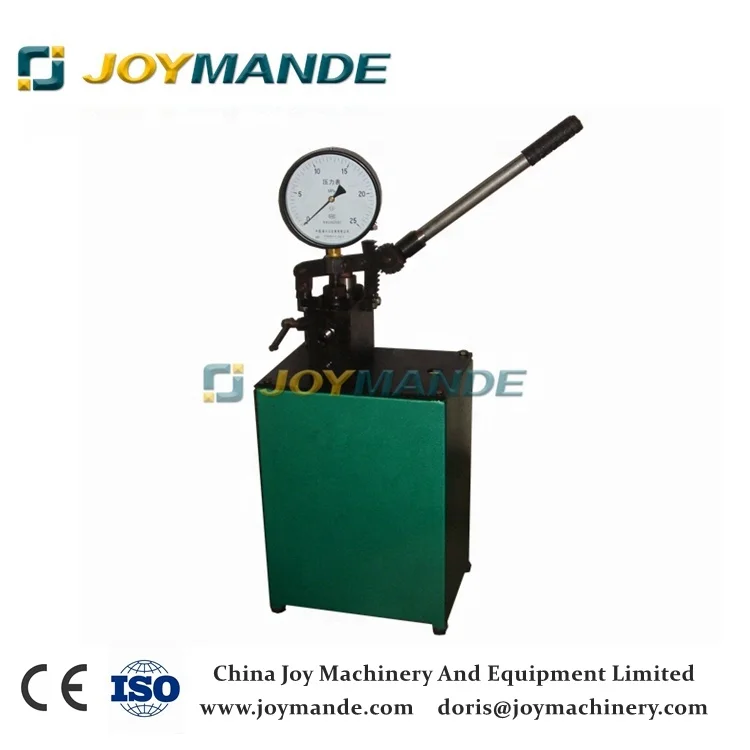

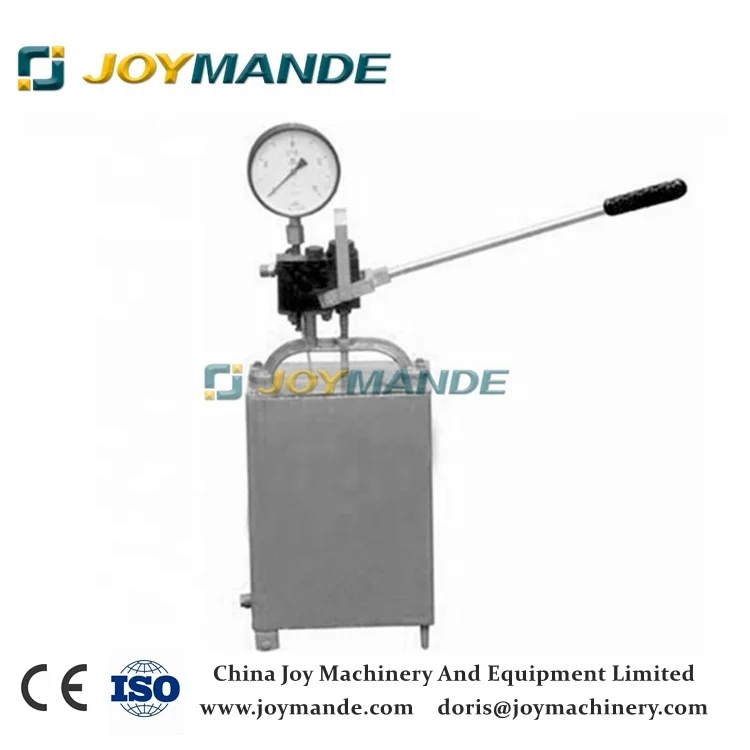

High Pressure Hand / Manual Water Pressure Testing Pump Hand Tool
- Category: >>>
- Supplier: Tianjin Joy Machinery And Equipment Co. Ltd.
Share on (60376131772):
Product Overview
Description
Product Description
Usage Range:
The JMEH test pump is the vertical plunger pump and including the parts of pump body, plunger, handle, bracket, tank and sliding frame.
The JMEH Manual Test Pump is widely used in the field of pipeline construction, rubber tube, valves, vessels, chemical equipment, oil and gas industry ,construction field, ships, and others. Test media: 5~60 Celsius degree water or oil with viscosity<45mm2/s.
Besides,the JMEH model manual test pump is widely used in the following fields for pressure testing and leakage testing:
vBoilers, Pressure Vessels,Gas cylinders
v Valves, Rubber tube and seal, Construction, Pipelines, Ships
v Hose, Pumps, Chemical Equipment, Heat Exchanger, Air conditioner
v Other Machinery Parts
As the samll size and light weight, it's easy to use but with full function. Our unique stainless steel JMEH manual test pump could meet your requirements of special test medium.
Features:
1.Steel tank body & Staineless steel pump head eusure that JMEH model manual test pump is sturdiness and durablity.
2.High quality & high stability & long using life.
3.Quicky & Exactly testing.
4.Portable & Easy to use.
5.Widely usage range.
6.Min.oder quantity: 1set.
Specification:
Model | Rated pressure Bar | Flow capacity mL /time | Plunger dia. mm | Plunger stroke mm | Handle max force <N | Overall size mm | Weight kg |
JMEH50 | 50 | 22 | 36 | 30 | 300 | 750X200X880 | 23 |
JMEH63 | 63 | 22 | |||||
JMEH100 | 100 | 16 | 32 | ||||
JMEH160 | 160 | 10 | 22 | 360 | |||
JMEH250 | 250 | 7 | 22 | ||||
JMEH400 | 400 | 4.0 | 14 | ||||
JMEH630 | 630 | 2.8 | 12 |
400 |
750X200X880 | ||
JMEH800 | 800 | 1.8 | 10 | ||||
JMEH1000 | 1000 | 1.8 | 10 | ||||
JMEH1300 | 1300 | 1.8 | 10 |
Accessories:
Accompanied parts | Pressure gauge 1PC Pressure hose 1PC Outlet Gaskets 1Set |
Package | Wooden Case |
