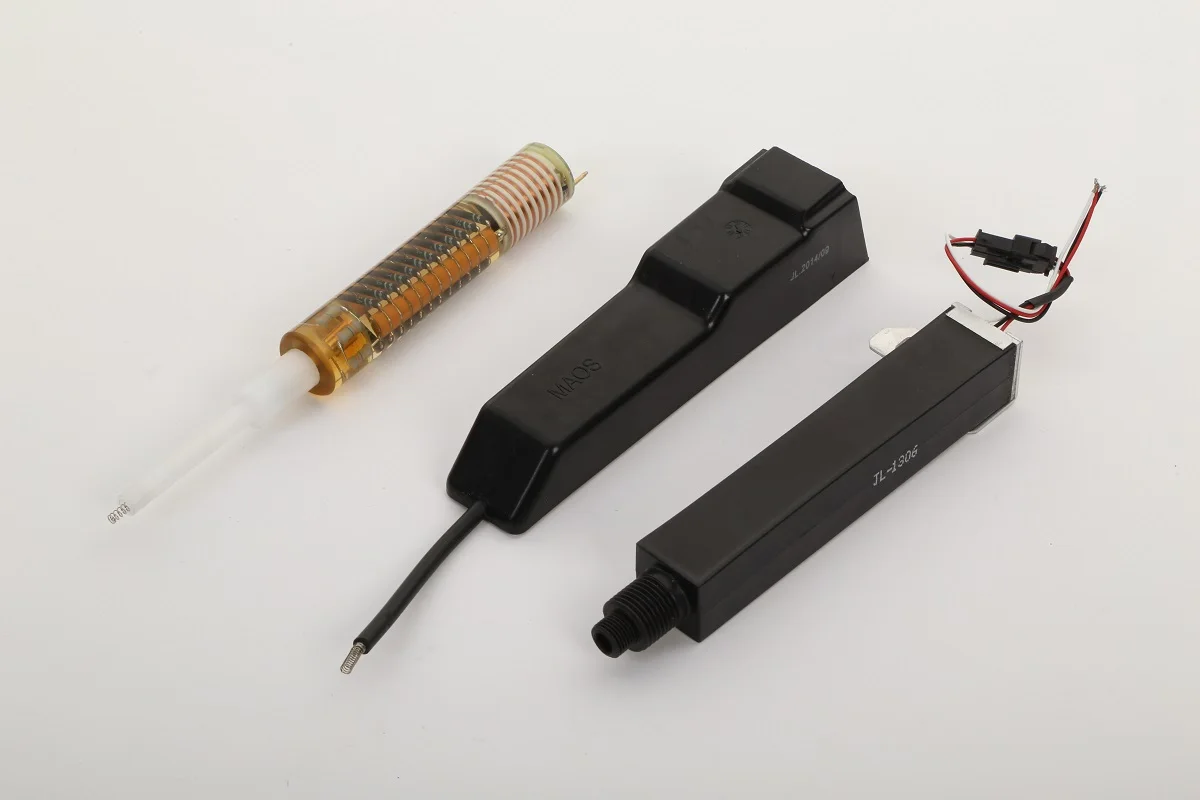

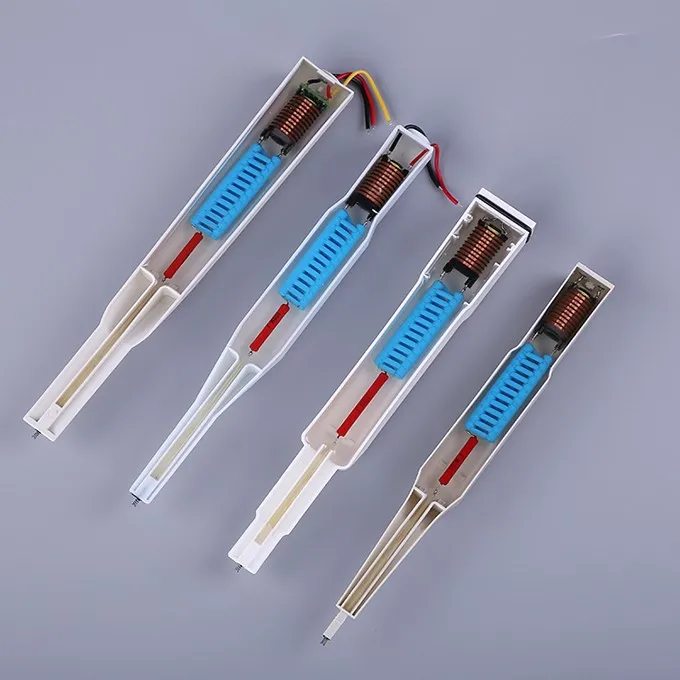

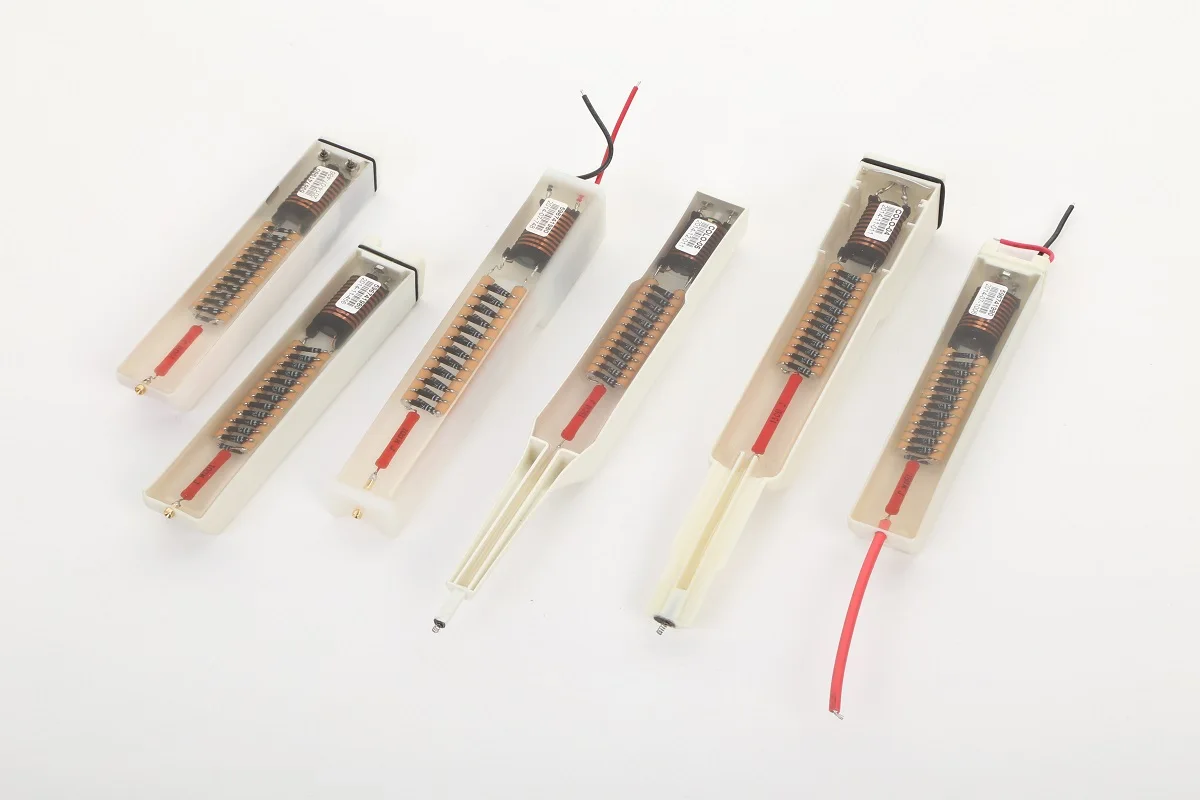

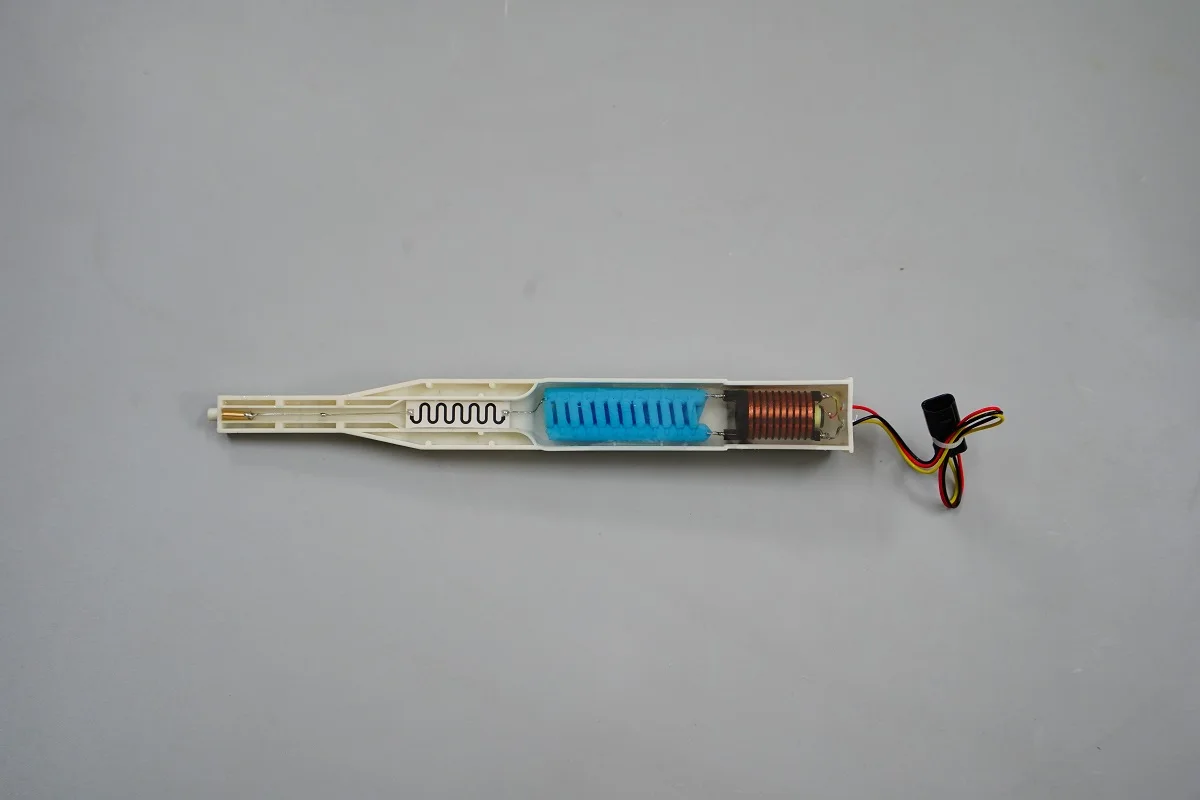

Powder spray gun high voltage cascade (NON OEM part compatible with gema products)

Technical data for powder coating machine

^{Electrical data}

Powder Gun

1.      Gun weight:    ………………                    500G

2.      Rated output voltage ………                      24VDC

3.      Input voltage     ……………                       - 200kv

4.      Maximum output current  ………                   180Ua(max)

5.      Maximum output voltage…………                   0-100KV (  adjustable)

6.      Maximum powder injection :………                    600g/min

7.      Polarity ………………                                negative (-)

Pneumatic data

1.      Maximum input-air pressure …………..                 10kg/cm

2.      Optimum input-air pressure……..                        6kg/cm

3.      Minimum input-air pressure   ……                      4kg/cm

4.      Maximum water vapor content or compressed air …..      1.4g/N m3

5.      Maximum oil vapor content of compressed air   ……..     0.1ppm

6.      Maximum compressed-air consumption………            13.2 m3/h

Hangzhou color powder coating Equipment Co., Ltd. have ability of producing electrostatic powder coating line, paint coating line which

have automatic, semi-automatic, manual and special type and curing and drying ovens with many kinds heat way (oil, gas or electric),

cartridge or cyclone recovery system, wet curtain or dry painting booth, conveyor systems, spray or immersion type pretreatment

plant.

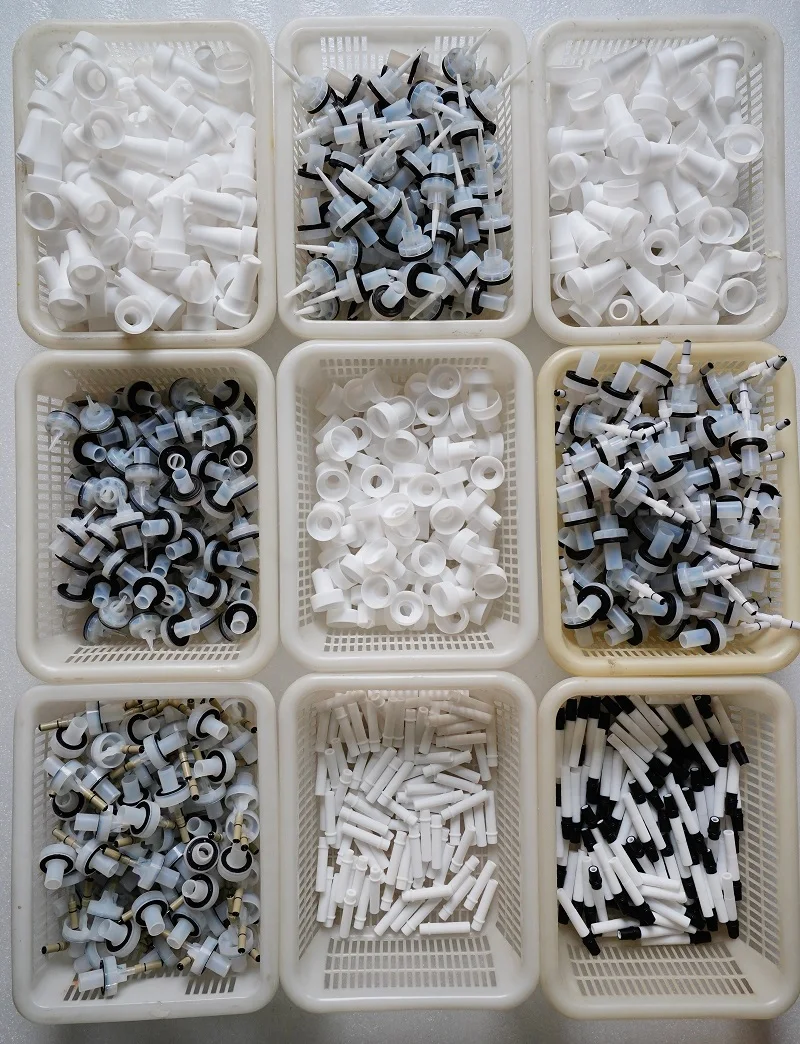

Also we supply the spare parts such as filters, guns, reciprocators, pumps and so on.

Colo is the leading powder coating equipment manufacturer in China, which provides high quality equipments

to more than 90 countries all oven the world with advanced manufacturing machines and professional

technicians. Colo offers a wide range of power coating equipments, namely powder coating machine, power

coating gun, spray booth, curing oven, automatic powder coating applicator, powder coating line and

replacement of spare parts for the famous brand in the world.

Contact the sales-------inquiry the price of the items you want-----the sales quote the price and make Proforma----the buyer make

payment and note the sales------the sales arrange the delivery
