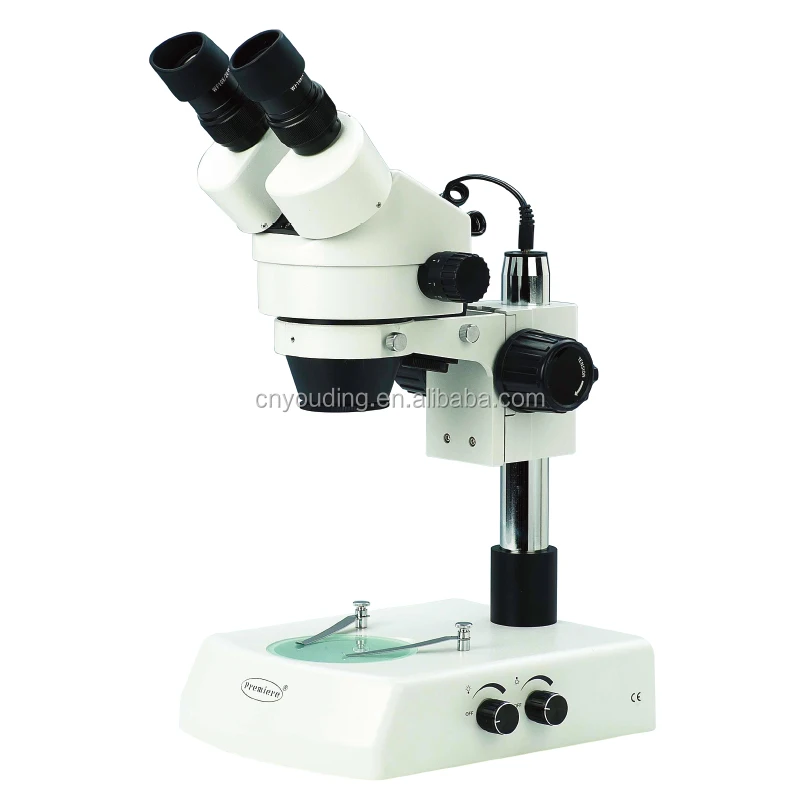

zoom stereo microscope SMZ 02

Product Overview

Description

With Stereo Zoom Microscopes, once the specimen is brought into focus, you can change the magnification to suit your needs without refocusing. The SMZ is versatile enough for educational, industrial, or medical use in agriculture, geology, archeology or biology fields.



Model SMZ-02



Features:
3D System is infinitely variable
10X Widefield Eyepieces with rubber eyeguards
Binocular observation tubes, inclined 45°
Head rotatable 360°
Interpupillary distance adjustable 55mm to 77mm
Horizontal zoom controls at each side of head
1X to 4X objectives, total magnification 10X to 40X
Field of view ranges from 23mm to 5.5mm diameter
85 mm working distance
20W Halogen transmitted illuminator under 75 mm frosted glass stage plate
20W Halogen incident (top) illumination
3 way power switch allows incident lighting, transmitted lighting or both,
UL approved
Dust cover and spare bulb and black & white contrast plate
Overall size: 6 3/4” x 9 1/2” x 18” H, N.W.: 13 1/4 Ibs.
certified

Replacment Lamps : MA07
Shipping Weight: 17 Ibs.
