Самая низкая цена 2 дюймов FY91A Электрический насос обжимной станок гидравлический шланг для обжима Инструмент по доступной цене

Product Overview

Description

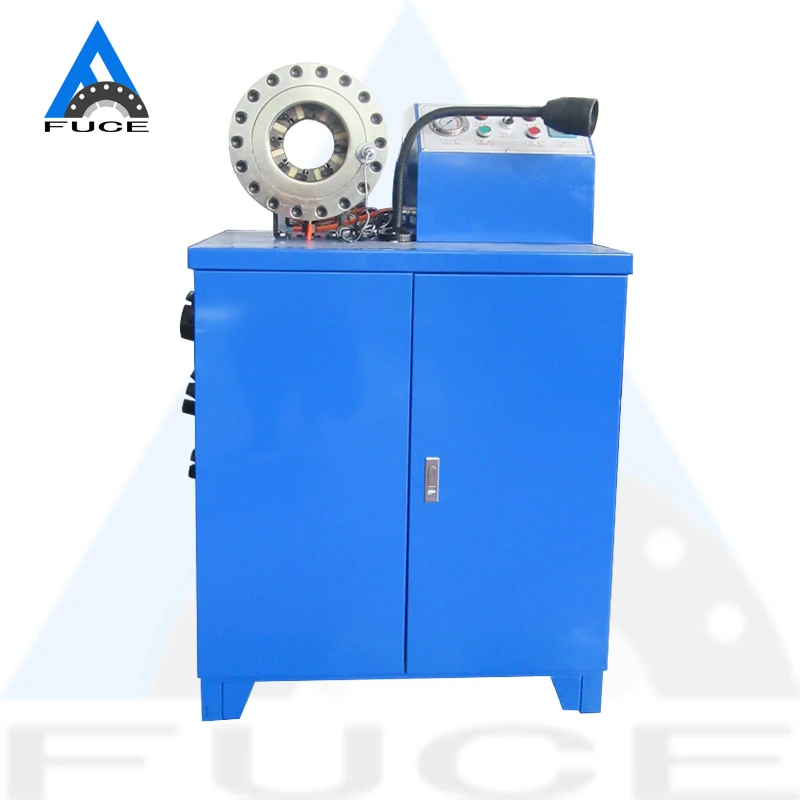

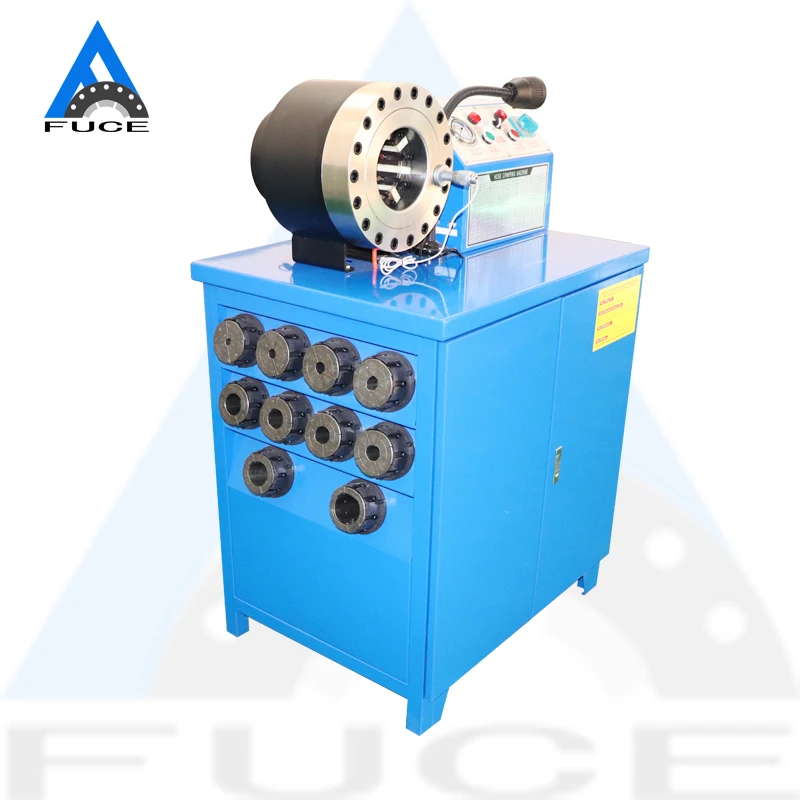

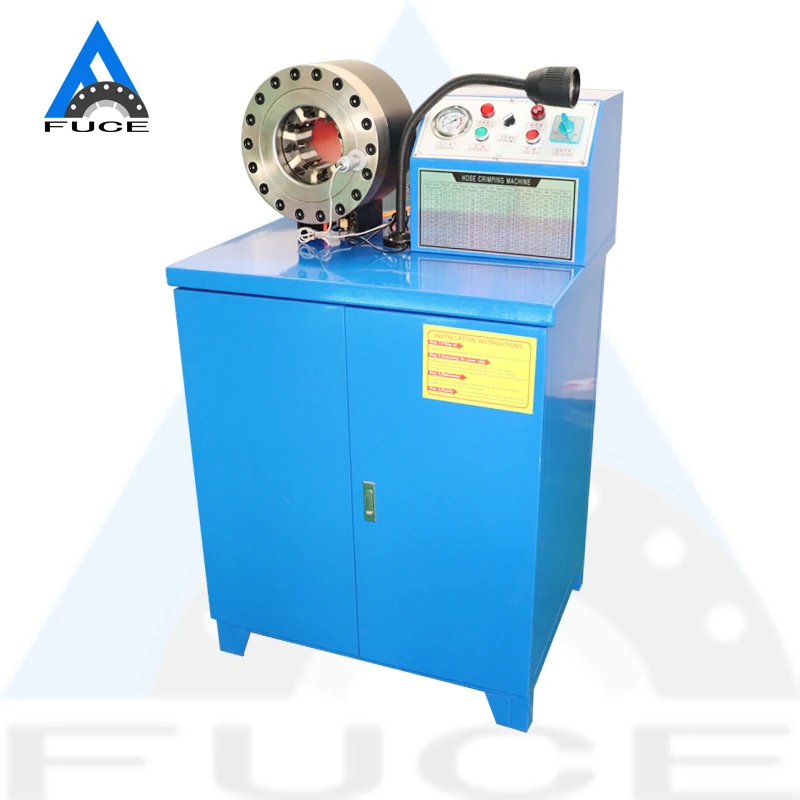

 2 inch FY91A electric crimping machine hydraulic hose swaging tool for sale

Applications of the rubber oil hose crimping machine

Hose assembly manufacturer

Engineering machinery repair plants

Retail stores for hydraulic hoses

Features of the rubber oil hose crimping machine

Small volume, light weight, compact structure

Simply operation

Advanced design of oil channels

Fast replacement of swallow-tail-shaped mould

High efficiency, reliable performance

FY91A hand hydraulic hose crimper machine is suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2" internal hose pipe.

Technical Parameters	Anne make this Table for your reference,any questions,call us freely
Hose capacity	1/4 inch to 2 inch ( suitable for industrial hose and hydraulic hose)
Voltage	220/240-380/440 50Hz OR 225/280-440/480 60Hz
Maximal mouth opening	114mm
crimping force	450t
Dies	10 sets
Noise level	65db
System pressure	31.5mpa
Weight	280kg
Overall dimensions	45*77*70cm
Die No.	Dies Length (mm) or as request
15	60
19	60
23	60
26	60
31	70
36	70
41	70
47	80
55	80
65	80

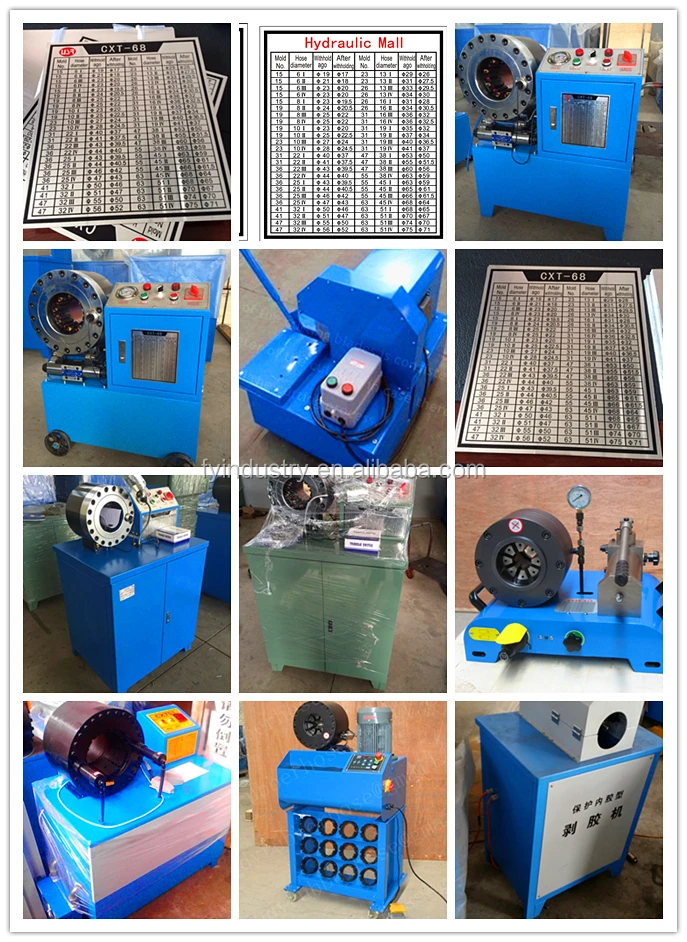

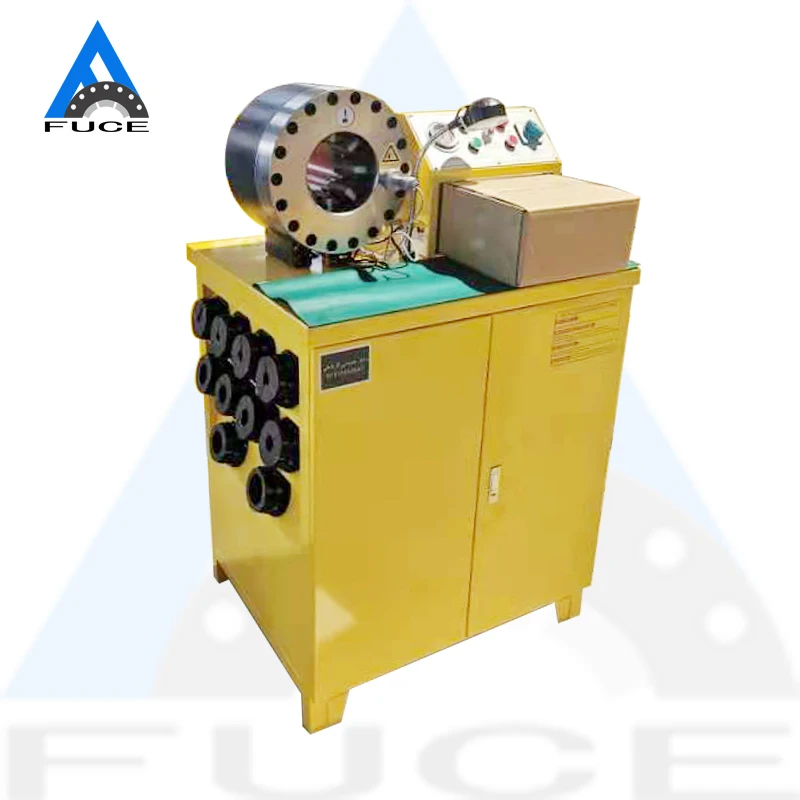

Pictures of the rubber oil hose crimping machine

Control panel of the rubber oil hose crimping machine

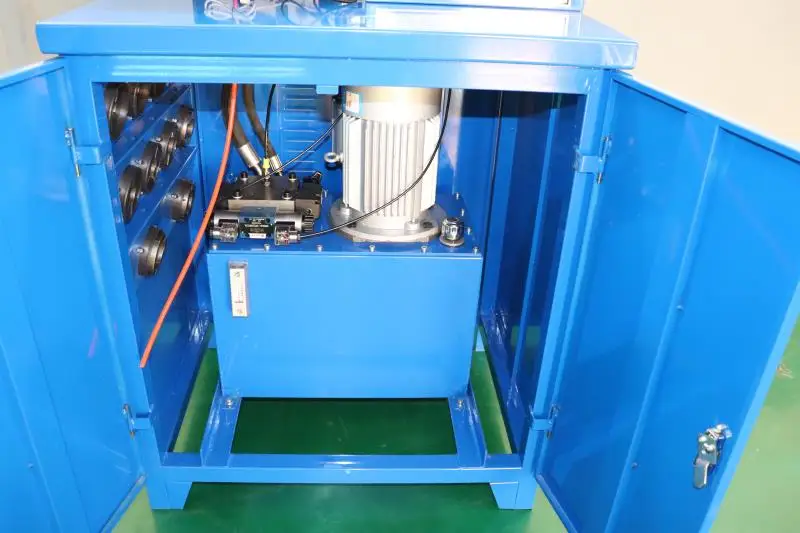

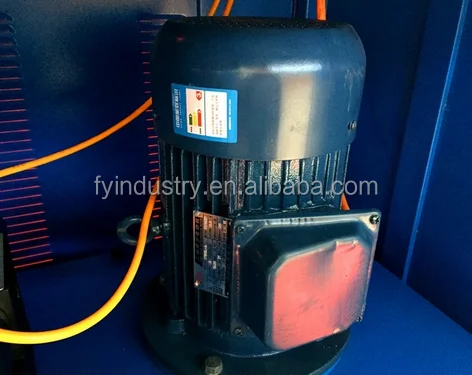

Motor head of the rubber oil hose crimping machine

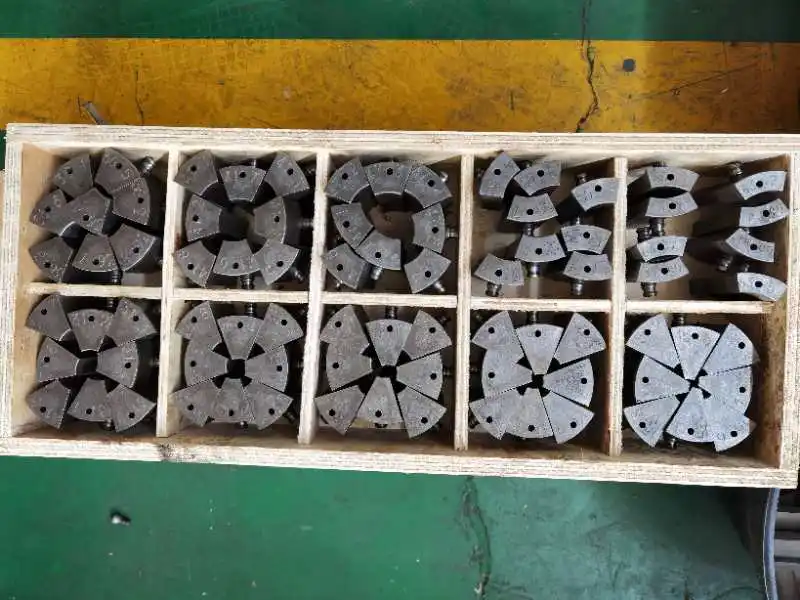

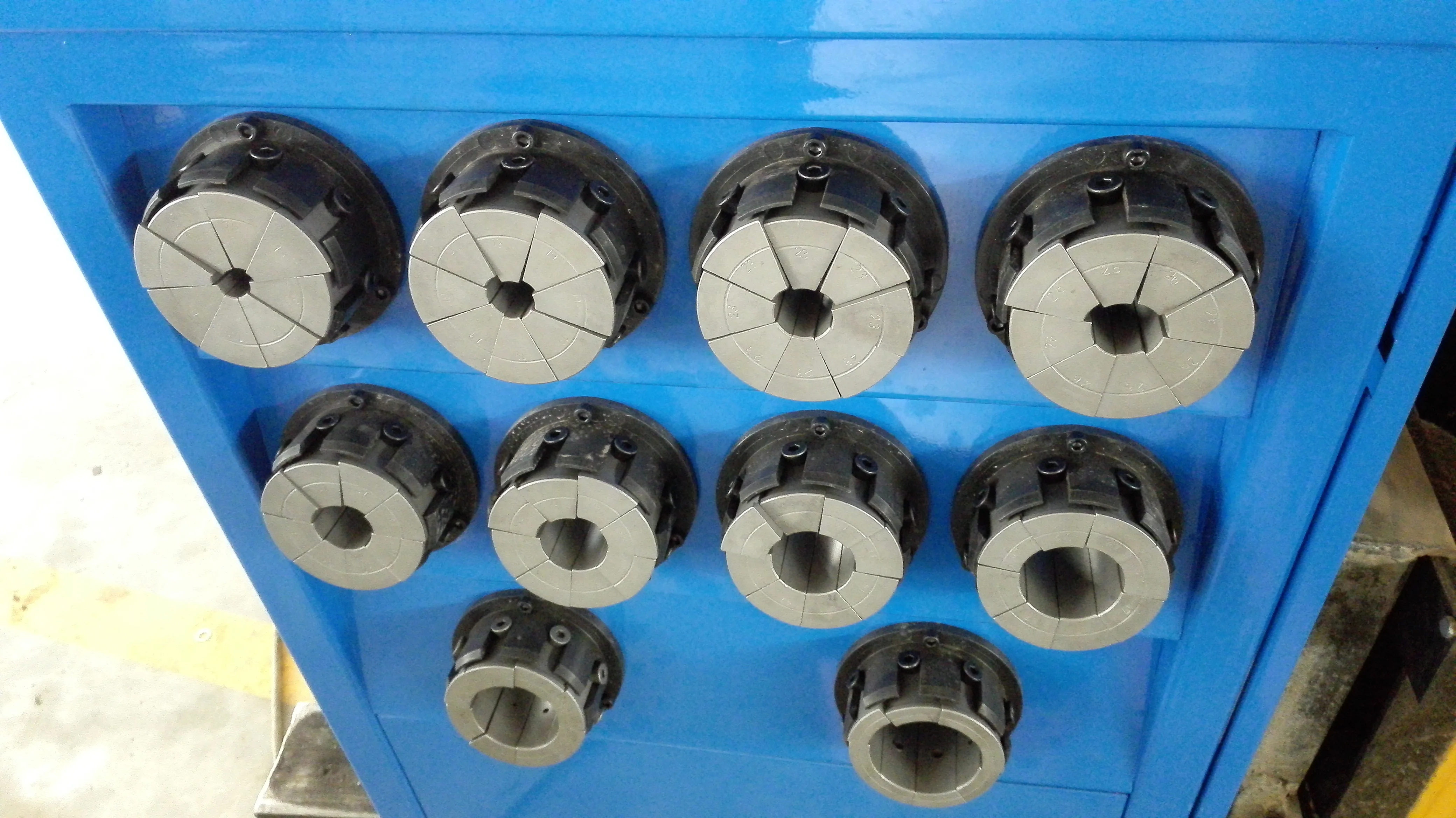

Dies of the rubber oil hose crimping machine

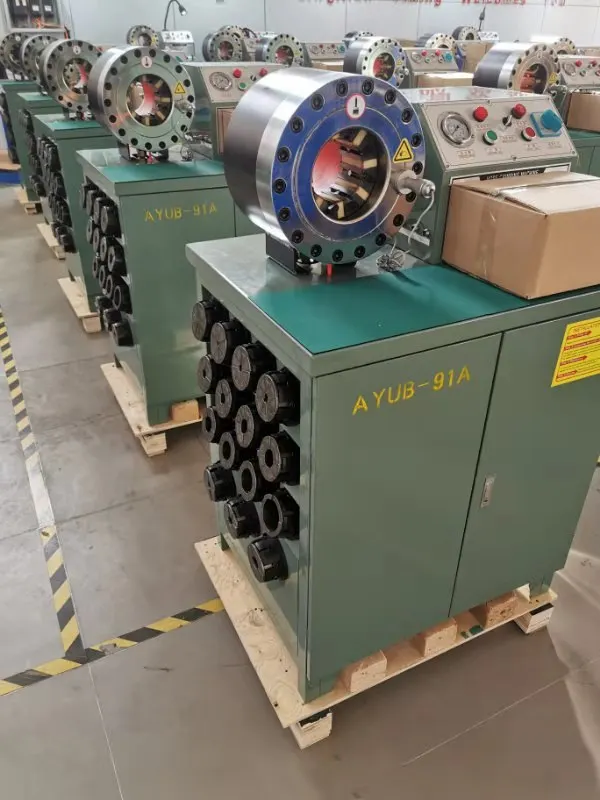

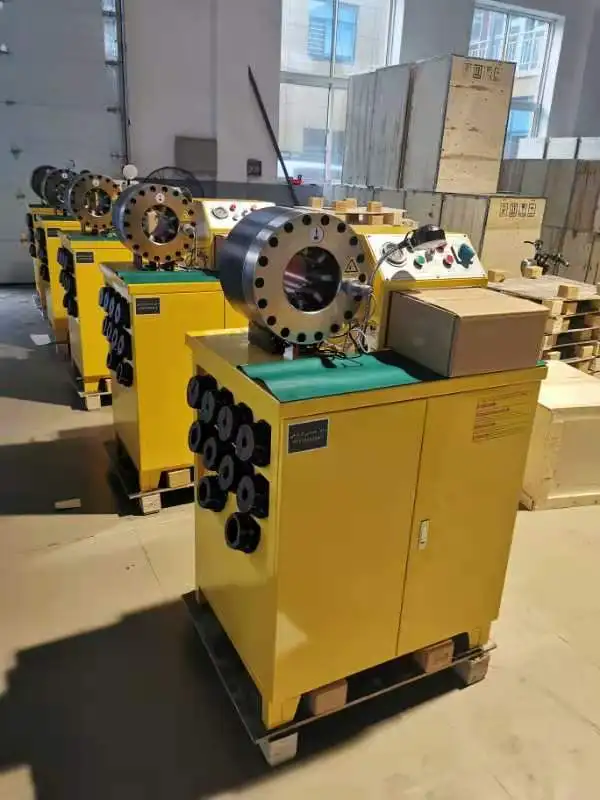

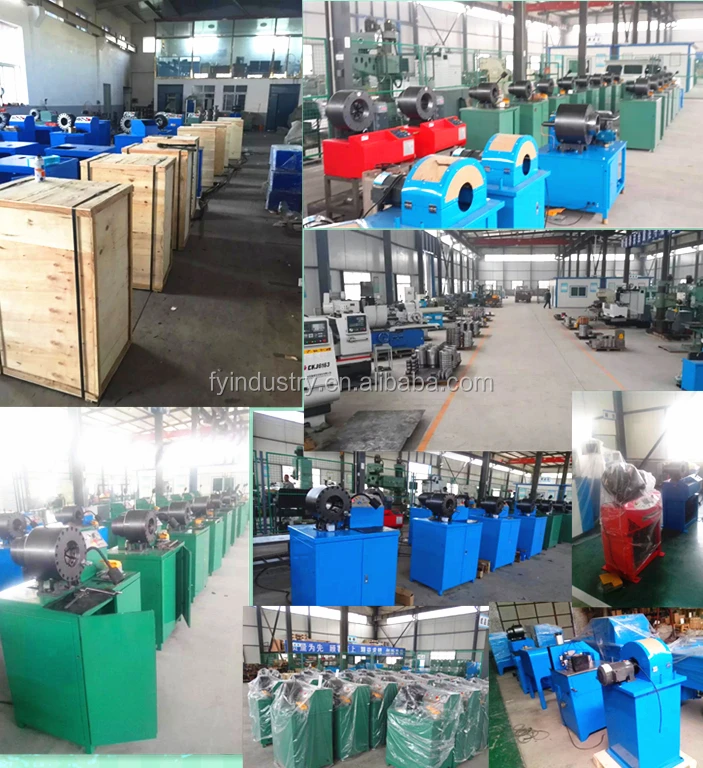

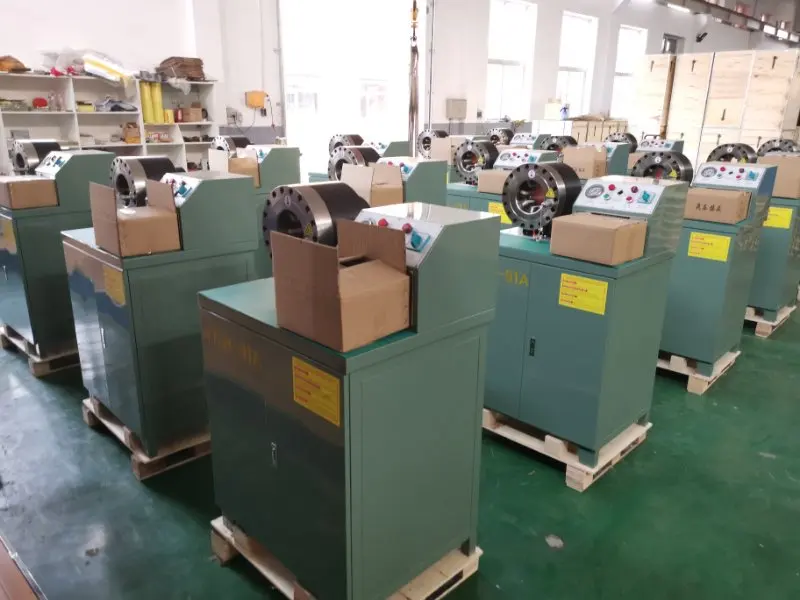

Factory

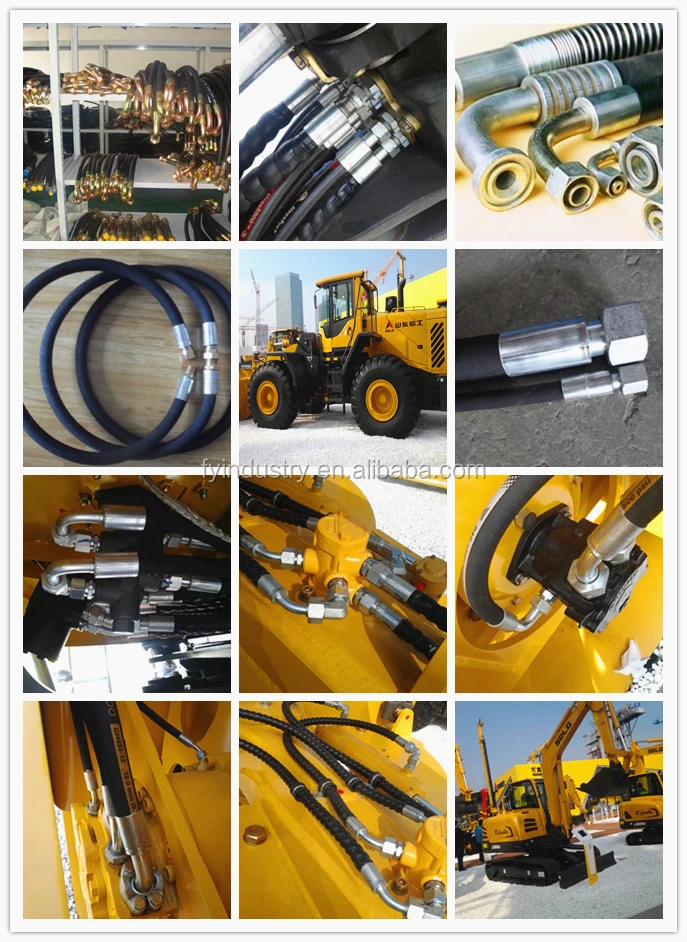

Products crimped by the rubber oil hose crimping machine

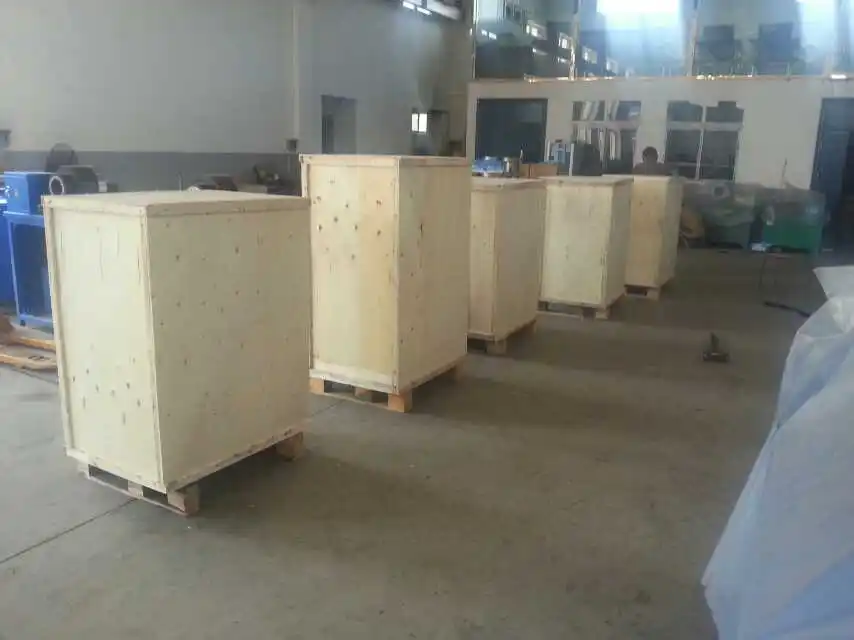

Packing of rubber oil hose crimping machine

OEM We made for other clients:

Notice of the rubber oil hose crimping machine



(1). When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.



(2). Prevent tool and other foreign matter from entering the locking head.



(3). After the work is finished for each time, the eightblock mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.



(4). When working, the hand should not stretch into the locking head.



(5). The power supply must be switched off when maintenance is done.



Our main products for sale



Hose crimping machine



Hose cutting machine



Hose skiving machine



Workbench of hose crimping machine



Dies of hose crimping machine



Hydraulic pressing machinary





 Any questions,please call me or send me email by the following:

Anne will give you best answer
