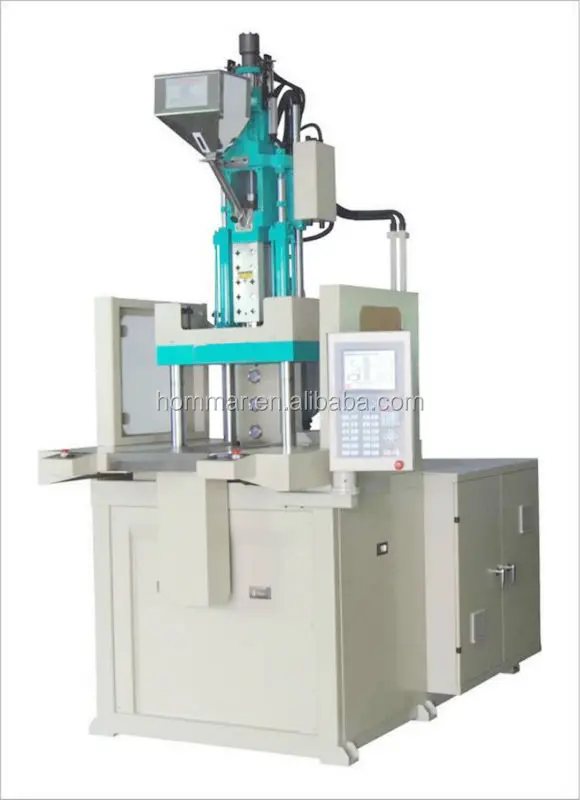

45T Vertical Single Shuttle 6 blade razor Injection moulding making machinery HM0110 13
- Category: >>>
- Supplier: Dongguan Hommar Hardware Co. Ltd.
Share on (60376912318):
Product Overview
Description
45T Vertical Single Shuttle 6 blade razor Injection moulding making machinery HM0110-13
Product Description
| Spec | ||||
| Model | HM-45T-1S | |||
| Injection unit | Screw Diameter | mm | 28 | 36 |
| Injection Pressure | Kgf/cm3 | 2321 | 1404 | |
| Injection Capacity | cm3 | 80 | 132 | |
| Injection Weight | gr | 72 | 119 | |
| oz | 2.5 | 4.2 | ||
| Injection Rate | cc/s | 47 | 78 | |
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 130 | ||
| Nozzle Stroke | mm | 200 | ||
| Nozzle Contact Force | tf | 3.5 | ||
| Clamping unit | Clamping System | |||
| Clamping Force | tf | 45 | ||
| Clamping Stroke | mm | 215 | ||
| Max.Mould Space | mm | 360 | ||
| Min.Mould Height | mm | 145 | ||
| Space between columns | 440*240 | |||
| Hydraulic Ejector Force | tf | 1.7 | ||
| Ejector Stroke | mm | 40 | ||
| Slidable Stroke | ° | 400 | ||
| Tableda | Overall Size of Slipform | mm | 420*420 | |
| Number of Molds | set | 1 | ||
| Drive Motor | kw | 7.5(10HP) | ||
| Electrical Parts | Heater | kw | 4.9 | |
| Oil Tank Capacity | L | 180 | ||
| Cooling Water | L/hr | 600-800 | ||
| Dimension of Machine | M | 1.5*1.55*3.2 | ||
| Packing | Weight of Machine | T | 2.5 | |
| Shipping size | M | 1.95*1.5*2.5 | ||
| Shipping weight | T | 2.8 | ||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, High sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |
| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
