Product Overview

Description

portable ce rfid reader,active rfid reader long range,rf handheld scanner

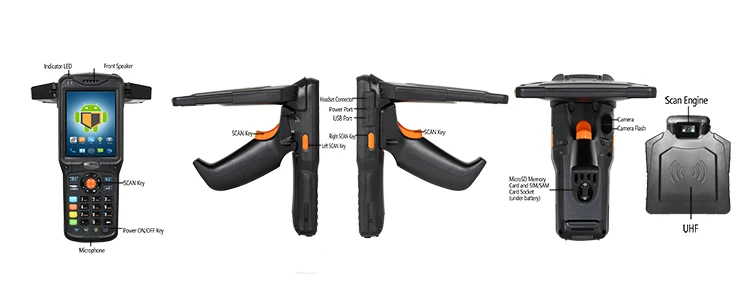

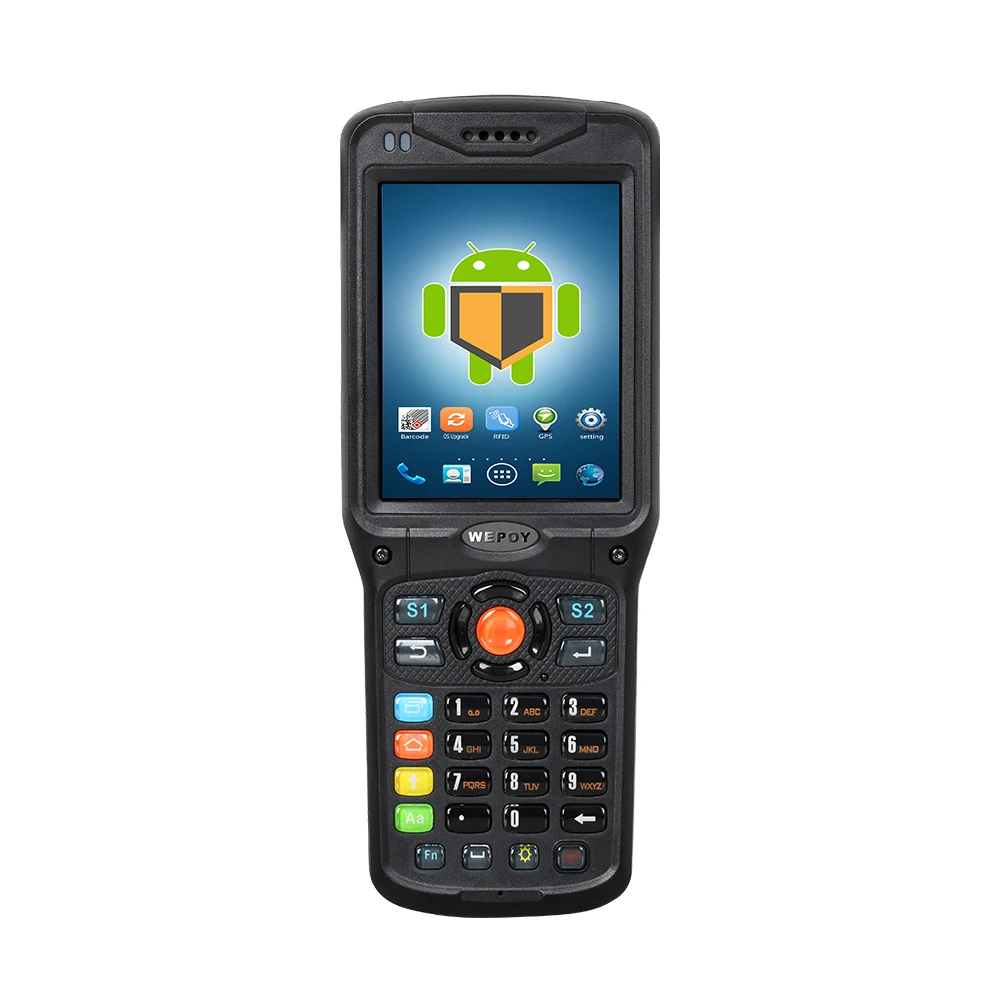

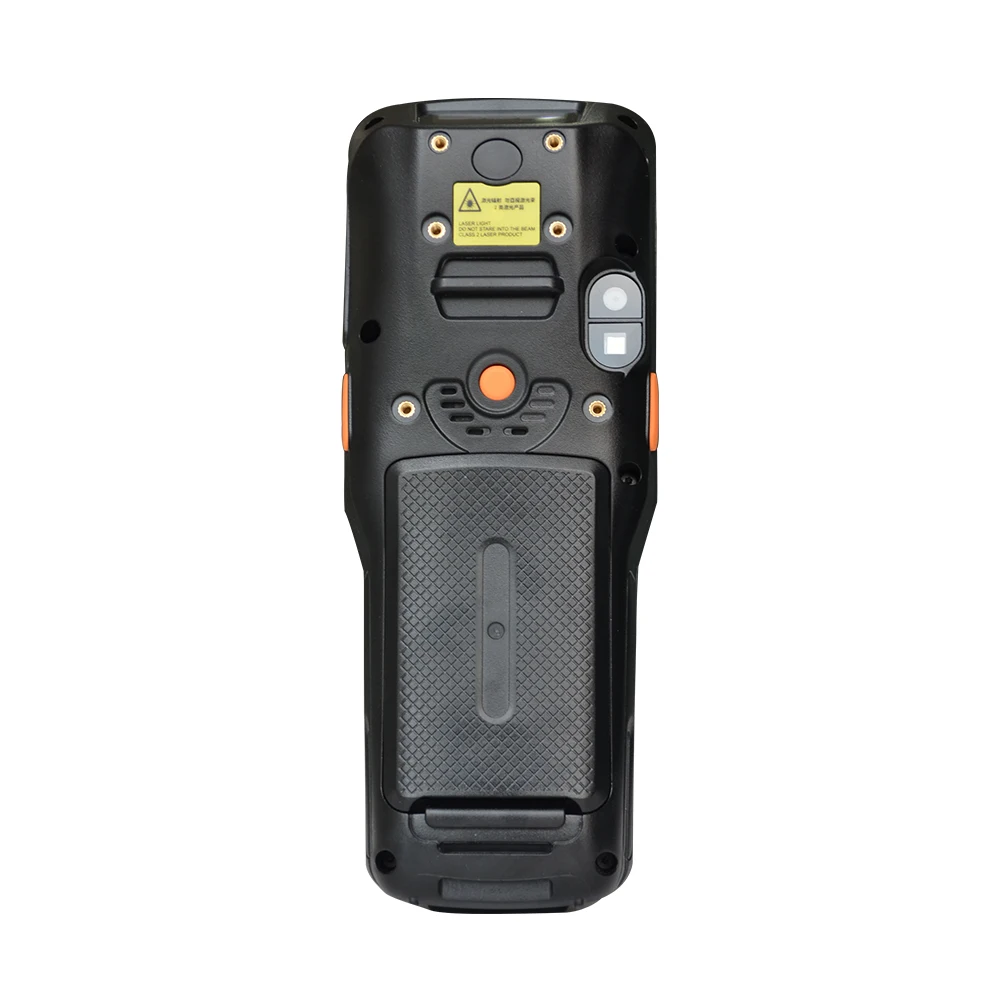

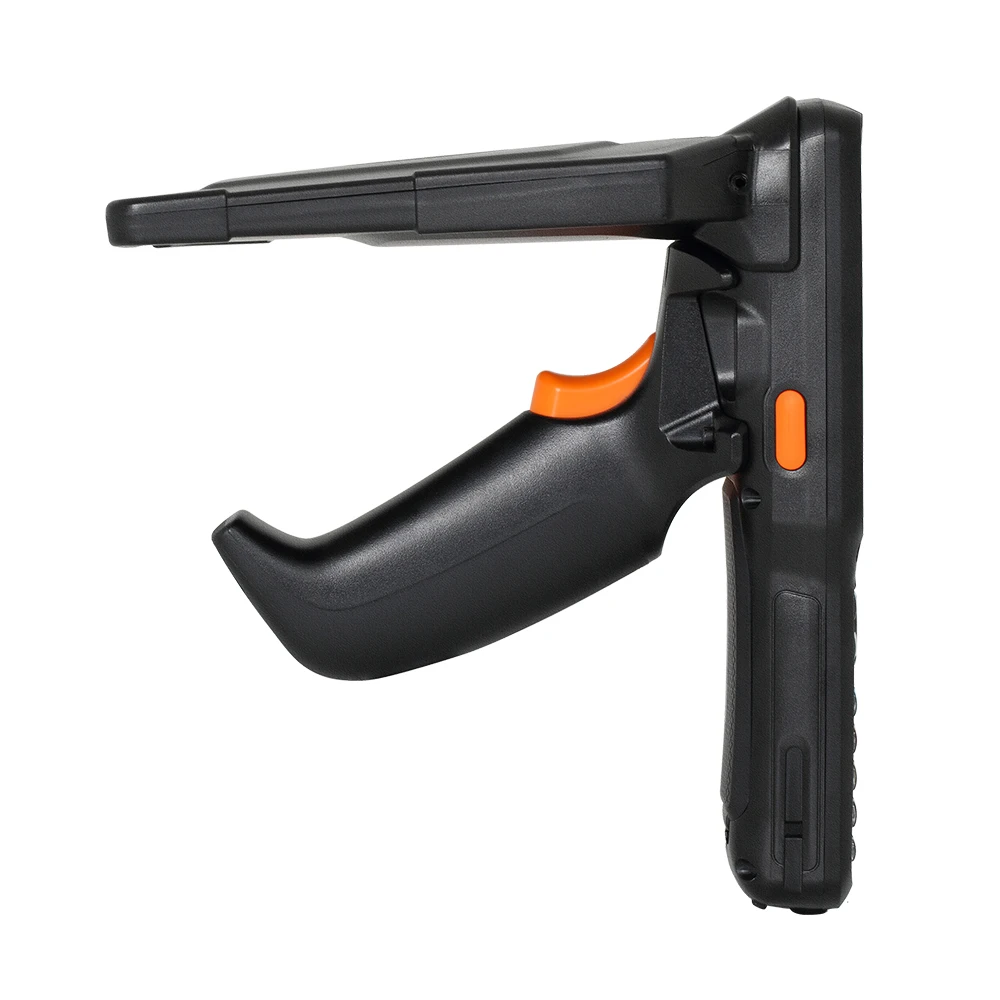

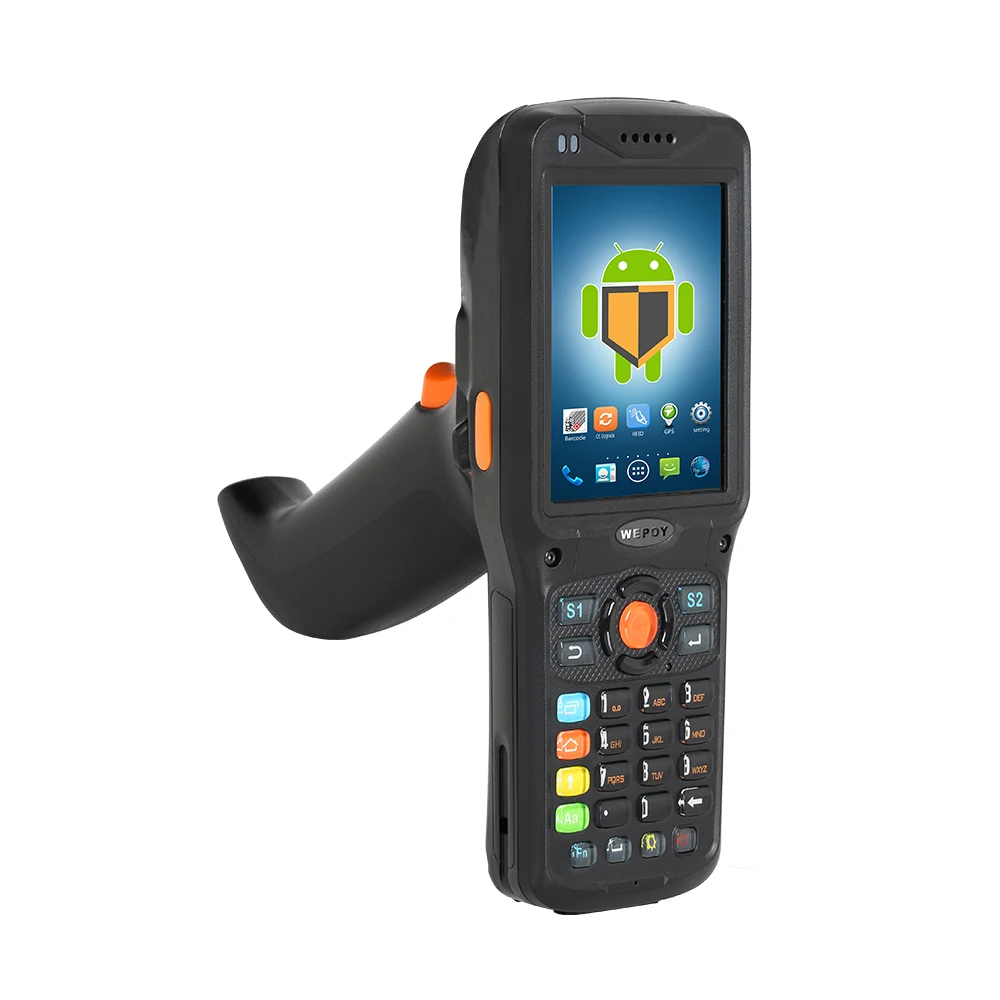

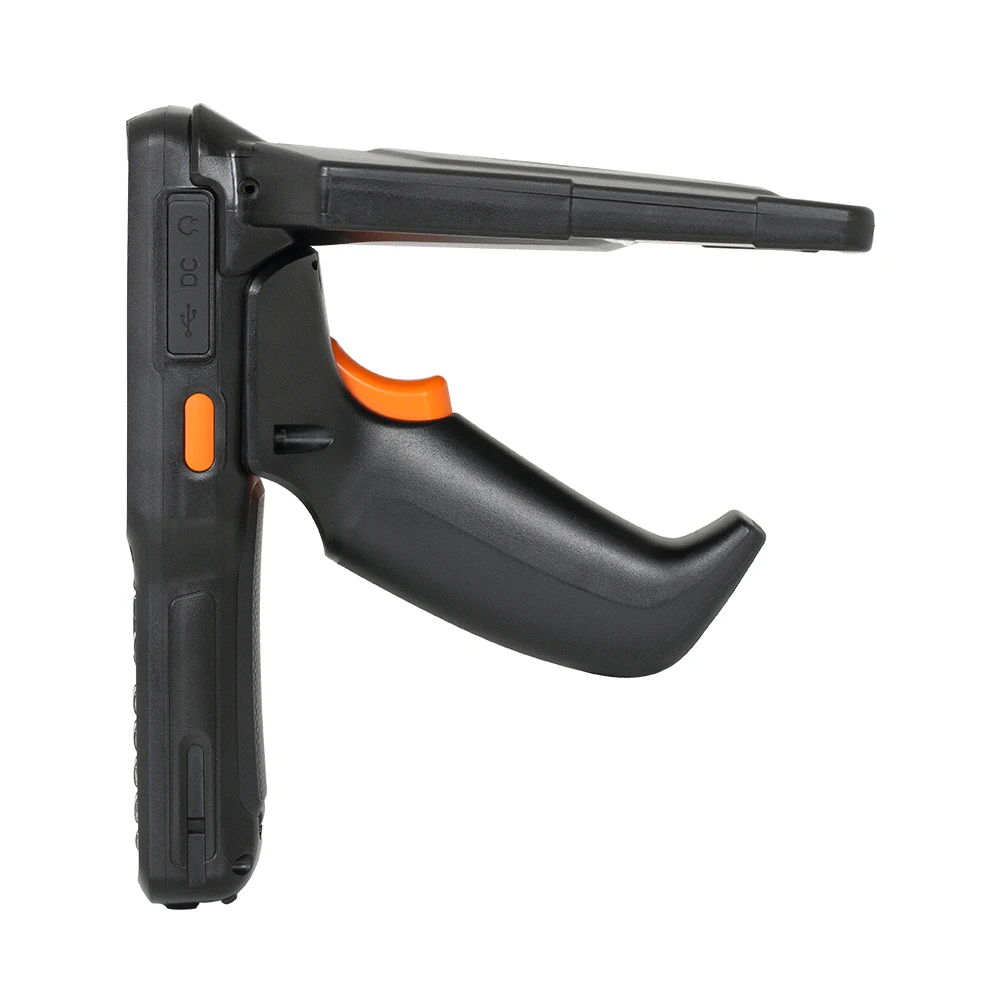

Handheld RFID Terminal S97
Performance  Characteristics	Operating System	Android 7.1
	CPU	MTK 1.45GHz
	Display	3.5inch TFT-LCD (480x640) color touch screen
	Panel	Resistive screen
	RAM	2GB
	ROM	16GB
	Extended Memory	Micro SD slot, up to 32 GB
Physical  Characteristics	Dimensions (LxWxD)	192mm*73.8mm*30mm
	Weight	385g (includes battery)
	Keyboard	32keys    Number/Alphabetic keys    Directional button         Scan button    Side keypad
	Input	Chinese, English, handwriting, support soft keyboard
	Promting Mode	Green, red and blue LED, vibration, speaker
Barcode  Scanner	1D Laser	Code 39; Codabar; Code 128;Discrete 2 of 5; IATA 2 of 5;  Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13;  MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded;
	2D Imager Scanner        (Optional)	1D Symbologies: UPC/EAN, Bookland EAN,  UCC Coupon Code, ESSN EAN,CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR,MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes 2D Symbologies: PDF417,MicroPDF417,Data Matrix, Data Matrix Inverse,MaxiCode, QR Code, Aztec,  Aztec InversePostal Codes:U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal,Australian Postal,Netherlands KIX Code,  USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Radio  Communication	WiFi	WIFI 802.11 a/b/g/n/ac
	Bluetooth	Bluetooth 4.1 BLE
	WCDMA	GSM:850/900/1800/1900 MHz   UMTS/HSPA+: 850/900/1900/2100 MHz
	4G	FDD-LTE:B1/B3/B5/B7/B8 TDD-LTE:B38/B39/B40/B41
Power	Main Battery	Removable, rechargeable 3.8V 4500mAh lithium battery pack
	Slave Battery	290mAh lithium battery
	RTC Battery	Individual RTC battery to keep clock at real time
	Adapter	5V/ 1.5A
Options	Camera	5.0 mega pixels camera with flash, screen capture and automatic focus
	GPS	Support A-GPS
	RFID(optional)	HF:Supports 13.56Mhz, ISO14443A/B and ISO15693 standard
		UHF: support ISO18000-6B, ISO18000-6C(EPC Global Class1 Gen2)  840-960MHZ EPC Frequency Band                     Read and write distance: 2 meters Read Speed: 200times/s(Read 200 tags in one second)
User  Environment	Operating Temp	–10°C to +50°C
	Storage Temp	–20°C to +70°C
	Humidity	5% to 95% non-condensing (Condensation Resistant Configurations Available)
	Sealing	IP64
	Drop Grade	1.5m
	Roller Drop Test	500 times (1000 hits)
Peripherals Accessories	Expansion	Micro SD/TF x 1(a maximum of 32 GB), Micro SIM x 1, SAM x 1
	Interfaces	Micro USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1
	Cradle(Optional)	Supports to charge one unit of device and one spare battery simultaneousl Input:AC 100V~240V,1A Max,50/60Hz  Output:DC 5.5V,2.6A  Two indicator Led:Power and Status
Regulatory	Certification	CCC, CE,ROHS
	Warranty	1 year factory warranty for main device; 6 months for accessories













Q The device won’t turn on.

AFirst please check if battery is installed correctly and battery rear cover is covered.

If there is battery and battery is installed correctly ,The program may be damaged. Please try resetting your device.

If it still doesn’t work, Please contact the service center.

QThe devicecan’t be charged.

AA Make sure the power cable and your device have been properly

connected.

Try to clean the charging terminals. If they still do not work,

your battery life might be finished or it may be a broken battery.

(The battery warranty lasts for 6 months)

QHow do I get the repair service?

AYou can send the device via a delivery service to our headquarter after confirmation.

When sending the package, make sure you pay for the shipping

fee in advance.When the repair is finished, headquarter will cover the shipping cost.

QMy battery drains very quickly.

A The battery can be drained quickly when the Wi-Fi or Bluetooth is

turned on.If it drains quickly regardless of using the options above,

please purchase another battery.

QThe device won’t connect GPRS?

AFirst check if SIM card is installed correctly and wireless function is opened.

Then make sure the access point is set correctly and SIM card has enough fee.

If it still doesn’t work , then check SIM card is damaged or not.
