Product Overview
Description
Product Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.
Specificationfor | ||||||

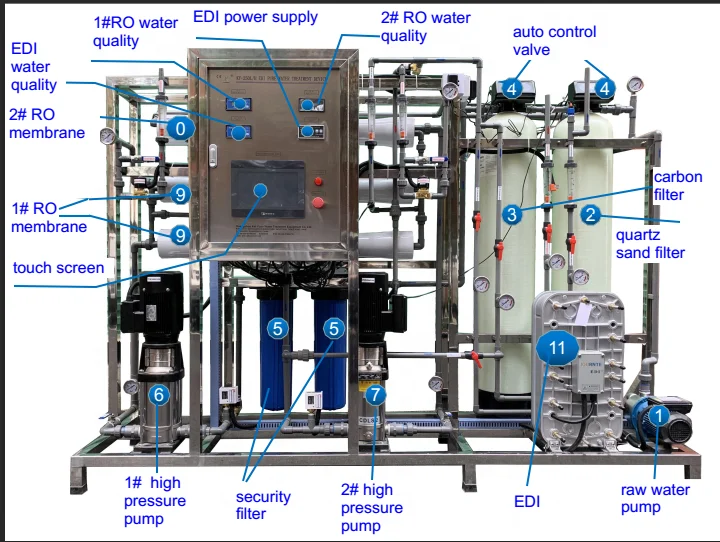

Item | Material/Model | Brand | Function | |||
Raw water pump | SS304 | Domestic | Provide pressure for raw water | |||
Quartz sand filter | SS/FRP | Domestic | Remove large particule | |||
Activated carbon filter | SS/FRP | Domestic | Removesmell,color,bacterial and organic matter | |||
Water softener | SS/FRP | Domestic | Remove hardness | |||
Security filter | PVC 1μm/5μm | Domestic | Block impurities greater than 5micron(1micron) | |||
One stage/Two stage High pressure pump | SS304 | CNP | Provide pressure for water into RO membrane | |||
RO membrane | LCLE-4040 | DUPONT | Remove heavy mental ion,bacterial,virus | |||

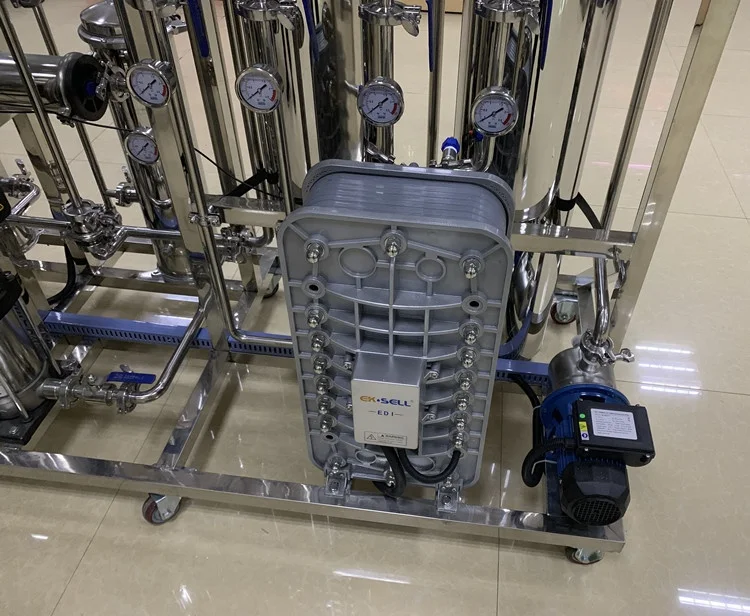

EDI | EDI-200 | Domestic | Make Ultra-pure water. it is better than ion exchanger | |||
UV sterilizer(Optional) | 14W | Domestic | Kill 99% bacterial (For drinking directly) | |||
Ozone Generator(Optional) | 3g/l | Domestic | Kill 99%bacterial and keep 2hours.(For making bottled water) | |||
Main Features
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance\t
3.RO system uses imported USA DOW membrane\t
4.Automatic switch on when lack of water,and switch off when no water or full of water\t
5.RO membrane auto wash and reduce the pollution speed.\t
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.\t
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Spare parts of this system
Spare part | Advice Replacement time | Quantity | ||
PP filter cartridge | Every month | 3pcs | ||
Quartz sand | Every 15-18months | 100kgs | ||
Activated carbon | Every 15-18months | 50kgs | ||
RO membrane(LCLE-4040) | Every 2years | 3pcs | ||
All the spare parts replace period will be depend on the feed water quality. | ||||
Machine Pictures

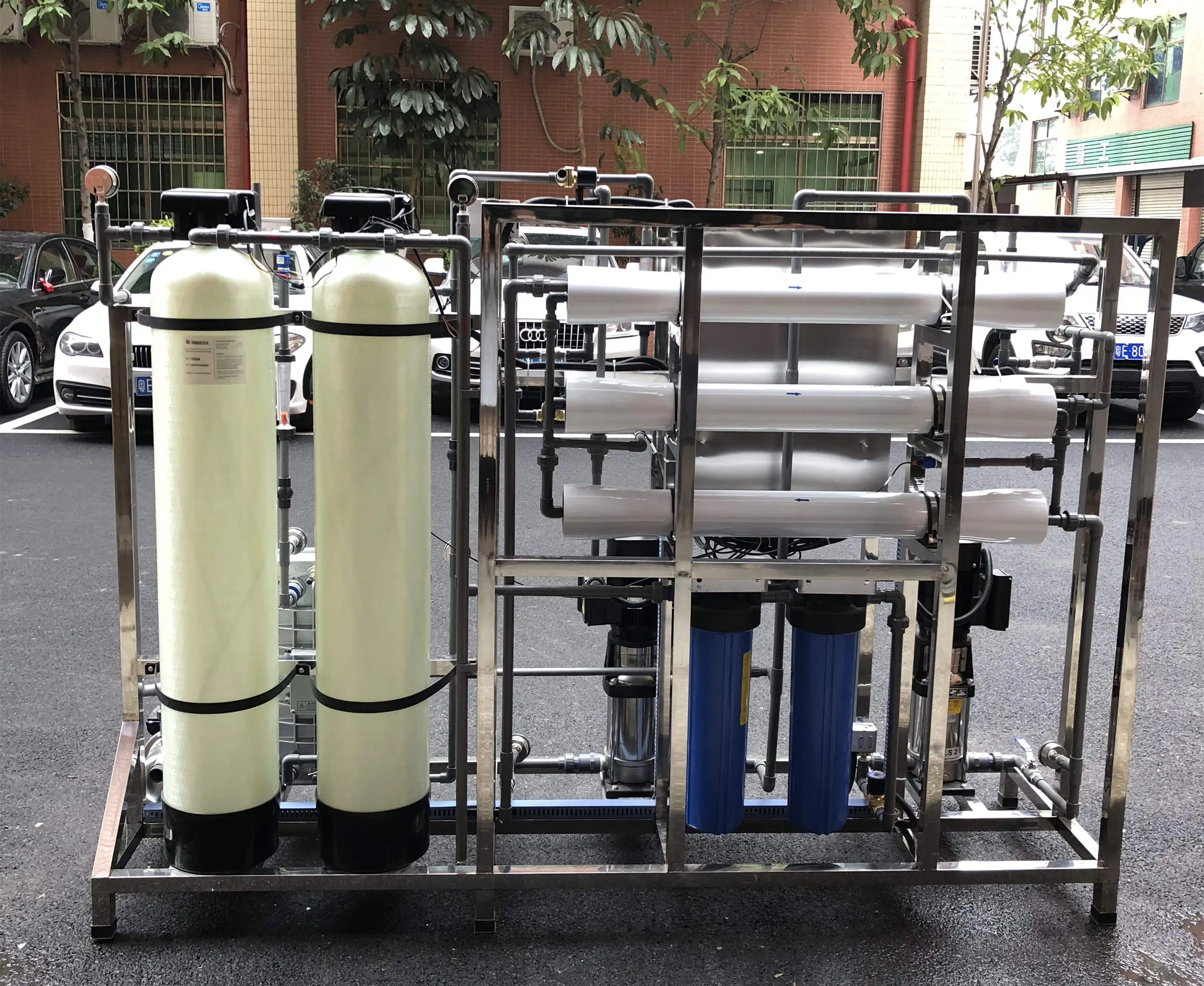

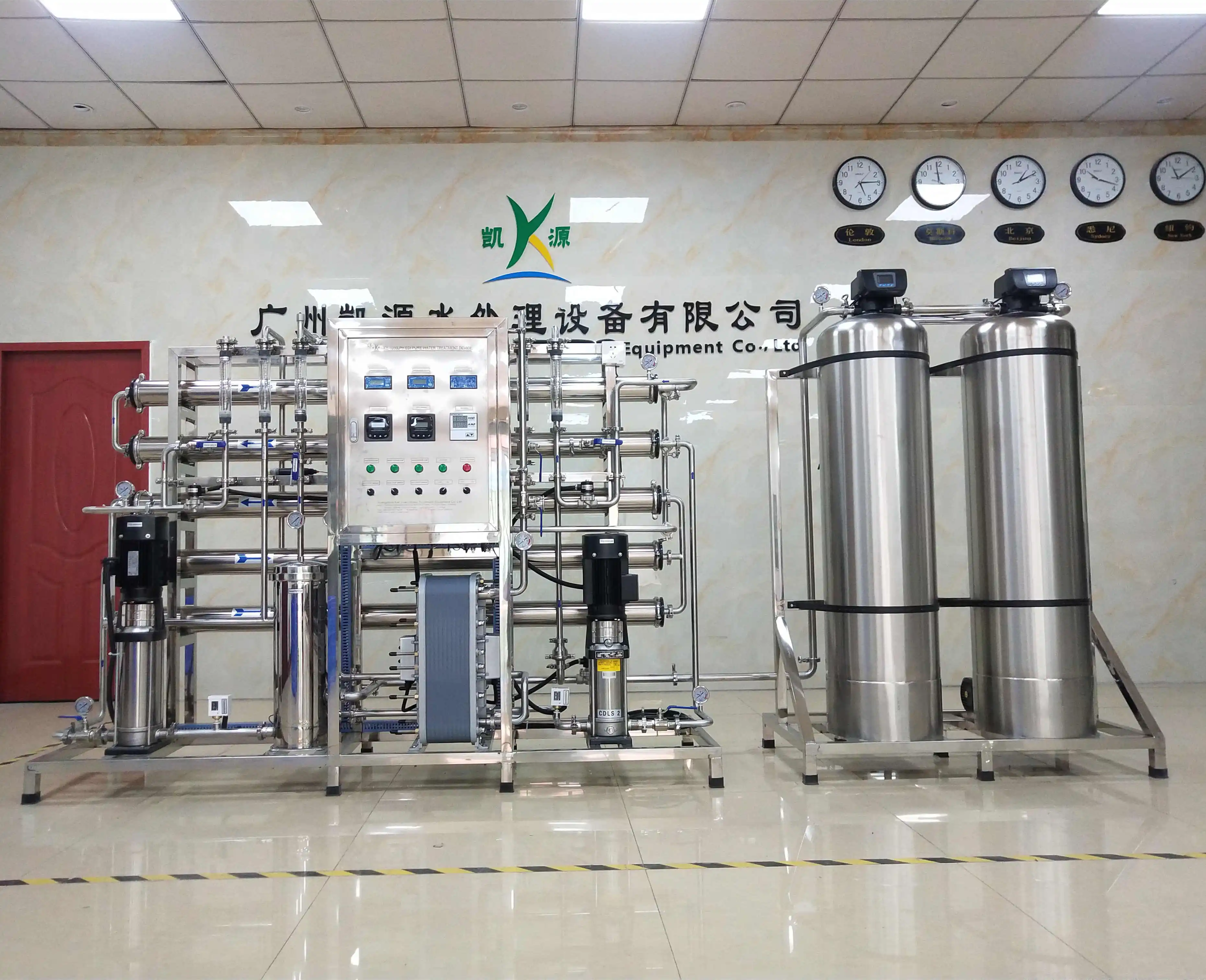

Fiberglass 200L/H Double stage RO+EDI system
PLC controller and HMI
FRP membrane housing

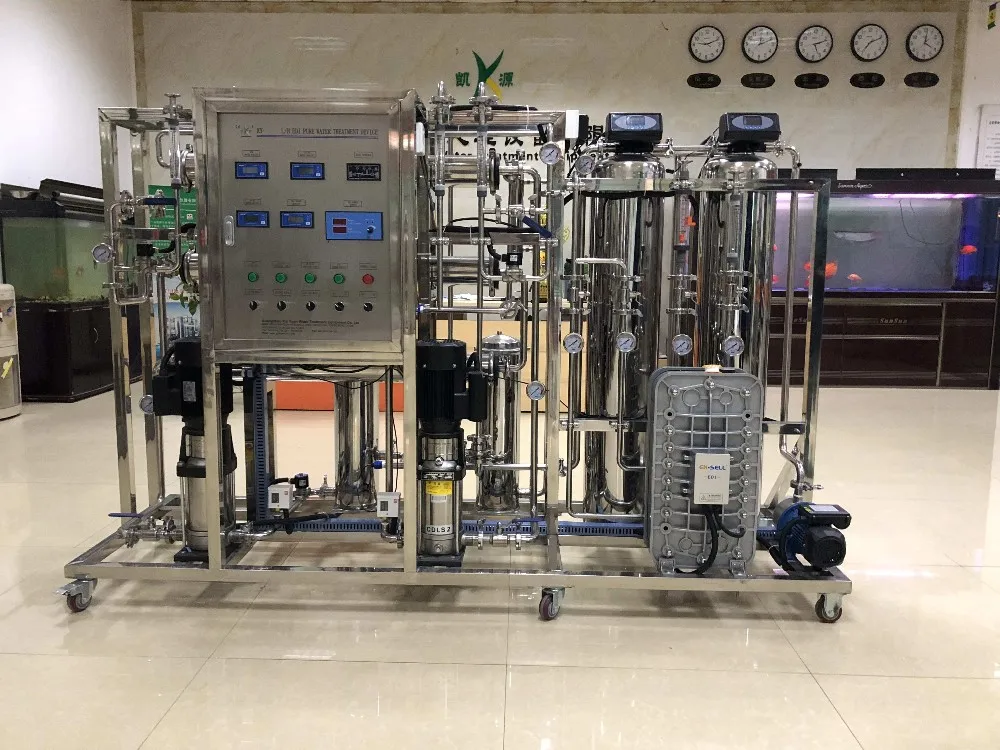

200L/H double stage RO and EDI system for pharmacy

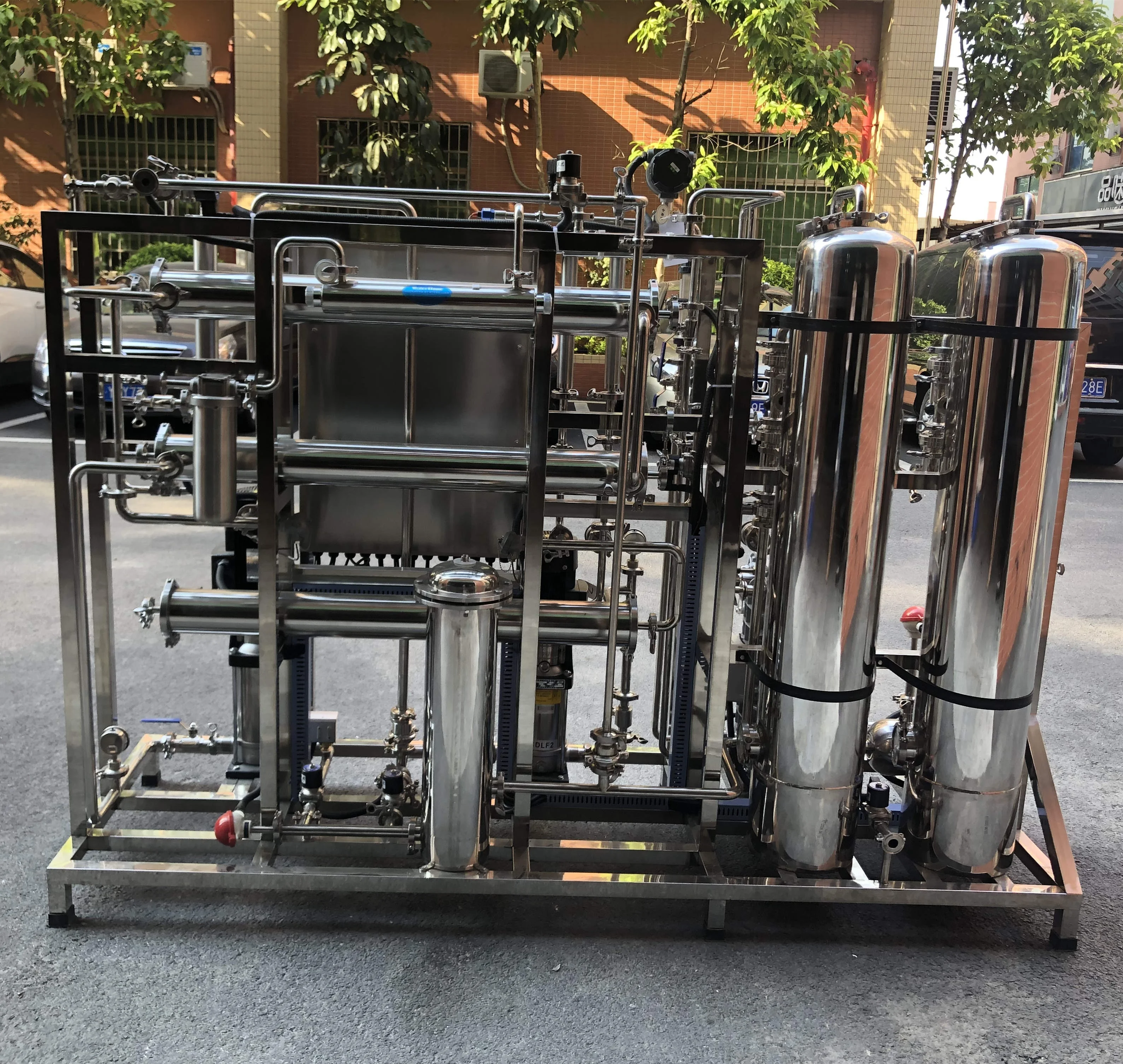

Full stainless steel and Automatic
Output water conductivity can lower than 0.1μS/cm

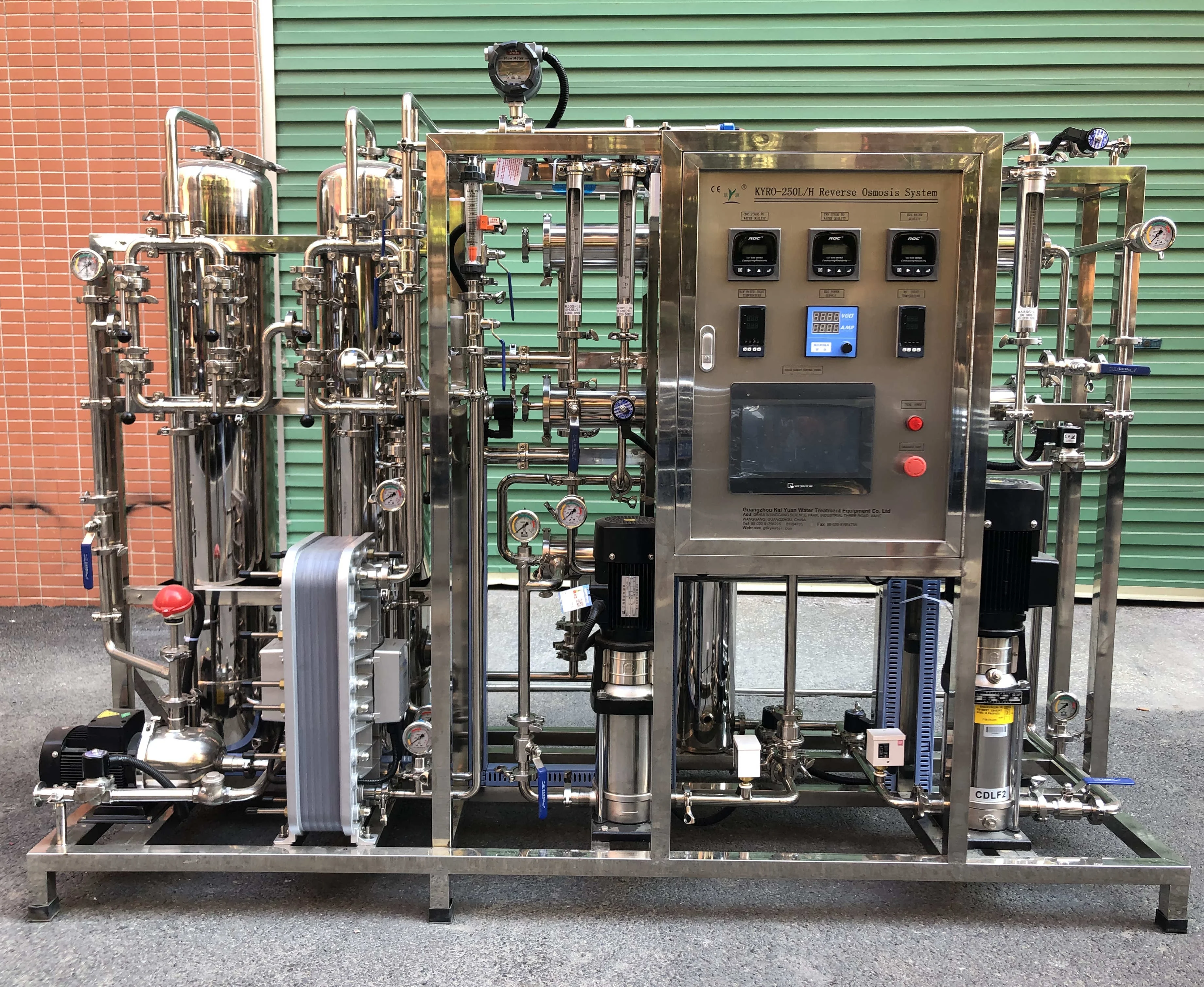

250L/H Ultra pure water making machine

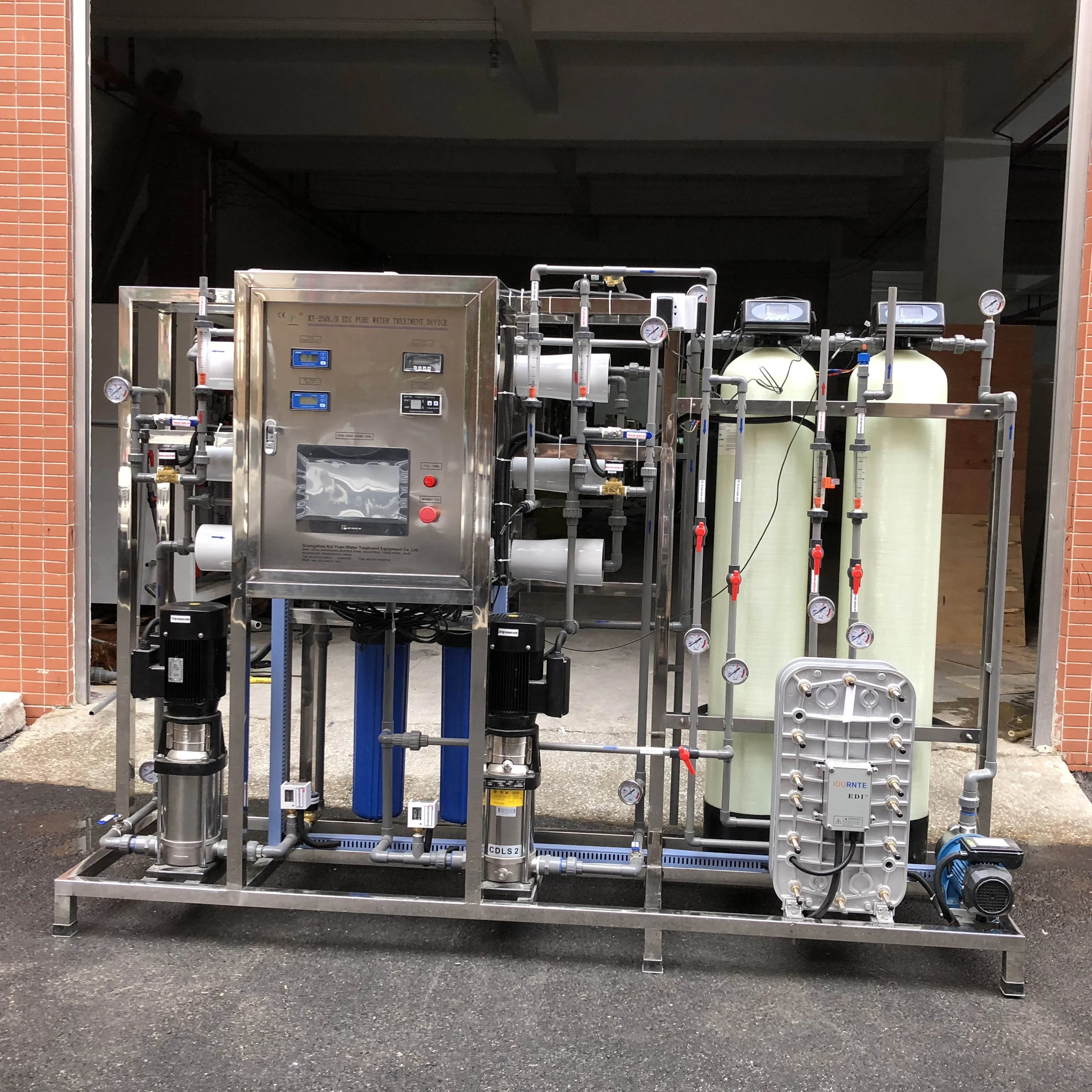

1000Liters per hour capacity Two stage RO with EDI system
Detailed Images
High pressure pump
Brand: CNP
Original: China
The famous pump brand in China.It is to provide the pressure for water into ro membrane.It is the improtant part in the system
RO membrane
Name: LCLE -4040
Brand:DUPONT
Quantity:3pcs
Great ro membrane brand.it can remove heavy mental iron more than 97%. this is the most improtant part in the system.The Service life is about 2years.
Electric control box
PLC(Programmable Logic Controller):Design the progaram as requirements you need.
Brand:Mitsubishi and Siemens
Air switch:protect the electric system

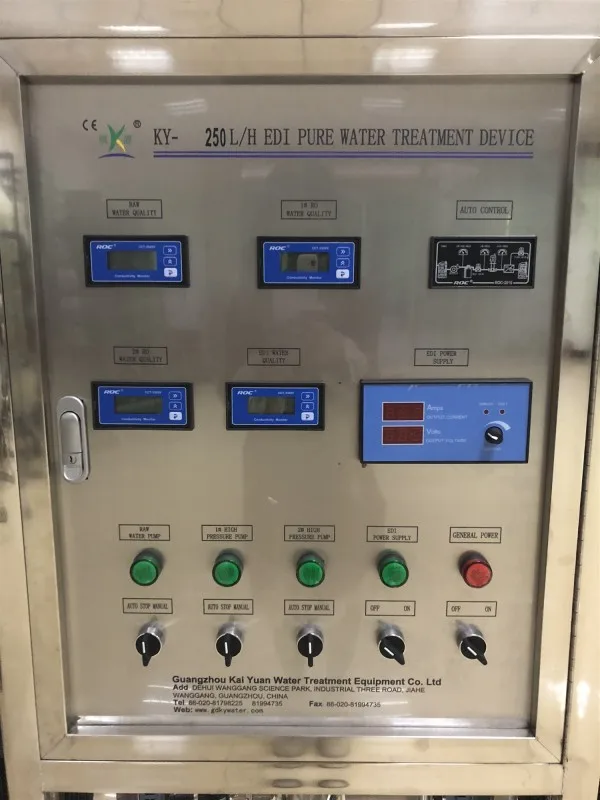

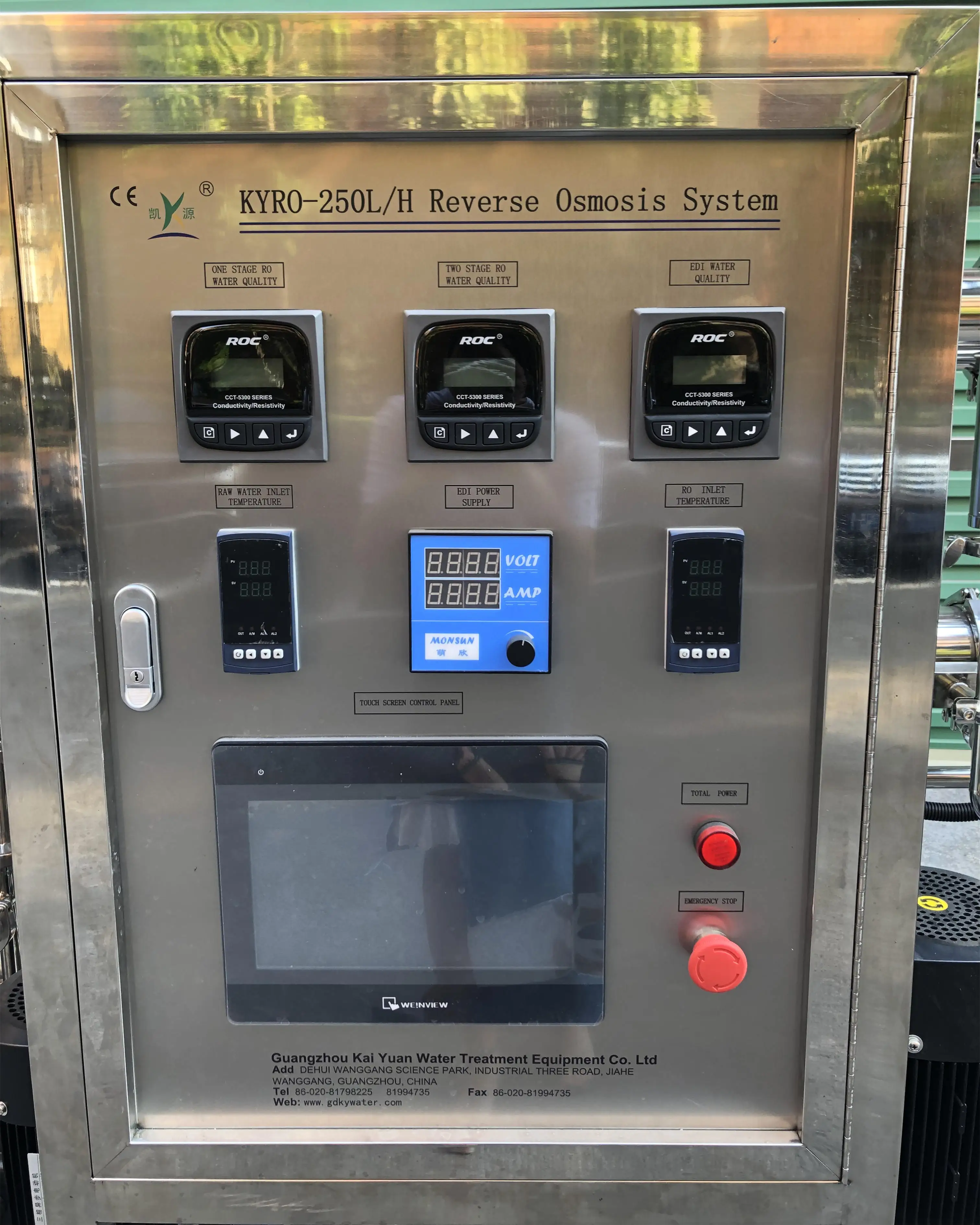

Control panel
HMI: 10inches
Company name and logo design:customize as your requirements
Inlet and outlet water quality: conductivity meter
water temperature meter: Inlet and outlet

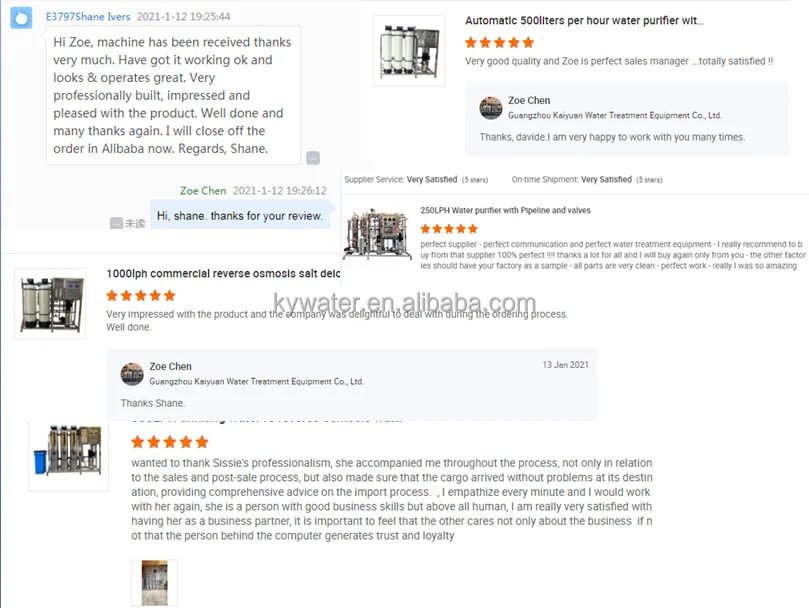

Customers feedback
Packing & Delivery
Packaging | ||
Size | RO Part:2400(L) * 620 (W) * 1900 (D) | |
Weight | 350kgs | |
Packaging Details | The normal package is wooden box(Size: L*W*H).or pack it according to customers special request. | |
Manual operation | ||
Operation and video | we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation. | |

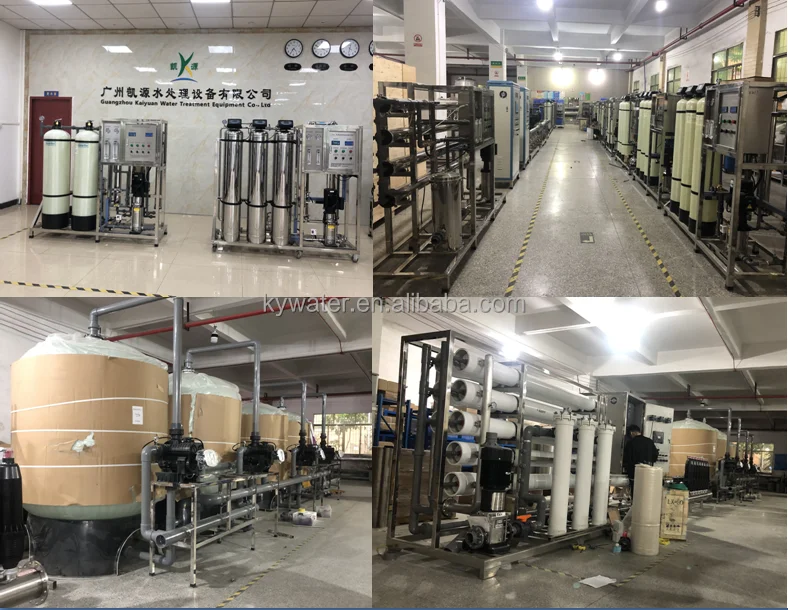

Our Company
