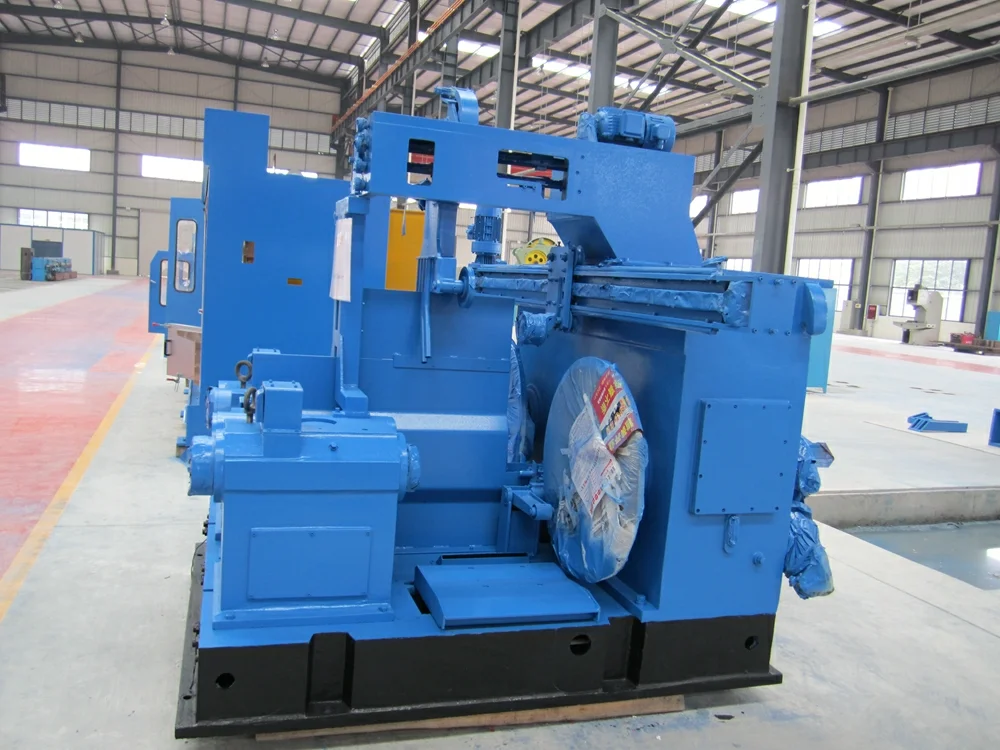

13 dies high speed copper rod breakdown drawing machine

13 dies high speed copper rod breakdown drawing machine

1 NSK bearing
2 WANNAN motor

main technical data

inlet diameter(mm): 8mm

finished wire diameter(mm): 3.0-1.4

drawing line speed(m/s):12-13

main motor(kw): AC180KW

lubrication type: spray+ half immersion

Weight:6000kg

Dimension(L*W*H): 8700*1200*1200

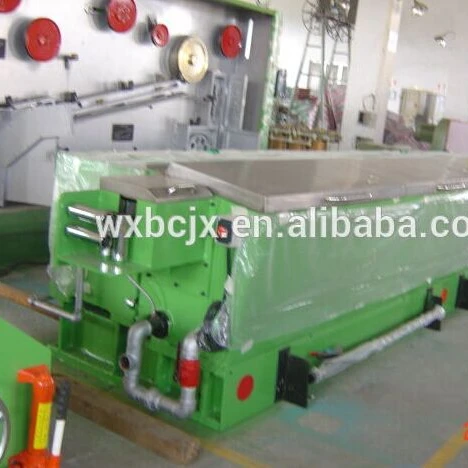

  nude, electric panel by plastic film packing for 13 dies high speed copper rod breakdown drawing machine

 Installation and debugging: we will arrange mechanical engineer go to customer's factory for debugging after customer finished installation of the machines

Machine warranty: machines will be tested in our factory before shippment,one year guarantee time for all mechanical parts and electric parts except spare parts
