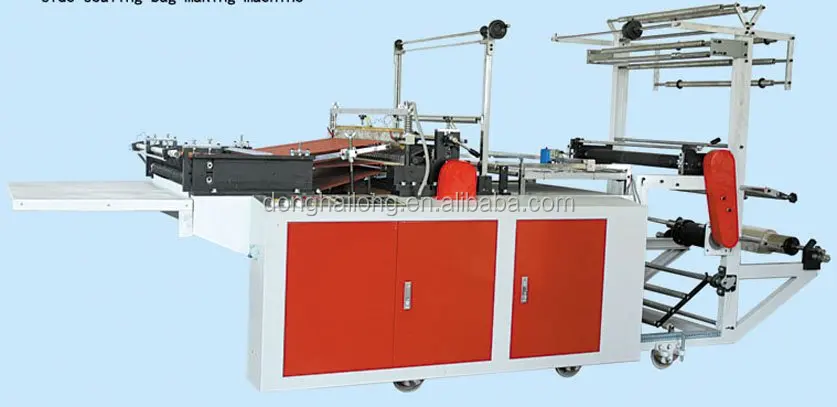

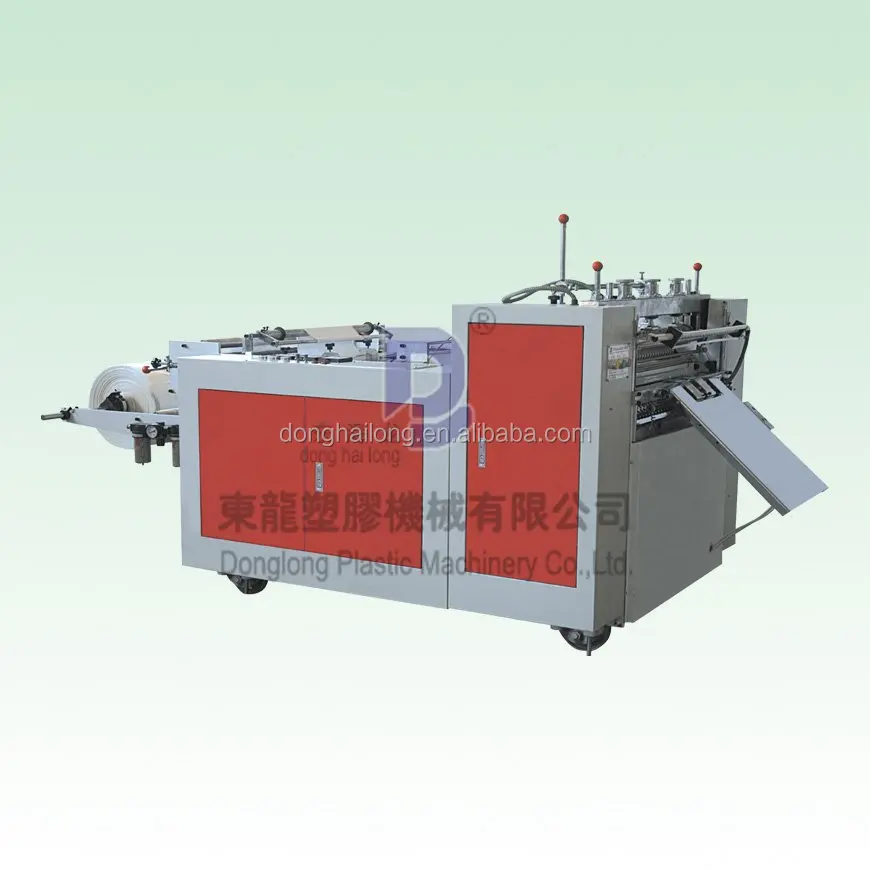

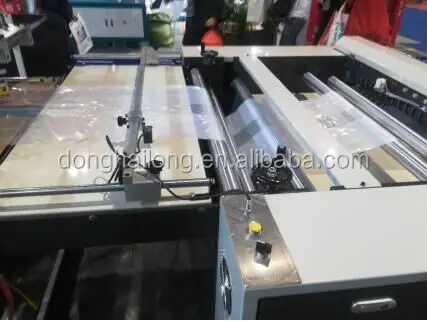

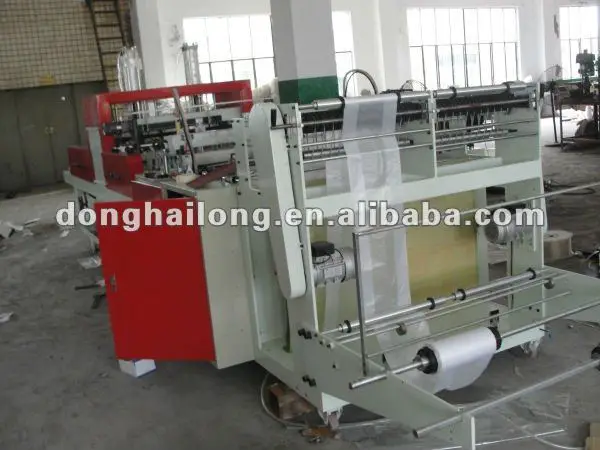

Double line T shirt Bag Making Machine

Product Overview

Description



1.Product Display





Main Technical Parameters:
Model	DL-R500X2
Max.Bag Width	430x2(mm)
Max.Bag Length	650(mm)
Bag Thickness	0.01-0.025(mm)
Raw Material	HDPE,LDPE,Recycle Plastic Material,Biodegradable Material
Speed	200x2(pcs/min)
Warranty	1 Year
Total Power of the machine	~10kw
Shape Size(LXWXH)	5.4*1.85*1.55m
Weight	~2700kg

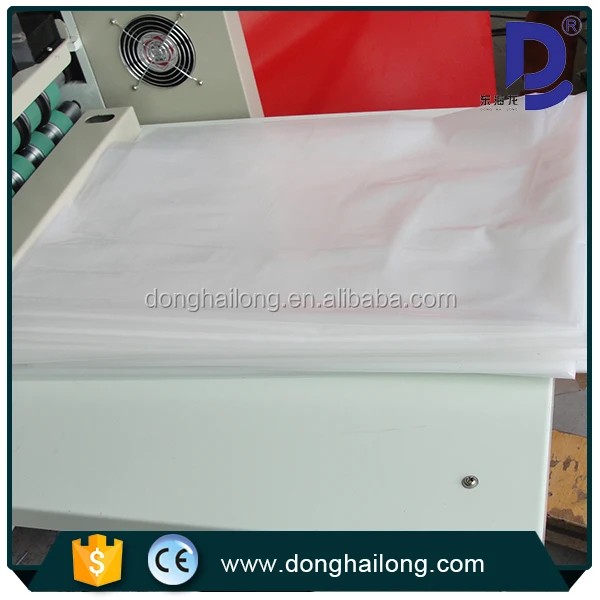

1.This machine is designed to produce t-shirt bags.vest  bags,U shape bags,etc,fully automatically

2.With two lines ,the production capacity will be increased.

3.The whole machine is controlled by servo motor,thus the material will be conveyed smoothly and quickly.

4.With Japan brand "panasonic "electric eyes ,it has advantages or great quality  ,sensitive to colors ,catching colors accurately.

5.The whole machine adapts  computer control  system to set the bag length ,production speed ,thus can reduce the waste and save cost ,feeding material ,counting and sending out material automatically ;the machine will alam automatically when the machine is out of work ,therefore it will be sate to operate.



2.Hot Product

                                        Hot Product





3.Company Info



4.Exhibition



5.Packing & Shipping

Port:	Xiamen
Payment:	T / T, L / C, Western Union
Delivery period:	45~60 working days after receiving the deposit
Conventional Packaging:	Seaworthy wooden pallet
MOQ:	1set / sets



6.Service Case



7.Contact US



 We have many different models for your selection, welcome your further contacting in your convenience.



8.FAQ

                                     FAQ



1. Q: Are you a factory or trading company?

     A: We are a factory



2. Q: Where is your factory located?

     A:Ck-10, Donghai Bincheng Industrial Park, Quanzhou City, Fujian Province. China



3. Q: Main products are there?

    A: Plastic Machinery (Plastic Film Blowing Machine,Plastic Bag Making Machine,

         Plastic Recycling Machine,Plastic Stretch Film Machine,Plastic Cast Embossed Line)



4. Q:Have you been to Chinaplas?

     A:Yes, we will join in Chinaplas Fair every year.
