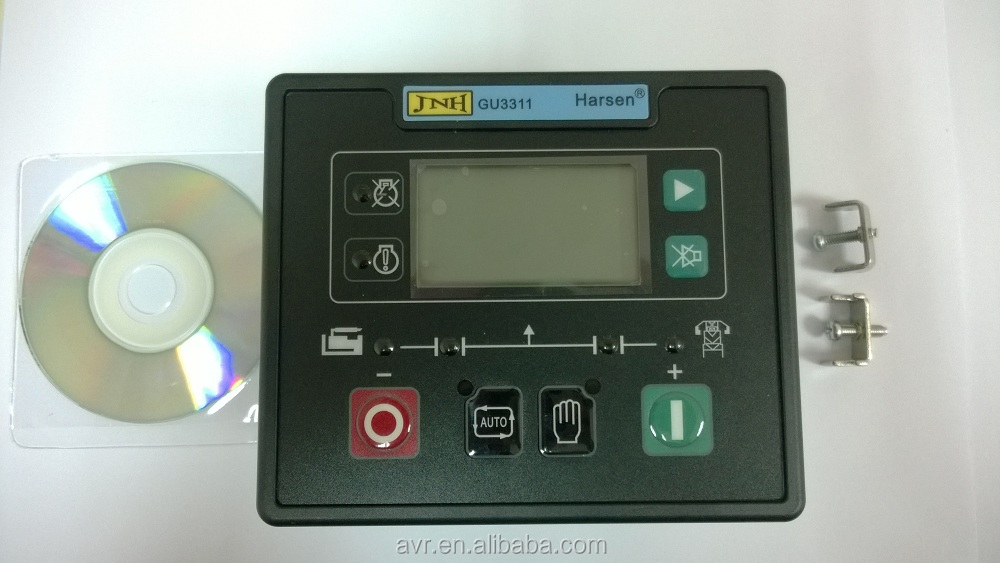

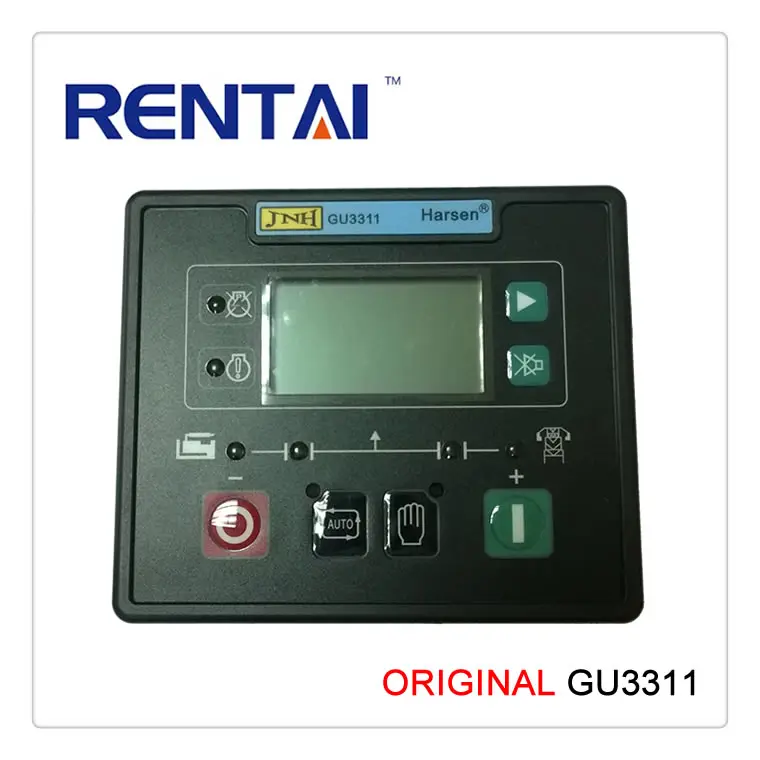

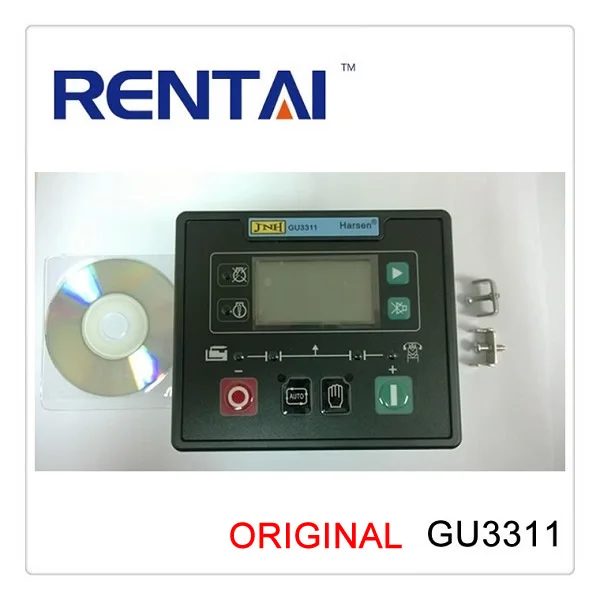

ORIGINAL Diesel Genset Auto Start Control Panel GU3311

ORIGINAL Diesel Genset Auto Start Control Panel GU3311

The GU3310 and GU3311 are a new generation on single generating set intelligent controller which is new in shape and structure. It has improved the performance of the controller so that the new product can meet the needs of the user and Generator assembly plants for the different types of Automatic switch control generation and protection needed.

GU3310 is a Auto Start controller.
GU3311 is an Automatic Mains Failure Controller. When running in “AUTO” mode, it detects the
Mains. It starts the generator automatically on Mains voltage failure. The Gen is on load; when Mains
resumes to normal, it stops the generator after the delay, Mains is on load.

Characteristics:

The voltage and current using true RMS measuring.
Multi-Language menu.
128 x 64 graphic LCD.
Unit maintenance time, presets and remind function.
3 Analogue inputs configurable with a variety of preset sensors and can also customize your own sensor curves.
5 Configurable outputs.
3 Configurable inputs.
Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status.
The controller can be connected to a PC and can read and set the running parameters of controller.
Optional Canbus, read and control the parameters for an ECU engine.
All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device. When secured by the screw locks it prevents the plugs from falling out by vibration etc.
