Knife Grinder Sharpening Machines For Sewing U2 Universal Cutter Grinder

Price:RUB 22,292.43 - RUB 26,007.84

Quantity:

CE-certification drill bit,end mill sharpening machine U2 knife blade sharpening machine



Specifications
Wheel	Diameter	Φ100mm
	Thickness	Φ50mm
	Hole diameter	Φ20mm
Spindle speed		5200rpm
Max.clamping diameter		Φ3~16mm
Longitudinal traver of index head carrier		140mm
Longitudinal adjustment travel of index head carrler		180mm
Spindle and wheel longltudinal adjustment travel		600mm
Taper angle range		0~180°
Negative taper angle range		0~52°
Relief angle range		0~44°
Moter	Power	0.55kw
	Speed	5200rpm
	Voltage Three-Phase	380V
	Voltage Single-Phase	220V
	Frequency	50Hz/60Hz
Gross weight		55Kg
Packing dimensions		500395395mm

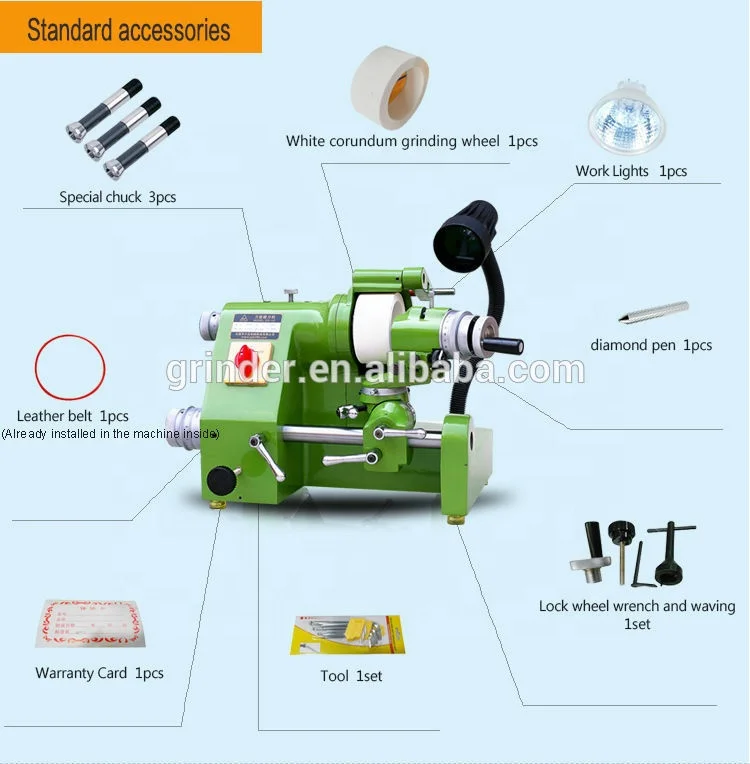

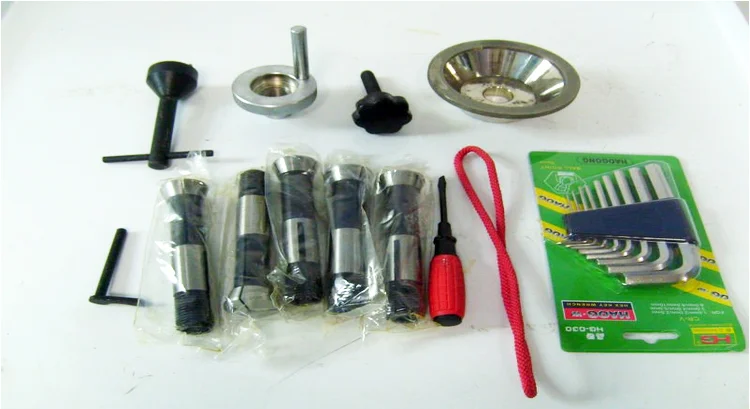

Standard Accessories	Belt	1 pcs
	Tools	1 set
	White corundum wheel	1 pcs
	Diamond Pen	1 pcs
	Collect 4.6.8mm	3 pcs
	Lamp	1 set

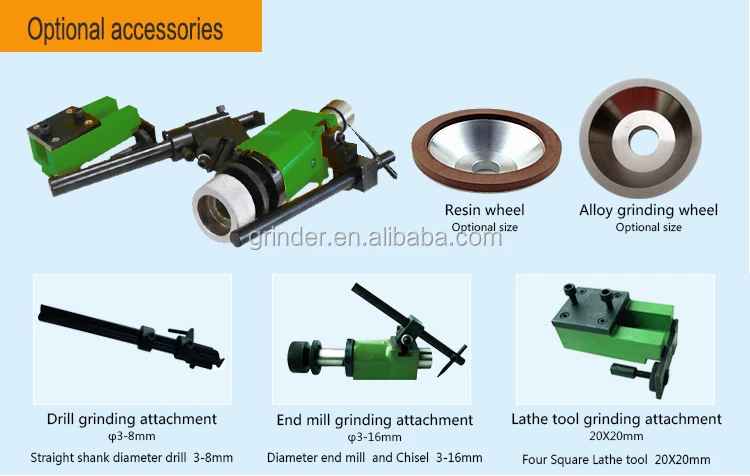

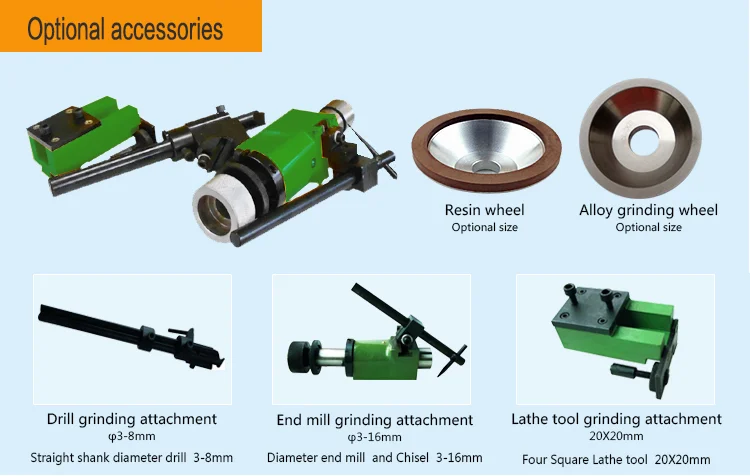

Extra Accessessories	φ3-16mm End mill grinding attachment 1 set
	φ20*20mm Lathe tool grinding attachment 1 set
	φ3-8mmTwist drill grinding attachment 1 set

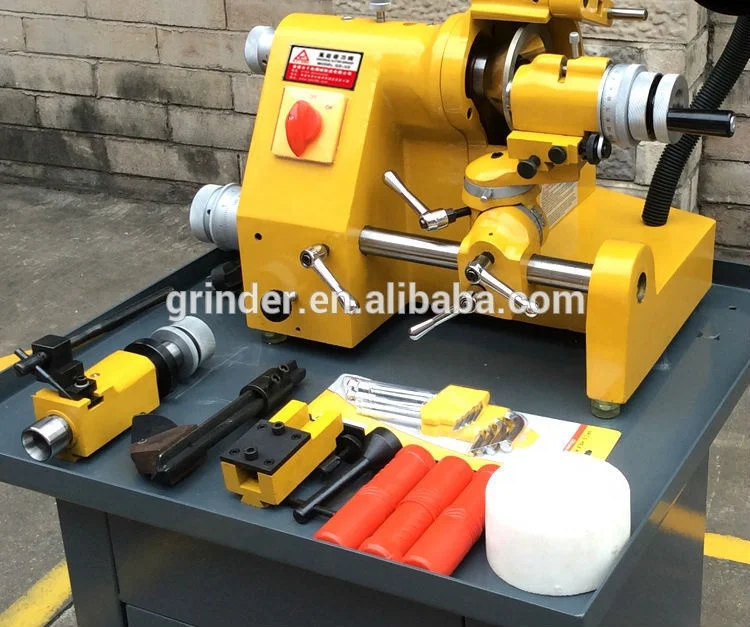

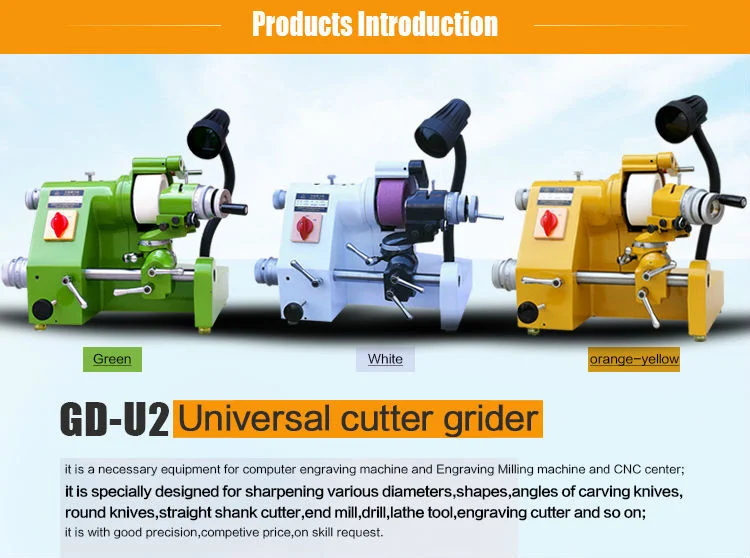

	Optional color:yellow & green
