80mm Thermal kiosk printer & taxi kiosk printer KP-532 with auto-cutter for pos system
Brief:

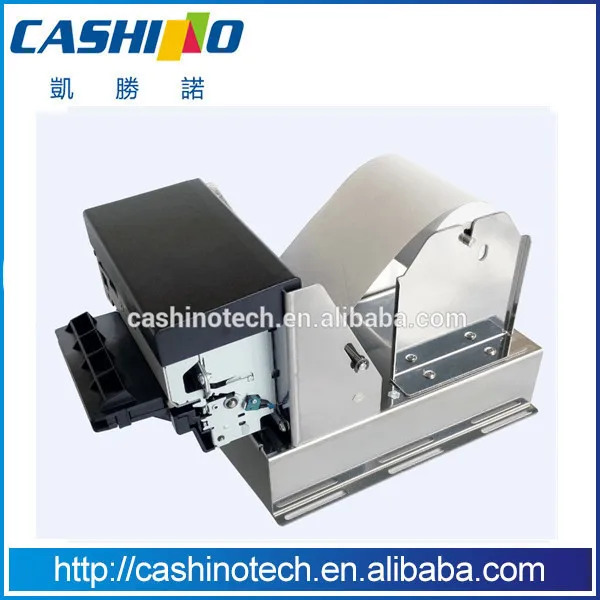

The Cashino KP-532 printer is a direct thermal ticket printer with an integrated cutting mechanism designed for self service (Kiosk) ticketing environments.
The KP-532 features an industry leading print speed of up to 200 mm/sec and a high reliability at an MCBF of 1 Million times.
The KP-532 kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.Cashino offers specialized configurations of this printer in order to meet customer requirements
Product Description
Feature:
Compatible Compatible with EPSON M-T532AF/AP
Paper width:79.5 ± 0.5 mm
Easy paper load
Compact design
Low Noise
Rubber ruller and paper ending detect
Mechanism life(150KM)
High speed(150 mm/s,24VDC)
Printing width :80mm
Application:
Be applicable for 3inch printer terminal,Ticket printer terminal,barcode printer ,bank terminal,kiosk printer, ATM Printer , measure and medical treatment equipment
Specification:
Type
TP-532A
Printing
Print method
Thermal dot line
Number of dots/line
640
Resolution
8(dots/mm)
Speed(mm/s) Max.
150(24VDC)
Printing width
80
Paper
Paper width (mm)
79.5 ± 0.5
Max. paper thickness (μ)
80
Paper supply method
Straight ahead
Paper feed precision
0.125mm
Detection
Paper detection
Opto sensor
Head temperature detect
Thermistor
Rubber ruller detection
With
Power supply
Drive voltage
24±10%
Logical voltage
3.0-5.5
Reliability
printer head
150km/100M pulses
Auto-Cutter
1,000,000cuts
Operating temperature (C°)
0~50
Operating humidity(%)
20~85
Dimensions (WxDxH mm)
126.76x91.9x56.4
Weight (g)
532
Compatible Model
EPSON M-T532AF/AP
Quality
How do we ensure the high quality?
First, we own the advanced production facilities for manufacturing printers.
Second, our company employee the skill-full workers, almost service in our company for over 4 years.
Third, we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test, printer-head test... finished printer test and so on.
Four, our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
FAQ
1, Q: Are you a factory or trading company?
Cashino: we are a manufacturer, owning the professional design group, skill-full staffs and quality inspection team, located in Add: 5/F,No.828-2,North Fanghu 2nd Road, Huli, Xiamen, China. 361009
2, Q: We would like to have our own brand, is that ok?
Cashino: Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Cashino: Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux operation systems.
4, Q: How can I get a sample?
Cashino: It is our honor to supply sample for your evaluation. Please contact the salesperson by informing the model# and your requirements, then we will send the sample by such DHL, Fedex, after your sample order get confirmed.
5, Q: What sale after service do you offer?
Cashino: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
We will offer technical supports or helps in your daily use for lifetime and offer latest software for your updating.
