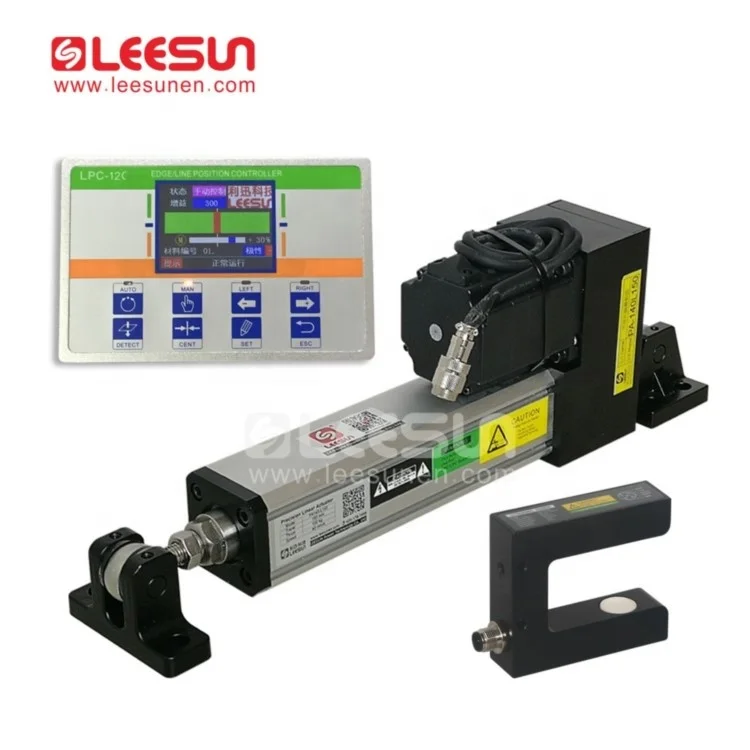

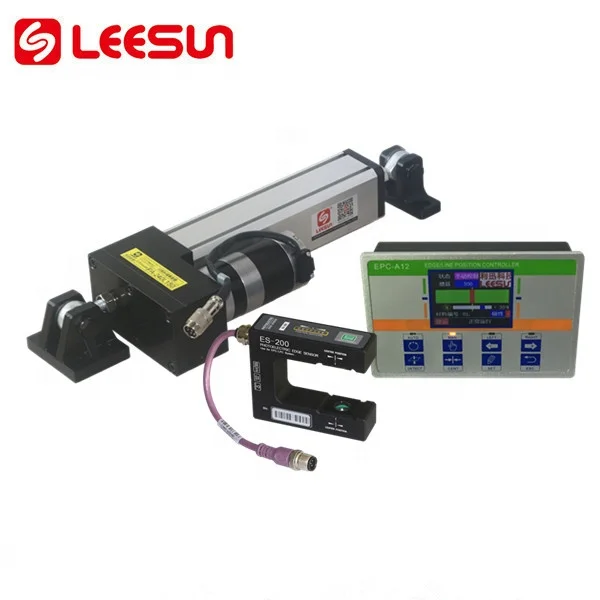

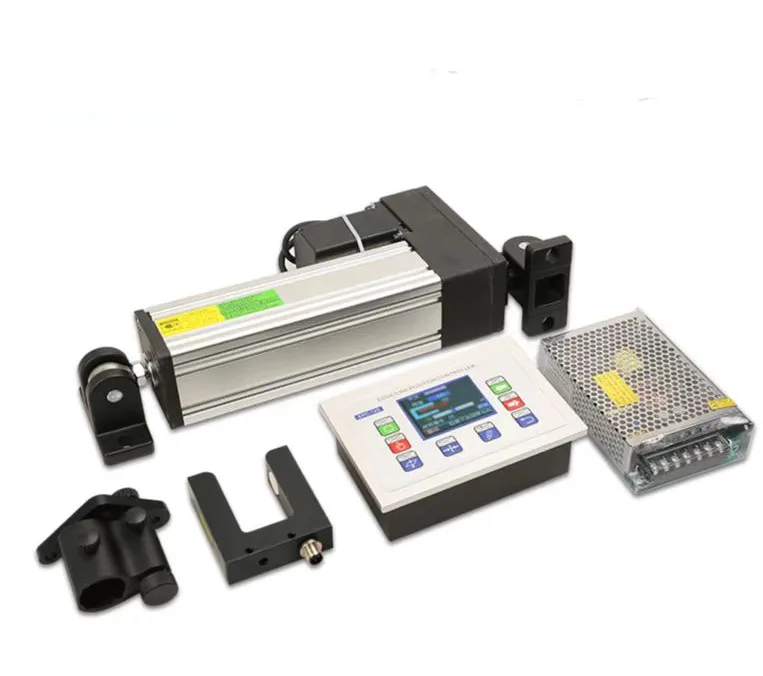

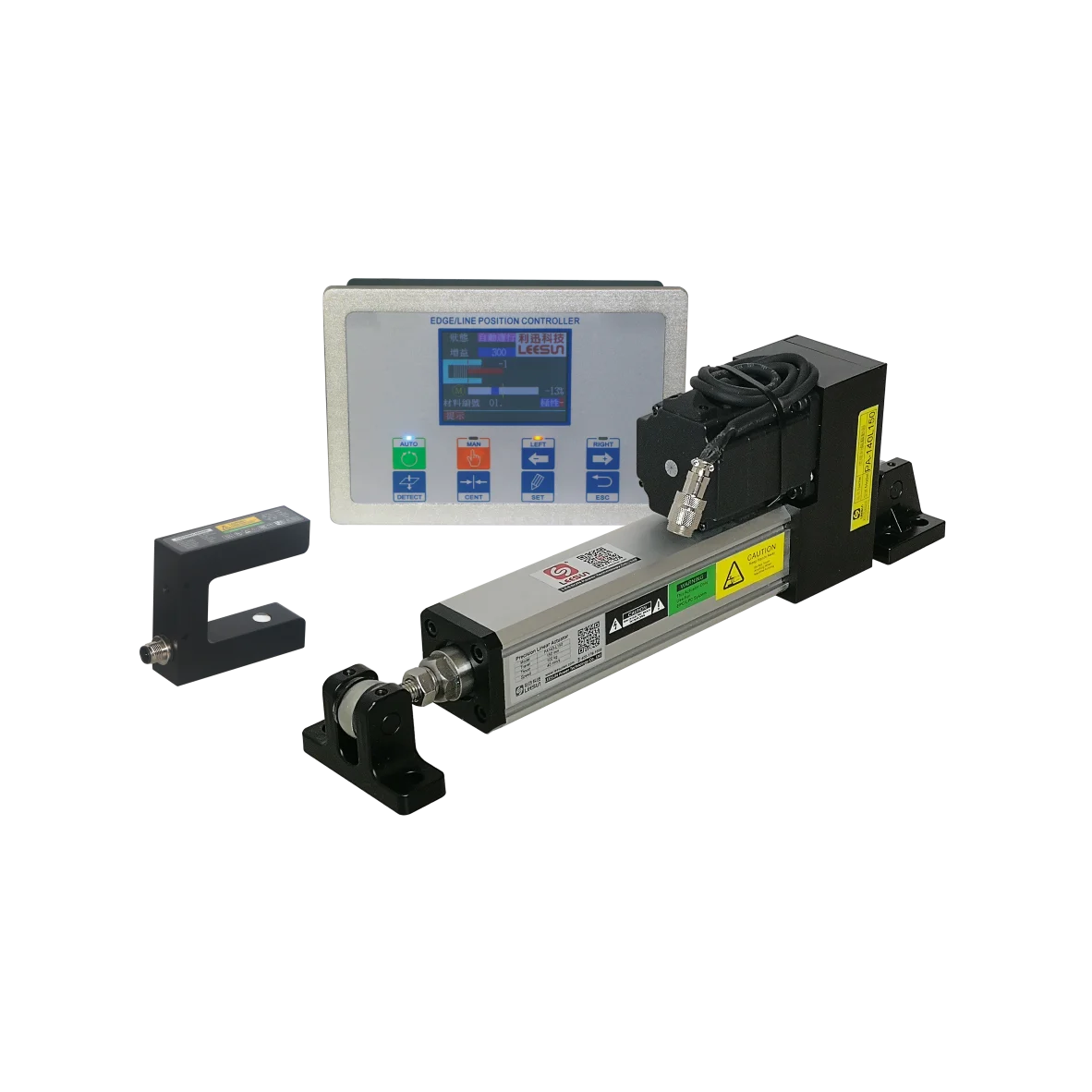

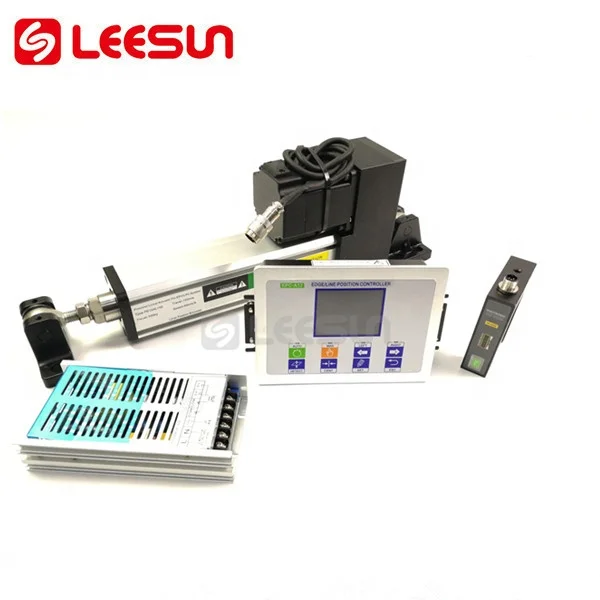

LPC 100(epc)photoelectric corrective control system belong web guide control system

Product Overview

Description





 LPC-100(epc)photoelectric corrective control system belong web guide control system



Web guide system  Product Overview:

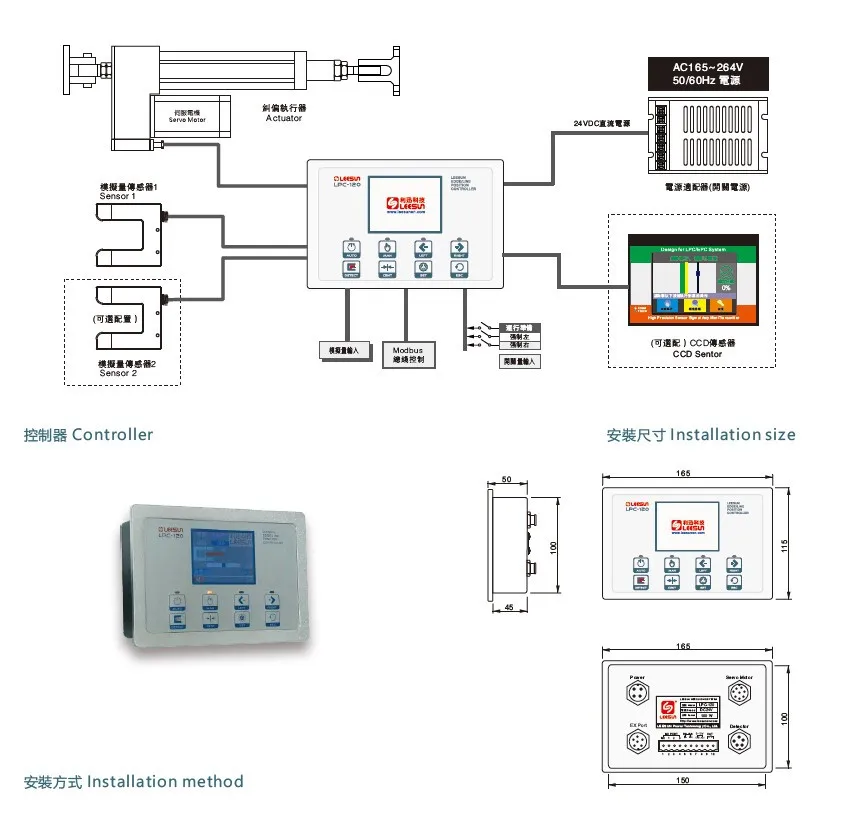

LPC-100-US-PA web guide system can connection many differeny type of sensor and actuator,support web control(EPC),

follow line control(LPC) chase center control (CPC),stagger contorl(SPC).



Use large color screen touch screen as human-machine interface,easy to operate,beautiful,with a setup wizard and the online help system,

even if for the first time using this system,can easily complete the basic setup.





Web guide system Product Features:

1) High-performance vector drive servo motor,fast response speed,there is toque control and speed limit,acceleration and deceleration.

2)  High-speed CPU operation,support web control(EPC),follow line control(LPC),chase center control(CPC),stagger control(SPC),

Can be used ultrasonic sensor,phote sensor and CCD sensor.

3)  LCD touch control panel,beautiful and practical,easy to operate.

4) Actuator with servo drive ball screw,small noise and maintenance-free.

5) Actuator with encoder and absolute linear position feedback,can adapt to different mechanical stroke without limit switch and thelimit position never change.
6) Can enter three high-speed analog input,can connect two analog sensors and one outside control analog,(For example,trimming position,serpentine speed,etc.).

7) Multiple hardware and software protection,Operation stability,strong anti-interference ability,there are different way for emergency response to failure of the components.

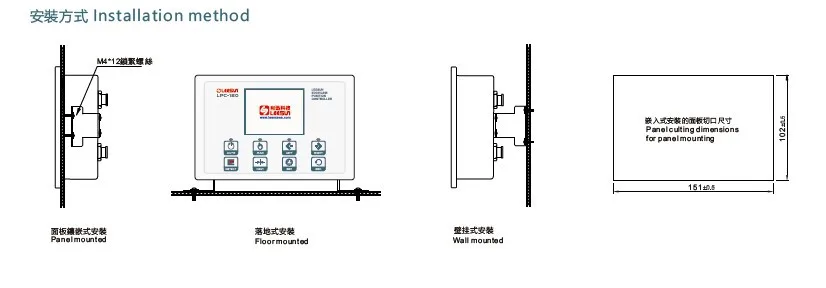

8)  Flexible installation method.
Web guide system Technical Parameters:

Power supply	DC24V~45V, stand 36V
CPU Processor	32-bit CPU main Frequency>72M
Rectification Algorithm	No Overshot Integral Variable PI Algorithm
Analog input	3 channel 0~6V, impedance 20K
Sensor voltage	DC12V ,350mA Max
Response time	0.5ms
Analog input resolution	12 bit ADC
Switch contacts input	3 channel NPN
Web control mode	EPC, LPC, CPC, SPC

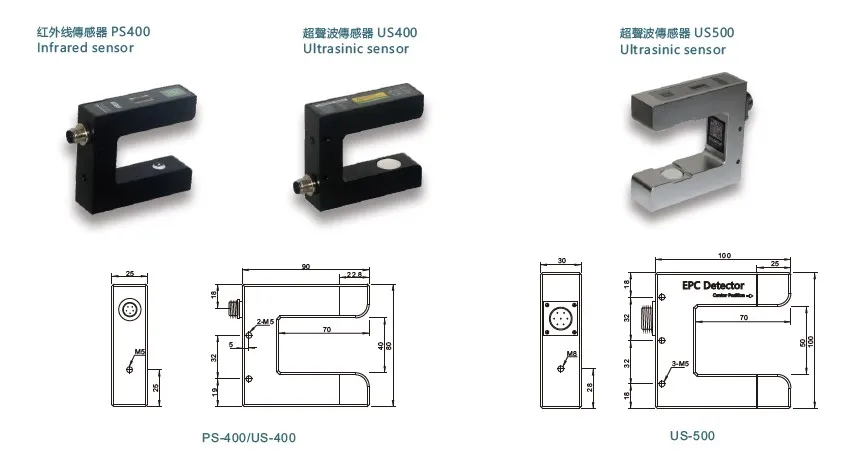

Support the sensor type	Ultrasonic sensors, photo sensor, CCD sensor

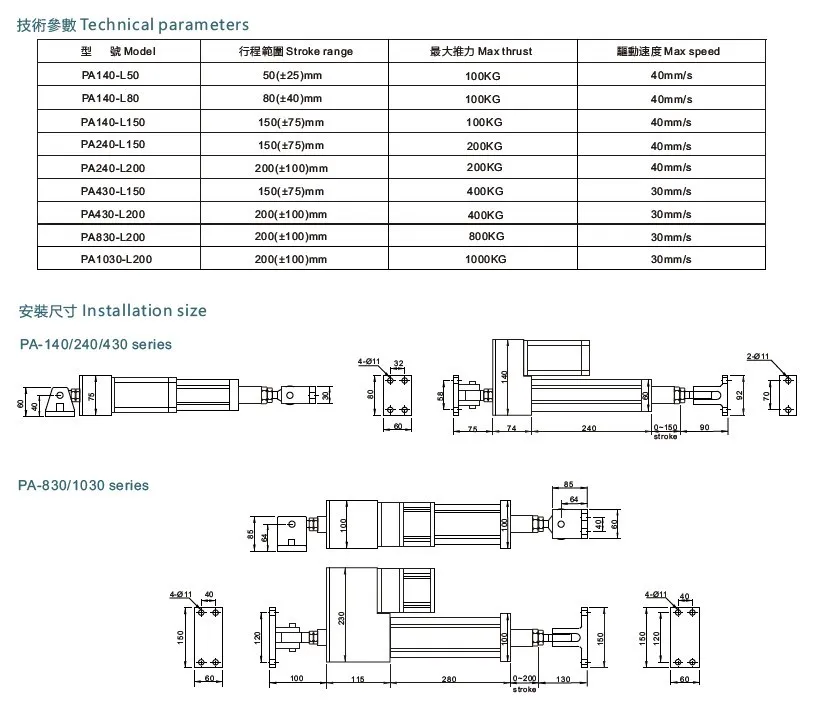

Actuator speed	14mm/s~40mm/s can adjust
Actuator thrust	100Kgf/200Kgf/400Kgf/800Kgf
ESD protective	IEC1000-4-2,±15KV(Air),±8KV(Contact)
Screen display	2.8",260K colors TFT
Motor drive	Brushless DC servo motor to drive
Levels of protection	Ip53
