10 micron graphite Graphite Shaping Mill

Product Overview

Description

LNP Graphite Shaping Mill

General

Particle surface shaper is a controlling equipment originally developed according to different particle surface requests, such as, spherical,multi-prismatic shape,high aspect ratio,slenderness ratio, etc ,to control the particle morphology.



We now have developed Jet Mill shaper and Impact Mill shaper to meet different material shaping requirements with various properties and have a good application in shaping graphite, diamond, carborundum,Mica ,wollastonite, etc.



Equipment characteristics

1.Particle surface shaper is a controlling equipment originally developed according to different particle surface requests, such as, spherical,multi-prismatic shape,high aspect ratio,slenderness ratio, etc ,to control the particle morphology.

2.We now have developed Jet Mill shaper and Impact Mill shaper to meet different material shaping requirements with various properties and have a good application in shaping graphite, diamond, carborundum,Mica ,wollastonite, etc.

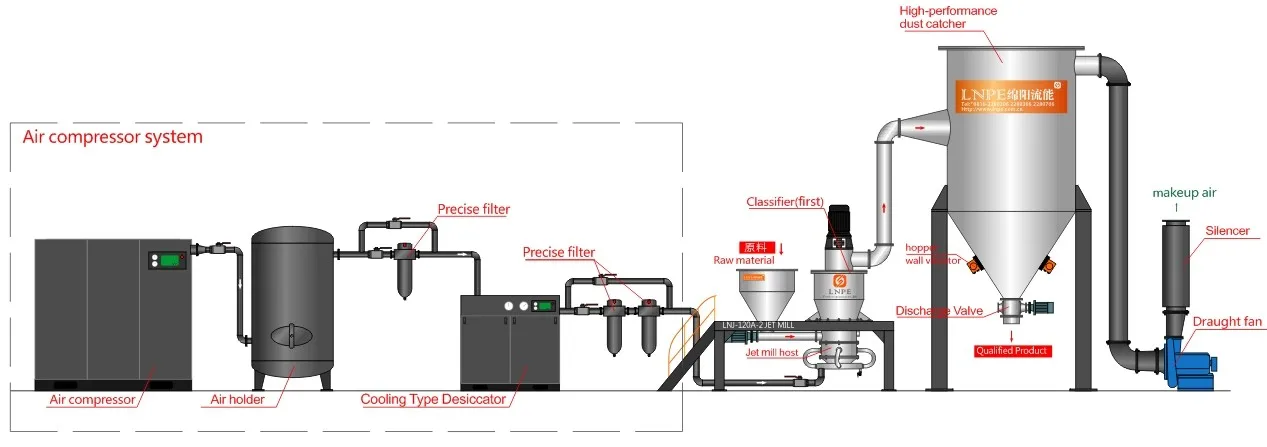

Grinding part system map

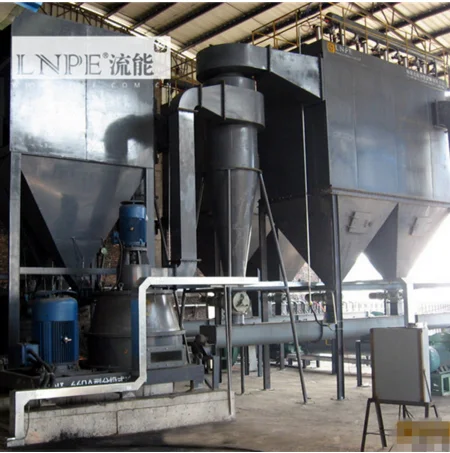

 Graphite Powder shaping



Main technical parameter

Model	Air Flow (m3/min)	Max Feed Size (mm)	Product Size (d97μm)	capacity	KW
LNJ-6A	1m3/min	≤3mm	2-90μm	0.2-5kg/h	8.5kw
LNJ-18A	3m3/min	≤3mm	2-90μm	5-50kg/h	27.5kw
LNJ-36A	6m3/min	≤3mm	2-90μm	6-200kg/h	38.5-48kw
LNJ-120A	20m3/min	≤3mm	2-90μm	40-800kg/h	130-150kw
LNJ-240A	40m3/min	≤3mm	2-90μm	50-1000kg/h	257-300kw



Application field

Typical material: lead acid battery, Ni-Cd battery, Ni-Mn battery, ferrite, Trimanganese tetroxide, manganese dioxide, LiCoO2, lithium manganese oxide, carbon, etc.
