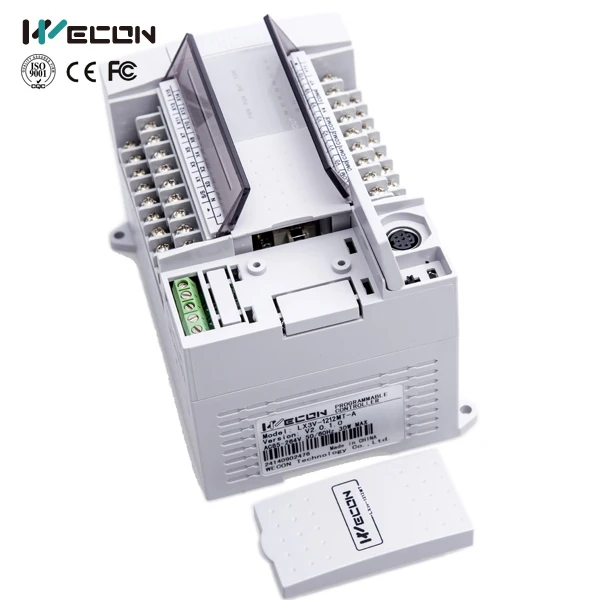

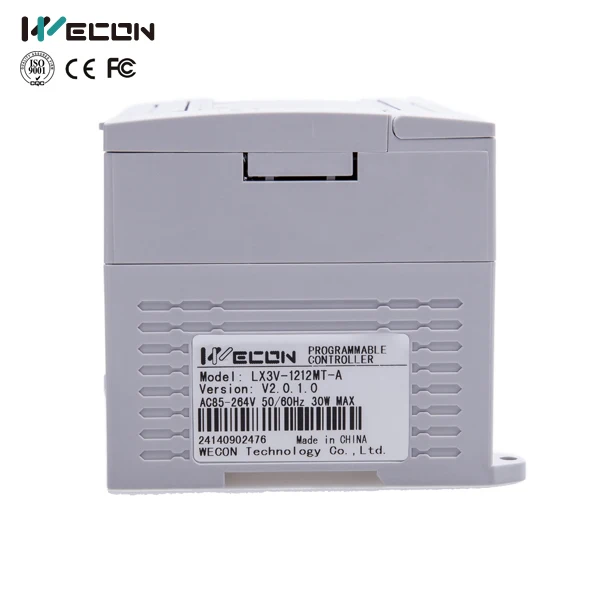

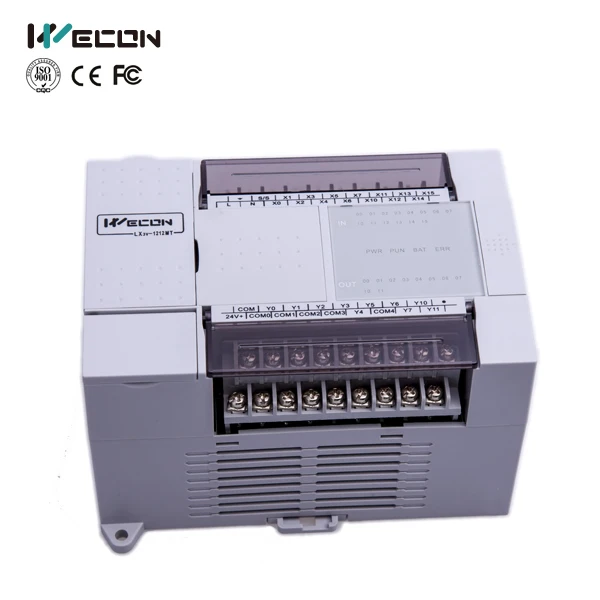

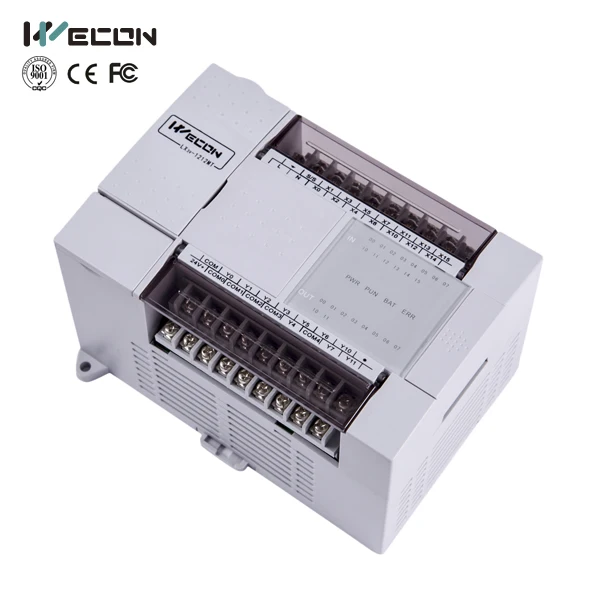

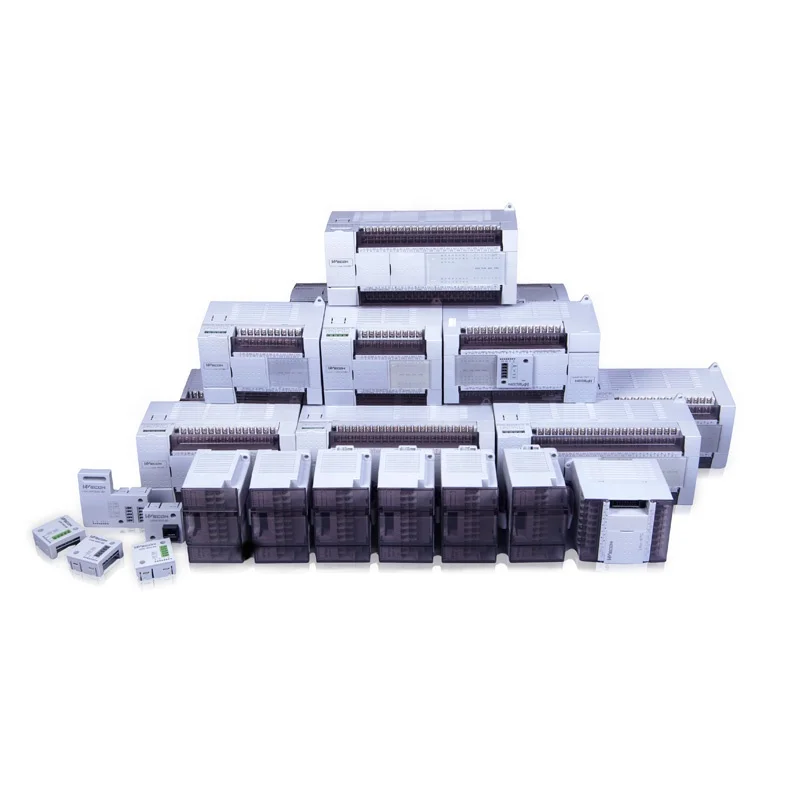

WECON LX3VP 12inpu and 12 Transistor output programmable logic control with 4 channel high pulse output
- Category: >>>
- Supplier: Fuzhou Fuchang WECON Technology Co. Ltd.
Share on (60378257916):
Product Overview
Description
wecon LX3VP-1212MT4H-D 24 programmable logic control
FEATURED FUNCTIONS

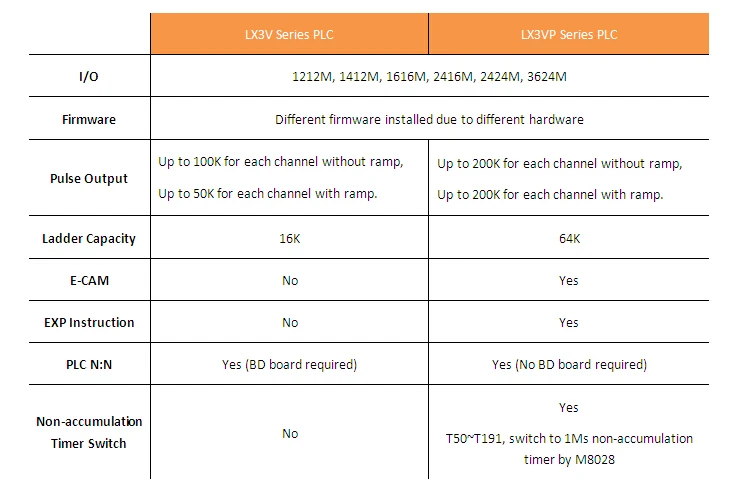

Feature | Description |
Programming Software | GX Developer and GX Works2 are available. Totally free programming software: Wecon PLC Editor, lifetime free software and technical support |
Program Security | Kernel mode encryption for downloading, uploading and opening the PLC program |
Stand-alone Mini USB interface | Stand-alone Mini USB interface for downloading and uploading PLC program, also online monitoring included. you can do anything with PLC without communication disconnection. |
Programming Language | Ladder and Instruction List support, |
Communication Protocol | Modbus RTU and Modbus ASCII support, communication Protocol is compatible with Mitsubishi FX1N, FX2N. You can select Mitsubishi protocol to communication with Wecon PLC |
Expansion Module | Variety of expansion modules to extend the function of PLC. Like AD/DA conversion, temperature measurement, weighting etc. |
Item | 1212MT4H-D | 1412MT4H-D | 1616MT4H-D | 2416MT4H-D | 2424MT4H-D | 3624MT4H-D | |
General Specifications | |||||||
PLC Running Mode | Scan round / Interrupt | ||||||
Programming Language | Instruction List / Ladder | ||||||
Instructions | Basic Instructions: 27 | ||||||
Applied Instruction: 136+2 (2 instructions different from Mitsubishi) | |||||||
Operation Speed | Basic Instructions: 0.06us | ||||||
Applied Instruction: 1~10us | |||||||
Program Memory | Flash Rom built-in | ||||||
Program Capacity | 64K Steps | ||||||
Programming Software | Wecon PLC Editor | ||||||
SecuritySettings | Upload / download / program password | ||||||
Programming Cable | Mini USB / USB SC09-FX USB to RS422 / Mitsubishi RS232 Programming cable | ||||||
Digital Filtering | Yes, for all input terminal | ||||||
Real Time Clock | Yes (Battery required) | ||||||
High Speed Pulse Output | 4 points (200K*2+100K*2), Y1,Y2,Y3,Y4 | ||||||
High Speed Interrupt | 6 points | ||||||
Timer Interrupt | 3 points | ||||||
Power Supply Output | ---- | ||||||
Communication Protocol | Wecon PLC Protocol /Mitsubishi FX2N No Protocol / Modbus RTU | ||||||
Certificate | CE / FCC | ||||||
Action Indicator | LED indication | ||||||
Environment Specifications | |||||||
Operating Temperature | 0 ~ 55℃ | ||||||
Storage Temperature | -20 ~ 70℃ | ||||||
Operating Humidity | 35~85%RH (No-condensate) | ||||||
Shock Resistance | 147 m/s2, 4 times in X, Y, Z each directions | ||||||
Operating Environment | No corrosive gases or too much dust | ||||||
Input / Output Specifications | |||||||
Number of I/O Points | 12/12 | 14/12 | 16/16 | 24/16 | 24/24 | 36/24 | |
Expanded I/O Points | Max input: 256 points, Max output: 256 points | ||||||
Rated Input Voltage | DC 24V±10% | ||||||
Applied Voltage Range | DC 5~30V | ||||||
Output Type | Transistor | ||||||
Insulation Method | Optical coupling Insulation | ||||||
Max. Load | 0.5A / point, 0.8A / COM port, 0.3A/ HSPO point | ||||||
ON / OFF Response Time | <0.2ms/ point, <5us/ HSPO point | ||||||
Power Supply Specifications | |||||||
Power Consumption | <35W | <35W | <35W | <35W | <35W | <35W | |
Rated Power | ---- | ||||||
Voltage range | DC 24V | ||||||
Power Outage Time | <10ms | ||||||
Power Fuse | 250V/1A | 250V/1A | 250V/3.15A | 250V/3.15A | 250V/3.15A | 250V/3.15A | |
Inrush Current | <15A 1ms (DC 24V) | ||||||
Screw of Terminal | M3 | ||||||
Register Specifications | |||||||
Input Register (X) | X0~X377 (Octal) | ||||||
Output Register (Y) | Y0~Y377 (Octal) | ||||||
Intermediate Register (M) | M0~M3071, M8000~M8255 (System Reserved) | ||||||
State Register (S) | S0~S999 | ||||||
Date Register (D) | D0~D7999 , D8000~D8255 (System Reserved) | ||||||
Indexed Register (V) | V0~V7 | ||||||
Indexed Register (Z) | Z0~Z7 | ||||||
Timer (T) | 100ms | T0~T199, T250~T255 (Accumulated) | |||||
10ms | T200~t245 | ||||||
1ms | T246~T249 (Accumulated) | ||||||
Counter (C) | 16bit Plus | C0~C199 | |||||
32bit Plus-minus | C200~C234 | ||||||
32bit High Speed | C235~C255 | ||||||
Latched Register | Variable range | ||||||
Interface Specifications | |||||||
COM Port | COM1: RS422/ RS485, COM2:RS485 | ||||||
USB Interface | Download / Monitor / On-line editing | ||||||
Extensible Interface | Ethernet / RS485 / CAN | ||||||

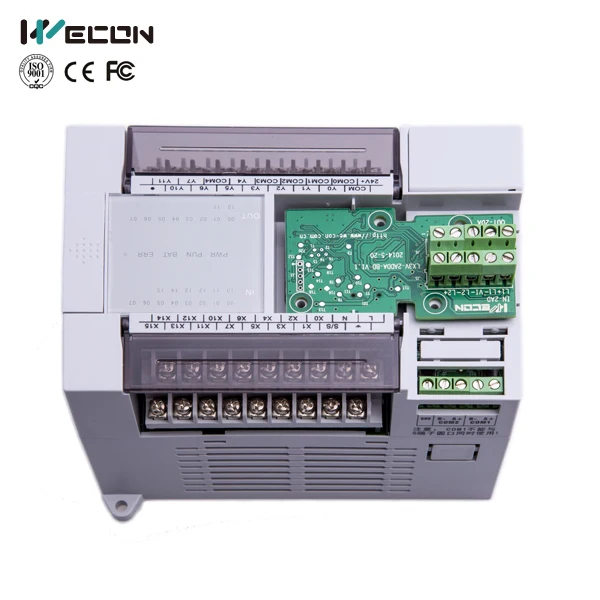

BD Board Slot | For Wecon LX3V series BD board | ||||||
Module Slot | For Wecon LX3V series expansion module | ||||||
Appearance Specifications | |||||||
Shell Material | ABS plastics | ||||||
Dimension L*W*H (mm) | 136*107*87 | 136*107*87 | 175*107*87 | 175*107*87 | 221*107*87 | 221*107*87 | |
Package L*W*H (mm) | 147*112*90 | 147*112*90 | 186*112*90 | 186*112*90 | 235*112*90 | 235*112*90 | |
Net Weight (g) | 520 | 520 | 742 | 742 | 920 | 920 | |
Gross Weight (g) | 600 | 600 | 839 | 839 | 1061 | 1061 | |
