Gold Elution Equipment Electrowinning and Desorption Device for gold CIP plant

Product Overview

Description



PRODUCT DESCRIPTION

This system mainly consists of desorption part, electrolytic part, instrumental control part,pipeline,and valves.These parts are integrated with each other and form an integral system.

Main equipment of this system includes desorption column, filter, electrolytic bath, circulating pump, electric heater, heat exchanger, stripping liquid storage tank, carbon storage tank, electric control cabinet, and rectification cabinet, etc.





SPECIFICATION

No.	Equipment Name		Qty.	Unit	Spec. &Model
1	Desorption Electrowinning Equipment Complex	Electrowinning tank	1	set	GYDC50
		Desorption column	1		JXZ6532
		Filter	2		GL50
		Heater	2		DRE6048
		Desorption solution tank	1		BJW1500
		Carbon storage tank	1		CTC500
		Lose carbon pump	2		STB80
		Clean water pump	1		IS80-50-200
		Circulating pump	2		PBG50-32-160
		Air compressor	1		W-0.67/0.7
		Rectifier cabinet	1		GDF-500/6
		Control cabinet	1		XL-500
		Acid storage tank	1		LSH2000L
		Acid clean tank	1		SPPSX1200
		Magnetic drive pump	1		32CQ-25
		Pipe line,valve,instruments





PROCESSING TECHNICAL FLOW CHART

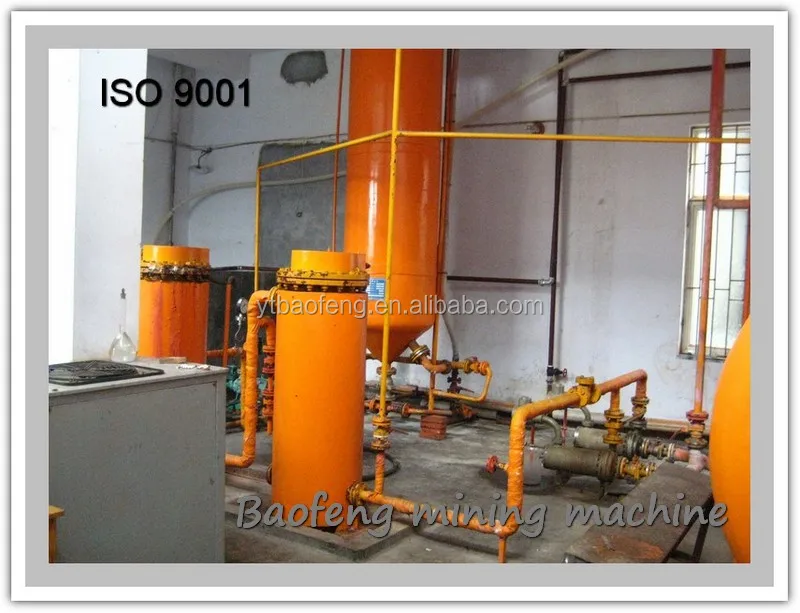

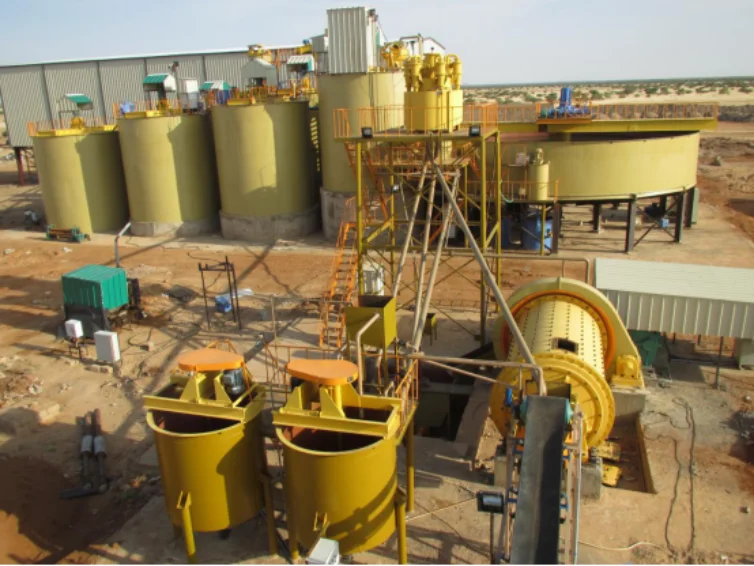

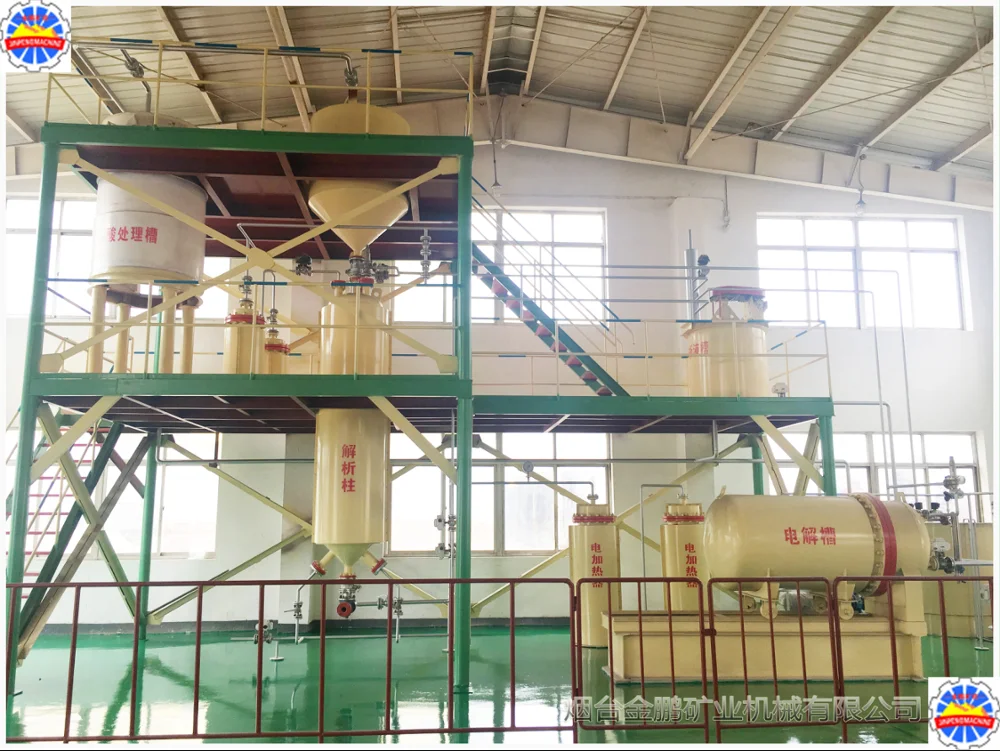

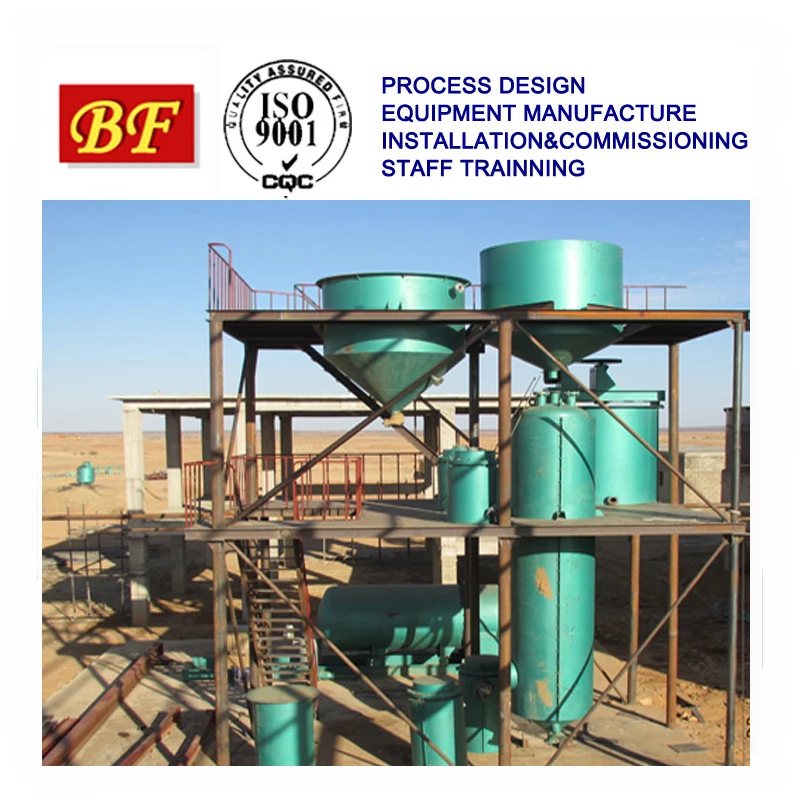

APPLICATION ON SITE



COMPANY PROFILE



Yantai Baofeng mining machinery Co., Ltd is an high-tech joint stock enterprise jointly founded by technicians from domestic famous grade A designing institutes with a floor space of 50,000square meters.Now our company has more than 500 staffs and has multiple subsidiaries such as reaching institute of ore dressing and smelting,design institute of metallurgical mine,machinery factory,automatic research institute,installation company and so on.It has a history of over 30 years in mine design and development and manufacturing of mine equipment.







EPC SERVICE

Depends on advanced processing equipment and profound technical capacity,our company can provide EPC service for mines with a scale below 10,000 t/d in gold mine,silver mine,lead and zinc mine,iron mine,manganese mine,chrome mine,fluorite mine,graphite mine,silica sand mine and sodium potassium feldspar with service of mineral processing experiments ,engineering design,equipment manufacture,installation and commissioning,personal training,etc.









RELATED PRODUCT

Various equipment of crushing,ball milling,screening,classifier,flotation,thickener and gold cyanide refining produced by our company and sold well all over China,even as far as more than 20 countries such as Russia,Kazakhstan,Kyrgyzstan,Mongolia,North Korea,Vietnam,Cambodia,Ghana,Guyana,Nigeria,Malaysia,The Philippines,Indonesia,Bolivia,Burma,Sudan,South Africa and Zimbabwe.









 FAQ

Q: Can I visit your factory?

A: Yes. You are warmly welcome to visit our company any time.



Q: How long is the warranty of your equipment? Do you supply spare parts?

A: The warranty period is one year generally .We can supply spare parts.



Q: Do you provide after-sale service?

A: Yes. We have a professional after-sale service team to promptly and thoroughly resolve your problems.



Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis.



Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
