One Color Pad Printer / Tampon Printing Machine
Pad printer profile

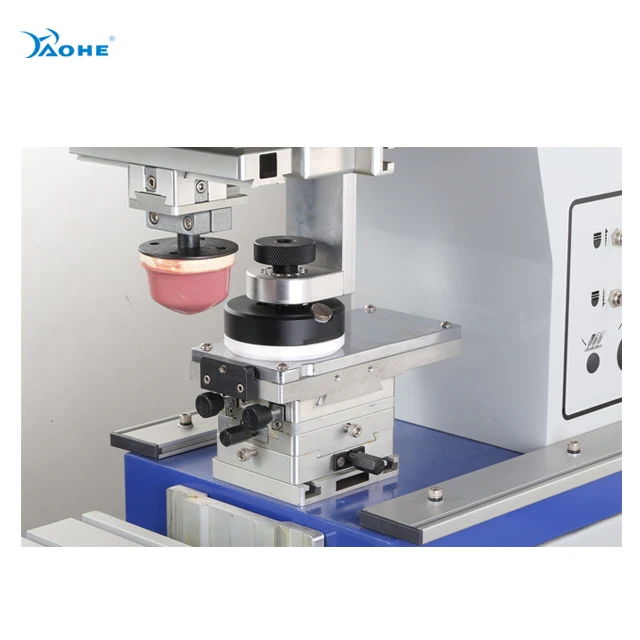

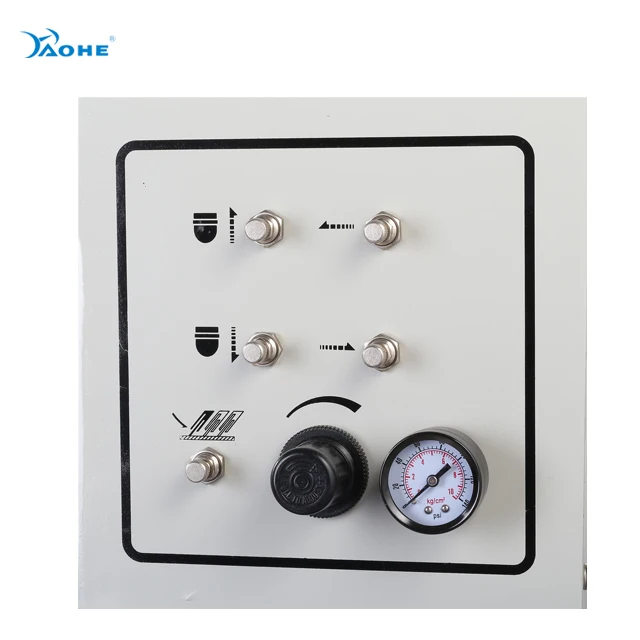

Detail photos for single color pad printing machi
specification:
Model NO. | HSC-150D-1 |
Plate size | 250 x 100 mm (10”x4”) |
Plate thickness | 0.5 mm |
Ink cup size (diameter) | ID82 x OD90 mm (3.23”x3.54”) |
Max. printing size | 75 x 75 mm (2.95”x2.95”) |
Printing capacity | 2,000 cycles/hour |
Drive | Pneumatic |
Printing force | 629 N |
Control system | 12V PCB |
Front & back working stroke | 125 mm |
Air requirement | 5 bar (72.5 psi) |
Main voltage | 110V/220V 50/60Hz 40W |
Machine size | L780 x W500 x H1350 mm (30.7"x19.7"x53.1") |
Crated size | L850 x W610 x H1500 mm (33.5"x24"x59") |
Net Weight | 82 kg (180.4 lbs) |
Gross Weight | 150 kg (330 lbs) |
Samples:
Customers Visting
Company Information
1. we are manufacturer in this area for more than 15 years, with strong design and service team.
2. precisely machining and production.
3. Experienced and Professional installation.
