Jinan China CNC Flame and Plasma Metal Cutting Machine For Steel And Stainless
- Category: >>>
- Supplier: Jinan Feimai Numerical Control Technology Co. Ltd.
Share on (60378409728):
Product Overview
Description
Product Description

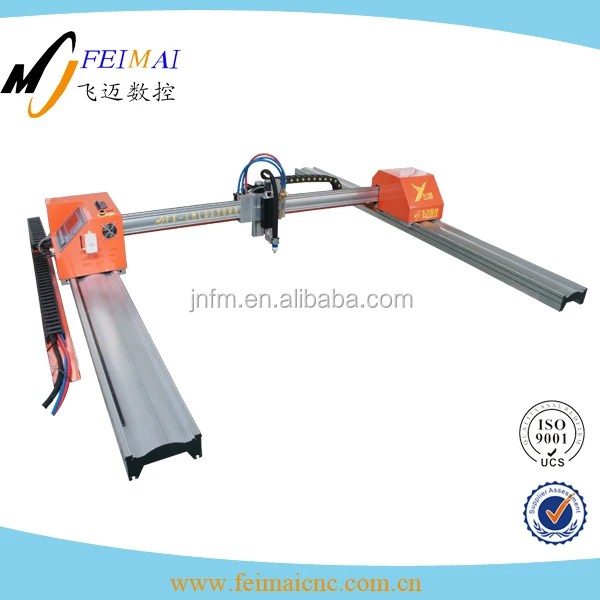

CNC Aluminum Gantry Plasma Cutting Machine
Product feature
1. Adopt newest aviation aluminum meticulously, full of The Times flavor, beauty and durable use.
Newest transmission structure with precision rack and special reducer to ensure the accuracy of
the transmission, Y axis adopts double driver to ensure provide large torque for machine. The
control cable is made by importer retardant wear-resisting material.
2. The drive system adopts USA chip control and high precision motor, providing AC power with
big torque to ensure running smoothly under the high speed.
3. Control system is 7 "screen, with English and Chinese language. The machine adopt high
precision arc pressure automatic THC.
4. Optional function: Plasma/Plasma and flame
5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail
6. Machine size: A 2230: 2200*3000 B 2240: 2200*4000mm; C 2260: 2200*6000mm;
D 22120: 2200*12000mm
Product parameter
MODEL | FX-LML2230 | ||
BASIC INFORMATION | Cutting method | Plasma | Flame(Optional) |
Machine size | 3550*3300mm | ||
Cutting material | All metal sheet | Mild/High Carbon steel | |
Cutting size | 2200*3000mm | ||
Cutting thickness | According to Plasma source | 6-200mm | |
Lifting travel | ≤130mm | ||
Max travel speed | 6000mm/min | ||
Running accuracy | ≤0.05mm | ||

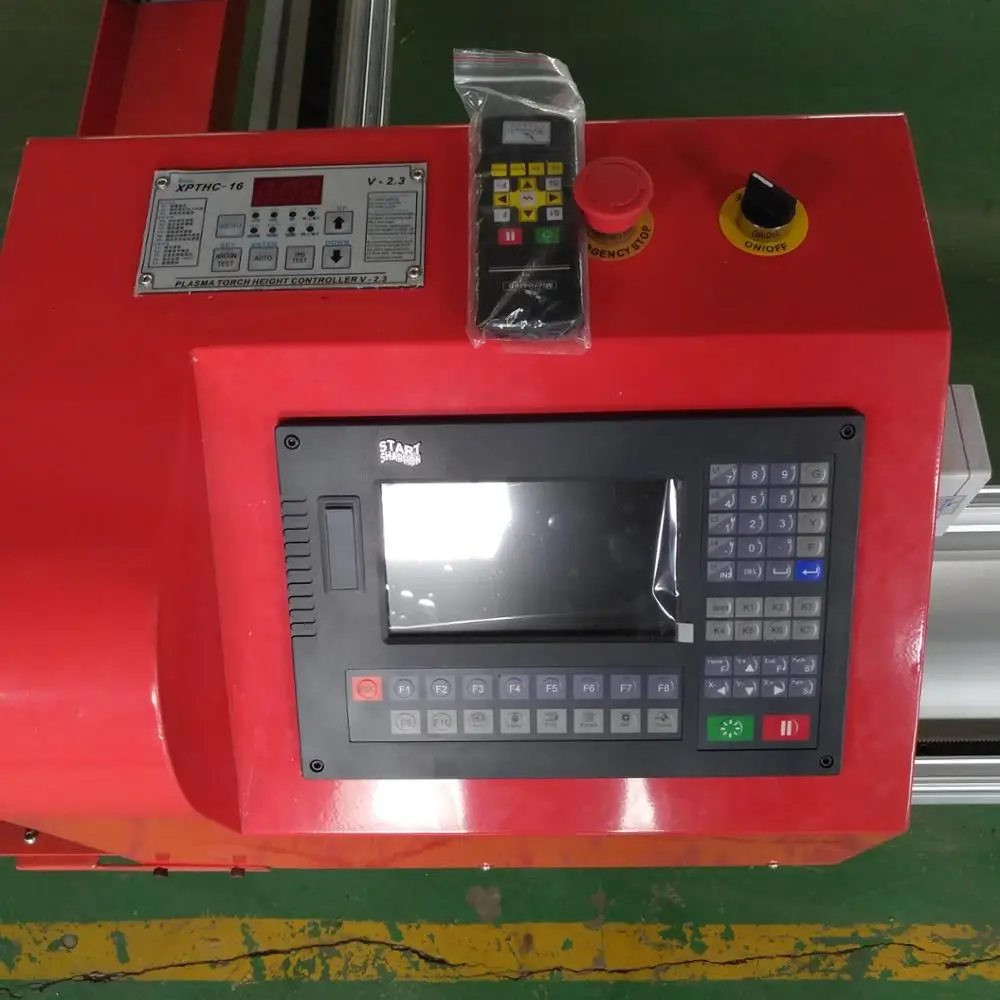

CONFIGURATION LIST | CNC controller | Startshaphon | |
Remote control | Yes | ||
Auto Height control | HYD XPTHC-16 | Lifter | |
Motor drive mode | Stepper motor | ||
Drive system | Dual drive | ||
Reducer | X axis: Gear box Y axis: Direct drive | ||
Transmission method | Rack and pinion drive | ||
Linear guide | Linear axis | ||
X,Y Axis beam | Heavy duty aviation aluminum-alloy | ||
EXTERNAL SUPPLY | Power | 220V/ 380V(Optional) | |
Cutting gas | Compressed air | Oxygen + Ethyne(Propane) | |
Gas pressure | 0.4-0.7MPa | Oxygen:0.5MPa Fuel gas:0.1MPa | |
SOFTWARE | Graphic import method | USB | |
Programming software | AutoCAD(all dxf,dwg,CAM,NC files) | ||
Nesting software | FastCAM | ||

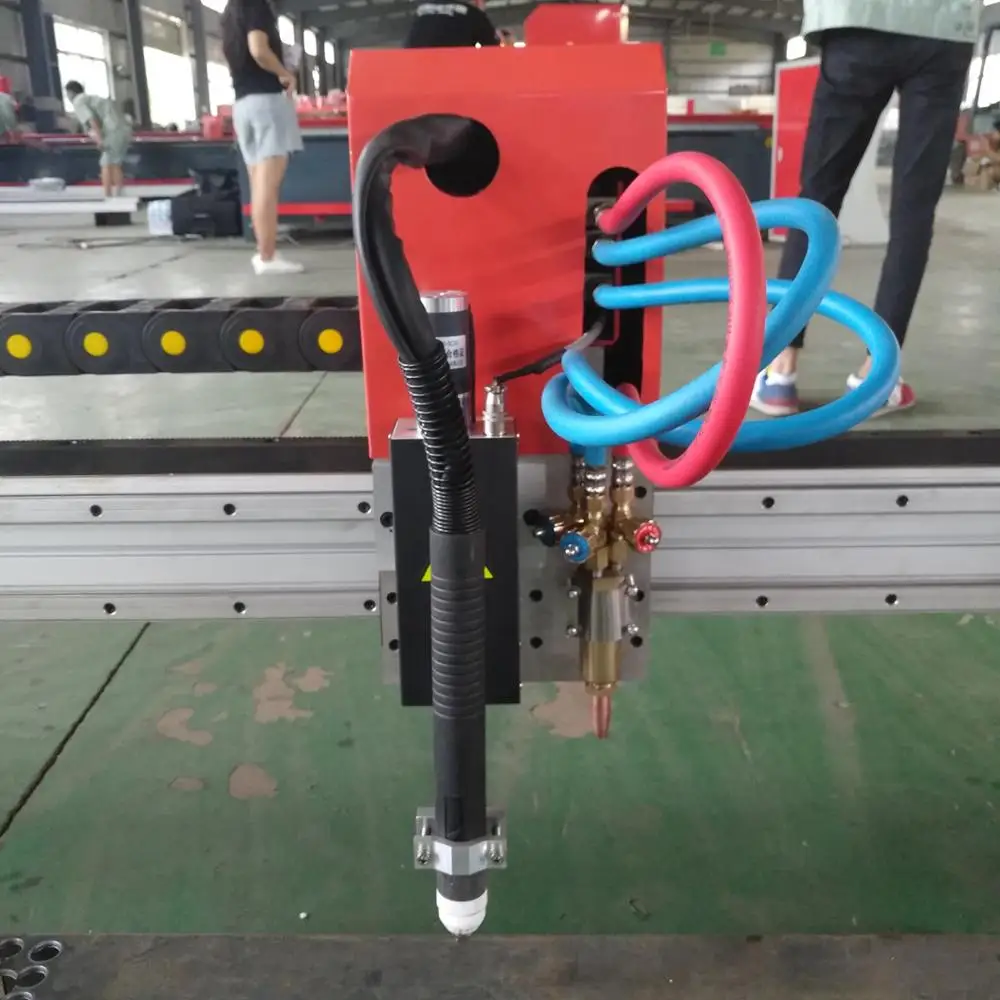

ACCESSORIES | Torch | One set of Plasma torch | One set of Flame torch |
Consumables | 10 sets of nozzles | 3 Flame nozzles | |
PACKING INFORMATION | Dimension | 3700*720*700mm Plasma source :to be confirmed | |
Weight | 230Kg+Plasma source | ||
Details
Related Products
certificate
Company Information
Packaging & Shipping
FAQ
Q1: I knew nothing about this machine, what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do by using CNC engraving machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our CNC router, it is better for you to provide me the following information
1)Your cutting size. Because in our factory, we have different models according to working area.
2)Your materials: wood ,MDF, acrylic, PVC, aluminum, or other materails
3) If there is any engraving sample or photos show to us ?
We will recommend suitable spindle power according to your demand
Q4: Our Service:
1) 24 Hours online service. my whatsapp: 15165193115
2) 12 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
