Electric bicycle Frame code marking machine& bicycle chassis code,parts and number for car factory
- Category: >>>
- Supplier: Guangzhou Bm Marking Machine Manufacturing Co. Ltd.
Share on (60378894045):
Product Overview
Description
Electric bicycle Frame code marking machine& bicycle: chassis code, parts item and number withTouch Screen VIN Number Marking Machine BM-10T7IN for car factory
- Controller: 7.5 inch touch screen monitor
- Usage: Metal printing machine – Stylus printer
- Graphic Format Supported: DWG, PLT, SLG, WMF, EMF, AI
- Marking surface: flat curved surface
- Product description: 7.5" Touch Screen Monitor VIN Number Portable Marking Machine BM-10T7IN, no need PC to control the machine. Also use for chassis code, engine code marking for automobile.
- Inquiry
Product introduction of Electric bicycle Frame code marking machine& bicycle: chassis code, parts item and number machine
Our Services
RELATED PRODUCTS - Automobile Chassis Engine Code VIN Number Dot Peen Portable Marking Machine
Product Description

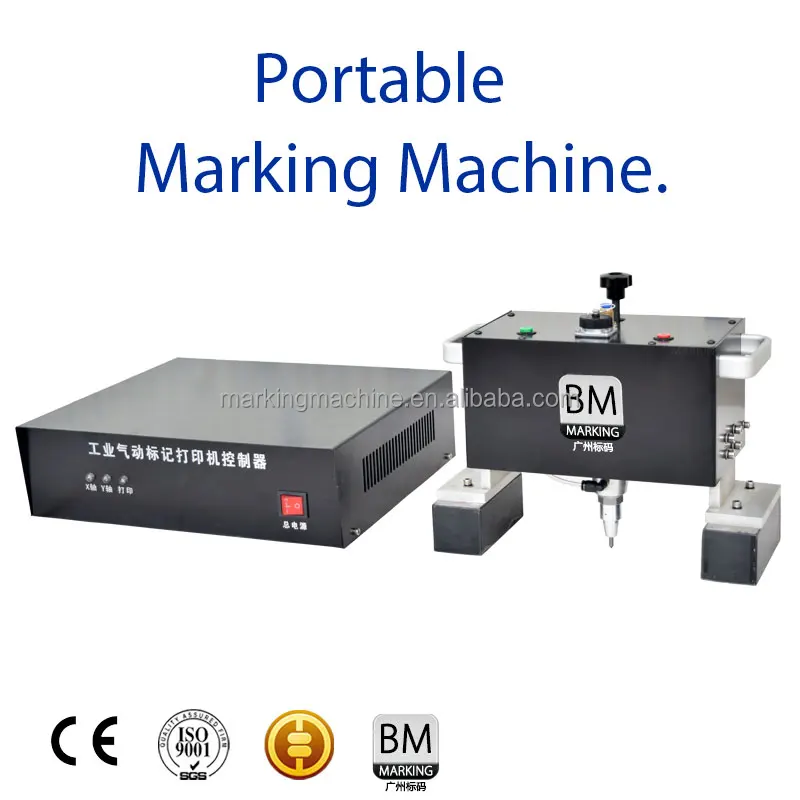

Chassis Engine Code VIN Number Dot Peen Portable Marking Machine
Item number | BM-10T7IN |
Product Name | Chassis Engine Code VIN Number Dot Peen Portable Marking Machine |
Usage | Automobile VIN number, engine code, chassis code marking |
Marking surface | Flat surface & curved surface (height difference within 3mm) |
Additional parts need | Air compressor |
Marking Power | Air compressor (pneumatic) & electricity |
Electricity | AC220V±10%~50Hz AC110V±10%~50Hz |
Energy consumption | 120W (air compressor excluded) |
Control type | Connect computer with software |
Marking type | Full automation |
Marking machine type | Portable, can be moved anywhere if needed. |
Marking contents | Characters, numbers, symbols, graphs, logo, two dimensional barcode |
Size of characters | Adjustable on marking software |
Marking depth | 0.02-2 mm (adjustable, depending on materials) |
Marking speed | 3-5 letters/s according to letter size (height 2mm) |
Marking materials | Metal or nonmetals with hardness under HRC65 |
CNC or Not | No(optional item with CNC) |
Pneumatic pressure | 0.3-0.6 Mpa |
Repeat precision | 0.02-0.04 mm |
Dot peen header | Harden HRC92 (Hardness) |
Controller type | 7.5" LCD Touch Screen Monitor, can be connected with mouse and keyboard |
Features: | |
| 1. Core Parts: Imported from Taiwan, Japan, USA...etc. | |
| 2. 3 Years Warranty: Main parts, not including consumable part like pin head. | |
| 3. 10 Years Durable: Cast Iron Base. | |
| 4. Best Air Valve In The World: USA MAC. | |
| 5. Imported Luxembourg Pin Header: high tensile and durable for one whole year. | |
| 6. Imported Taiwan Air Pressure Regulator(controller). | |
| 7. High Precision Linear Slider HIWIN or SBC. | |
| 8. Millitary Aviation Cable: | |
| 9. Industrial Load Bearing Pole. | |
| 10. Industrial Screw Rod. | |
| 11. Convenient Control Buttons: Lamp, Air control, Print. | |
Features:
* Splendid choice for car VIN numer, engine code, chassis code marking.
* Core parts:Imported from Taiwan, Japan, USA...etc.
* 3 years warranty(main parts, not including consumable part like pin head)
* Flat surface & curved surface (height difference within 3mm)
Product details
Mission for Industrialization - Chassis Engine Code VIN Number Dot Peen Portable Marking Machine
Industrial marking machine specially used for manufacturer production, good solution for factory logo and item marking before delivery, leaving
a strong impression for customers.
7.5 Inch Touch Screen Monitor
The controller can connect with mouse and keyboard, like a small computer for working.

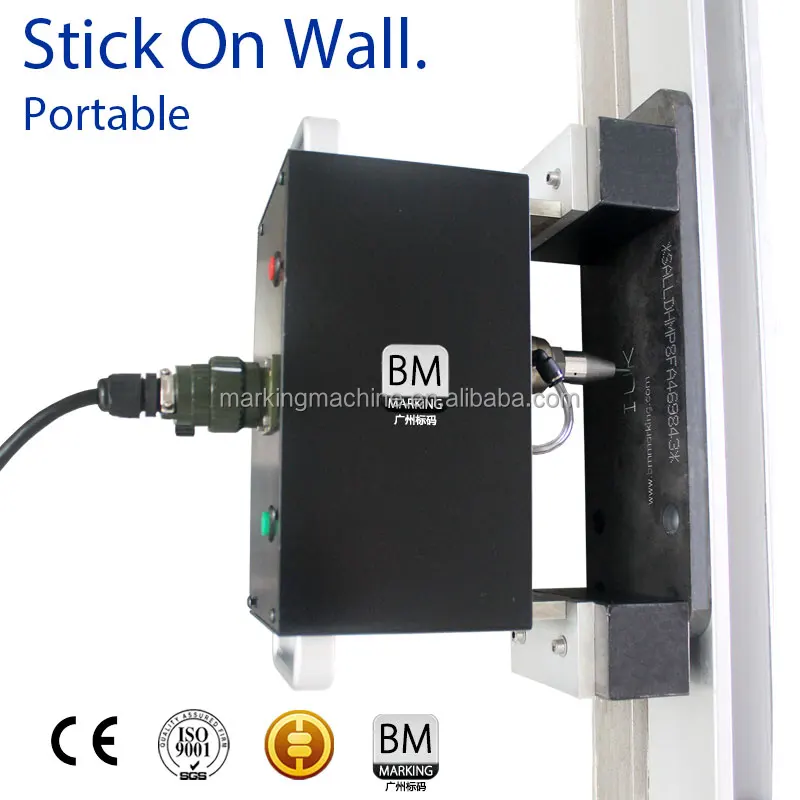

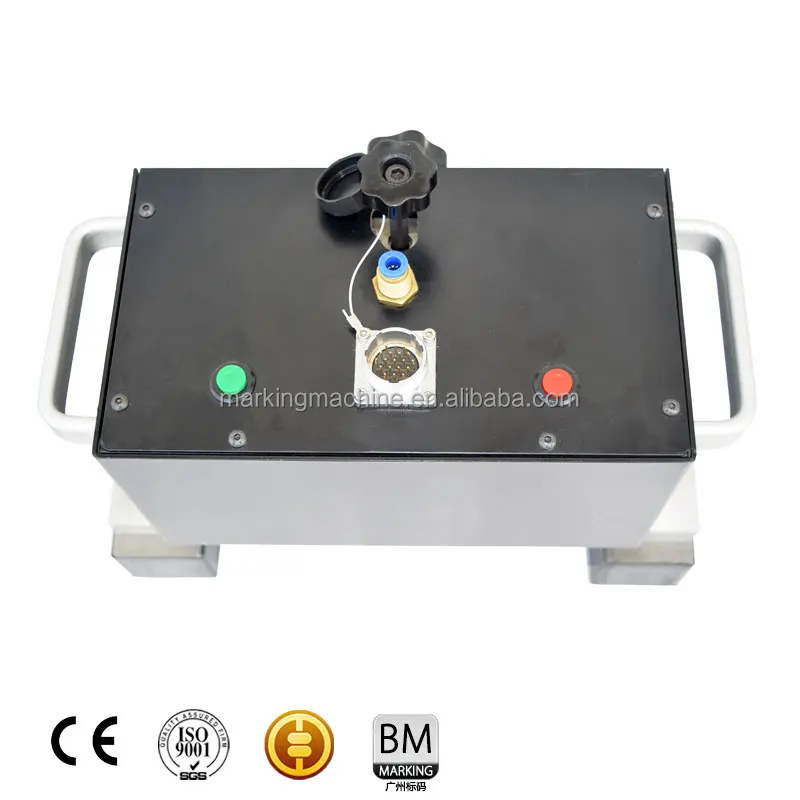

Front view from the top of the portable dot peen marking machine, there have red button for magnetic function, and green botton start for print. Such as you want to stick the machine on vertical surface, then you can press the red button, then the foot the machine would stick on vertical surface. This function is make working easier and convenient.
* Durable and portable dot peen marking effect
- Convenient handrails: double on both sides.
- Magnetic foot: double on both sides.
- Imported High Tensile marking pin head from Luxembourg
1. High rigidity
2. High precision
3. Imported Taiwan Air Pressure Regulator(controller).
4. Imported MAC from USA
| Items | Marking Area (mm) | Controller Dimensions (mm) | ||
| L | W | H | ||
| BM-10T7IN-80-30 | 80x30 | 365 | 315 | 113 |
| BM-10T7IN-130-30 | 130x30 | |||
| BM-10T7IN-140-60 | 140x60 | |||
| BM-10T7IN-140-80 | 140x80 | |||
Main application area
| Application | Application Place |
| Auto industry | 1. Car Repair Workshop. |
| 2. Government Department of Motor Vehicle(DMV) | |
| 3. Car 4S Sales Shop | |
| 4. Car Factory |
This Handheld dot peen portable marking machine had been widely used for auto industry as below:
| Application | Applicated products content |

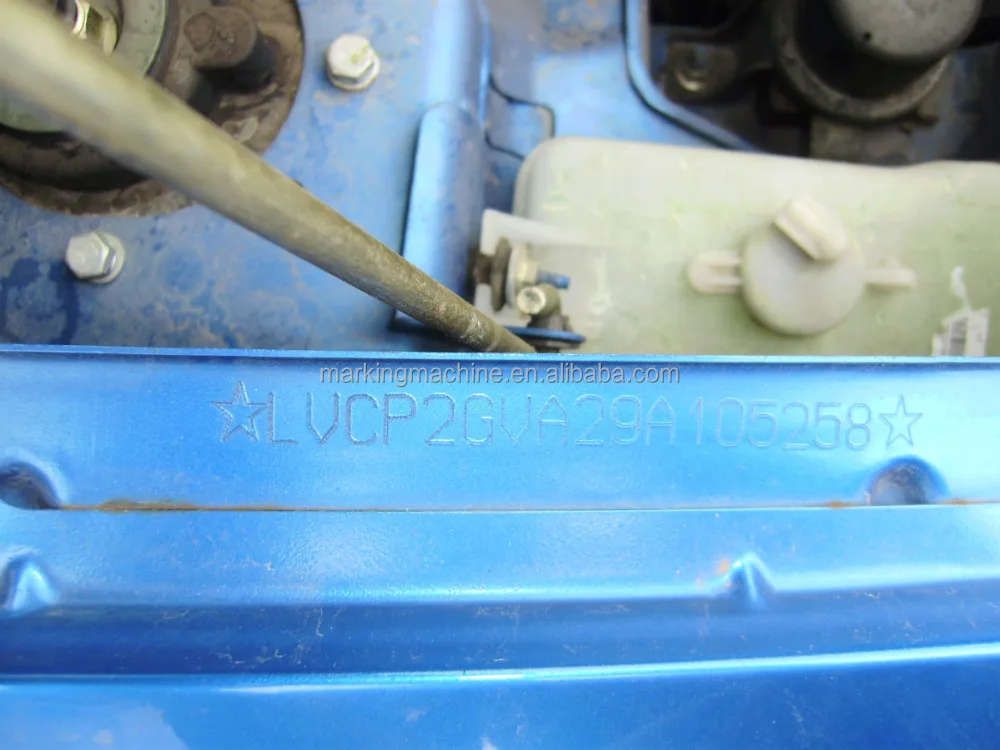

| Auto industry | 1. VIN numbering marking |
| 2. Engine code marking | |
| 3. Chassis code marking | |
| 4. Automotive frame nameplate marking | |
| 5. Car spare parts marking | |
| 6. Wheels marking | |
| 7. Wheel flange marking | |
| 8. Brake shoes marking | |
| 9. Other car parts marking |
Marking Content
| No. | Item No. | Marking Content |
| 1 | BM-10T7IN | Logo |
| 2 | Numbers | |
| 3 | Symbols | |
| 4 | Graphs | |
| 5 | Characters | |
| 6 | QR code |
Other Application Area
| No. | Suitable Industry | Products details |
| 1 | Metal Parts Factory | Metal plates, metal angles, metal flat bars, blades, metal parts and accessories, milling cutters, Taps, cookers, watches, locks, stainless steel plate, stainless steel household chairs & tables, stainless steel handrails…etc. |
| 2 | Machinery Parts Factory | Gears, bearings, valves, steel pipe, pipe fittings, fasteners, industrial spare parts, screw rods, food processing machine, medical apparatus and instruments, stainless steel name plate, bronze name plate, metal panels…etc. |
| 3 | Aluminium Extrusions Factory | Aluminium angles, channels, flat bars, rain & draught excluders. |
| 4 | Die Steel/Moulding Factory | Carbon steels, alloy steels, different dimensions of die steels. |
| 5 | Hardware Factory | Hardware tools like knife, pliers, hammers and spanners. |
| 6 | Auto Parts Factory | Auto engine code, chassis code, VIN code, automotive frame, car spare parts, wheels, wheel flange, brake shoes…etc. |
| 7 | Motorcycle Parts Factory | Cylinder head, pistons, wheels, sprockets, chains, carburetors…etc. |
| 8 | Electric Bicycle & Bicycle Factory | Chassis code, parts item and number…etc. |
| 9 | Metal Surface Products Factory | Different sand blast, polished, grinding, brushed metal surface, including anymetal surface conductivity, or metal plated for nonmetallic materials. |

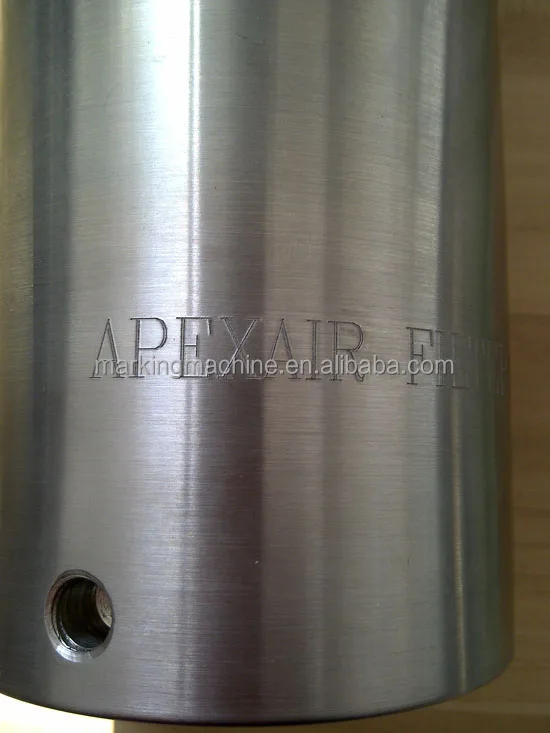

Marking Samples
Sample List of BM Marking Machine Customers
| No. | Samples of Product Name List - BM Marking |
| 1 | Seamless steel pipe |
| 2 | Equipment metal nameplate |
| 3 | Flange for Automobile |
| 4 | Auto spare parts |
| 5 | Cast iron workpiece |
| 6 | Metal parts for Firefighting |
| 7 | Point words marking |
| 8 | Stainless steel angle |
| 9 | Stainless steel plate |
| 10 | Die casting products |
| 11 | Motorcycle parts |
| 12 | Metal pipes and tubes |
| 13 | Other Metal parts...etc. |
Customer Feedback
Excellent feedbacks from BM Marking different customers.
Customer Feedback
| Customer 1 | Customer 2 | Customer 3 |
| Moulding and Die Steel Factory | Machinery Parts Factory -Nameplate, Metal | Full-Automation Production Line |
Comment: "Having this marking, is it in a higher level? So I introduced four friends to buy this for tooling." -Mr. Zhang | Comment: "The machine is really much better than others in the market. We must consider the maintenance and repairing cost in the future. So we buy it." - Mr.Huang | Comment: Research Institute of GDIU University "The customized machine can full satified our line requirements." - Mrs. Zou |
| Customer 4 | Customer 5 | Customer 6 |
| Customer from Dubai | Motorcycle Parts Factory | Auto Parts Factory |
Comment: "Good machine, the price is much lower than laser, but have good deep marking. | Comment: "As our parts need to be marking with many items and numbers. Very suitable for us." | Comment: "Good choice for factory to enhance brand value and impressed customers." |
Factory whole view
Shipping and Contact
Trade terms: FOB, CIF, EXW
Payment terms: T/T, Western Union, Escrow, MoneyGram
Payment condition: 30% deposit before production, 70% balance before delivery
Delivery time: 1-3 working days after deposit
Packaging: Crate box to protect the machine inside and delivery in safety.
Shipping: By sea, by air or express delivery
Company Information
Guangzhou BM Marking Machine Manufacturing Co., Ltd, a professional marking machine manufacturer, we only take the best reliable marking machine solutions.
Otherwise, we provide OEM and ODM service. We are not only having the sales department, but also have the quality and R&D department, in order to ensure we have competitive products in the market. BM marking is a company full of energy, creativity and cooperation. Our goal is provide better services and better products for our customers, in order to satisfy more and more factories production needs and requirements. You can find more information of us at: //www.bmmarking.com/.
FAQ
1.Q: Why choose BM Marking Machine?
A: Congratulations for BM Marking Machine had supplied its service for following typical and critical customers during development:
1). Chinese Academy of Sciences Guangzhou Branch.
China Top Official Academic Institutions - authority for Science in China.
2). Full-Automation Production Line.
Our machine can fully satisfied the extrodinary high requirements for the Full-Automation Production Line.
3). Moulding and Die Steel Factory Customer
For special harden steel, our machine can working long time and always have deep marking depth.
2. Q: Where is your factory located? How can I visit there?
A: A: Our factory is located in Guangzhou City, Guangdong Province, China. Company name: Guangzhou BM Marking Machine Manufacturing Co.,Ltd.
All of our clients, from home or abroad, are warmly welcome to visit us.
3.Q: What is your Skype and Whatsapp for this Computer Controlled Cylinder Pipe Pneumatic Dot Peen Marking Machine?
A: Skype: bmmarking
Whatsapp: +86 150 1338 6210
