sanitary class Vertical 304 316 Stainless Steel beer beverage soft drink wine fermentation tank
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60378897916):
Product Overview
Description
Product Description

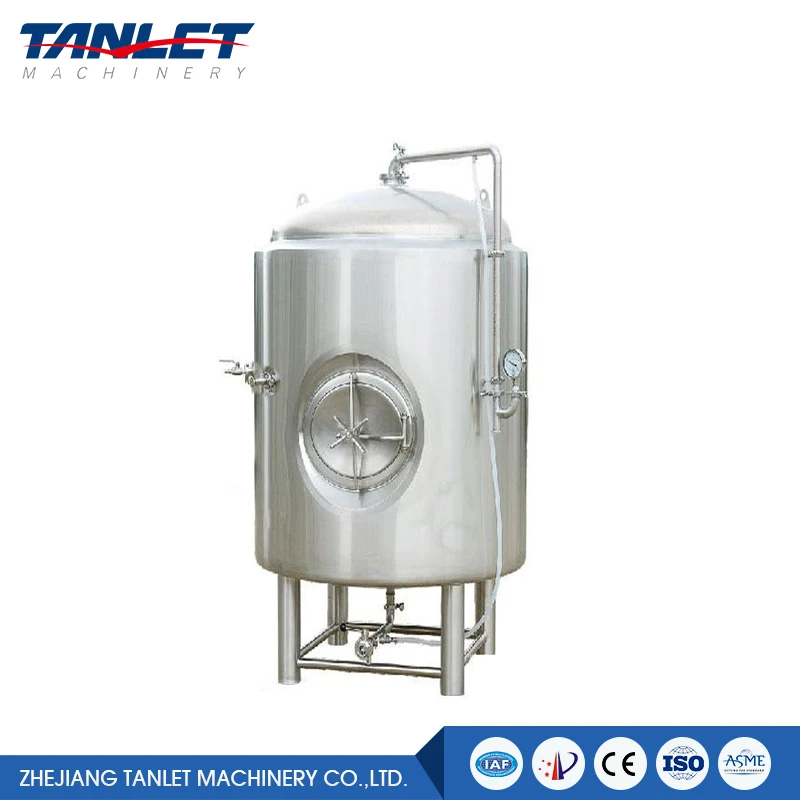

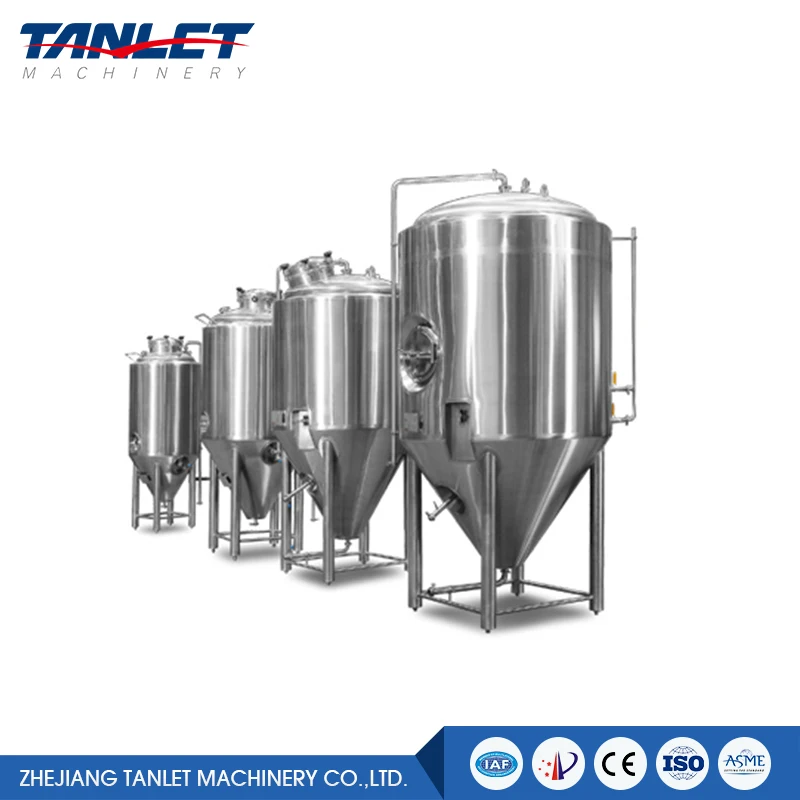

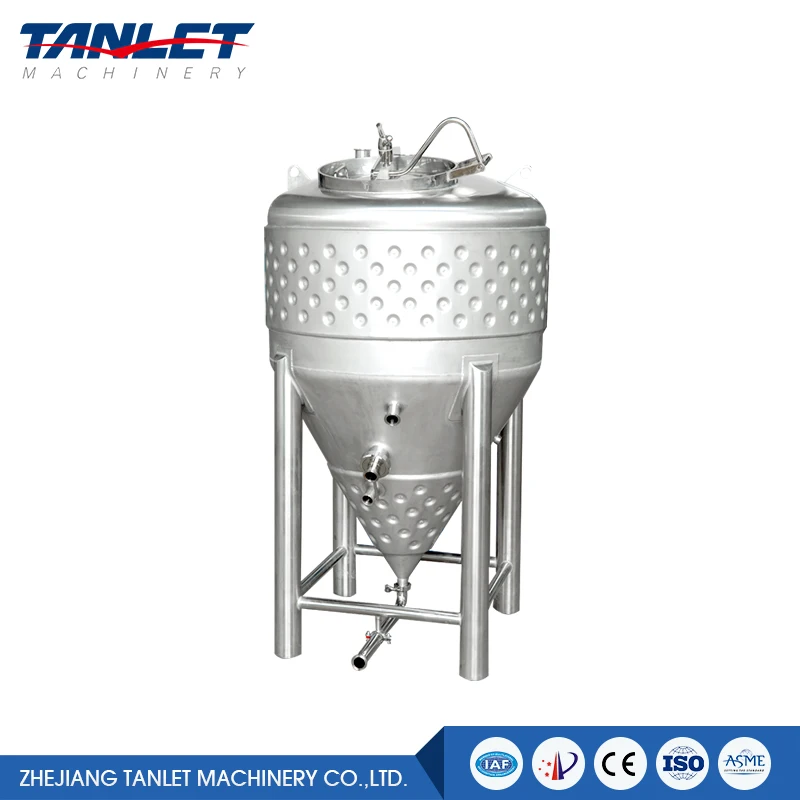

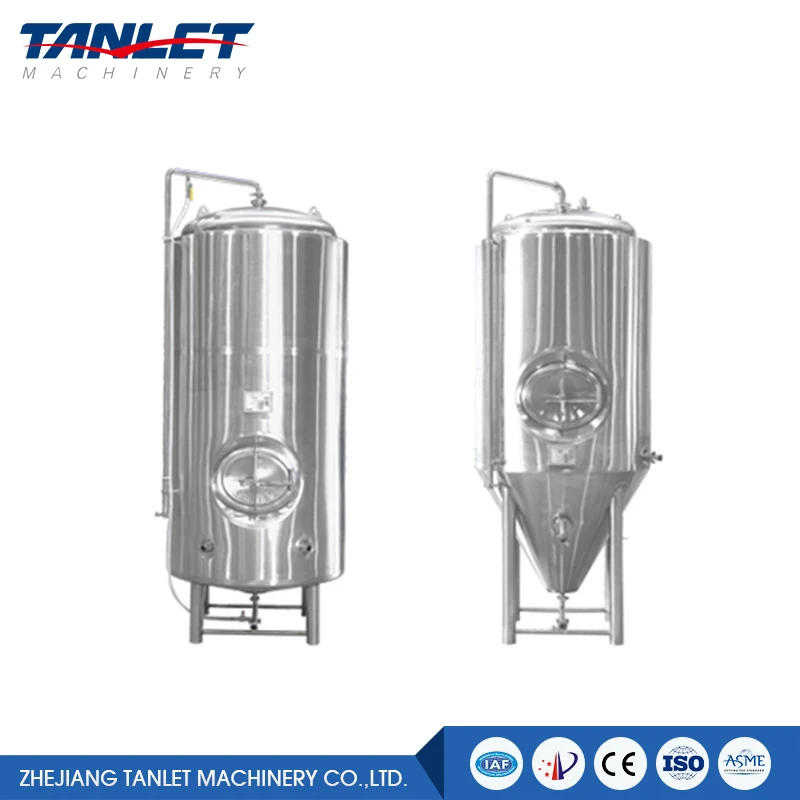

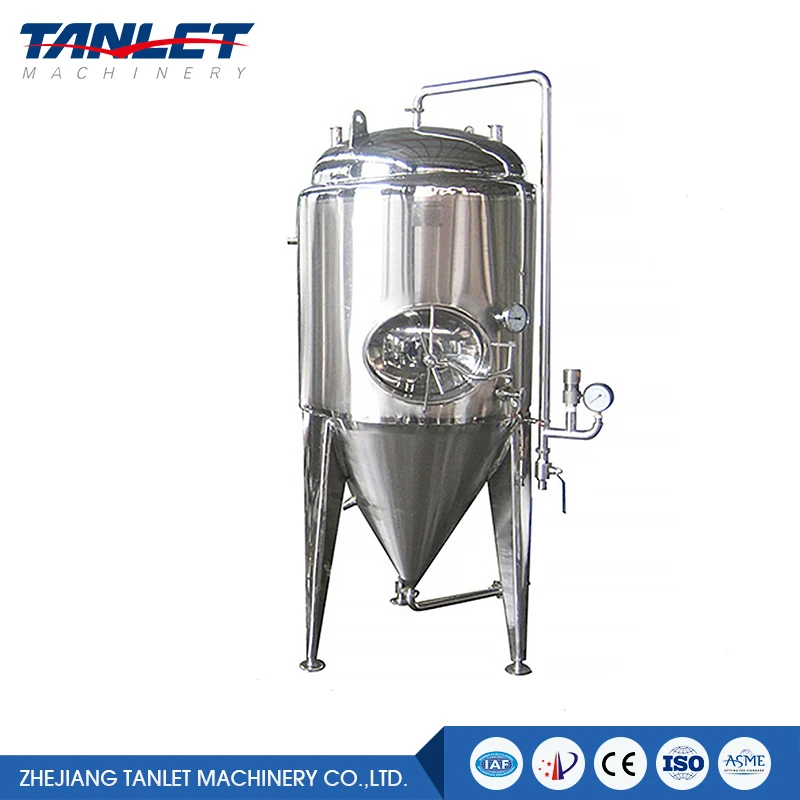

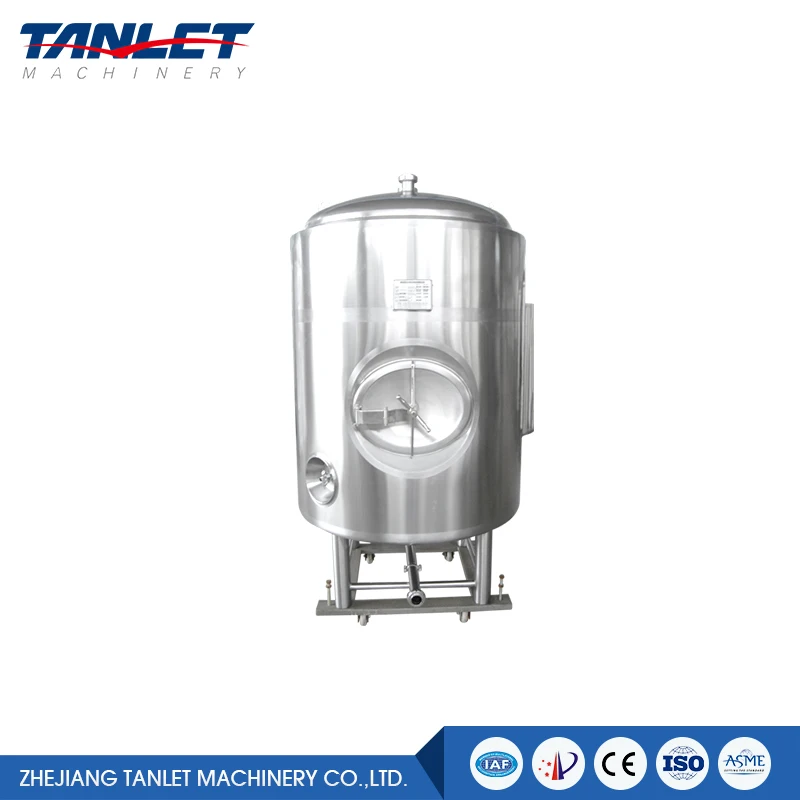

sanitary class Vertical 304 316 Stainless Steel beer beverage soft drink wine fermentation tank
The vertical storage tank is applicable to the storage of Chinese medicine, food, chemical industry
and liquid material. It has advantages of high efficiency and convenient
operation. To ensure complete cleaning, it is equipped with auto-rotating cleaning
sprinkler. The materials are SUS304 or SUS316L. The surface adopts the treatment
of polishing or glass painting according to GMP standard.
Main Parameter
| Specs (L) | D (mm) | D1 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H (mm) | DN (mm) |
| 200 | 700 | 800 | 400 | 800 | 235 | 1085 | 32 |
| 250 | 800 | 900 | 400 | 850 | 235 | 1135 | 32 |
| 300 | 800 | 900 | 460 | 910 | 235 | 1195 | 32 |
| 500 | 900 | 1000 | 640 | 1140 | 270 | 1460 | 40 |
| 600 | 900 | 1000 | 830 | 1130 | 270 | 1450 | 40 |
| 800 | 1000 | 1100 | 880 | 1430 | 270 | 1750 | 40 |
| 1000 | 1100 | 1200 | 880 | 1480 | 270 | 1800 | 40 |
| 1200 | 1100 | 1200 | 1100 | 1700 | 270 | 2020 | 40 |
| 1500 | 1200 | 1300 | 1150 | 1800 | 270 | 2120 | 40 |
| 2000 | 1400 | 1500 | 1220 | 1970 | 280 | 2300 | 40 |
| 2500 | 1500 | 1600 | 1150 | 1980 | 280 | 2310 | 40 |
| 3000 | 1600 | 1700 | 1220 | 2120 | 280 | 2450 | 40 |
| 4000 | 1800 | 1900 | 1250 | 2250 | 280 | 2580 | 40 |
| 5000 | 1900 | 2000 | 1500 | 2550 | 320 | 2950 | 50 |
| 7000 | 2200 | 2300 | 1450 | 2650 | 320 | 3050 | 50 |
| 8000 | 2200 | 2300 | 1750 | 2950 | 320 | 3350 | 50 |
