HVP 16 high voltage alternator rectifier diode for High cycle industrial micro wave

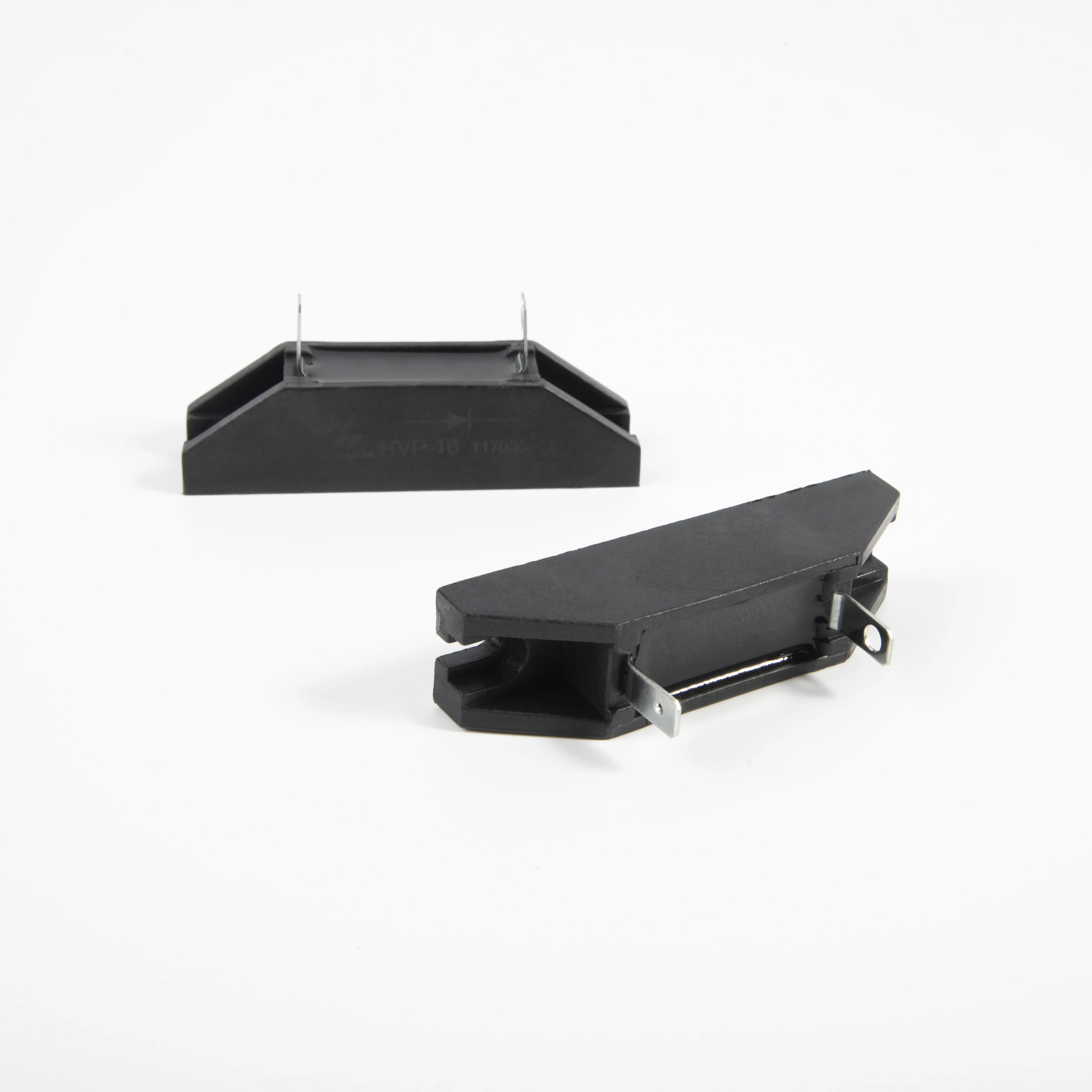

HVP-16 high voltage alternator rectifier diode for High cycle industrial micro wave
HVP-16 high voltage alternator rectifier diode for High cycle industrial micro wave
HVP-16 high voltage alternator rectifier diode for High cycle industrial micro wave

HVP 16 high voltage alternator rectifier diode for High cycle industrial micro wave

Share on (60379032851):


Price:

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tProduct Descripition \t\t\t\t\t\t\t

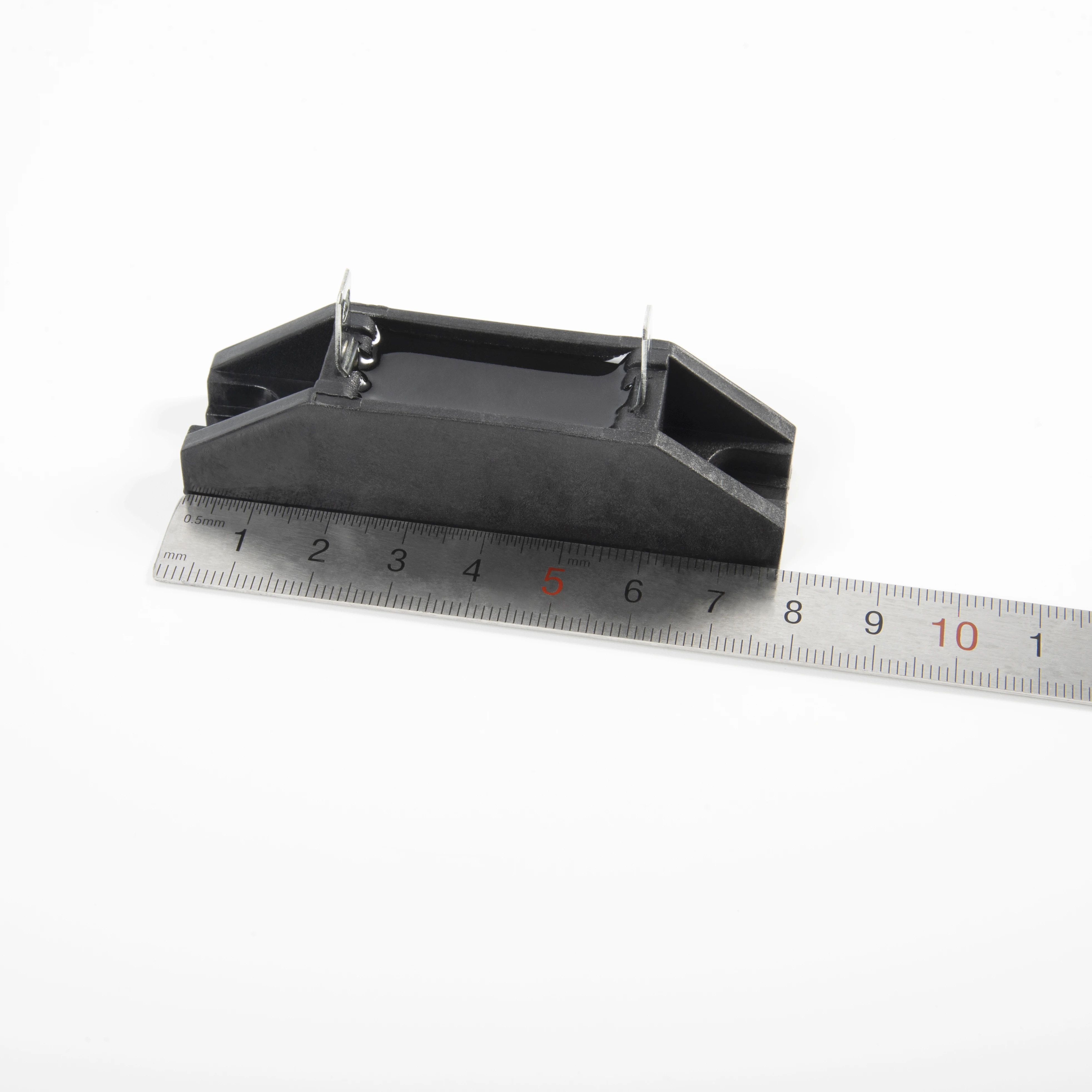

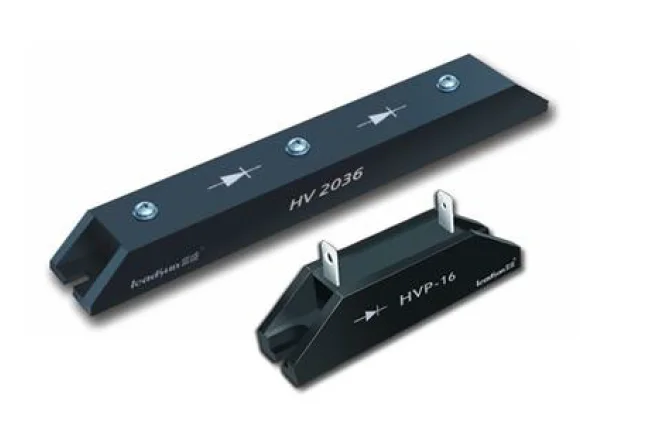

HVP-16 series High voltage rectifier block adopts high reliable mesa-structure and diffusion craftwork, epoxy resin molded in a compact structure.

Feature:

Avalance characteristic

More sizes available

Vacuum molded, non-corrosive epoxy resin case

Tj: -40℃~+120℃

Application:

High voltage rectifier used in electrostatic cleaning

High voltage testing equipment

General purpose high voltage rectifier

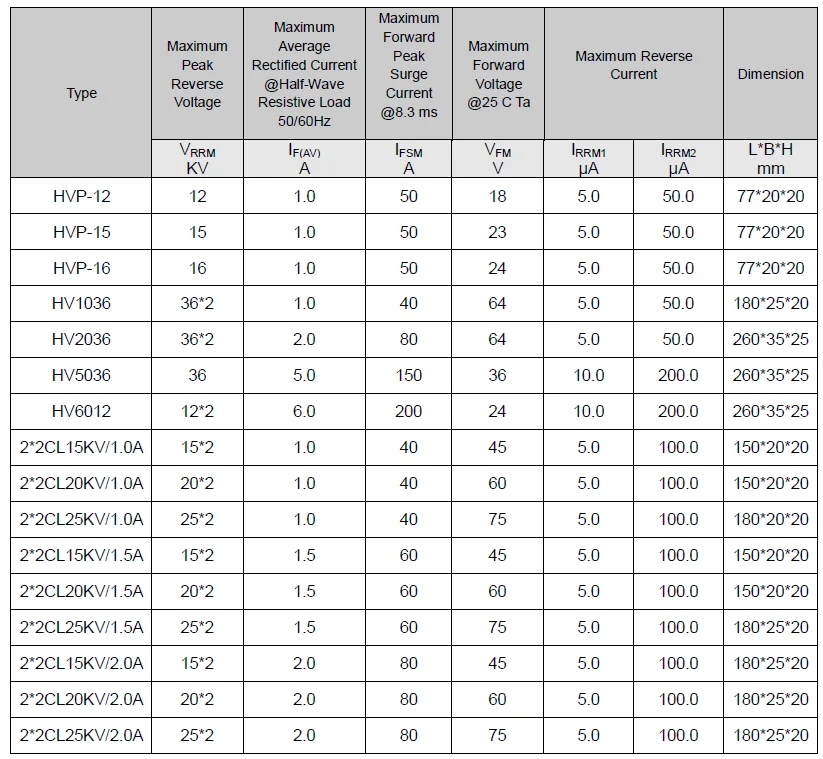

Extreme (Absolute Maximum Rating)

\t
Item
\t
Symbol
\t
Unit
\t
Conditions
\t
Voltage
\t
Repetitive Peak Reverse Voltage
\t
VRRM
\t
KV
\t
Ta=25℃  IR=0.5μA
\t
16
\t
Peak working Reverse Voltage
\t
VRWM
\t
KV
\t
Ta=25℃  IR=0.5μA
\t
16
\t
Non-Repetitive Peak Reverse Voltage
\t
VRSM
\t
KV
\t
Ta=25℃  IR=0.5μA
\t
17.5
\t
Average Forward Current
\t
Io
\t
A
\t
50HZ Half-sine Wave, Resistance load @Tbreak=75℃
\t
1.0
\t
Surge Forward Output Current
\t
IFSM
\t
A
\t
0.01S @ Half-Sine Wave 50HZ
\t
30
\t
Operating Ambient Temperature
\t
Ta
\t
℃
\t

\t
-40~120
\t
Junction and Storage Temperature
\t
Tstg
\t
℃
\t

\t
-40~120

Electrical Characteristics (Ta=25℃)

\t
Forward Peak Voltage
\t
VFM
\t
V
\t
@Ta=25℃  IF=1.0A
\t
16.0
\t

Peak Reverse Current
\t
IRRM1
\t
μA
\t
@Ta=25℃  VRM=VRRM
\t
2.0max
\t
IRRM2
\t
μA
\t
@Ta=100℃  VRM=VRRM
\t
10.0max
\t\t\t\t\tRelated Products \t\t\t\t
\t\t\t\t\tPacking & Shipping \t\t\t\t

Packing: 200 pcs in one bag, 25 bags in one carton

\t\t\t\t\tCertifications \t\t\t\t
\t
Patent
\t
No.
\t
Industrial waste gas treatment of high frequency high voltage power supply
\t
ZL 2013 2 0269785.3
\t
EHV adjustable ventilation load device
\t
ZL 2012 2 0096537.9
\t
High frequency high power pulse laser power supply
\t
ZL 2012 2 0099007.x
\t
Combined PCB high-voltage load device
\t
ZL 2012 2 0098995.6
\t
High frequency voltage multiplier assembly
\t
ZL 2012 2 0099008.4
\t
Dry type high frequency high voltage transformer
\t
ZL 2012 2 0098417.2
\t
Power resistive load test device
\t
ZL 2012 20096569.9
\t
High power high voltage plug
\t
ZL 2012 2 2299106.8
\t\t\t\t\tCampony & Services \t\t\t\t

·Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports

 including design,operation, adjustment and failure analysis.
·Leadsun has latest standard product assembly series, including worldwide popular product series, and special cusomized

 series. There are thousands of types and models for your choosing
·Leadsun technical center record every order and product characteristics; sales department focus on market development

 tendency, will supply you full service.
·leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success.

 We keep focusing on product innovation and development to stay ahead in the industry.
·Year 2014, Leadsun will move to new industrial cener,new platform, new hope,dream starts here.
