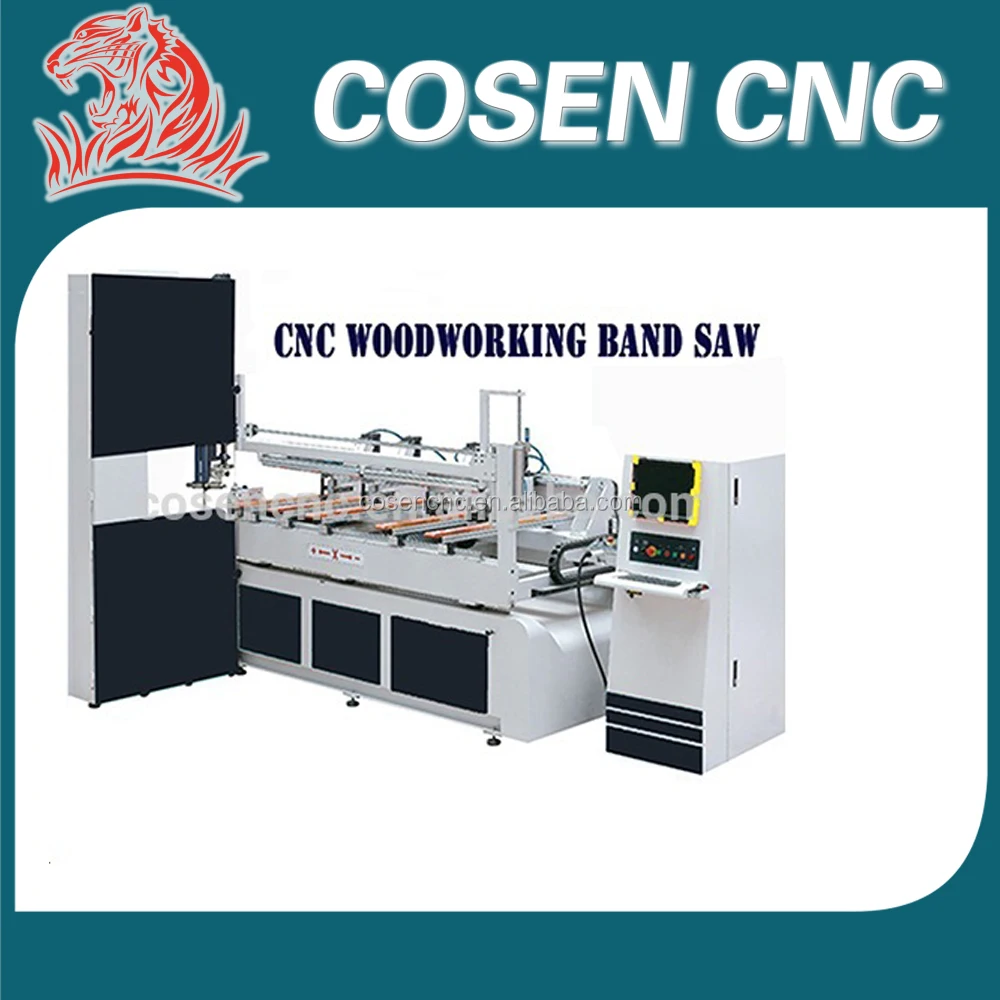

CNC CURVE BAND SAW CNC Scroll Saw Cnc Wooden Band Saw

Product Overview

Description

CNC CURVE BAND SAW CNC Scroll Saw Cnc Wooden Band Saw

 Product details

1.Characteristics

(1).the processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.

(2).Save the timber, processing range is wide, automatic programming, theoperation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.

(3).This machine no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide, the width is from 10 mm to 20 mm, scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.

(4).Few area for this machine in the workshop, processing range is wide, but with high efficiency.
(5).It is an affordable and economy machine, it can solve the curve processing for hundreds of users.
(6).The open feeding platform is more convenient, and the sawing efficiency is higher. Strong cylinder fixtures, the clamping device is reliable, clamping rang e is wide, it can saw the multi-layer sheet synchronously.
(7).The saw clamping device can enhance its precision.
(8).Advanced numerical control system with special CAD software, automatic discharging, it can save the timber, and it is also easy to learn and operate.

2. Applications:

Chair legs,chair backs,dinning table,hatstand,desk,bed,home decorations etc

3.Brand Marks:

COSEN CNC® - The first brand of CNC Curve Band Saw in China

COSEN CNC® brand rely on the Institute of COSEN. Nowadays,we have established lots of service network station across the country through decade of years effort

4.Parameters

Mode	CNC1212	CNC1225
Max size of work-piece	1220*1220mm	1220*2500mm
Max working thickness	250mm	250mm
Saw wheel diameter	600mm	600mm
Saw length	25*0.9*4470	25*0.9*4470
Min cutting radius	R80 or R95mm	R80 or R95mm
Saw table jaws deepth	760mm	760mm
Saw tilting	±90°	±90°
X-Axis Motor	15n/m	15n/m
Y-Axis Motor	10n/m	10n/m
Z-Axis Motor	6n/m	6n/m
Spindle motor	4kw	4kw
X-Axis Maximum Speed	40m/min	40m/min
Y-Axis Maximum Speed	40m/min	40m/min
Z-Axis Maximum Speed	180 °/sec.3	180 °/sec.3
Processing Speed	1-25n/m	1-25n/m
Return speed	6-40n/m	6-40m/min
Air pressure	0.6-0.8mpa	0.6-0.8mpa
Dust outlet diameter	Φ100	Φ100
Net weight	2700kg	3000kg
Overall dimensions	2000*1400*2300mm	2000*1400*2300mm
	2400*2350*1500mm	3800*2350*1500mm

5.Warranty:

(1). The engineers of the original factory are available to do all kinds of

the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.

(2). we also  offer 24 hours heart to heart service on-line or mobile.

(3).Your technologists could attend the training in our factory and on-line which be free of chaege

(4).The warrantyof CNC Curve Band Saw  is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

(5). We offer you best agent price and distributer price for our further cooperation  .

(6). we can offer special custom-made according to your request.

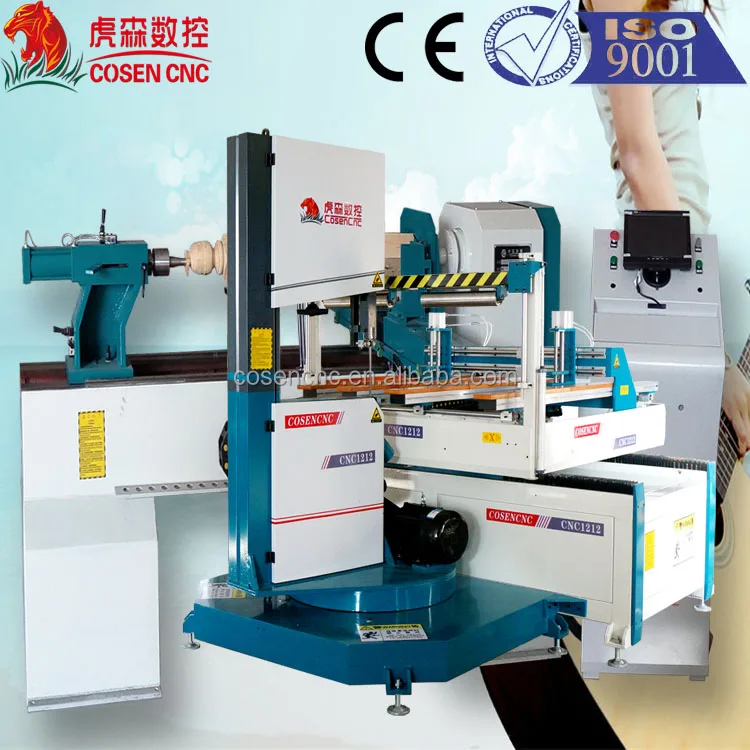

6.Pictures of the cnc curve saw
