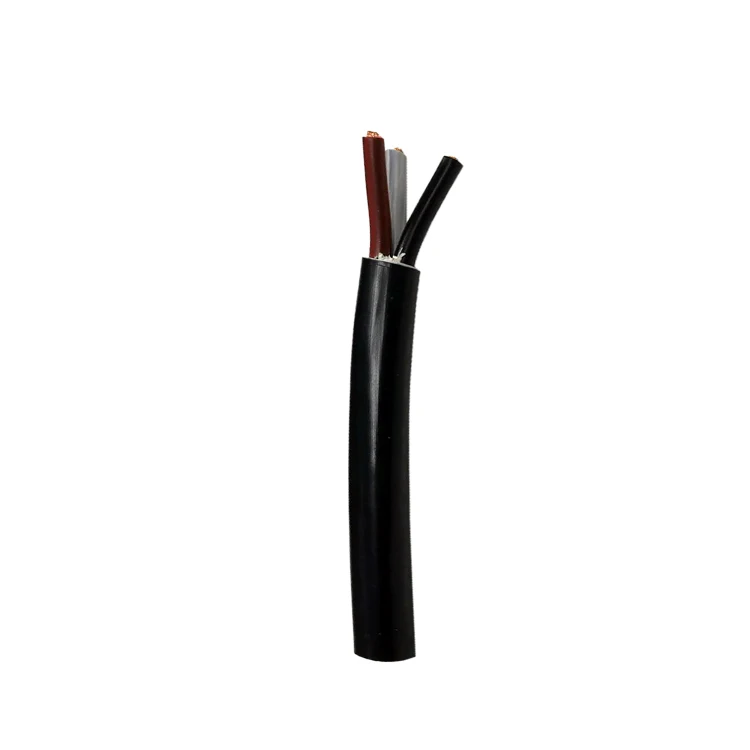

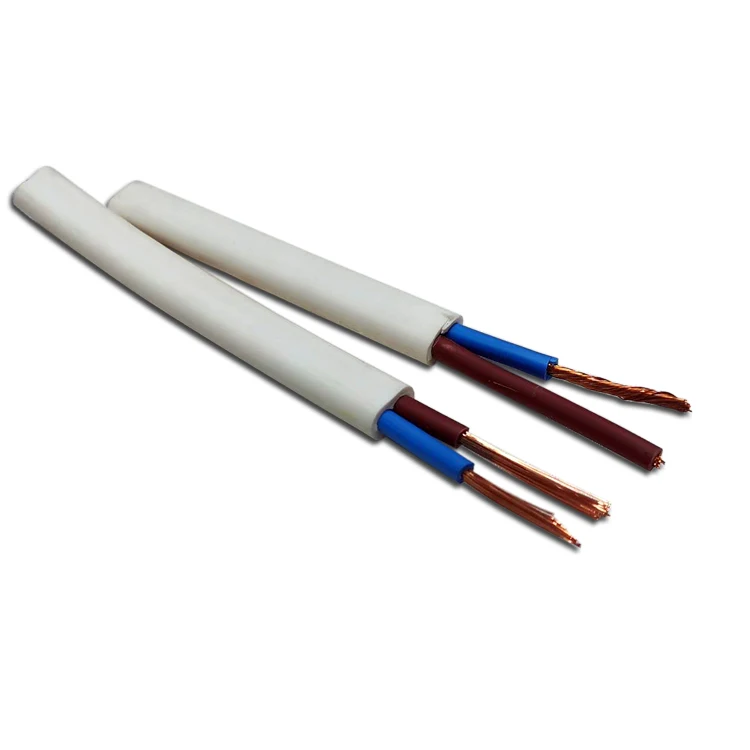

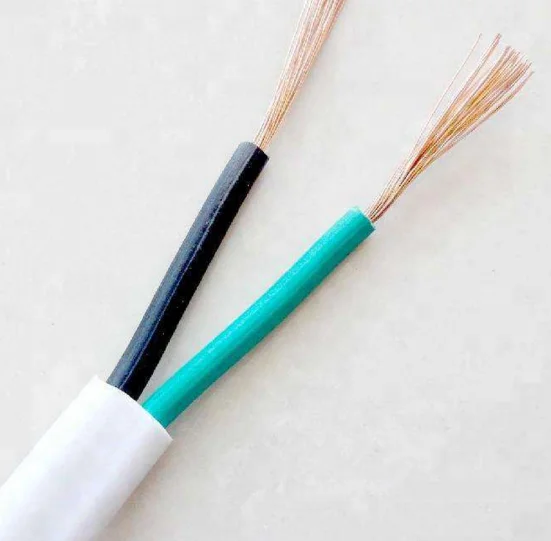

450/750V AS/NZS 5000.2 flat pvc cable bvvb
Product Description
Detailed Product Description
Flat Twin & Earth TPS Cable
1 structure:
--Standard: AS/NZS5000.2:2006
--Voltage: 450/750V
--Conductor: Annealed Copper wire
--Insulation: V90-PVC
--Sheath: 3V90-PVC
--Max Operating Temp.: 75 °C continuous
2 Application:
Fixed installation in dry or damp areas for domestic and light industrial wiring.
3 Standard:
Standard: AS/NZS5000
Conductor: BS 6360 Class 1 or 2, Stranded/solid copper wire
Insulation: BS 7655 TI 1 PVC compound
Operating Temperature: max 70C
Min Bending radius: 6D
Rated voltage: 450V/750V
Nominal sectional (size): 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm2, 10mm, 16mmSq.
Model
Flat TPS 450/750 V 2/C | ||||
Size(mm2) | Conductor Structure (No./mm) | Overall Diameter (mm) | Cable Weight (kg/km) | |
1 | 1/1.13 | 6.7 x 4.3 | 55 | |
1.5 | 7/0.50 | 7.4 x 4.7 | 70 | |
2.5 | 7/0.67 | 9.0 x 5.5 | 105 | |
4 | 7/0.85 | 10.6 x 6.5 | 165 | |
6 | 7/1.04 | 11.8 x 7.1 | 215 | |
10 | 7/1.35 | 14.4 x 8.5 | 350 | |
16 | 7/1.70 | 16.7 x 9.7 | 435 | |
Flat TPS 450/750 V 2/C+E | ||||
1 | 1/1.13 | 4.6 x 9.4 | 90 | |
1.5 | 7/0.50 | 4.7 x 10.2 | 110 | |
1.5 | 1/1.38 | 4.7 x 9.9 | 115 | |
2.5 | 1/1.78 | 5.5 x 12.1 | 175 | |
2.5 | 7/0.67 | 5.5 x 12.4 | 165 | |
4 | 7/0.85 | 6.5 x 14.0 | 200 | |
6 | 7/1.04 | 7.1 x 15.2 | 285 | |
10 | 7/1.35 | 8.5 x 18.6 | 425 | |
16 | 7/1.70 | 9.7 x 21.4 | 610 | |
Flat TPS 450/750 V 3/C | ||||
1 | 1/1.13 | 9.1 x 4.3 | 75 | |
1.5 | 7/0.50 | 10.2 x 4.7 | 100 | |
2.5 | 7/0.67 | 12.4 x 5.5 | 160 | |
4 | 7/0.85 | 14.7 x 6.5 | 245 | |
Flat TPS Cable 450/750 V 3/C+E | ||||
1 | 1/1.13 | 11.5 x 4.3 | 95 | |
1.5 | 7/0.50 | 12.9 x 4.7 | 125 | |
2.5 | 7/0.67 | 15.9 x 5.5 | 200 | |
4 | 7/0.85 | 18.1 x 6.5 | 280 | |
6 | 7/1.04 | 20.0 x 7.1 | 365 | |
10 | 7/1.35 | 24.5 x 8.5 | 545 | |
16 | 7/1.70 | 28.7 x 9.9 | 830 | |
Flat TPS 450/750 V 4/C | ||||
1 | 1/1.13 | 11.5 x 4.3 | 95 | |
1.5 | 7/0.50 | 12.9 x 4.7 | 125 | |
2.5 | 7/0.67 | 15.9 x 5.5 | 220 | |
4 | 7/0.85 | 18.9 x 6.5 | 320 | |
Detailed Product Display
