directly factory supply export euro standard Smooth / Cloth Surface Industry Rubber High Pressure Hydraulic Hose

Product Overview

Description

Smooth / Cloth Surface Industry Rubber High PressureHydraulic Hose



About us:

Transportide industrial limited is one of the largest manufacturers of hydraulic hoses, conveyor belts and related rubber products in the world. Established in 1989, Now we have seven production lines, four distribution warehouses and products involving seventy-five categories and more than one thousand types.

In 2010, Transportide has established two new production facilities for greater production capacity and further reduce the manufacturing cost. We will never stop our efforts to offer our customers with best products and best prices.

Quality assurance has been constantly prompting the growth of our business. Our products are currently sold to North America, Europe, Japan and all over the world.

Trust us, "We are honest, we are professional!"

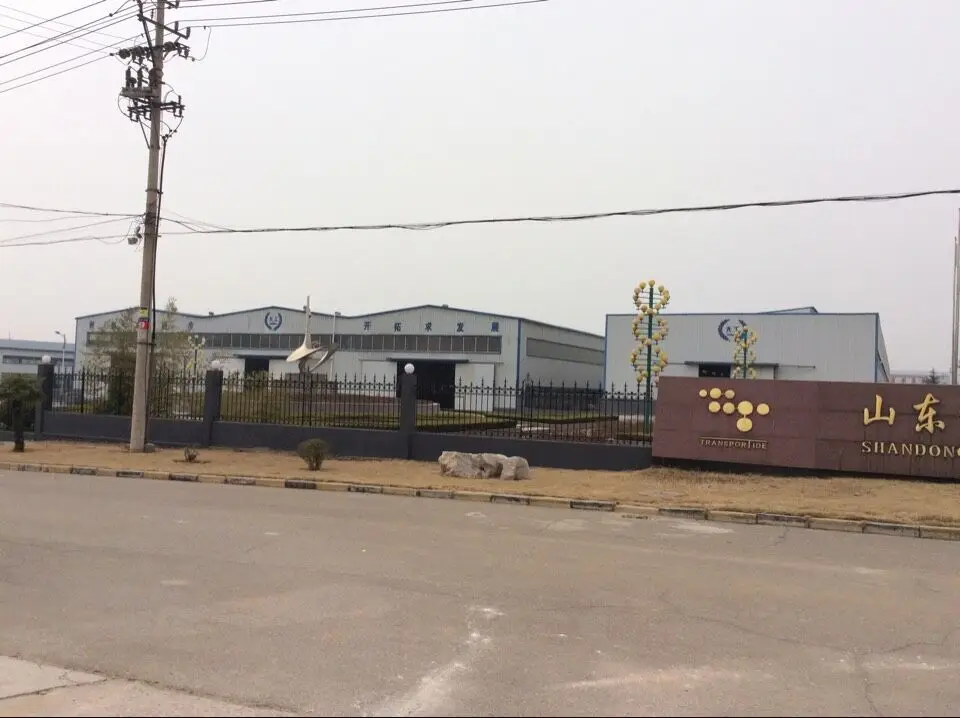

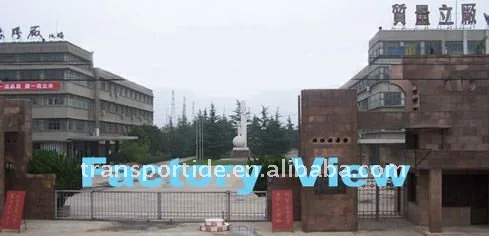

Our factory,workshop,facilities:

Specification:



DIN EN853 1SN :



Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight
Inch	Mm	Mm	Mm	Bar	Psi	Bar	Psi	Mm	Kg/m
3/16	4.8	9.5	11.8	250	3625	1000	14600	90	0.18
1/4	6.4	11.1	13.4	224	3250	900	13050	100	0.23
5/16	7.9	12.7	15	215	3120	850	12320	115	0.27
3/8	9.5	15.1	17.4	180.0	2610	720	10440	130	0.33
1/2	12.7	18.3	20.6	160.0	2320	640	9280	180	0.41
5/8	15.9	21.4	23.7	130.0	1885	520	7540	200	0.47
3/4	19.0	25.4	27.7	105.0	1525	420	6000	240	0.61
1	25.4	33.3	35.6	88.0	1275	350	5200	300	0.94
11/4	31.8	40.5	43.5	63.0	915	250	3600	420	1.2
11/2	38.1	46.8	50.6	50.0	725	200	2900	500	1.6
2	50.8	60.2	64	40.0	580	160	2320	630	2.2



DIN EN 853 2SN

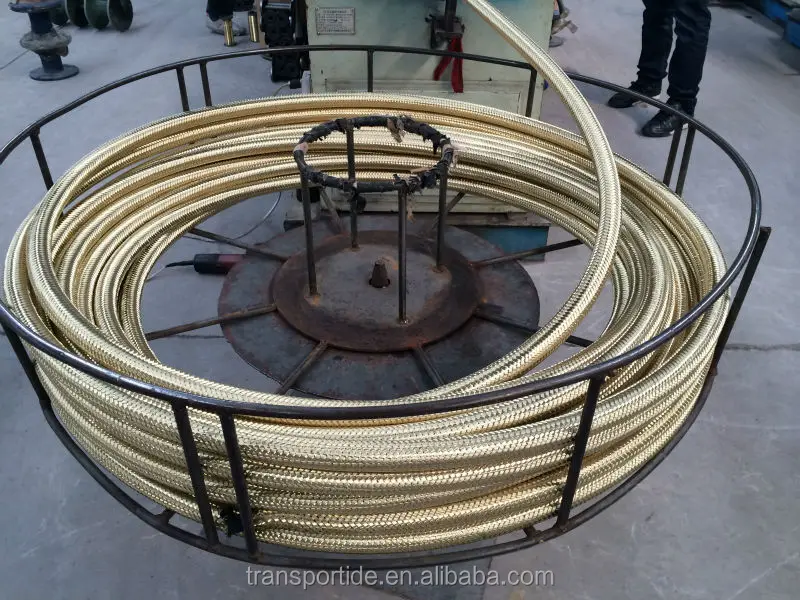

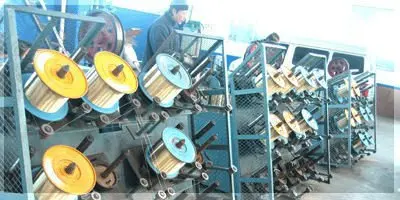

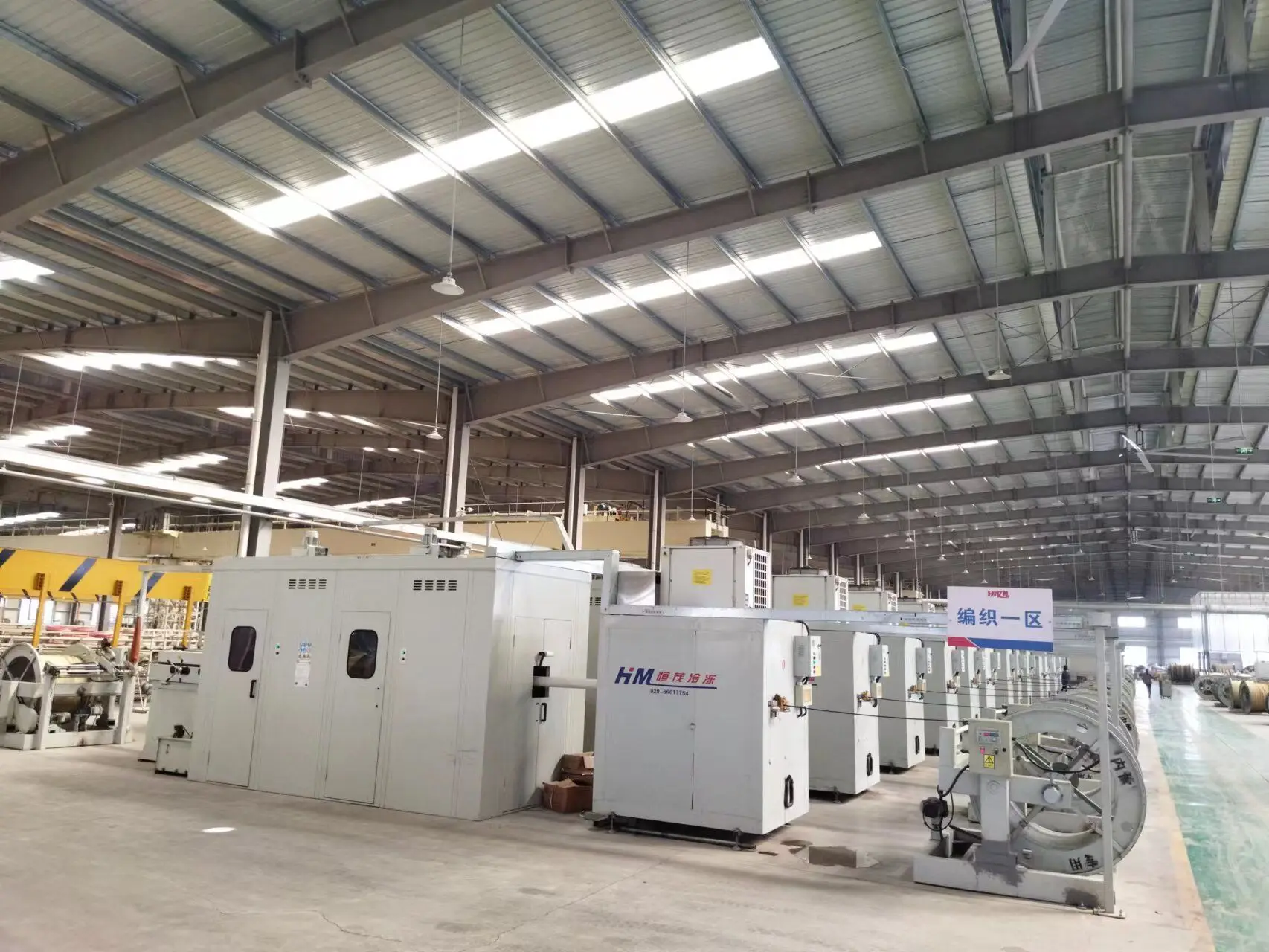

Producing lines:

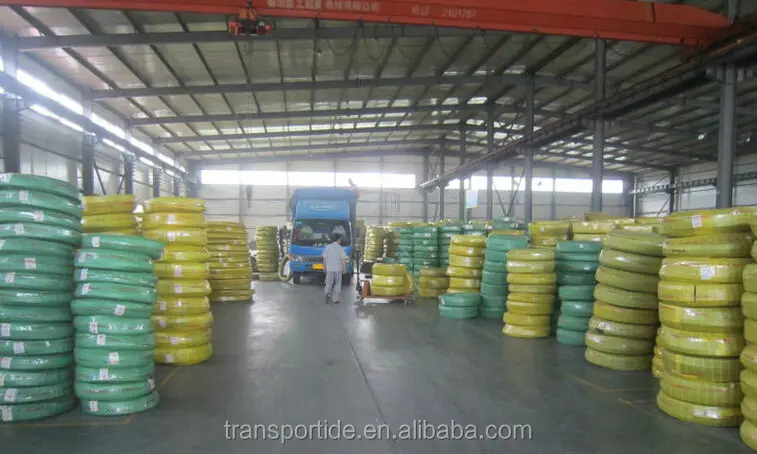

Packing details:

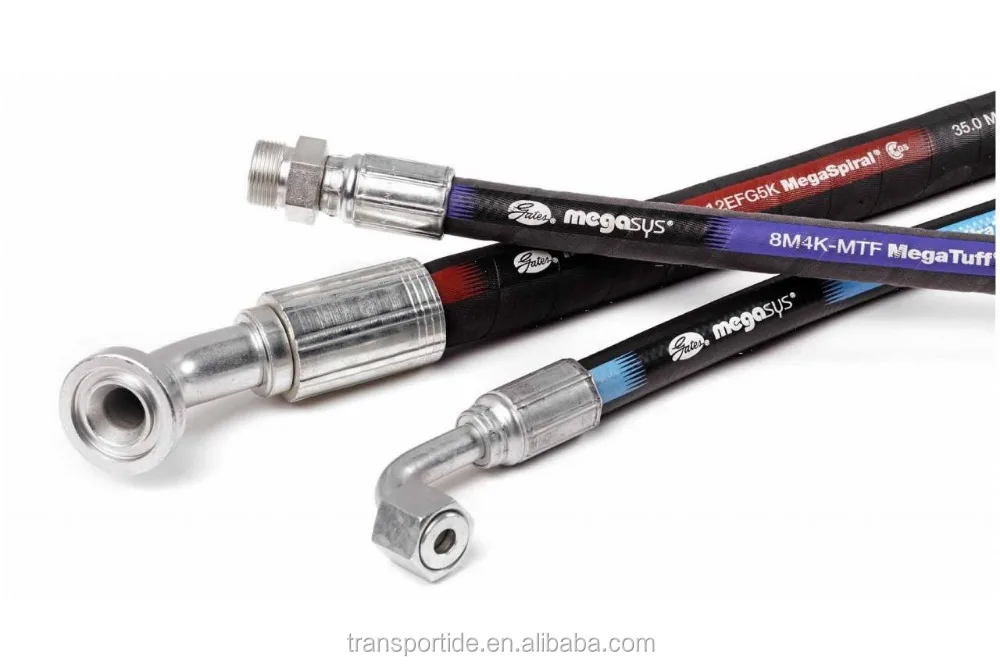

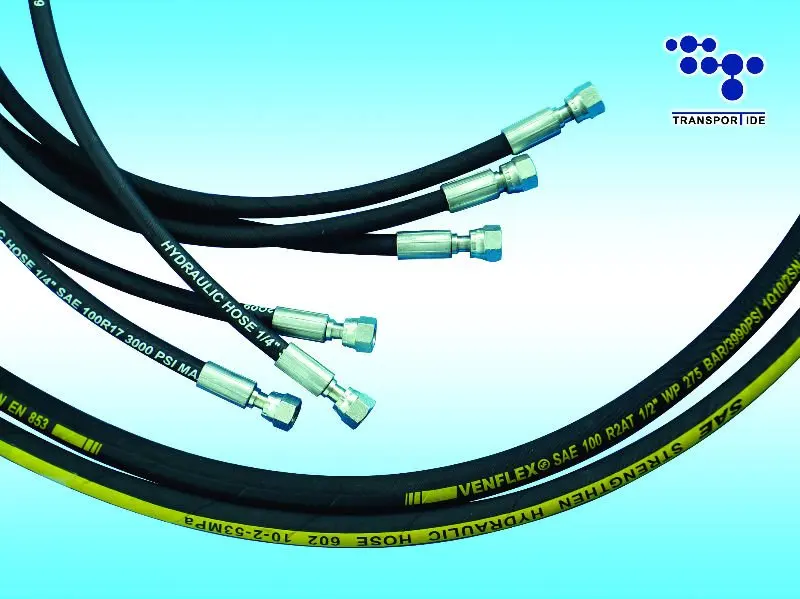

Product photo:
